Three Gabled Contemporary Home Plan Under 2750 Square Feet with Home Office
Heated S.F.
2,669
Beds
3
Baths
2.5
Stories
2
Cars
2
What's Included
Plan Details
  • Three gable ends - one filled with windows on both floors, the middle one giving views into the stairs and the smallest one on the right letting light into a second floor bedroom - give this contemporary home plan great curb appeal. Inside, it gives you 3 beds, 2.5 baths and 2,669 square feet of heated living.
  • A home office located off the foyer gives you a great work from home space.
  • The back of the home is open from the great room with fireplace across to the kitchen with massive island and large walk-in pantry. French doors in the great room take you to an uncovered patio.
  • All four bedrooms are located upstairs, as well as laundry and a loft area looking down upon the foyer above.
What's Included
  • Cover Sheet with plan info
  • General notes - Note: codes will not include local state adopted amendments
  • Fully dimensions and detailed floor plans
  • Elevations
  • Building cross section
  • Roof Plan
  • Details
  • Window Schedule
  • Original Structural plan FOR REFERENCE ONLY
What's Not Included
  • Architectural or Engineering Stamp  - handled locally when required
  • Site plans - handled locally - handled locally when required
  • Mechanical Drawings - handled locally when required
  • Plumbing Drawings  - handled locally when required
  • Electrical Drawings  - handled locally when required
  • Energy Calculations  - handled locally when required
  • Foundation and Framing plans   - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Three Gabled Contemporary Home Plan Under 2750 Square Feet with Home Office

  • 2,669

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

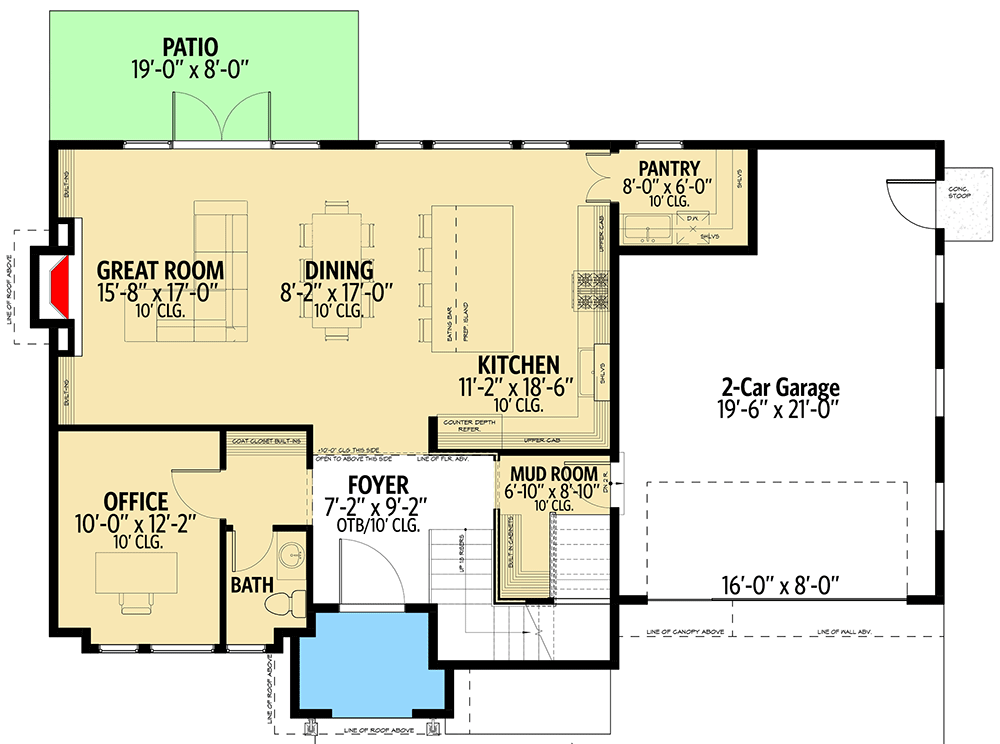

  • Main Level

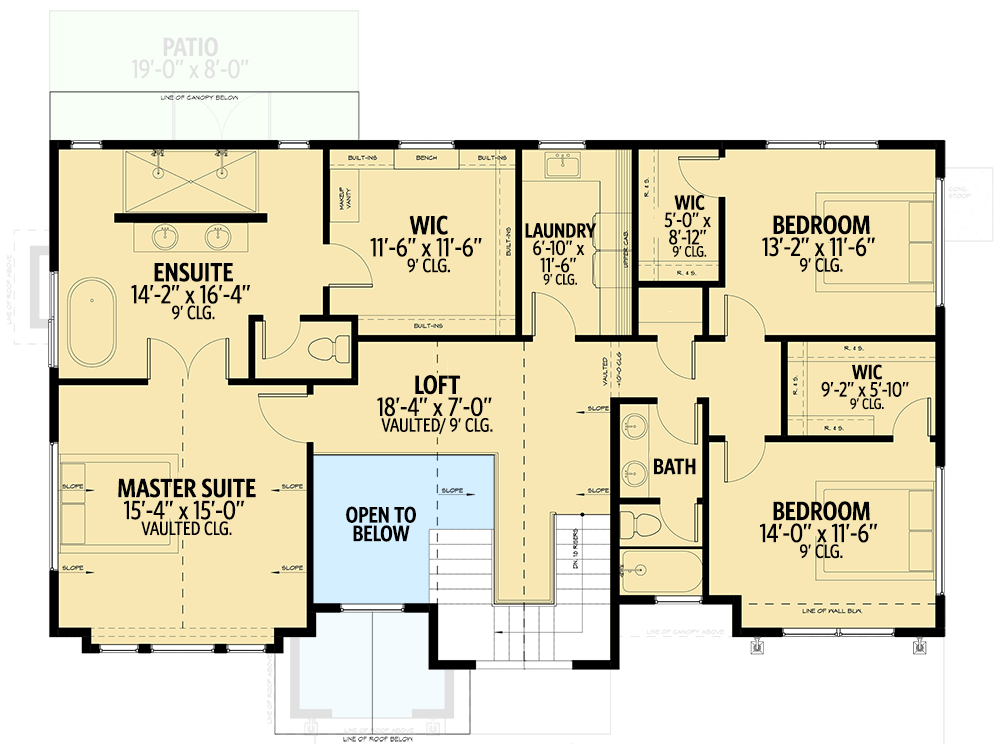

  • 2nd Floor
