Plan 530021UKD
Tiny House or One Bedroom Guest House
Heated S.F.
1,176
Beds
1
Baths
1.5
Stories
2
What's Included
Plan Details

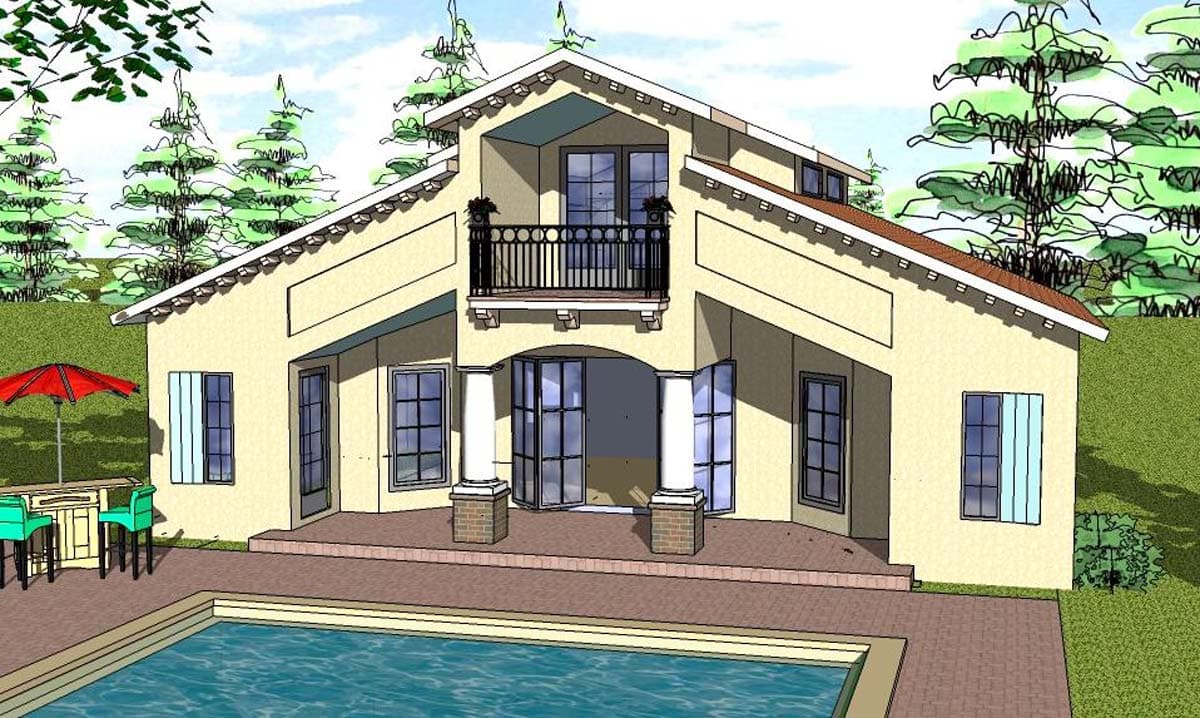

  • With its graceful roof lines, this Tiny house plan can function as guest quarters or tiny house living.
  • All the basics are there in one big open layout.
  • A vaulted ceiling expands the feel of the kitchen and dining area.
  • The bedroom is large with double windows at one end.
  • Spiral stairs lead to a second floor loft with a large balcony.
What's Included

  • Title Sheet -  Isometric of Front Elevation
  • Foundation Plan ‐ shows the foundation plan and details.  ¼” = 1’-0
  • Floor Plan ‐ shows the placement of interior walls and the dimensions for rooms, doors, windows, stairways, etc. of each level of the house.  ¼” = 1’-0 scale
  • Exterior Elevations ‐ shows the front, rear and sides of the house, including exterior materials, details, applicable dimensions and roof pitches.  ¼” = 1’-0
  • Building Cross Section ‐ shows details of the house as though it were cut in slices from the roof to the foundation. The cross sections shows the construction of the home, insulation, flooring and roofing.
  • Interior Elevations ‐ show the details of cabinets such as those found in the kitchen, bathroom and utility room, fireplaces and other special interior/exterior features.
  • Roof Plan ‐ provides a bird’s eye view of the roof's valleys, ridges and dormers.
  • Roof Framing Plan - provides guideline for rafters, ridges, hip framing
  • Electrical Plan ‐ shows the suggested locations for fixtures, outlets, switches, etc.
  • Notes & Details ‐ per IRC 2015

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Tiny House or One Bedroom Guest House

  • 1,176

    Heated s.f.

  • 1

    Beds

  • 1.5

    Baths

  • 2

    Floors

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 1,176 sq. ft.
  • 1st Floor: 1,013 sq. ft.
  • 2nd Floor: 163 sq. ft.

Dimensions

  • Width: 40' 0"
  • Depth: 32' 0"
  • Max ridge height: 24' 0"

Beds/Baths

  • Bedrooms: 1
  • Full bathrooms: 1
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 5 on 12
  • Framing Type: Stick
All house plans are copyright ©2024 by the architects and designers represented on our web site

Tiny House or One Bedroom Guest House

  • 1,176

    Heated s.f.

  • 1

    Beds

  • 1.5

    Baths

  • 2

    Floors

Tiny House or One Bedroom Guest House

  • 1,176

    Heated s.f.

  • 1

    Beds

  • 1.5

    Baths

  • 2

    Floors

Plan Details

Square Footage Breakdown

  • Total: 1,176 sq. ft.
  • 1st Floor: 1,013 sq. ft.
  • 2nd Floor: 163 sq. ft.

Dimensions

  • Width: 40' 0"
  • Depth: 32' 0"
  • Max ridge height: 24' 0"

Beds/Baths

  • Bedrooms: 1
  • Full bathrooms: 1
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 5 on 12
  • Framing Type: Stick
