Plan 66372WE

Top of the Line Florida House Plan

6,833 5 7 2 3
Pageloader

Top of the Line Florida House Plan

Plan 66372WE

  • 6,833

    Heated s.f.

  • 5

    Beds

  • 7

    Baths

  • 2

    Stories

  • 3

    Cars

  • Every luxurious amenity has been added to this top of the line Florida house plan, for the ultimate in luxury.
  • The special ceiling treatments are stunning and every room in the house gets one, even the wet bar area.
  • Both the formal and informal living areas have that wonderful open layout that today's families demand.
  • You can relax as well as entertain in the beautiful outdoor covered lanai that comes with a summer kitchen and handy half bathroom.
  • Or hide away in the elegant study or the master sitting room area.
  • A long private hallway leads you back into the amazing master suite with its two enormous walk-in closets, vaulted ceiling and stunning bathroom that would rival any spa.
  • Take the residential elevator up to the spacious second floor that is no less luxurious.
  • Hang out in the loft area that comes with a wet bar or retire to one of the four bedrooms on this floor - each one with its own covered balcony.
  • There's even a junior master suite in case you prefer sleeping upstairs.

Elevations

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale,and Includes:
Material Labels
Floor-to-Floor Heights
Roof Slope Indicators

Floor Plans

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
Door and Window Sizes
Completely Dimensioned Floor Plan
Room Labels and Interior Room Sizes

Electrical Layouts

Building Section Markers
All Electrical Outlets, Fixtures, and Switching

*Slab Plan

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
Floor and Deck Joist Size and Spacing
Rough-in Plumbing Location (if applicable)
Mechanical Equipment Locations (if applicable)
Electrical Locations (if applicable)



Roof Design Plan

Drawn at 1/8″ to 1/4″ = 1′-0″scale, and Includes:
All Beam and Header Heights and Locations
All Hips, Gables, Ridges, and Valleys
Building Section Markers

Building Sections

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
Floor Joist Size and Spacing
Floor-to-Floor Heights
Non-Typical Plate Heights Indicated

Typical Wall Sections

Drawn at 1/8″ to 1/2″ = 1′-0″ Scale, and Includes:
All Labels Indicating Wall Construction
Foundation Wall Thickness and Reinforcing
Insulation Type and Thickness

Miscellaneous Notes and Details

Miscellaneous General Notes
Stairway details (if applicable)



*We do provide a slab plan, however, the structural foundation plan is to be provided by the structural engineer selected by your builder or yourself. This is done because our slab plan cannot anticipate the variations in soil, footings and other conditions per your specific site. We provide the design of the roof as well, however, the truss layouts need to be provided by a truss engineer or your lumber company. Your builder can provide these contacts for you.  Please keep in mind that these are additional expenses outside of the cost of the original plan that you purchase from us.


Floor Plan

Plan details



Top of the Line Florida House Plan

  • 6,833

    Heated s.f.

  • 5

    Beds

  • 7

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • Reproducible Set $5,200
  • PDF - single-use $5,200
  • CAD $5,200
  • View all purchase option online

About This Plan

  • Every luxurious amenity has been added to this top of the line Florida house plan, for the ultimate in luxury.
  • The special ceiling treatments are stunning and every room in the house gets one, even the wet bar area.
  • Both the formal and informal living areas have that wonderful open layout that today's families demand.
  • You can relax as well as entertain in the beautiful outdoor covered lanai that comes with a summer kitchen and handy half bathroom.
  • Or hide away in the elegant study or the master sitting room area.
  • A long private hallway leads you back into the amazing master suite with its two enormous walk-in closets, vaulted ceiling and stunning bathroom that would rival any spa.
  • Take the residential elevator up to the spacious second floor that is no less luxurious.
  • Hang out in the loft area that comes with a wet bar or retire to one of the four bedrooms on this floor - each one with its own covered balcony.
  • There's even a junior master suite in case you prefer sleeping upstairs.

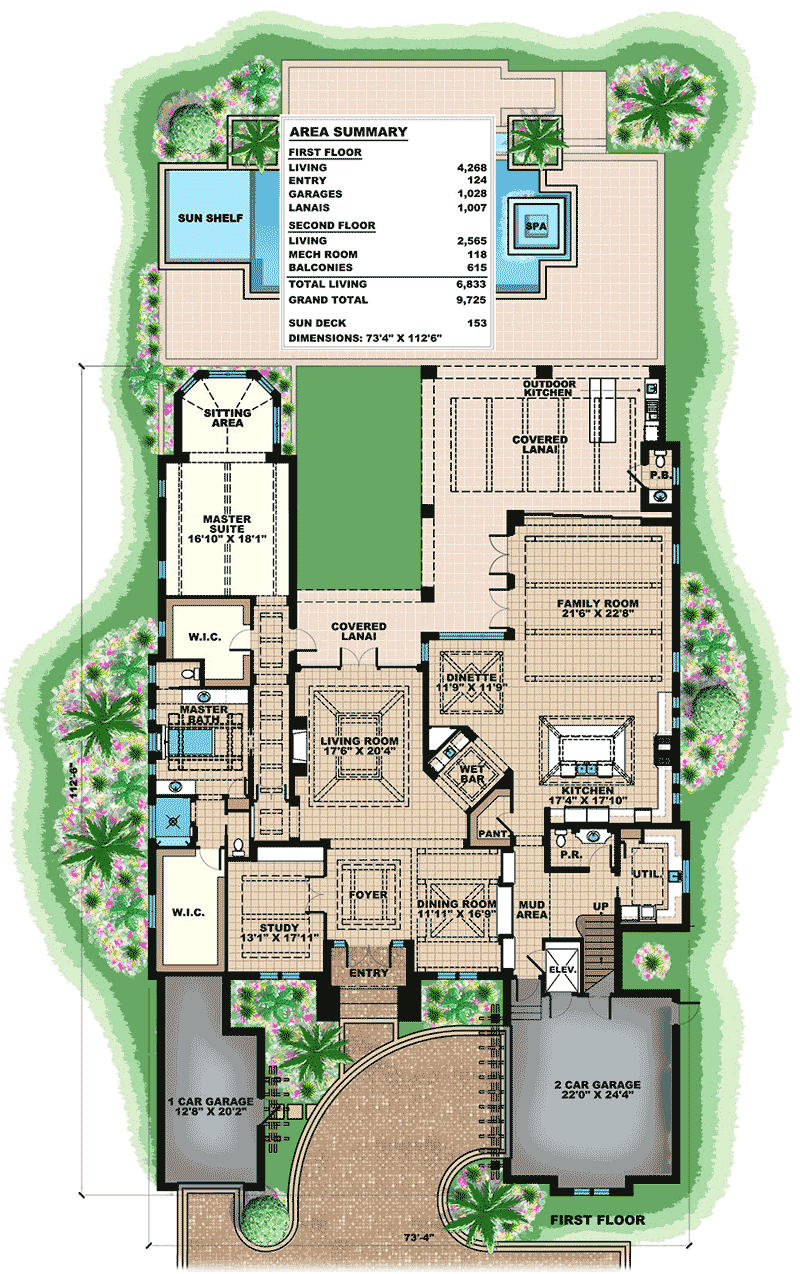

Floor Plans

  • Main Level

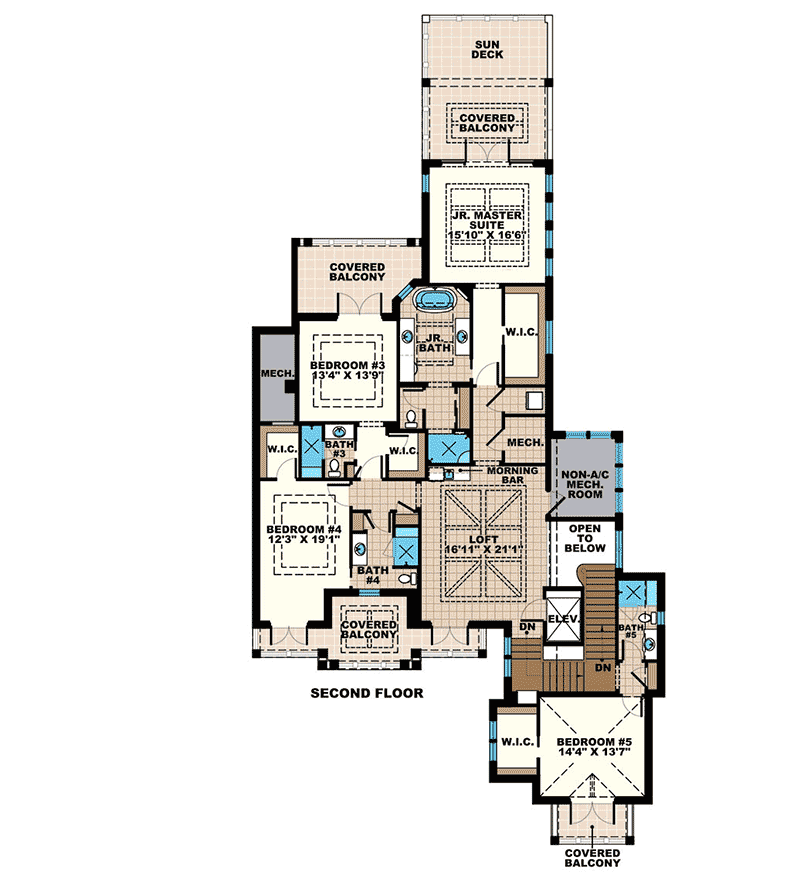

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 6,833 sq. ft.
  • 1st Floor: 4,268 sq. ft.
  • 2nd Floor: 2,565 sq. ft.
  • Porch, Front: 124 sq. ft.
  • Deck: 153 sq. ft.
  • Balcony / Veranda: 615 sq. ft.
  • Lanai: 1,007 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 5
  • Half bathrooms: 2

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): ICF
  • Optional Type(s): 2x6

Dimensions

  • Width: 73' 4"
  • Depth: 112' 6"

Garage

  • Type: Attached
  • Area: 1028 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front, Courtyard

Ceiling Heights

Roof

  • Primary Pitch: 7 on 12
  • Secondary Pitch: 8 on 12
  • Framing Type: Truss
