Traditional Design with Garage and Workshop

2,096 3 3 1 3
Pageloader

Traditional Design with Garage and Workshop

Plan 59432ND

  • 2,096

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 1

    Stories

  • 3

    Cars

  • This traditional design, perfect for a wide or corner lot, includes a three-bay garage with a generous workshop area, a storage area and a convenient half bath.
  • Inside, the split-bedroom design places the master suite in its own wing. Twin walk-in closets, a whirlpool tub and a glass-door shower are featured in the master bath.
  • Built-in bookshelves, a bayed breakfast nook and an open kitchen are highlights of the expansive living area.
  • In back, a covered porch extends living space to the outdoors.
  • Ceilings: 8' standard; 9' boxed in great room, dining room and master bedroom.
  • Related Plans: Get a brick exterior with house plan 5940ND.
  • Get a Tuscan exterior with house plan 59857ND.
  • See the basement stairs with house plans 59564ND (siding) and 59431ND (brick).

Each plan set includes the following:

  • Foundation Plan** (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Building Sections (1/4″ or 1/2″ = 1′)
  • Kitchen and Bath Elevations (1/2″ = 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a Birdseye view of rooms with lights, fans to switches

Floor Plan

Plan details

Architectural Style

Plan Collections



Traditional Design with Garage and Workshop

  • 2,096

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • 1 Set $670
  • 5 Sets $780
  • 8 Sets $945
  • Reproducible Set $1,450
  • PDF - single-use $1,450
  • CAD $2,235
  • View all purchase option online

About This Plan

  • This traditional design, perfect for a wide or corner lot, includes a three-bay garage with a generous workshop area, a storage area and a convenient half bath.
  • Inside, the split-bedroom design places the master suite in its own wing. Twin walk-in closets, a whirlpool tub and a glass-door shower are featured in the master bath.
  • Built-in bookshelves, a bayed breakfast nook and an open kitchen are highlights of the expansive living area.
  • In back, a covered porch extends living space to the outdoors.
  • Ceilings: 8' standard; 9' boxed in great room, dining room and master bedroom.
  • Related Plans: Get a brick exterior with house plan 5940ND.
  • Get a Tuscan exterior with house plan 59857ND.
  • See the basement stairs with house plans 59564ND (siding) and 59431ND (brick).

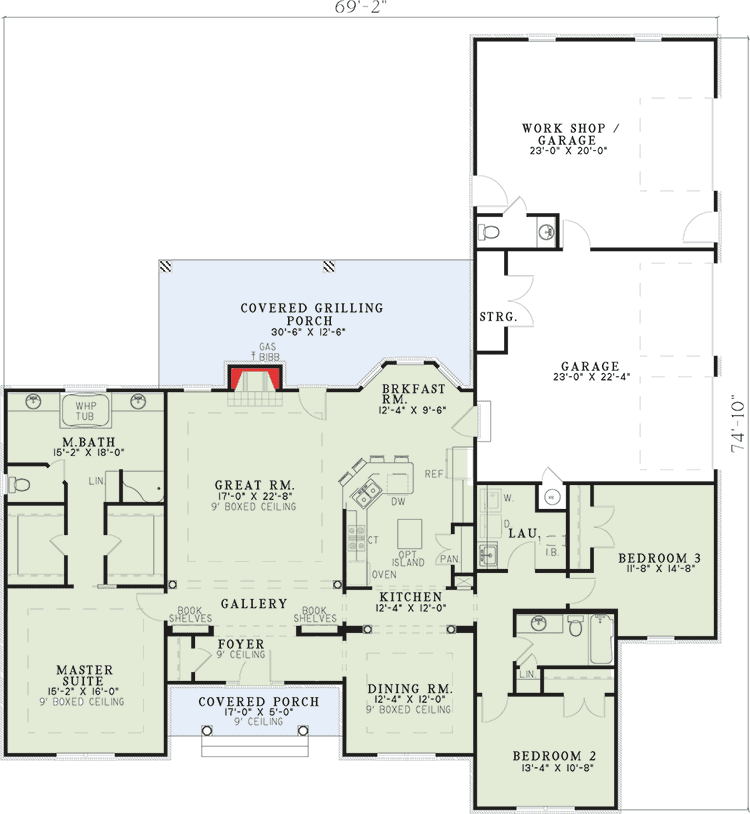

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,096 sq. ft.
  • 1st Floor: 2,096 sq. ft.
  • Porch, Combined: 482 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl, Slab
    • Optional Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 69' 2"
  • Depth: 74' 10"
  • Max ridge height: 20' 4"

Garage

  • Type: Attached
  • Area: 974 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof

  • Primary Pitch: 9 on 12
  • Secondary Pitch: 4.5 on 12
  • Framing Type: Stick

Architectural Style

  • Country
  • Ranch
  • Traditional

Special features

  • 1st Floor Master Suite
  • CAD Available
  • PDF
  • Split Bedrooms

Plan Collections

  • Photo Gallery
