Plan 623049DJ

Traditional Duplex House Plan with Matching 3 Bed, 3 Bath Units - 1464 Sq Ft Each

Heated S.F.
2,928
Units
2
Width
Depth

Floor Plan

Plan 623049DJ

Main Level
Main Level
Second Level
Second Level

Plan 623049DJ

M-F 9am-5pm EST |

1-203-761-8500

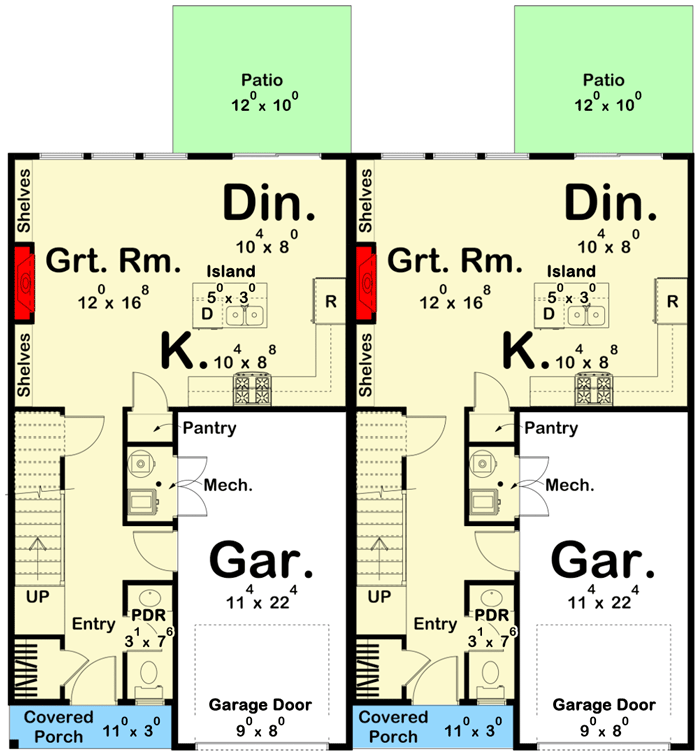

Main Level

Plan 623049DJ: Traditional Duplex House Plan with Matching 3 Bed, 3 Bath Units - 1464 Sq Ft Each - Floor Plan - Main Level - Traditional

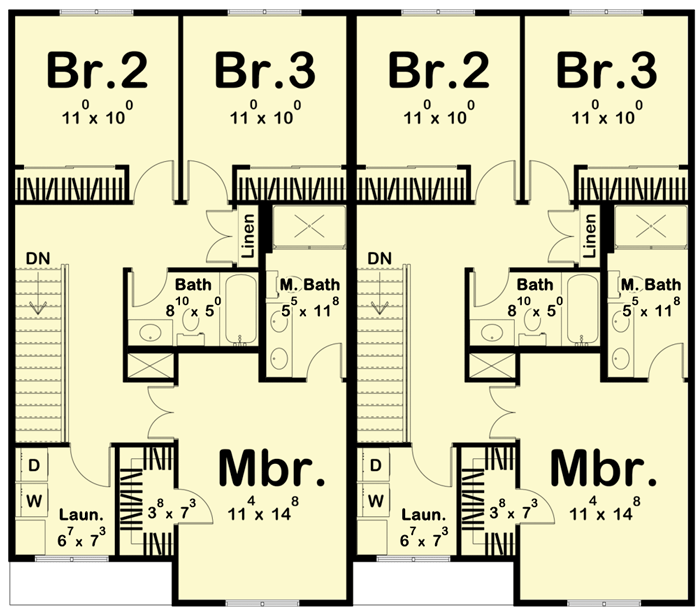

Second Level

Plan 623049DJ: Traditional Duplex House Plan with Matching 3 Bed, 3 Bath Units - 1464 Sq Ft Each - Floor Plan - Second Level - Traditional

Plan Details

  • This 2-family house plan is the duplex version of plan 623043DJ. The exterior features board and batten siding and a covered porch.
  • Each unit gives you 1,464 square feet of heated living space (622 square feet on the main floor; 842 square feet on the second floor), 3 beds, 3 baths, and a 262 square foot 1-car garage.
  • The great room, kitchen, and dining room flow seamlessly in an open layout. The great room is warmed by a fireplace that is flanked by built-in bookshelves. The L-shaped kitchen includes an island and a reach-in pantry. A sliding glass door leads to the rear patio from the dining room.
  • Upstairs, you'll find 3 bedrooms. The master suite includes a bathroom with dual vanities and a walk-in shower. Bedrooms 2 and 3 share a centrally located hall bathroom.
  • Related Plans: Get a 4-unit version with house plan 623412DJ. Get a 3-unit version with plan 623050DJ or a single-family version with house plan 623043DJ.
Unit A
Heated Area
1,464Sq. Ft.
1244 Sq. Ft. 1st
842 Sq. Ft. 2nd
Beds
3Beds
Baths
2Full Baths
1Half Bath
Cars
Attached
264 Sq. Ft.
Dimensions
23'width
40'depth
30'height
Unfinished Areas
264 Sq. Ft. Garage
Unit B
Heated Area
1,464Sq. Ft.
622 Sq. Ft. 1st
842 Sq. Ft. 2nd
Beds
3Beds
Baths
2Full Baths
1Half Bath
Cars
Attached
264 Sq. Ft.
Dimensions
23'width
40'depth
30'height
Unfinished Areas
264 Sq. Ft. Garage

What's Included

  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section (if applicable)
  • Cabinets Elevations (if applicable)
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

2,928 sq. ft.

1st Floor

1,244 sq. ft.

2nd Floor

842 sq. ft.

Porch, Front

66 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

46' 0"

Depth

40' 0"

Max Ridge Height

28' 0"

Garage

Type

Attached

Area

528 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

9'

Second Floor

8'

Roof Details

Framing Type

Stick

Architectural Style

Traditional

Special Features

Laundry Access from Master Suite

Laundry - Upstairs

Master Suite - Upstairs

Square Footage Breakdown

Total Heated Area

2,928 sq. ft.

1st Floor

1,244 sq. ft.

2nd Floor

842 sq. ft.

Porch, Front

66 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

46' 0"

Depth

40' 0"

Max Ridge Height

28' 0"

Garage

Type

Attached

Area

528 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

9'

Second Floor

8'

Roof Details

Framing Type

Stick

Architectural Style

Traditional

Special Features

Laundry Access from Master Suite

Laundry - Upstairs

Master Suite - Upstairs
