Plan 21696DR Traditional Home for Narrow Lot

1,344 3 1.5 2
Print
Compare
...

Traditional Home for Narrow Lot

Plan 21696DR

  • 1,344

    Heated s.f.

  • 3

    Beds

  • 1.5

    Baths

  • 2

    Stories

  • A brick front and hip roof add loads of charm to this Traditional home plan designed for a narrow lot.
  • The kitchen has an eating bar and lots of counter space.
  • Three bedrooms on the second floor share a large bath with both tub and shower.
  • Related Plan: Need a finished lower level apartment? See house plan 21895DR.

Each plan includes the following:

* 4 Elevations
* Foundation Plan
* Main Floor Plan
* Upper Floor Plans (if applicable)
* Roof Plan
* Truss Diagrams & Building Section
* Construction Details
* Typical Wall Section

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

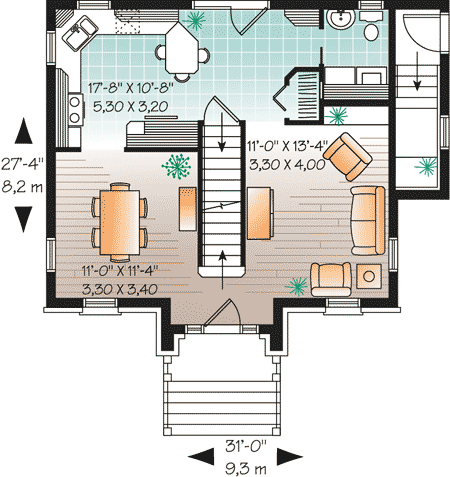

Traditional Home for Narrow Lot - 21696DR floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

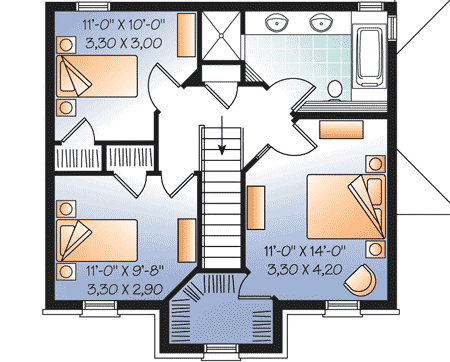

Traditional Home for Narrow Lot - 21696DR floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,344 sq. ft.
  • 1st Floor: 662 sq. ft.
  • 2nd Floor: 682 sq. ft.
  • Basement Unfinished: 662 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 1
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Basement
  • Optional Foundations: Walkout, Daylight, Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 31' 0"
  • Depth: 27' 4"
  • Max ridge height: 27' 10"

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 8' 0"

Roof Details

  • Framing Type: Truss

Architectural Style

Special features

Plan Collections



Traditional Home for Narrow Lot

  • 1,344

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 2

    Floors

Buy This Plan
  • Reproducible Set $1,055
  • PDF - Single-Build $1,055
  • 5 Sets + PDF $1,180
  • CAD - Single-Build $1,655
  • View all purchase option online

About This Plan

  • A brick front and hip roof add loads of charm to this Traditional home plan designed for a narrow lot.
  • The kitchen has an eating bar and lots of counter space.
  • Three bedrooms on the second floor share a large bath with both tub and shower.
  • Related Plan: Need a finished lower level apartment? See house plan 21895DR.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,344 sq. ft.
  • 1st Floor: 662 sq. ft.
  • 2nd Floor: 682 sq. ft.
  • Basement Unfinished: 662 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 1
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Walkout, Daylight, Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 31' 0"
  • Depth: 27' 4"
  • Max ridge height: 27' 10"

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 8' 0"

Roof

  • Framing Type: Truss

Plan 21696DR
View this and more for this plan by visiting www.architechtecturaldesigns.com/21696DR
|
