Plan 90341PD
Transitional 2-Story House Plan under 1,700 Square Feet of Living Space
Heated S.F.
1,664
Beds
3
Baths
1.5
Stories
1-2
Cars
1
What's Included
Plan Details
  • Stone accents and a flat metal roof add a contemporary aesthetic to this Transitional 2-Story house plan that totals 1,664 square feet of living space.

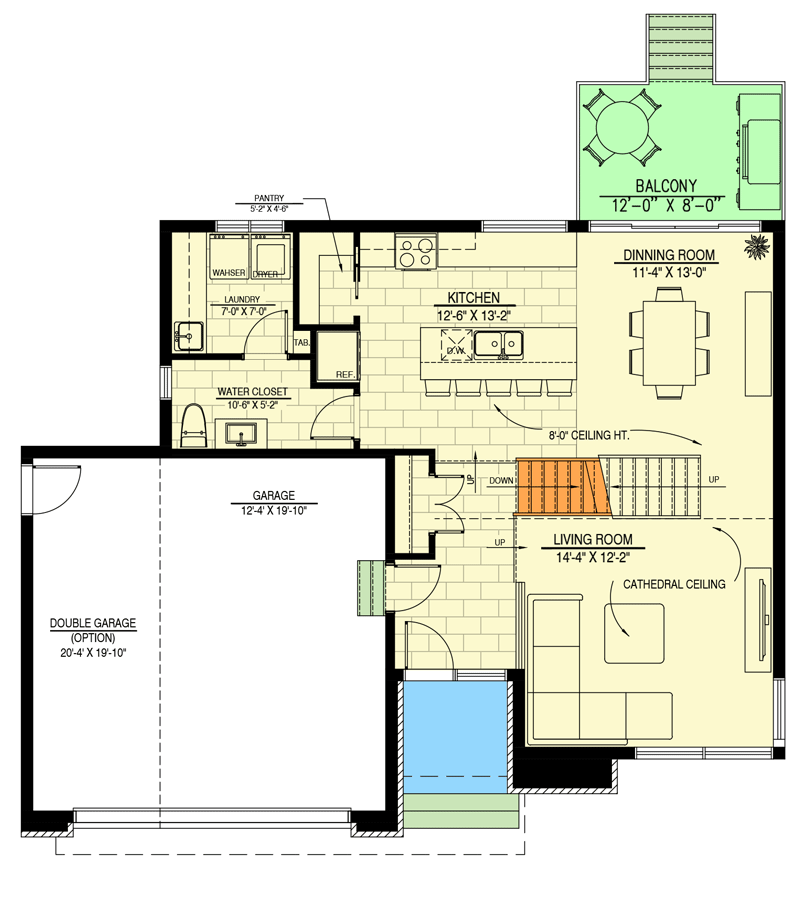

  • Once inside, a cathedral ceiling crowns the light and airy living room. The kitchen and dining area act as one space and extend onto a 12' by 8' balcony for outdoor living.
  • Five seats rest at the flush eating bar included in the kitchen island and a pocket door conceals a walk-in pantry to boost storage space.
  • The main-level water closet connects to the laundry room with cabinetry and a utility sink.

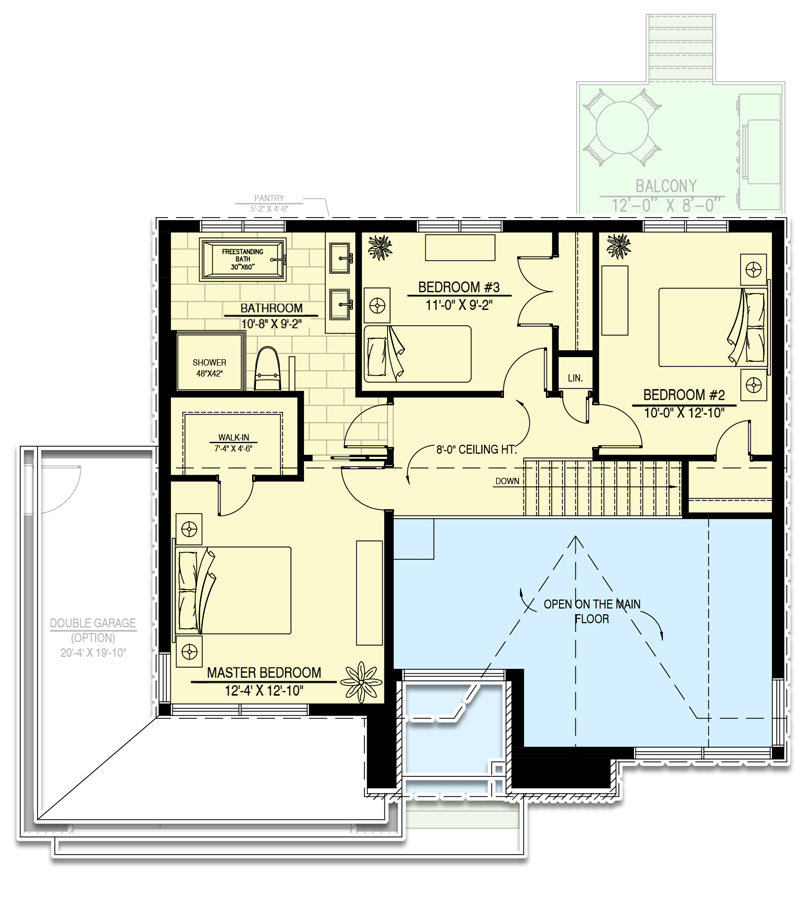

  • Three bedrooms are located upstairs, including the master bedroom with loads of natural light and a pocket door that leads to the 5-fixture bathroom.
  • If built as the single car garage option, the width of the home is 36'.
What's Included
Please note this plan is designed to the National Building Code of Canada.

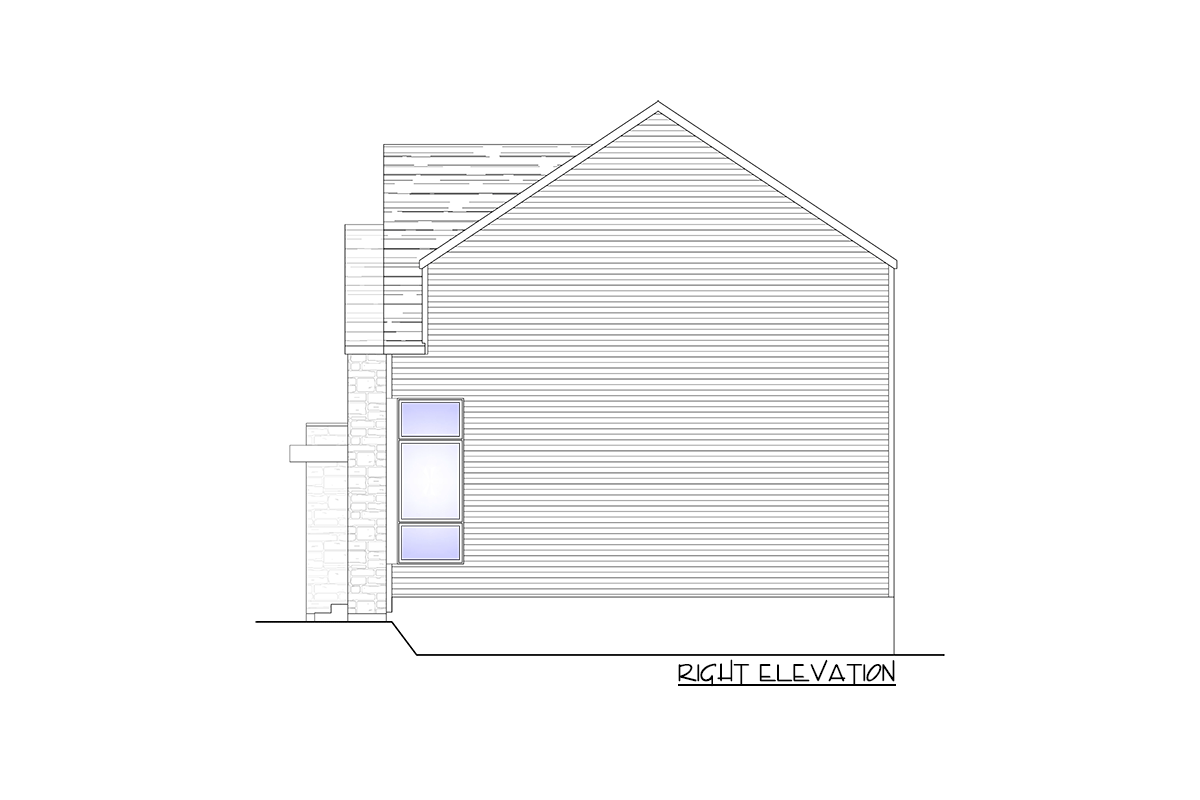

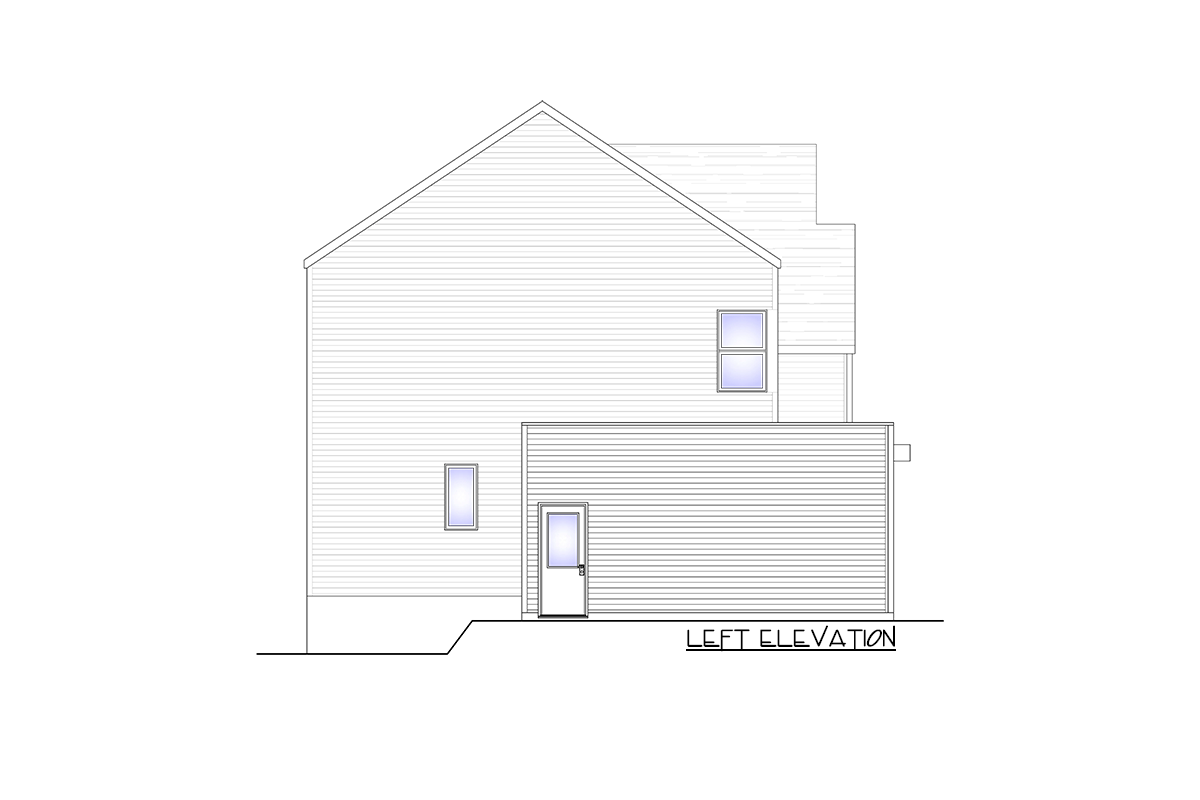

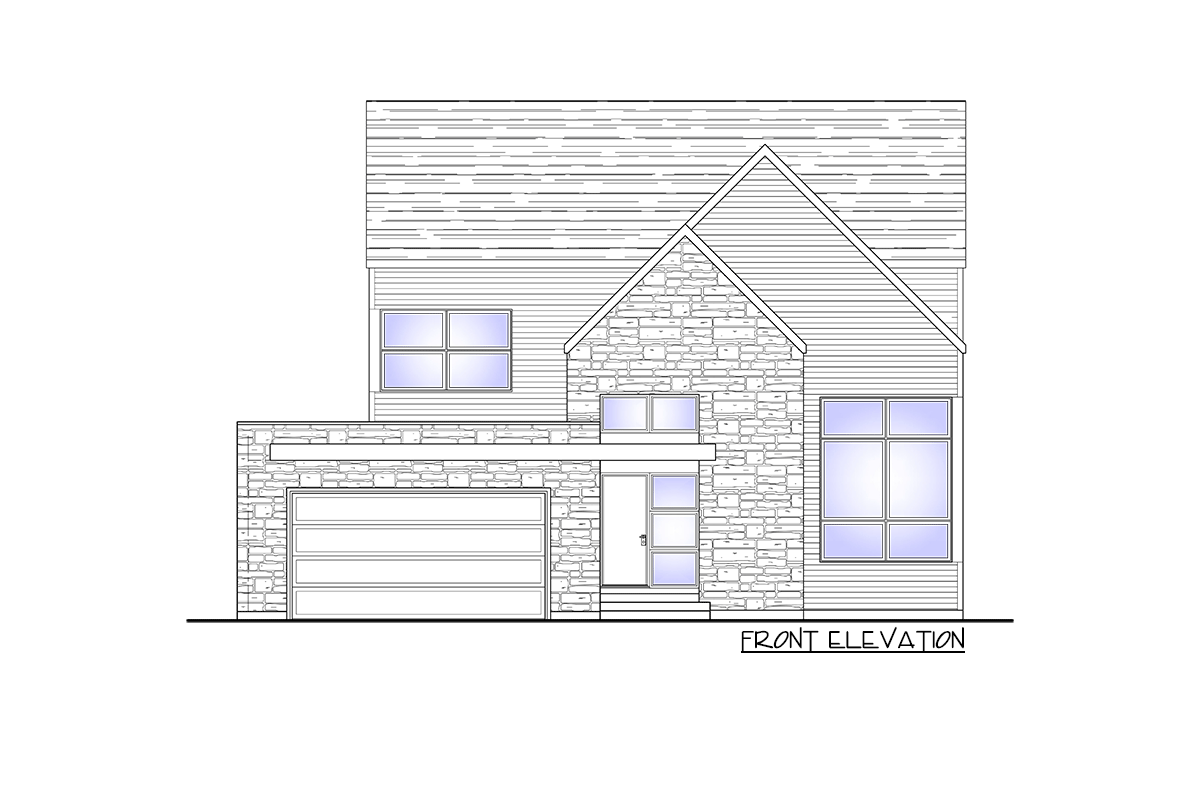

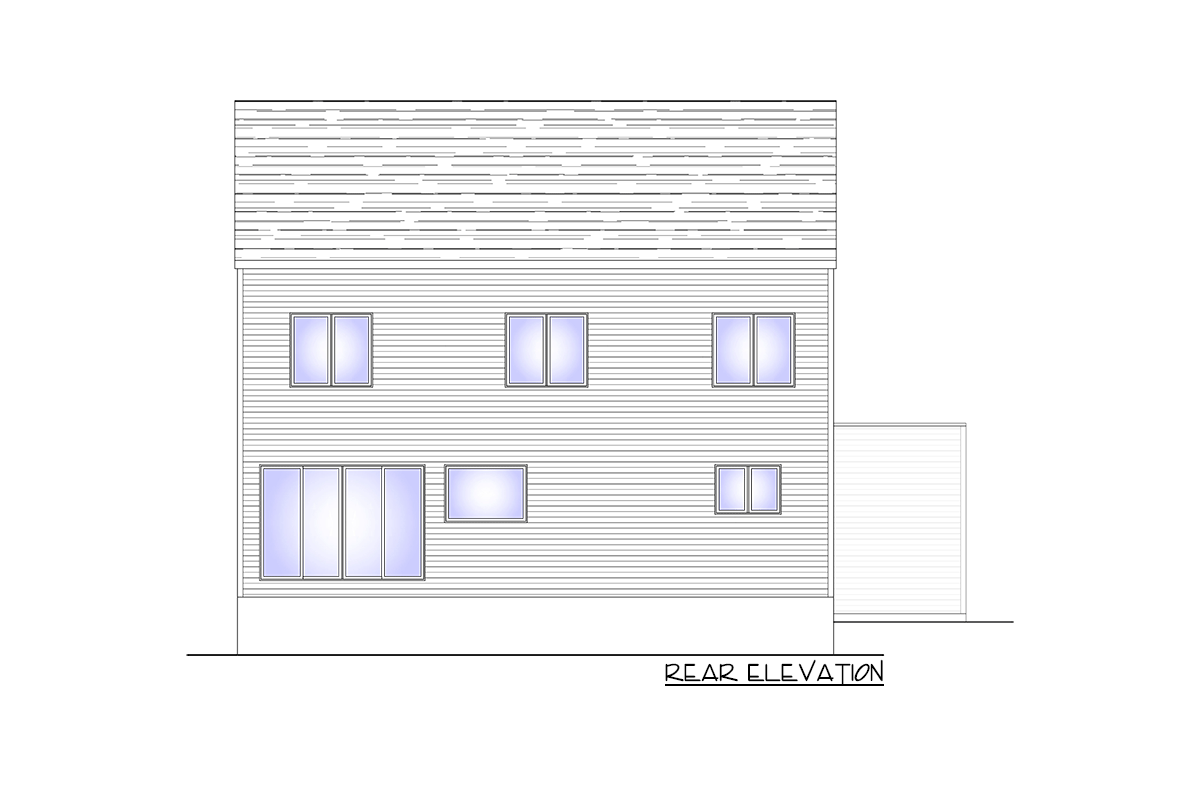

  • Elevations
  • Lower level plan -- including floor above structure, concrete level and thickness, electrical layout
  • Main floor plan w/ structure for the roof above, electrical layout
  • Building section
  • Construction details
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Transitional 2-Story House Plan under 1,700 Square Feet of Living Space

  • 1,664

    Heated s.f.

  • 3

    Beds

  • 1.5

    Baths

  • 1-2

    Floors

  • 1

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 1,664 sq. ft.
  • 1st Floor: 872 sq. ft.
  • 2nd Floor: 772 sq. ft.

Dimensions

  • Width: 44' 0"
  • Depth: 35' 6"
  • Max ridge height: 8' 0"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 1
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Count: 1 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 10 on 12
  • Framing Type: Truss
