Transitional 3600 Square Foot One-Level House Plan with Split-Bed Layout

Plan 818027JSS

  • 3,615

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 1

    Stories

  • 3

    Cars

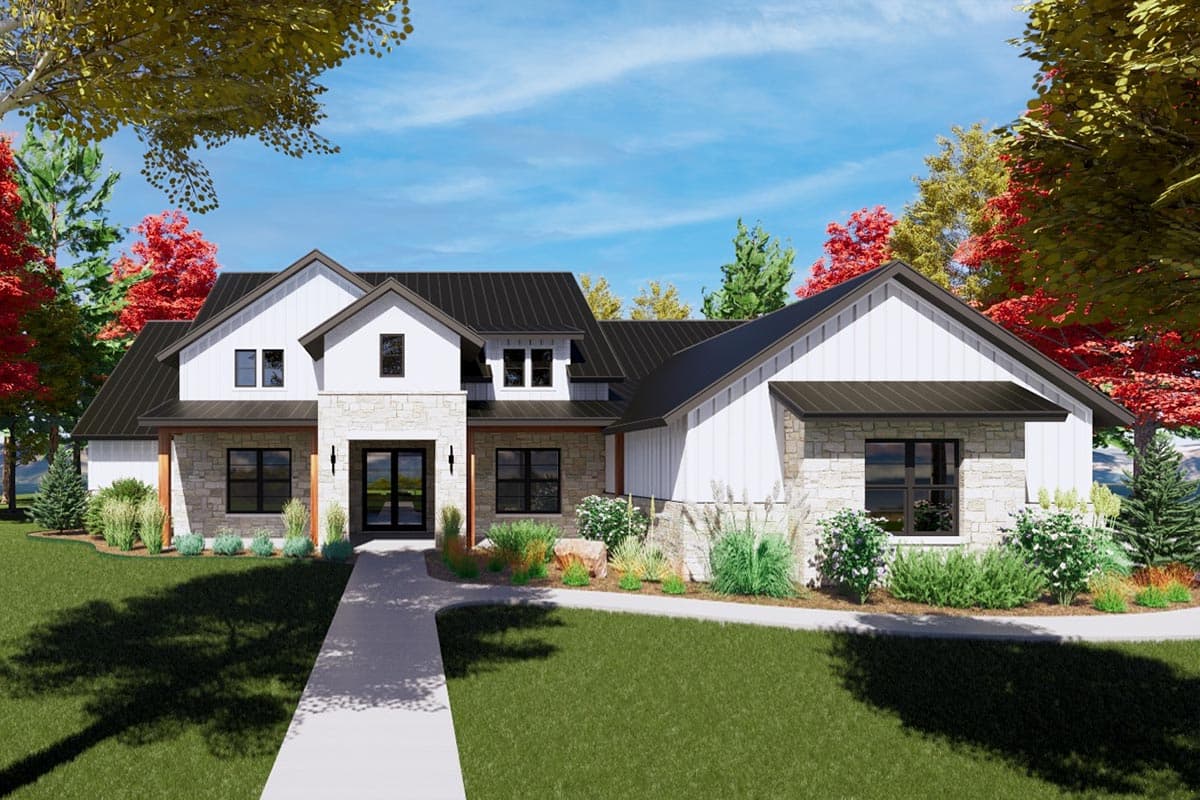

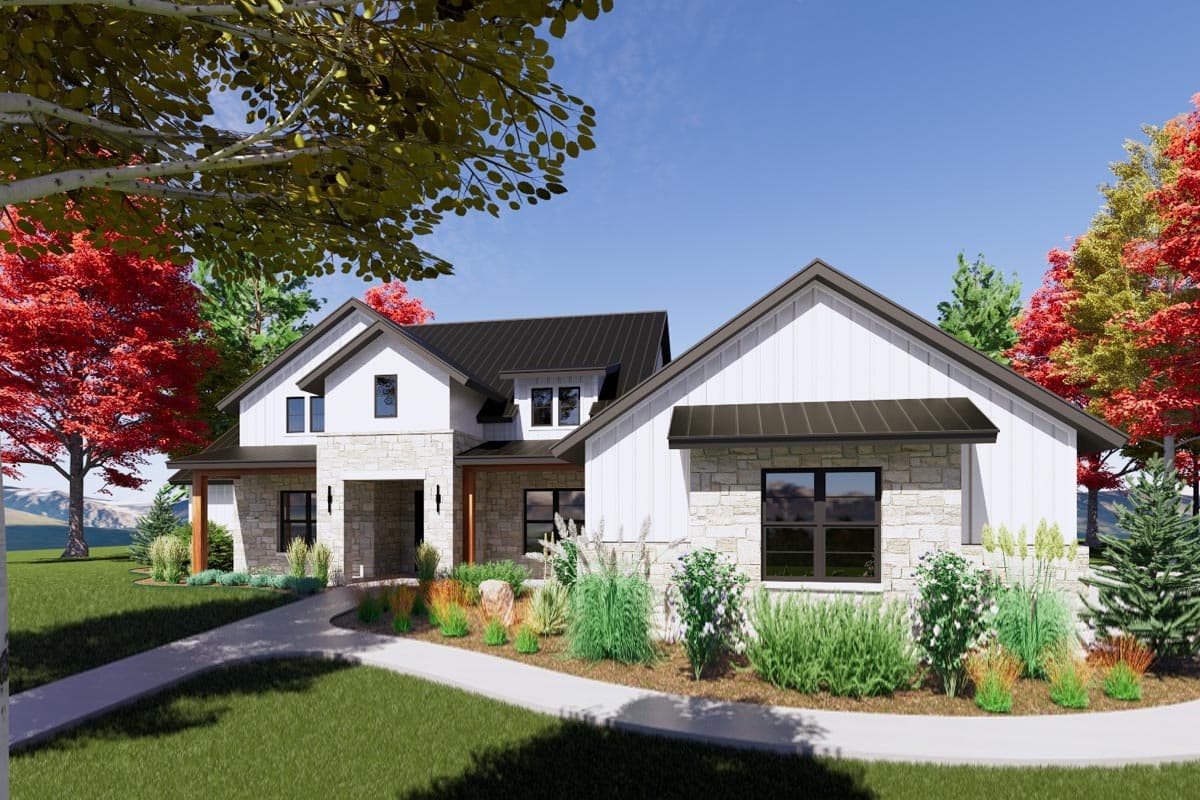

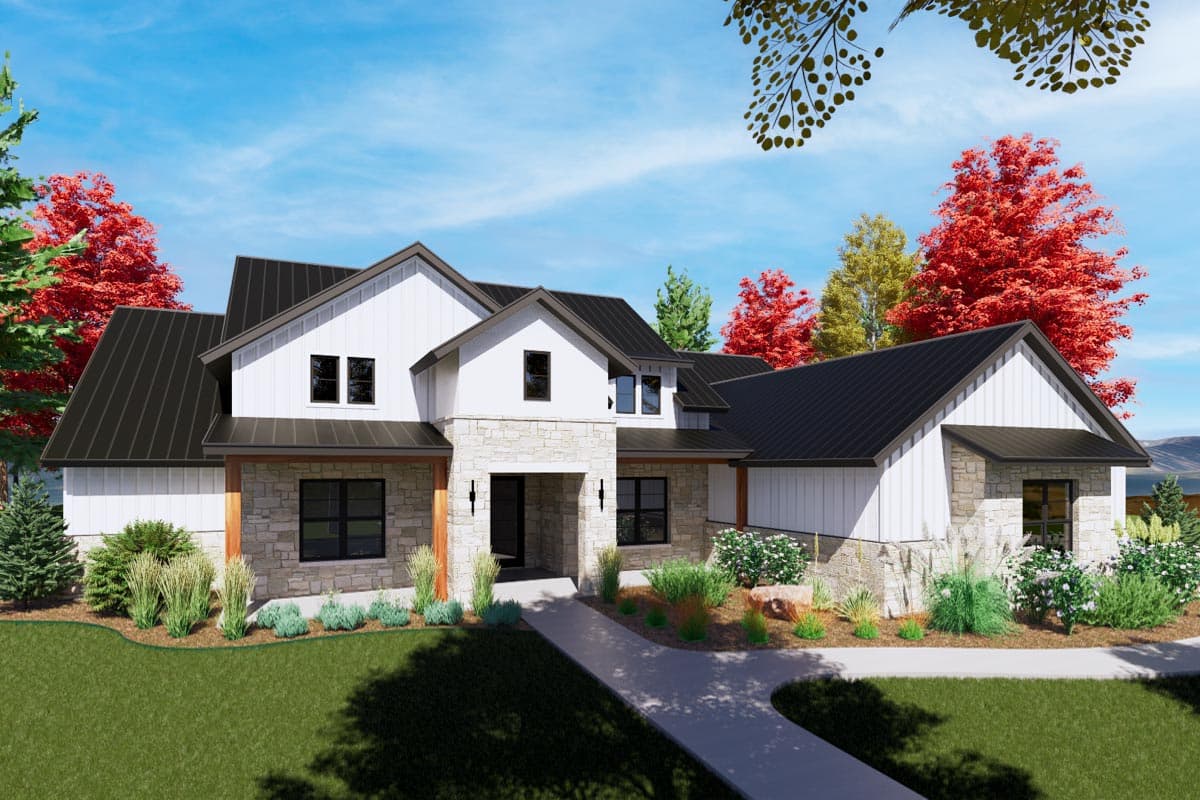

  • Stone accents pair with board and batten siding on the exterior of this Transitional One-level house plan, complete with a ribbed metal roof for a modern appeal.

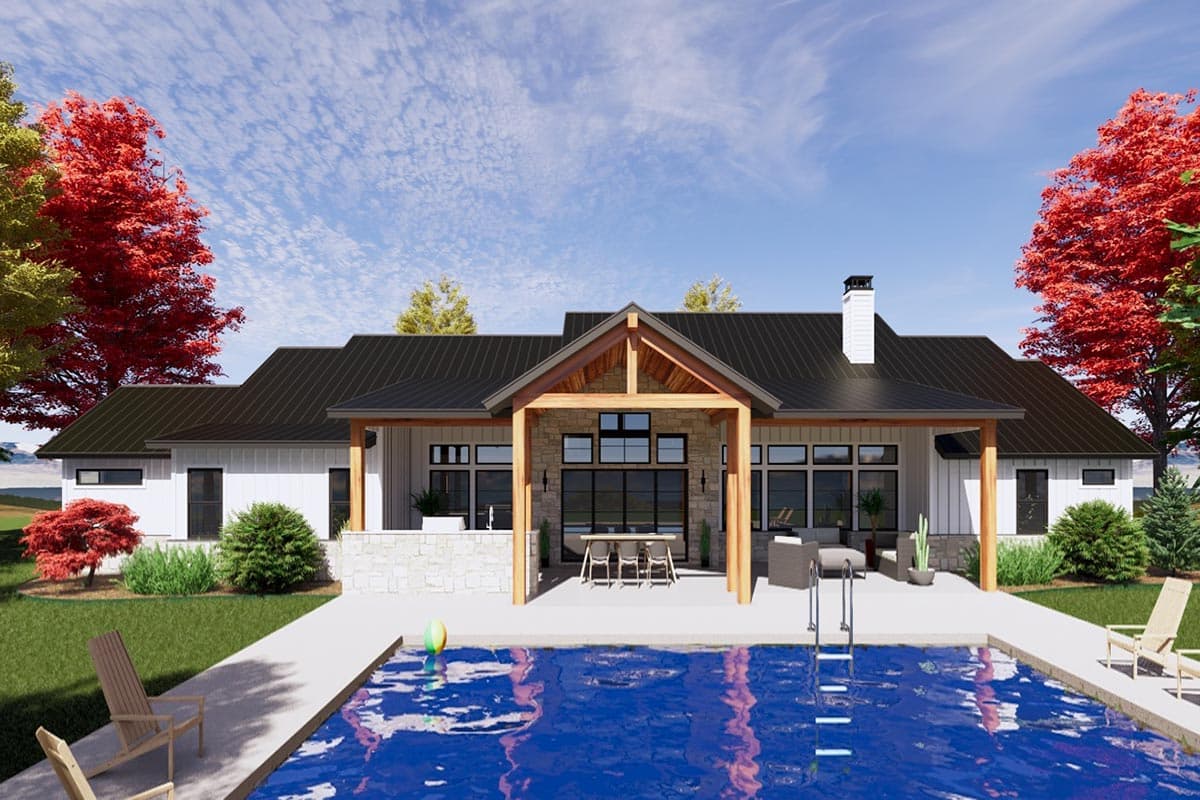

  • The heart of the home is centered between the dining and family rooms, and boasts a vaulted ceiling, two islands, and an accordion-style door that leads to the back porch.
  • A flex room off the foyer is perfect for an office or study, and the primary suite enjoys a private location, spacious ensuite with 5 fixtures, and a walk-in closet that connects to the laundry room.
  • Three bedroom suites line the left side of the home, each with a walk-in closet and full bath.
  • All interior doors are 3' for added accessibility.
  • The side-entry garage is considerate of curb appeal and opens into a mudroom that is flanked by a powder bath and large pantry.

  • Foundation plan
  • Detailed floorplans
  • Roof plan

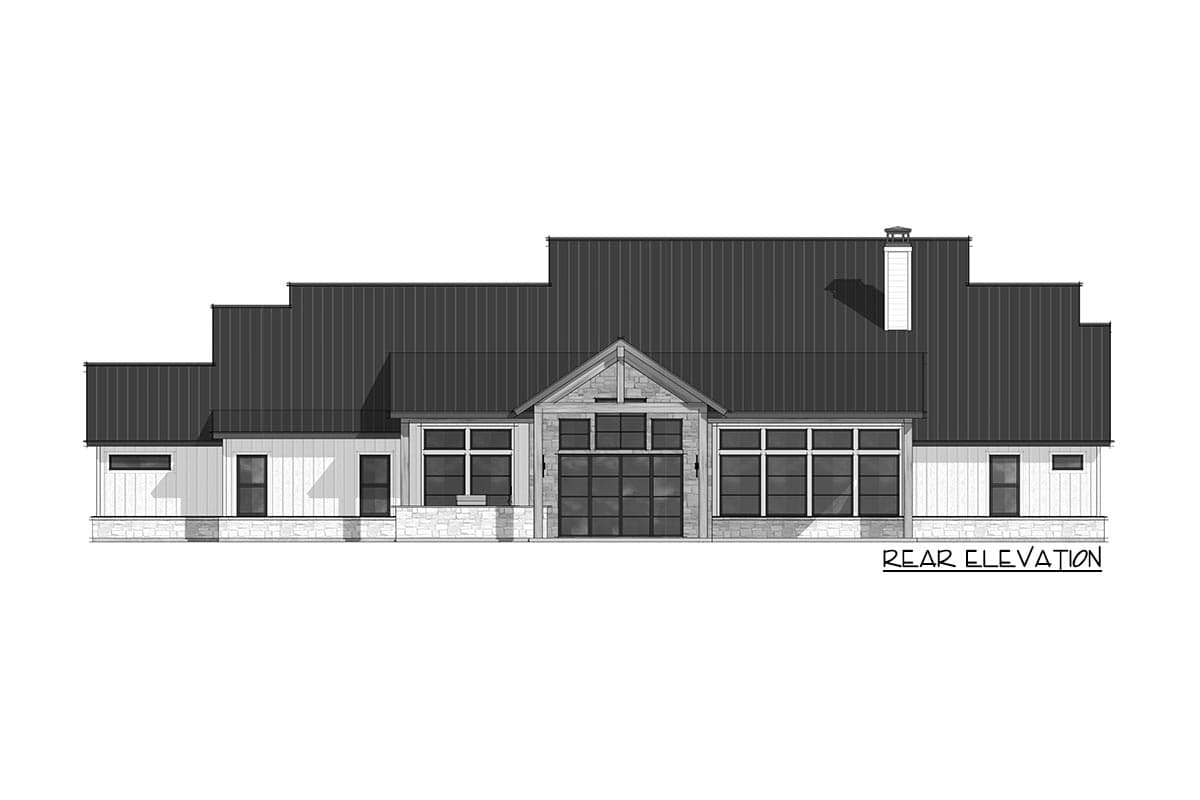

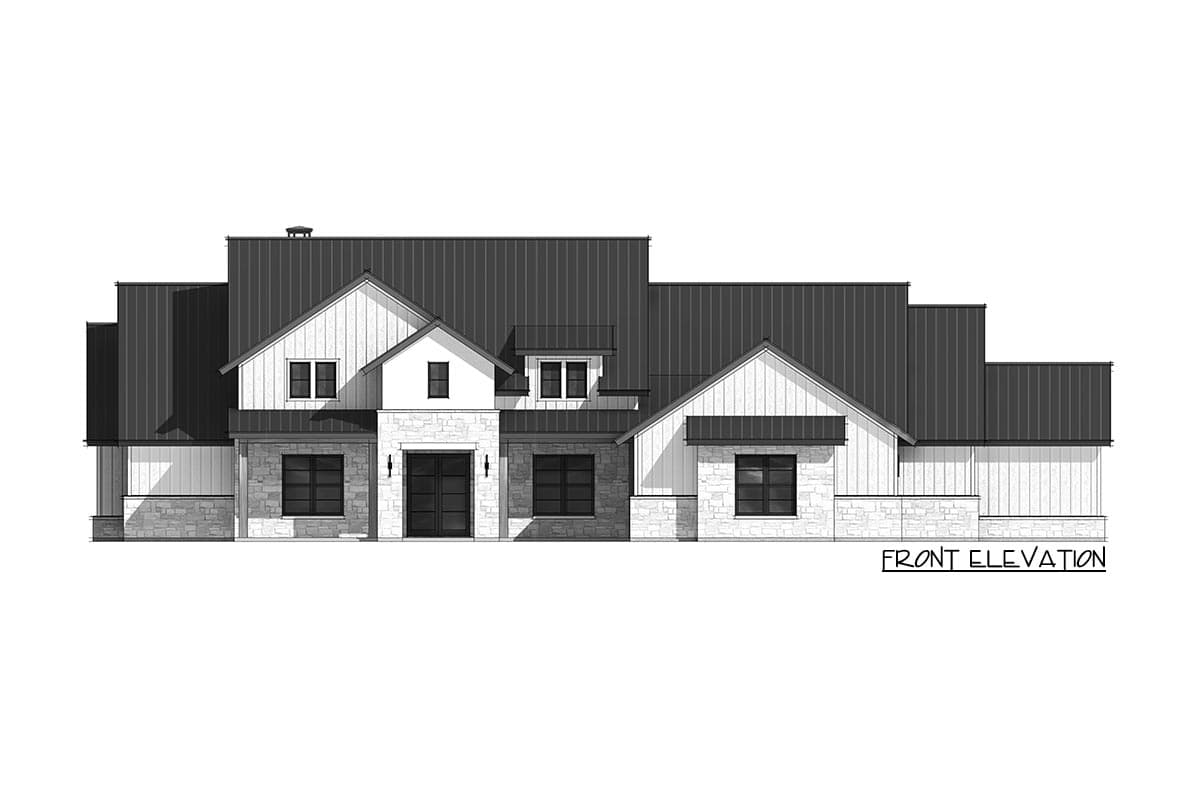

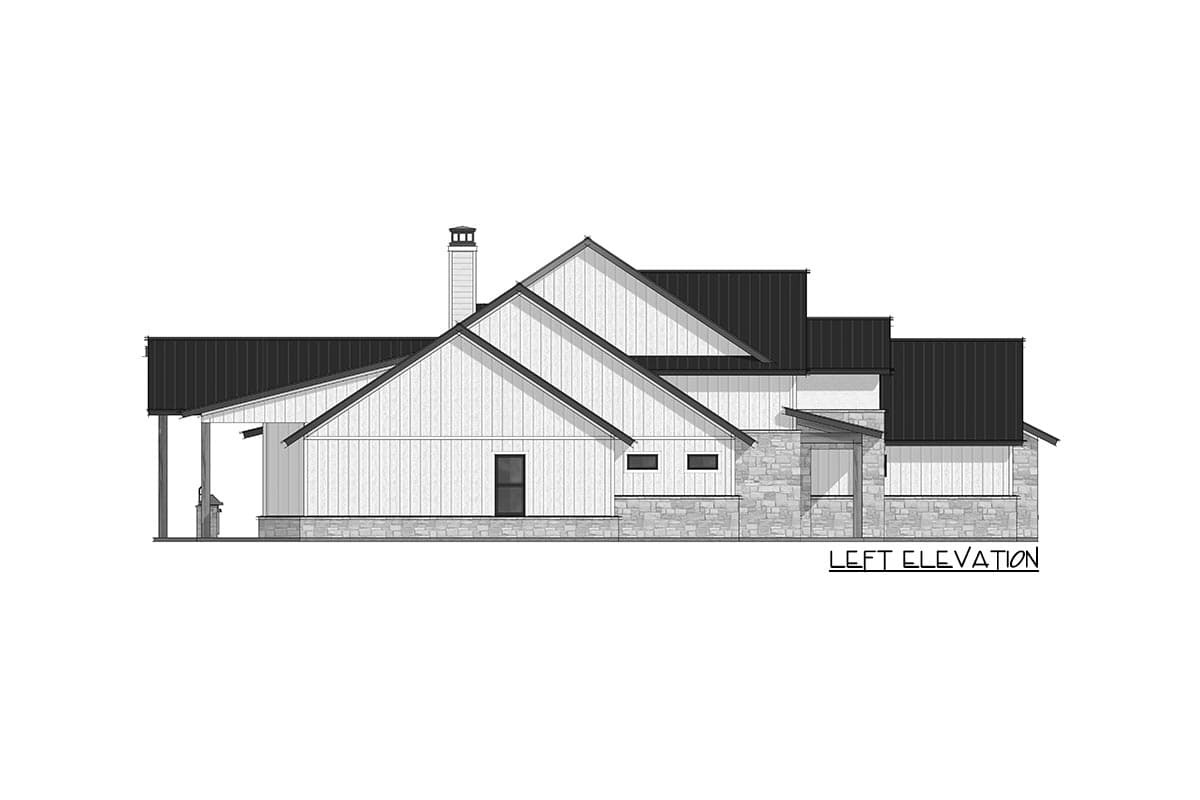

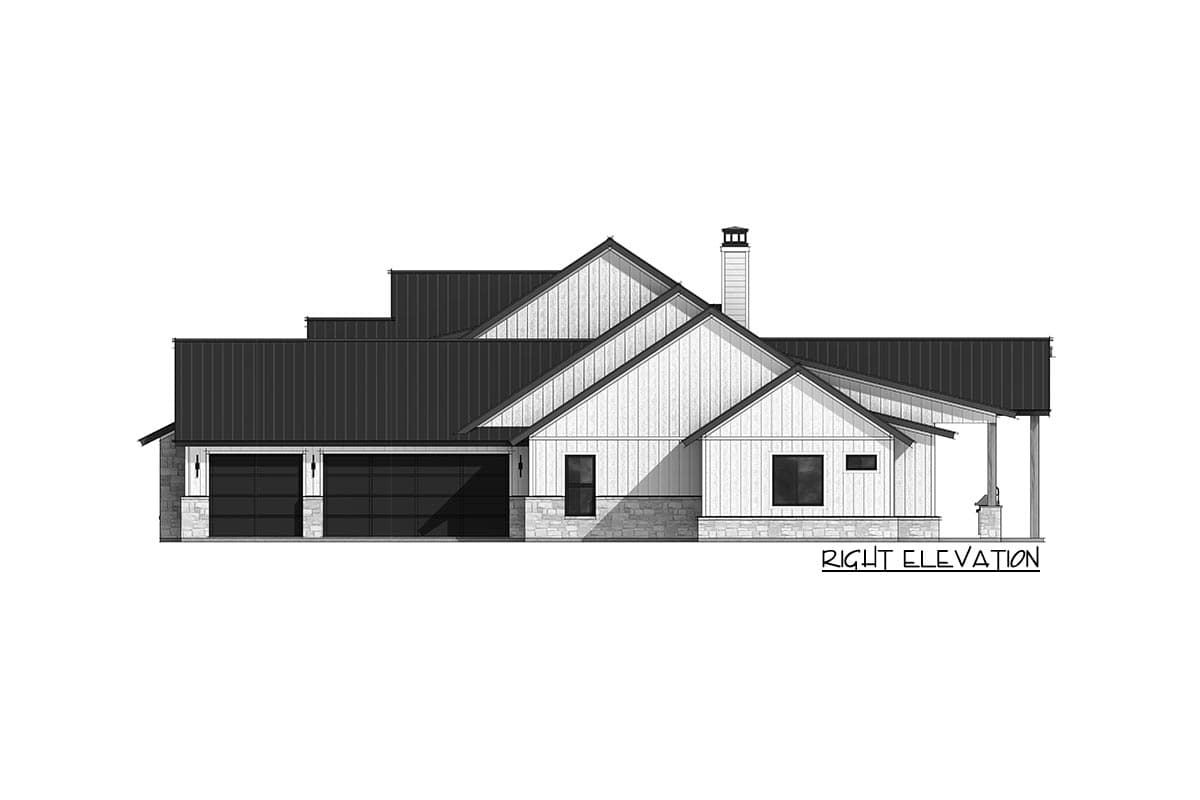

  • Four elevations
  • Electrical schematic
  • Cross section(s)
  • Rafter plan and ceiling joist plans
The following details are NOT included in the plans:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

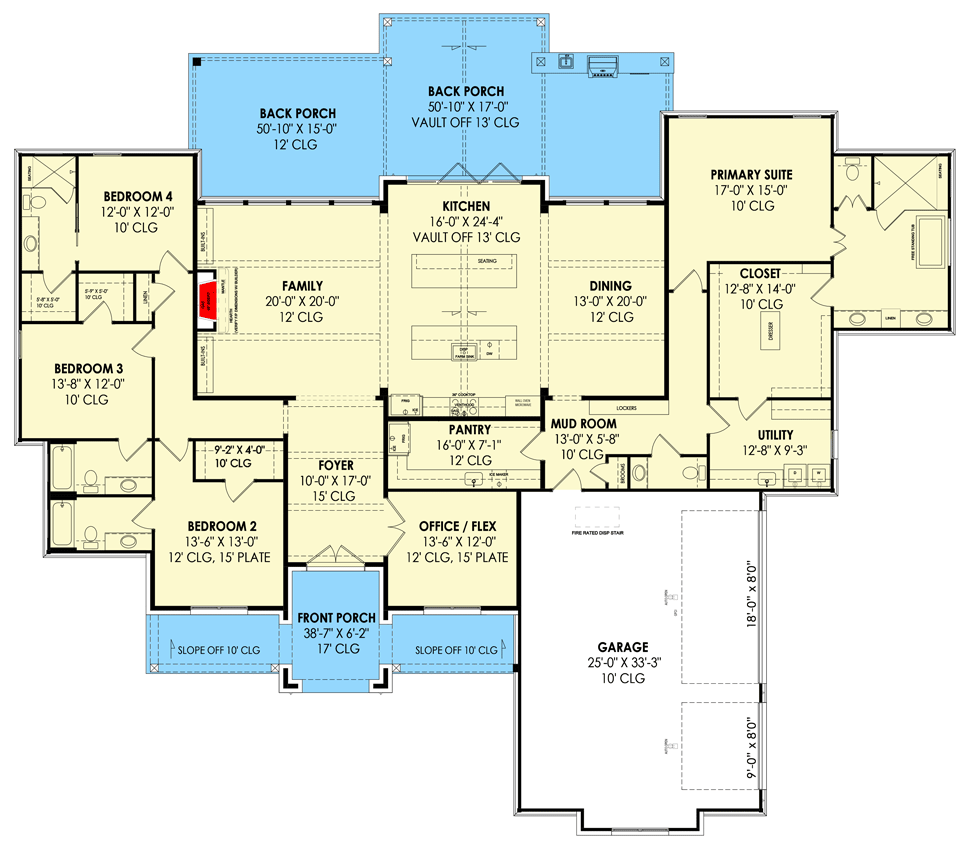

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Transitional 3600 Square Foot One-Level House Plan with Split-Bed Layout - 818027JSS floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,615 sq. ft.
  • 1st Floor: 3,615 sq. ft.
  • Porch, Combined: 1,082 sq. ft.
  • Porch, Rear: 779 sq. ft.
  • Porch, Front: 303 sq. ft.
  • BRICK POCKET:: 157 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Monolithic Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 98' 8"
  • Depth: 86' 2"
  • Max ridge height: 29' 3"

Garage

  • Type: Attached
  • Area: 892 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof Details

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 3 on 12
  • Framing Type: Stick

Architectural Style

Special features

Plan Collections

Transitional 3600 Square Foot One-Level House Plan with Split-Bed Layout

  • 3,615

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $1,995
  • PDF - Unlimited Build $2,695
  • CAD Unlimited + PDF $2,995
  • View all purchase option online

About This Plan

  • Stone accents pair with board and batten siding on the exterior of this Transitional One-level house plan, complete with a ribbed metal roof for a modern appeal.
  • The heart of the home is centered between the dining and family rooms, and boasts a vaulted ceiling, two islands, and an accordion-style door that leads to the back porch.
  • A flex room off the foyer is perfect for an office or study, and the primary suite enjoys a private location, spacious ensuite with 5 fixtures, and a walk-in closet that connects to the laundry room.
  • Three bedroom suites line the left side of the home, each with a walk-in closet and full bath.
  • All interior doors are 3' for added accessibility.
  • The side-entry garage is considerate of curb appeal and opens into a mudroom that is flanked by a powder bath and large pantry.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,615 sq. ft.
  • 1st Floor: 3,615 sq. ft.
  • Porch, Combined: 1,082 sq. ft.
  • Porch, Rear: 779 sq. ft.
  • Porch, Front: 303 sq. ft.
  • BRICK POCKET:: 157 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Monolithic Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 98' 8"
  • Depth: 86' 2"
  • Max ridge height: 29' 3"

Garage

  • Type: Attached
  • Area: 892 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 3 on 12
  • Framing Type: Stick
