Transitional 4-Bed Home Plan with Workshop and Flex Room

Plan 270074AF

  • 3,585

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • This Transitional 4-bedroom home plan with Mediterranean influence delivers 4 bedrooms and 3.5 baths, totaling 3,585 square feet of living space.

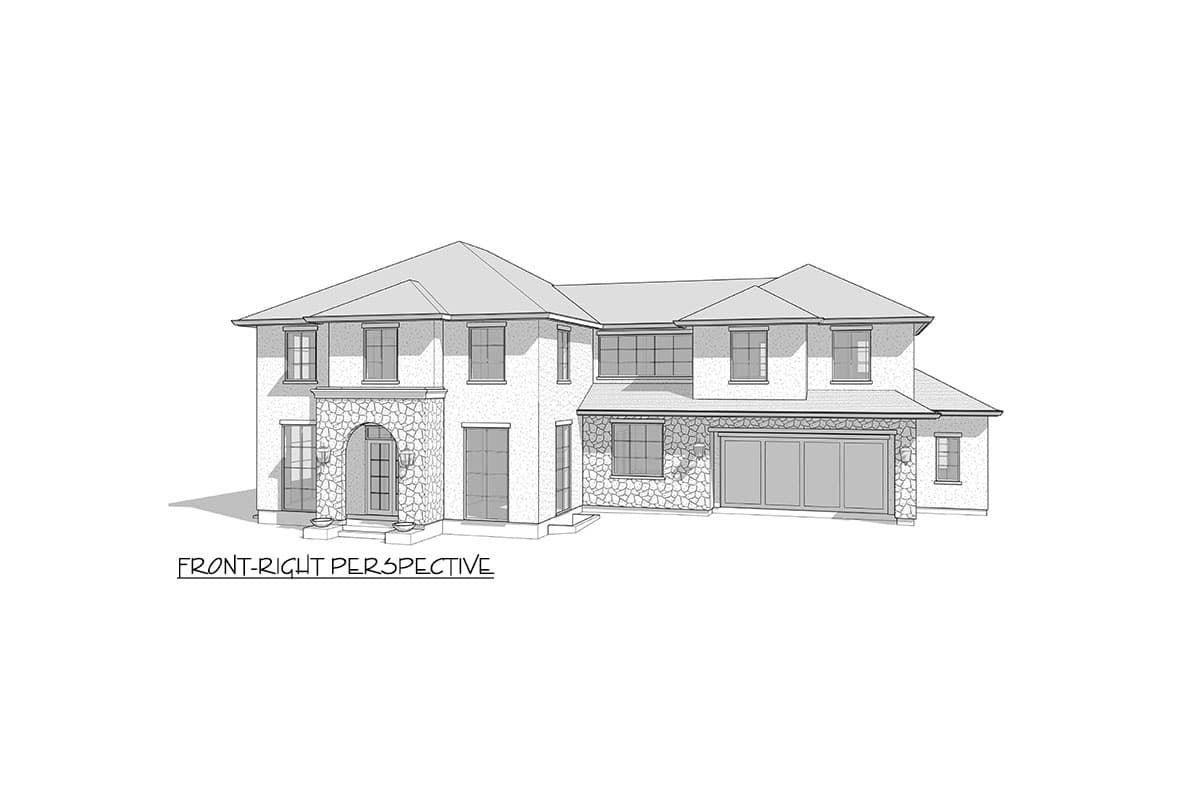

  • An arched entryway welcomes you inside to find pocket doors revealing a flex room and formal dining room on either side of the foyer.
  • In the heart of the home, you will find a large prep island and loads of pantry space, along with a neighboring breakfast room lined with windows.
  • Four bedrooms are located upstairs, including the master bedroom that features a charming window seat, wet room in the attached bath, dresser island in the walk-in closet, and built-in library in the hallway.
  • The unfinished basement gives you space to expand in the future, and a workshop attached to the double garage is perfect for the hobbyist.

This plan set includes the following:

  • Foundation Plan - Footing sizes, slab thickness, floor framing notes, etc.
  • Floor Plan(s) - Detailed dimensions, window/door details, plumbing fixture type/locations, etc. for each level of the home.
  • Roof Plan - Roof framing notes, roof pitch, attic venting, overhangs, roof finish materials, etc.

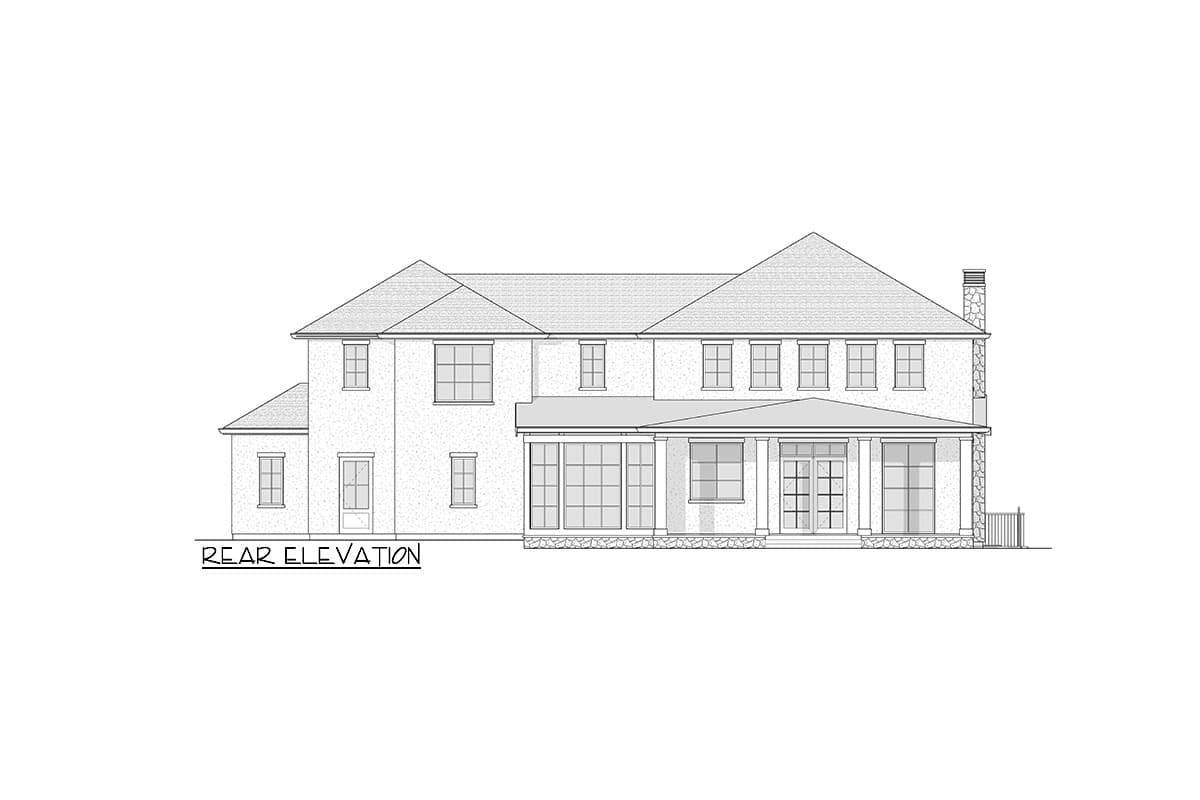

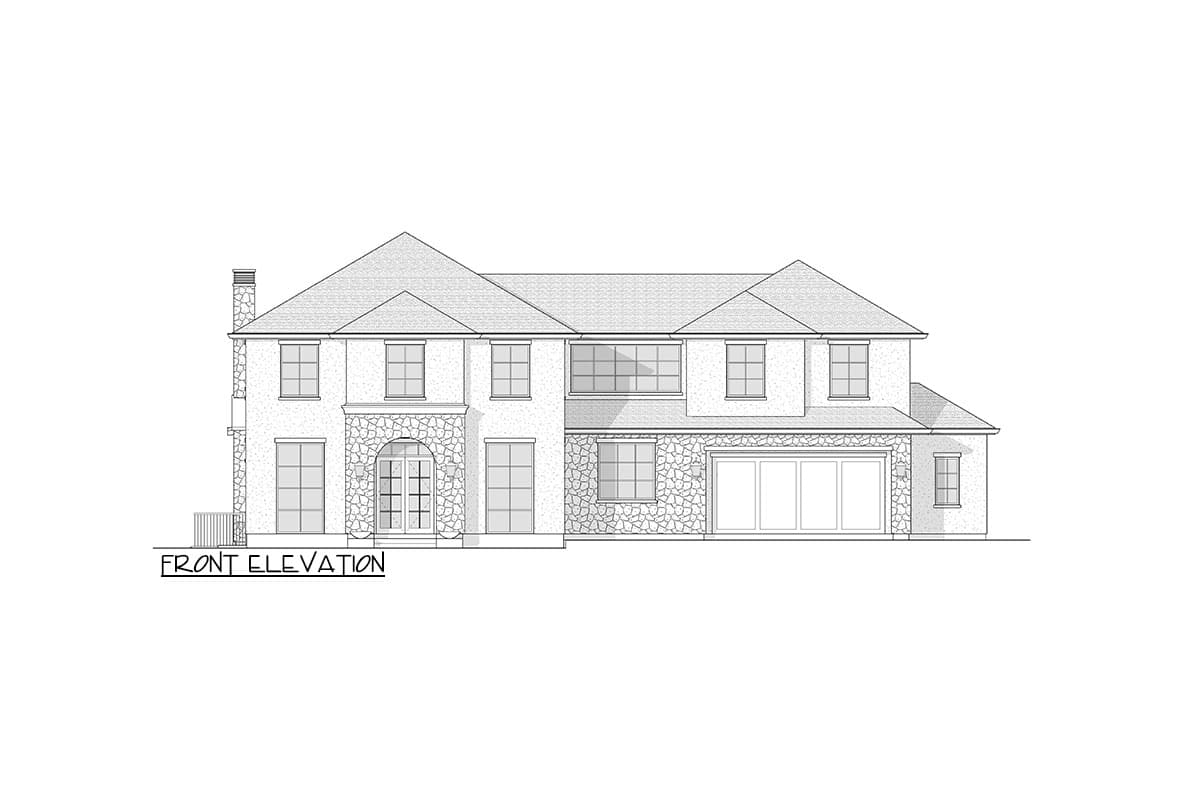

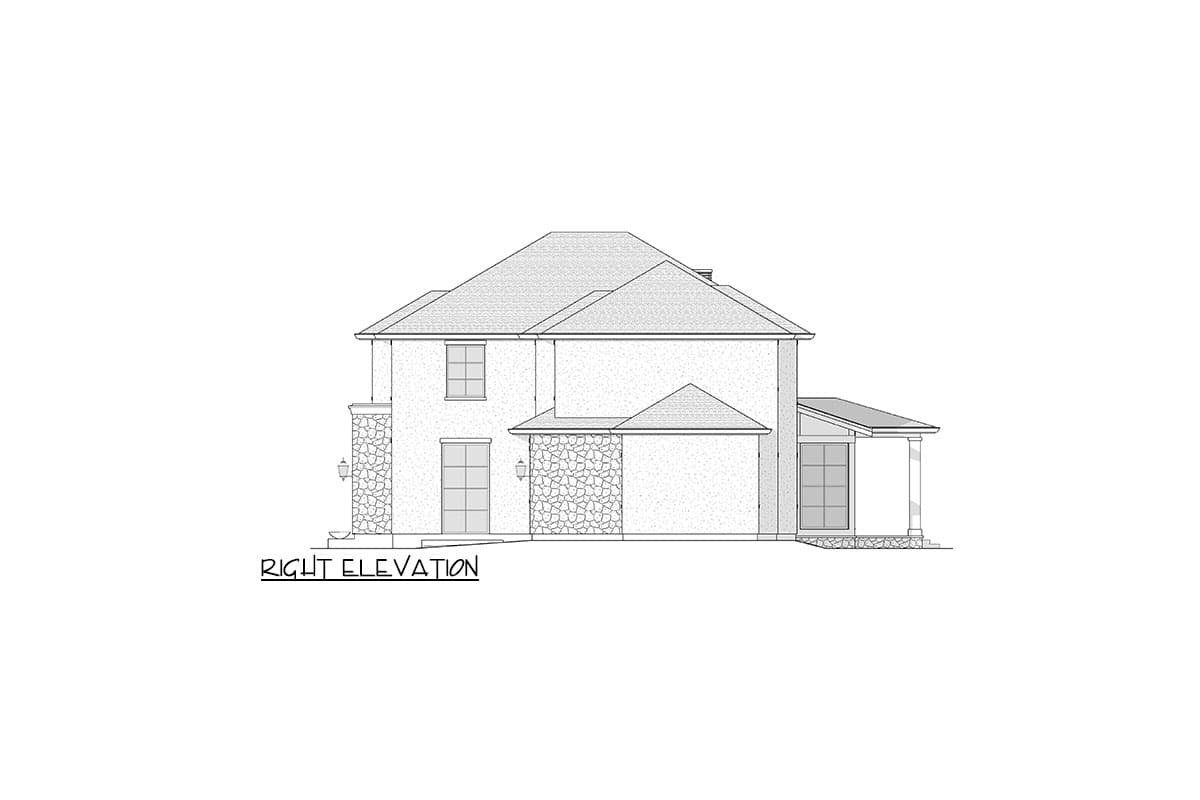

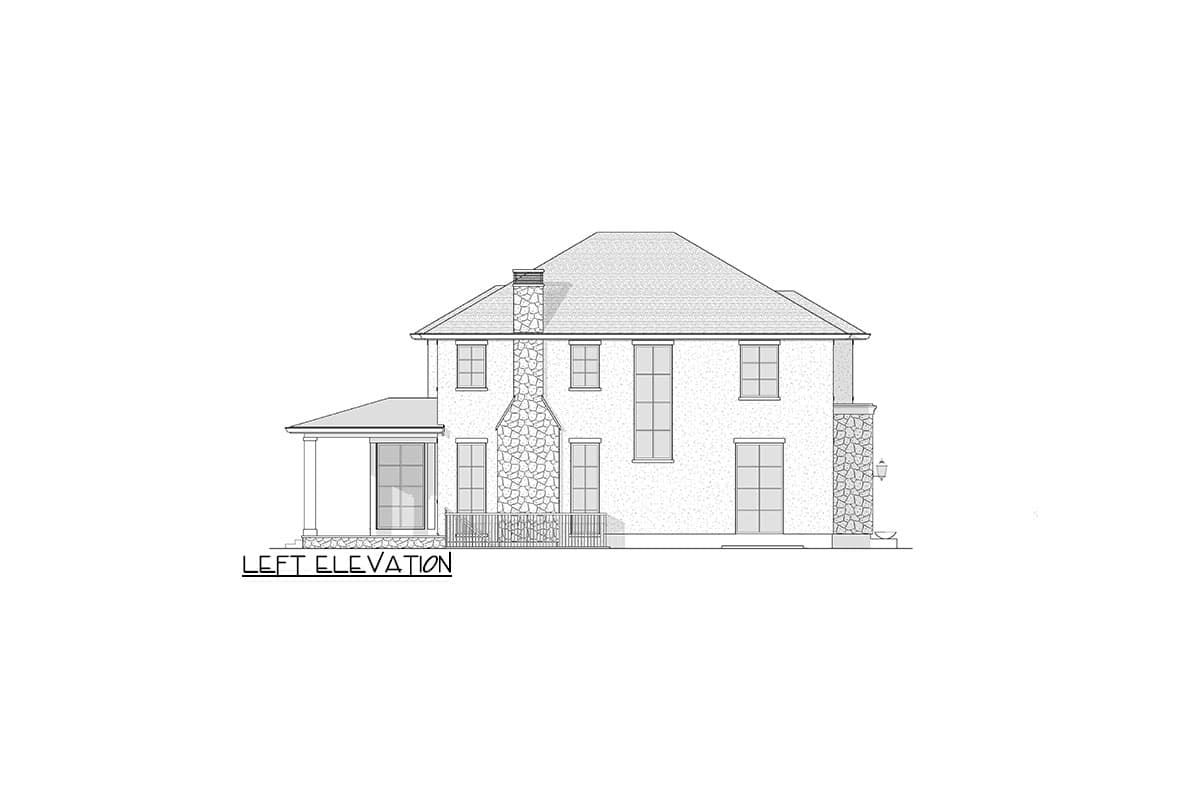

  • Exterior Elevations - Views of the front, rear, and sides of home detailing exterior finish work.
  • Building Sections and Notes - Cut through views of the home
  • Details - Dissected drawings of typical construction details
What is NOT included in the plans:

  •           Architectural or Engineering Stamp - handled locally if required
  •           Site Plan - handled locally when required
  •           Electrical plan
  •           Mechanical Drawings (location of heating and air equipment and duct work) — your subcontractors handle this
  •           Framing layouts with beam sizes and locations
  •           Material lists
  •           Energy calculations - handled locally when required
  •   Renderings, photography, or marketing imagery

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

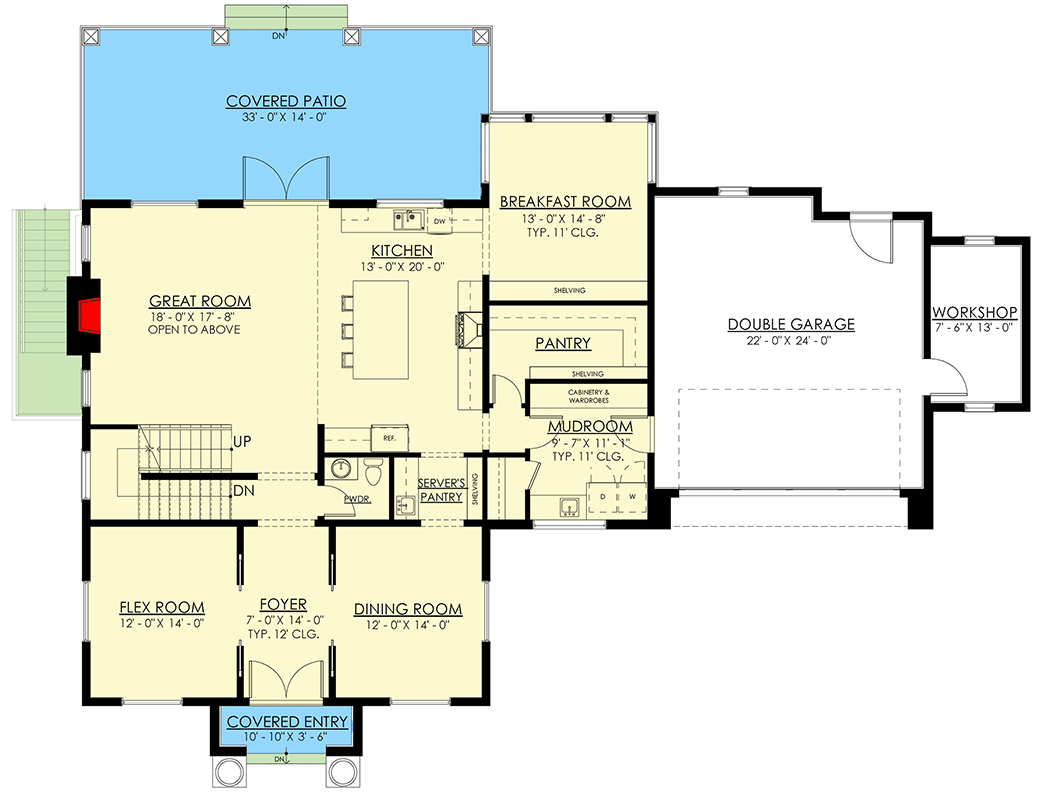

Transitional 4-Bed Home Plan with Workshop and Flex Room - 270074AF floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

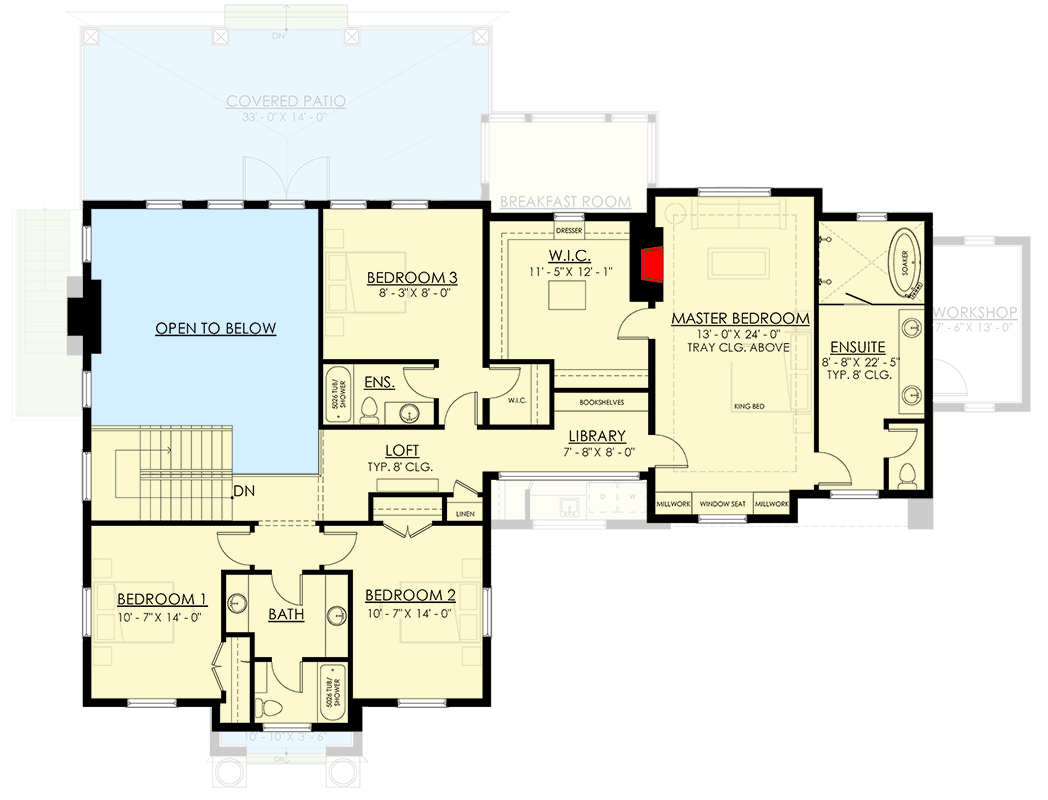

Transitional 4-Bed Home Plan with Workshop and Flex Room - 270074AF floor plan - 2nd Floor

Unfinished Basement

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

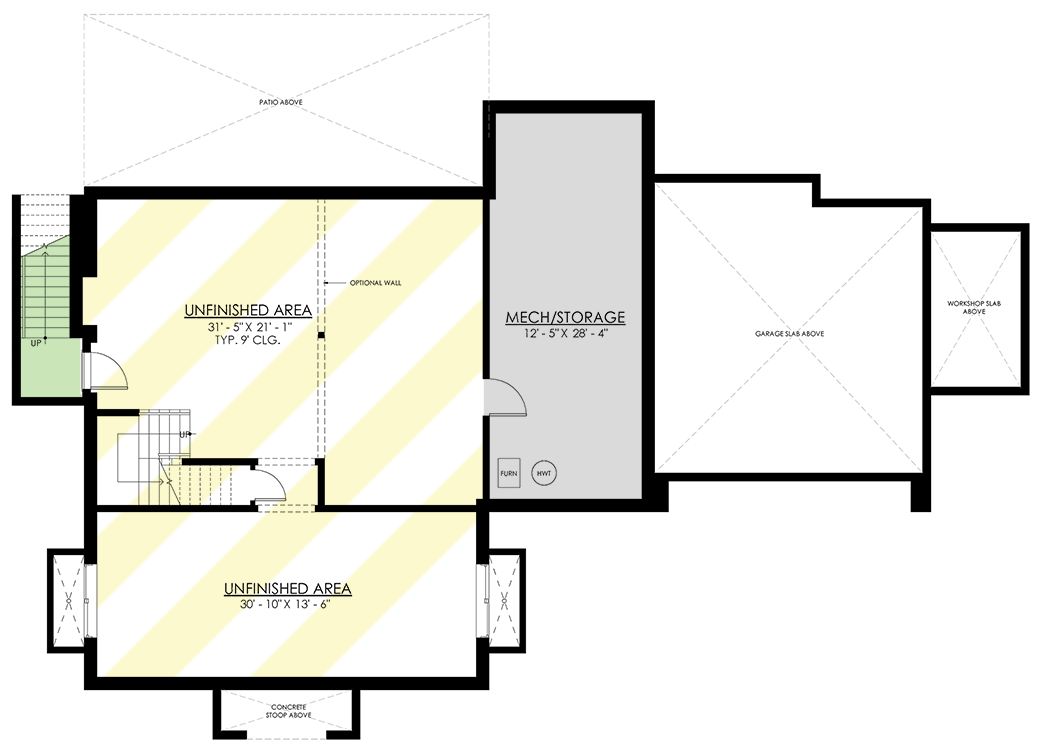

Transitional 4-Bed Home Plan with Workshop and Flex Room - 270074AF floor plan - Unfinished Basement

Transitional 4-Bed Home Plan with Workshop and Flex Room

  • 3,585

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

  • Unfinished Basement

Plan Details

Square Footage Breakdown

  • Total: 3,585 sq. ft.
  • 1st Floor: 1,817 sq. ft.
  • 2nd Floor: 1,768 sq. ft.

Dimensions

  • Width: 78' 2"
  • Depth: 59' 0"
  • Max ridge height: 32' 11"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 545 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Slab, Crawl, Walkout

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 12' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 7 on 12
  • Secondary Pitch: 6 on 12
  • Framing Type: Truss
All house plans are copyright ©2024 by the architects and designers represented on our web site
