Plan 93193EL
EXCLUSIVE
Transitional Acadian Home Plan with Optional 3rd Floor Media Room
Heated S.F.
4,938
Beds
5
Baths
4.5
Stories
2-3
Cars
2
What's Included
Plan Details

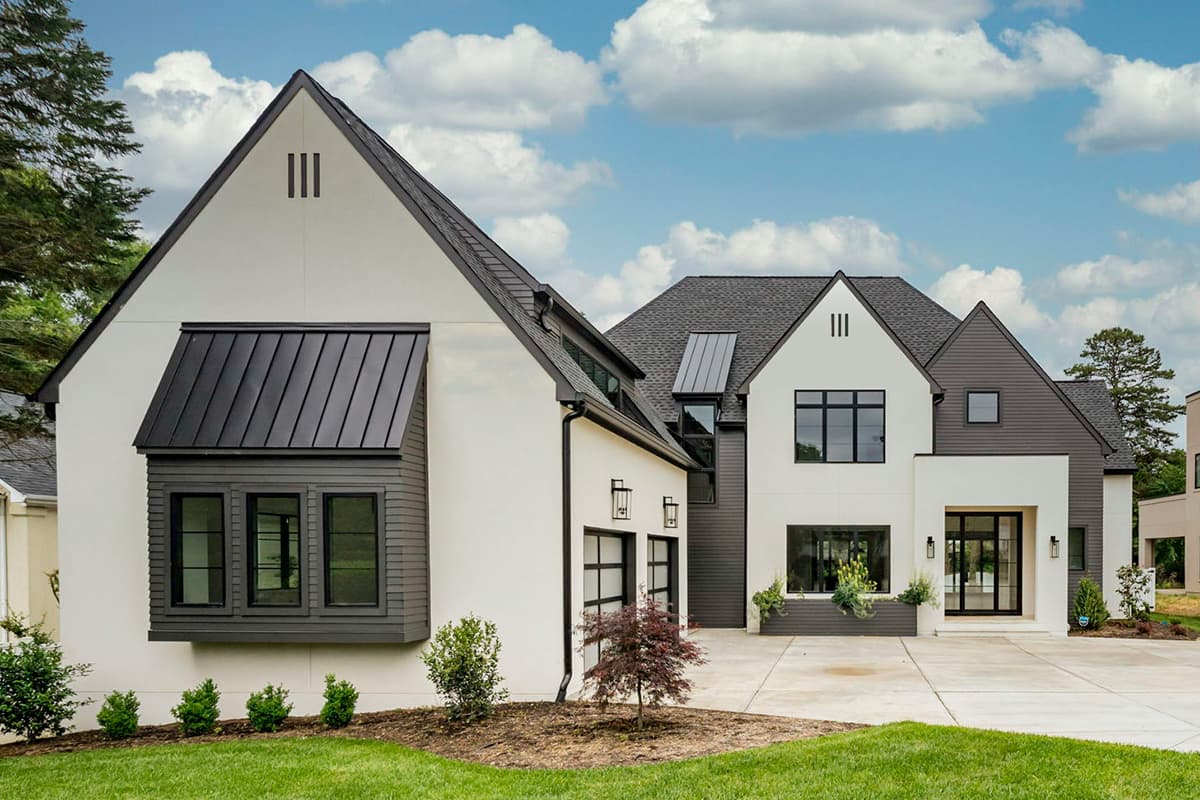

  • With a stunning exterior, this Transitional Acadian home plan gives you just under 5,000 square feet, and the option to finish the 3rd floor as a media room serves as the cherry on top.

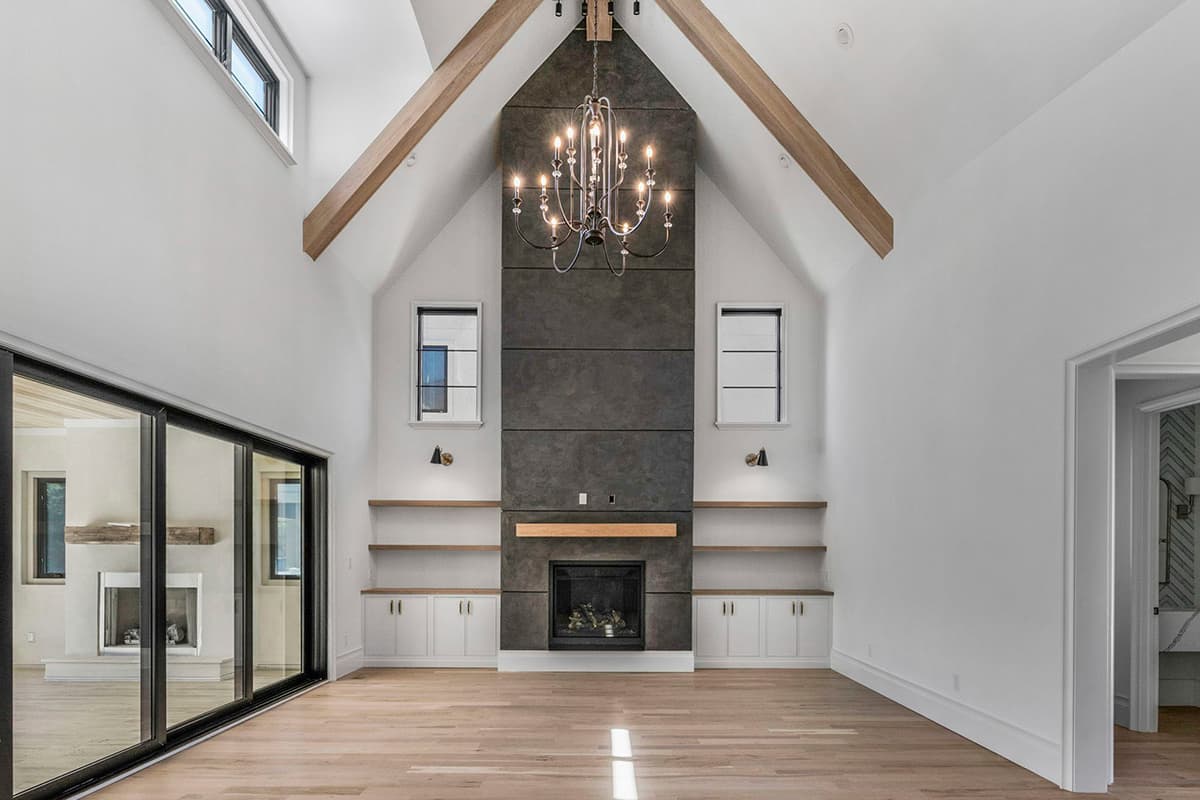

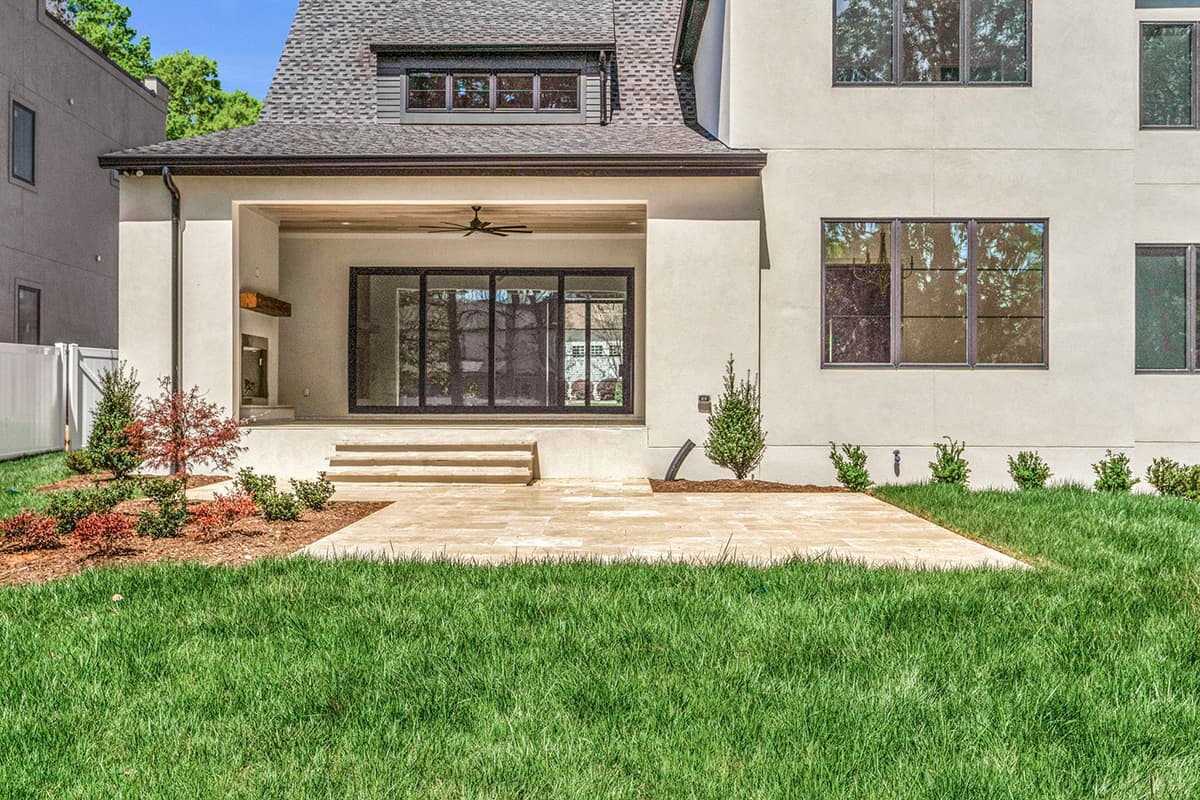

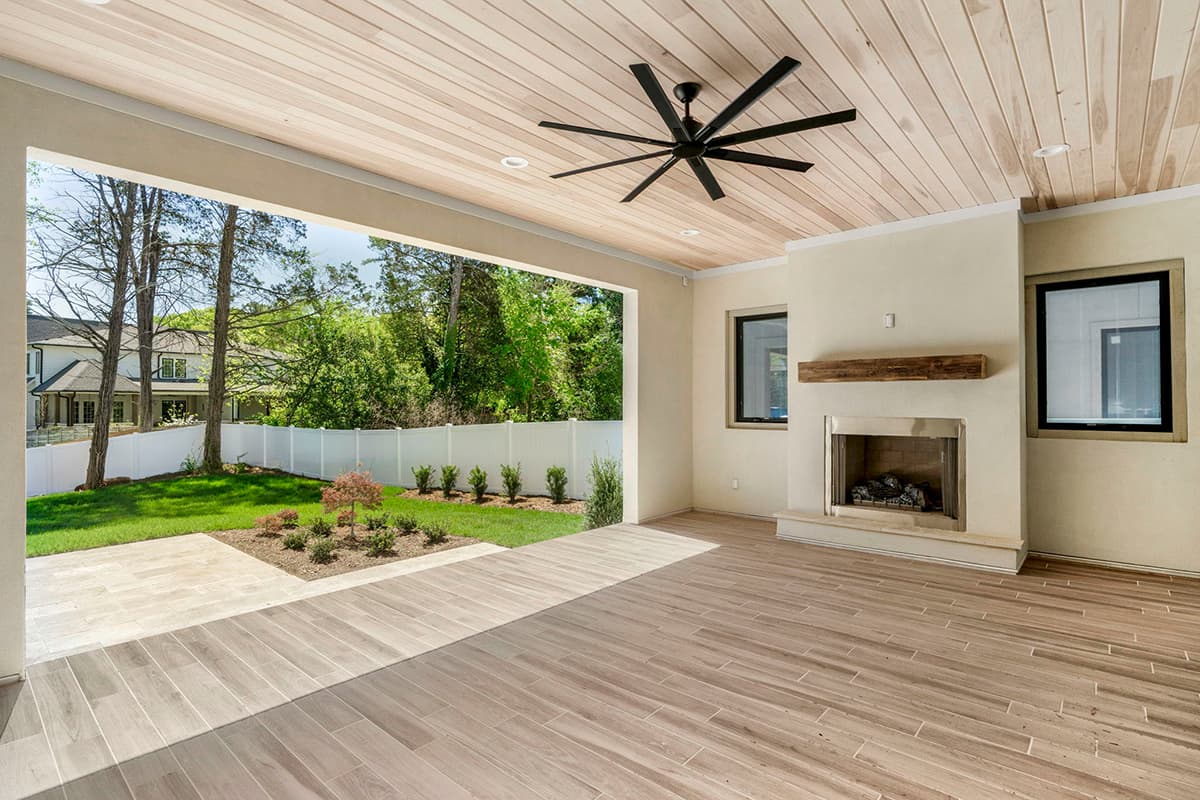

  • Multiple areas to socialize on the main level include the keeping, gathering, and formal dining rooms, as well as a covered terrace with a fireplace; an entertainer's dream.

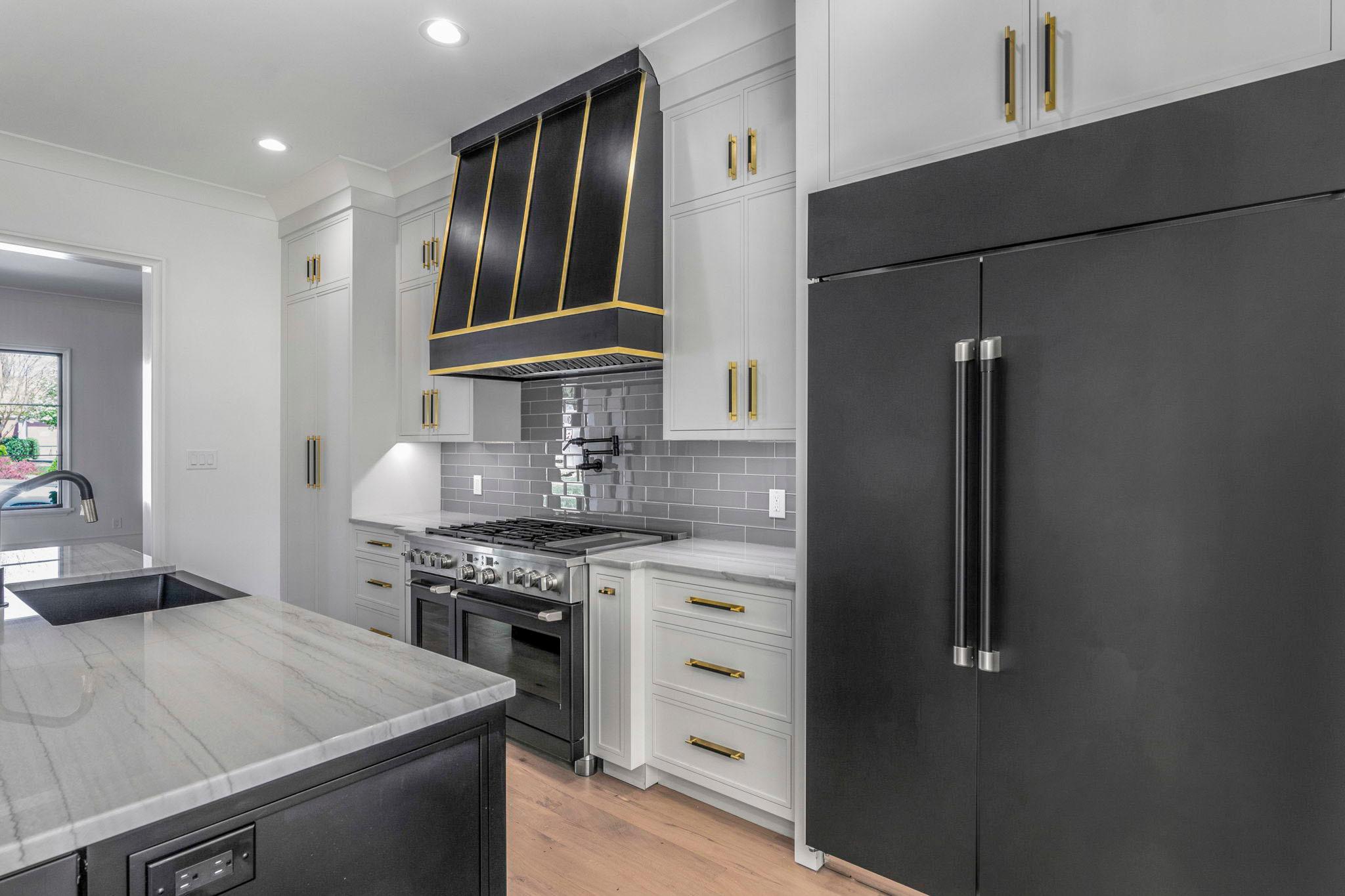

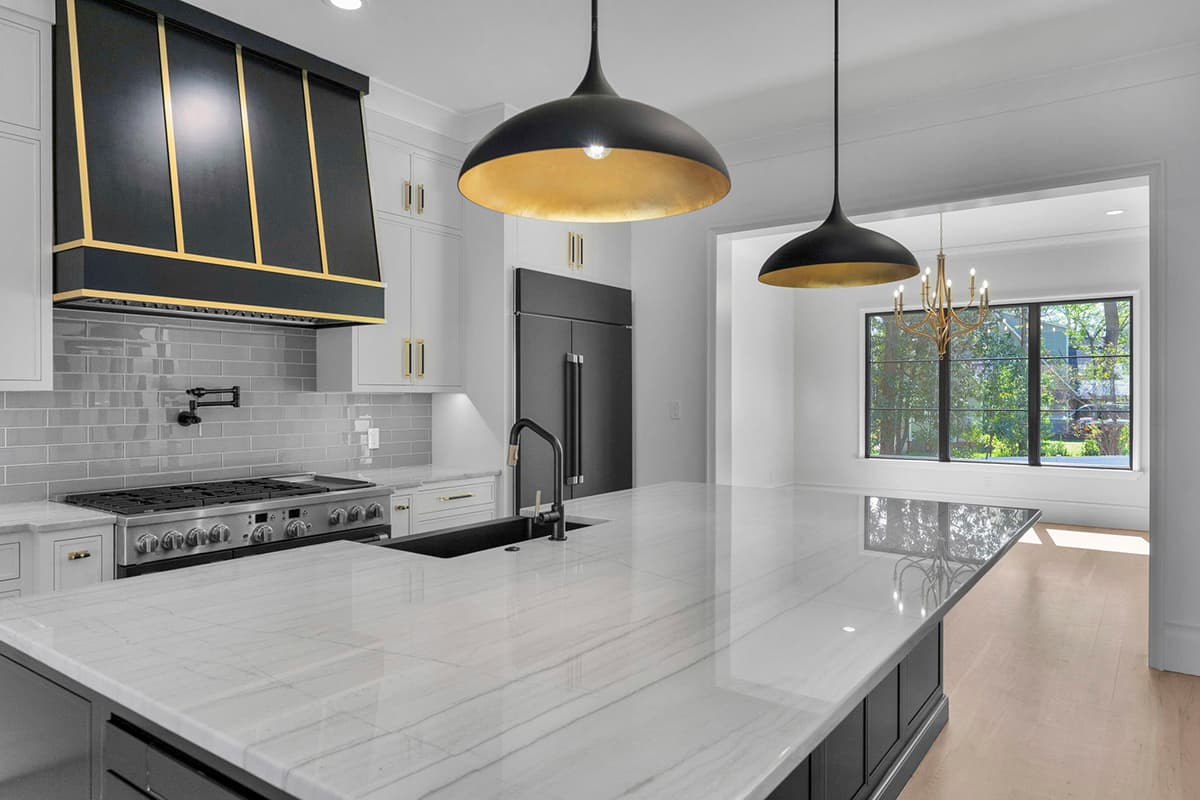

  • A scullery supports the gourmet kitchen, and the other service areas are tucked near the family foyer and double garage.

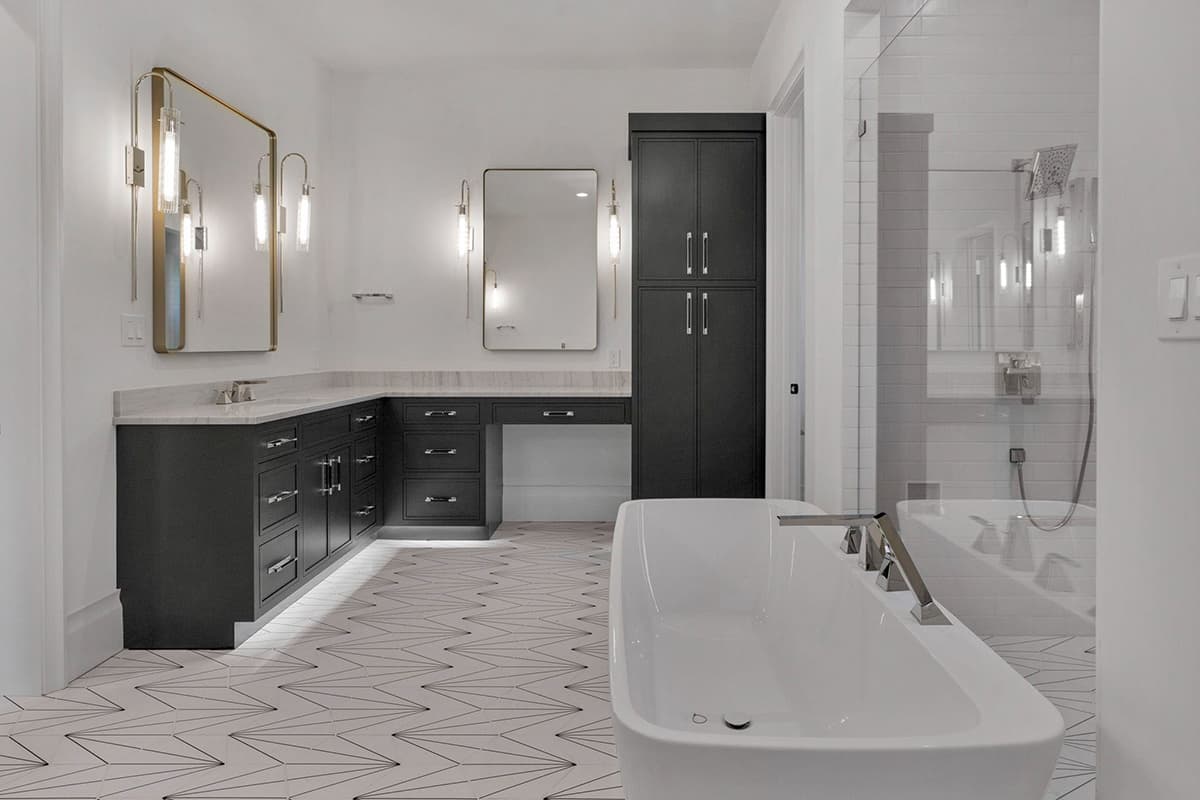

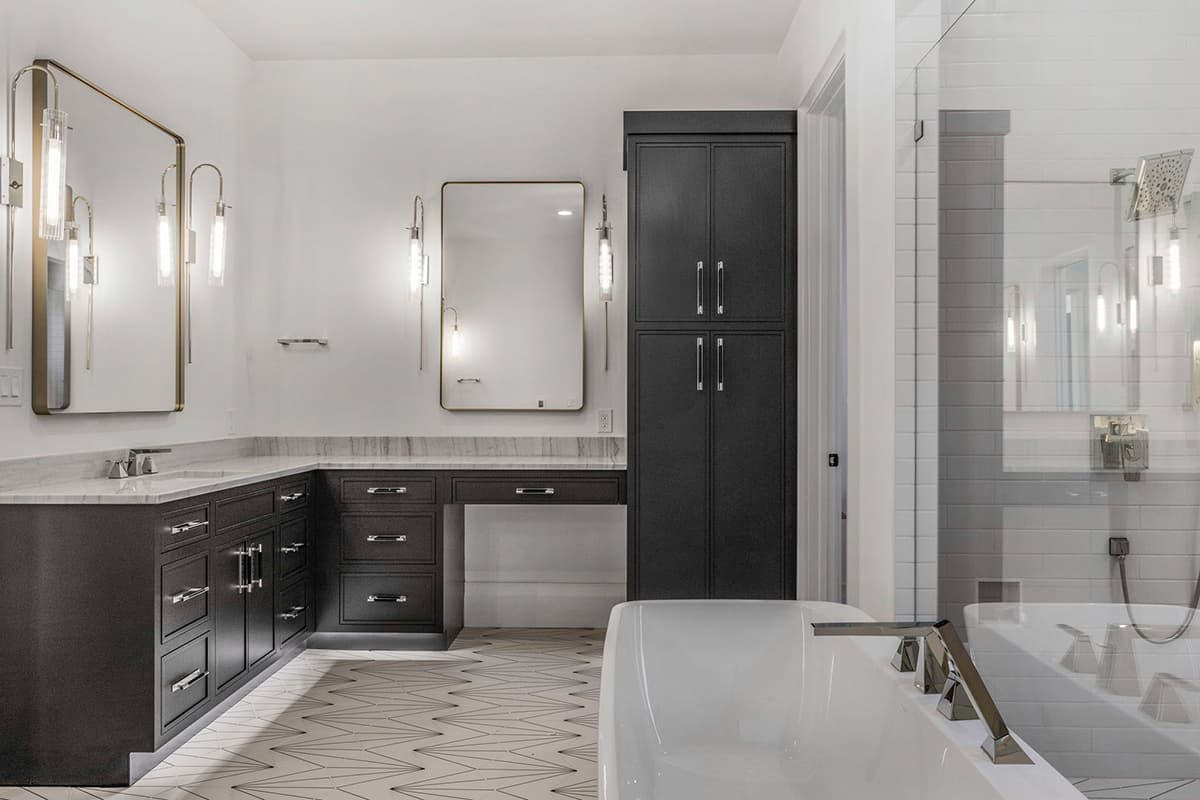

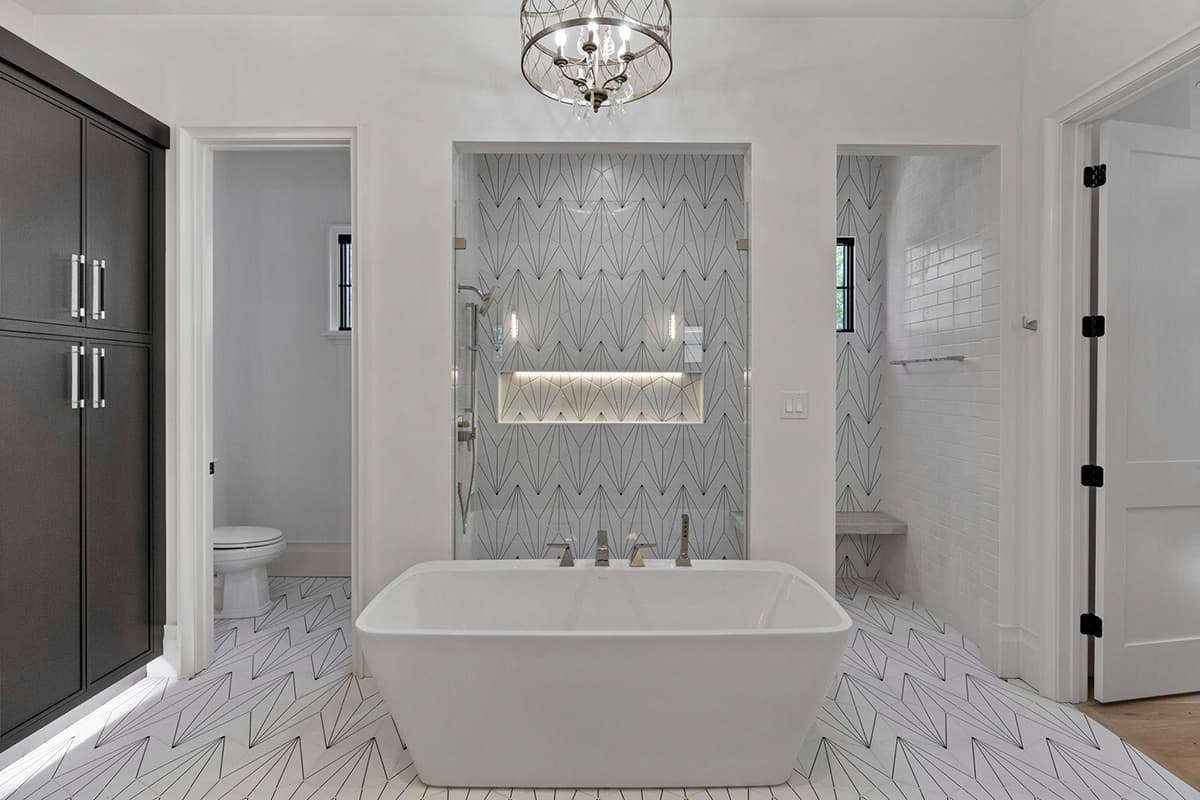

  • Serving as a true oasis, the owner's suite is conveniently located on the main level with a 5-fixture bathroom and dresser island in the larger-than-average wardrobe.

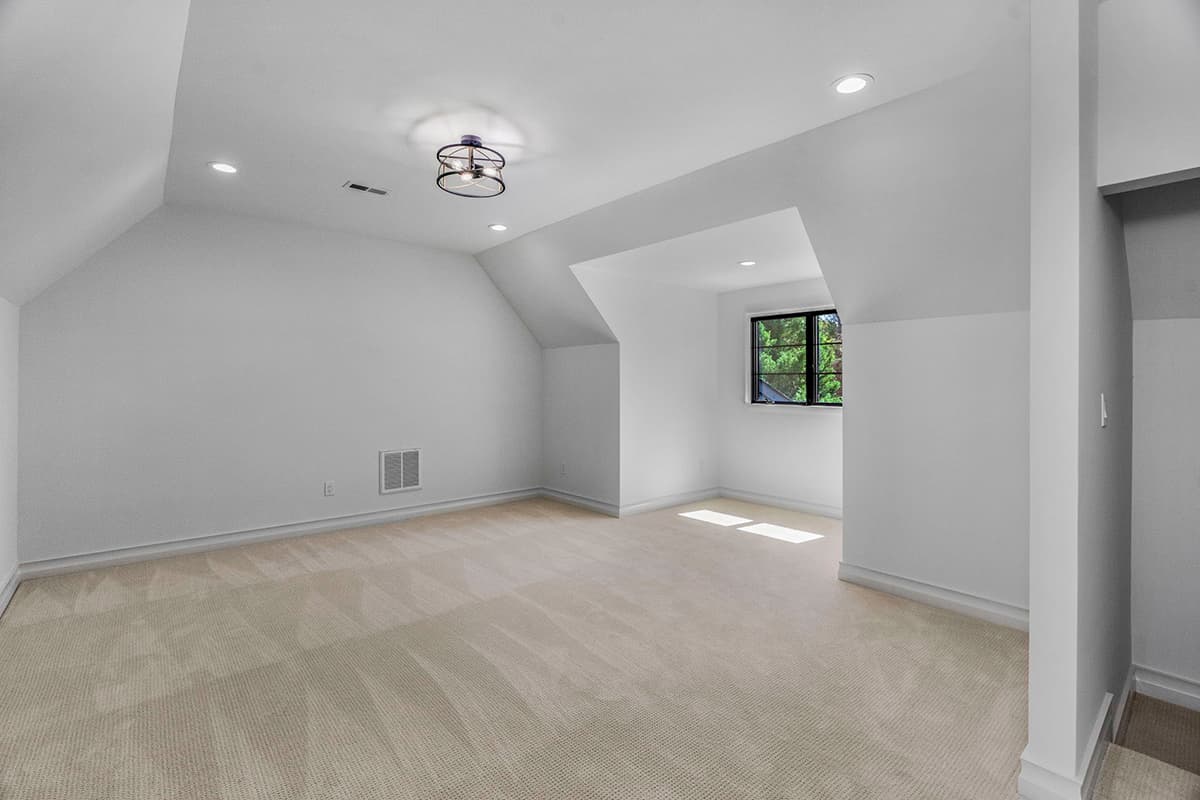

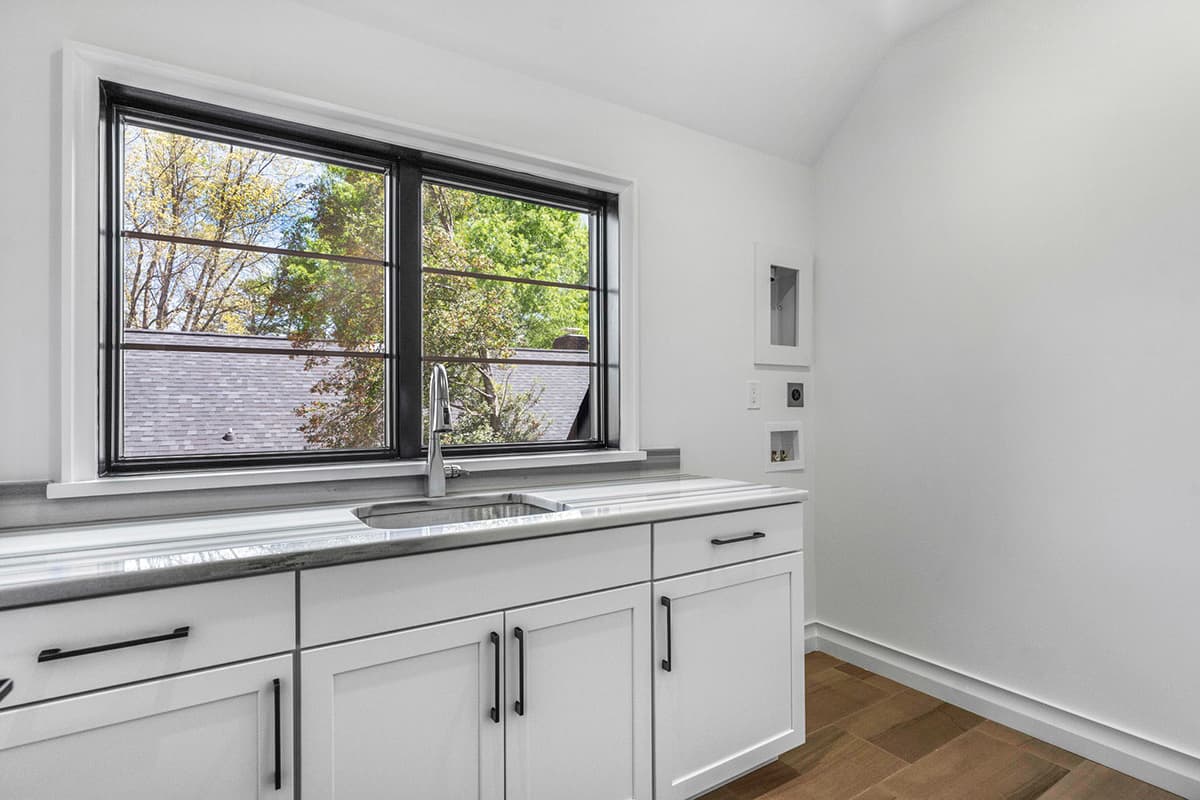

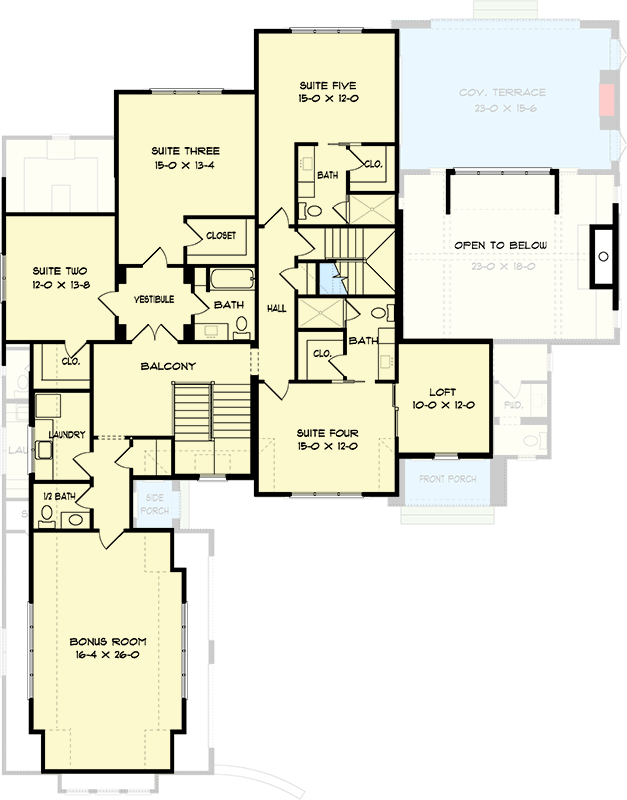

  • Four bedroom suites are located upstairs, along with the laundry room and a versatile bonus room above the garage.
What's Included

  • Cover Sheet
  • General Note Sheet
  • Foundation Sheet
  • First Floor Plan
  • Second Floor Plan (if applicable)
  • Roof Framing Plan
  • Front & Rear Elevation
  • Left & Right Elevation
  • Openings & Sections Sheet
  • Foundation Details
  • Cornice Details
  • First Floor Electrical
  • Second Floor Electrical (if applicable)

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Transitional Acadian Home Plan with Optional 3rd Floor Media Room

  • 4,938

    Heated s.f.

  • 5

    Beds

  • 4.5

    Baths

  • 2-3

    Floors

  • 2

    Car garage

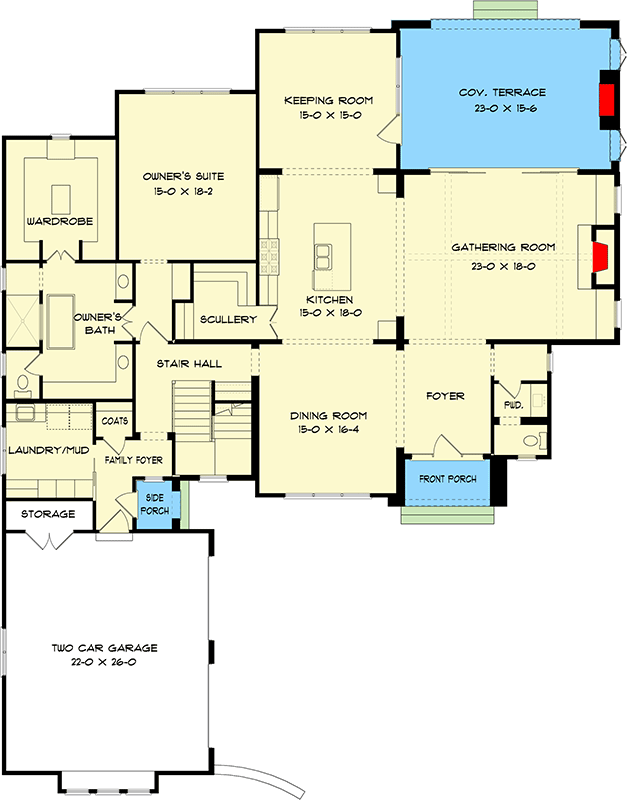

Floor Plan

  • Main Level

  • 2nd Floor

  • 3rd Floor

Plan Details

Square Footage Breakdown

  • Total: 4,938 sq. ft.
  • 1st Floor: 2,632 sq. ft.
  • 2nd Floor: 2,306 sq. ft.

Dimensions

  • Width: 67' 5"
  • Depth: 84' 6"
  • Max ridge height: 37' 1"

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 4
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 671 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Walkout, Slab, Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"
