Plan 493005GNT

Exclusive

Transitional Farmhouse Plan with 4 Beds Under 3100 Square Feet

Heated S.F.
3,092
Beds
4
Baths
3.5
Stories
2
Cars
3

Floor Plan

Plan 493005GNT

Main Level
Main Level
2nd Floor
2nd Floor

Plan 493005GNT

M-F 9am-5pm EST |

1-203-761-8500

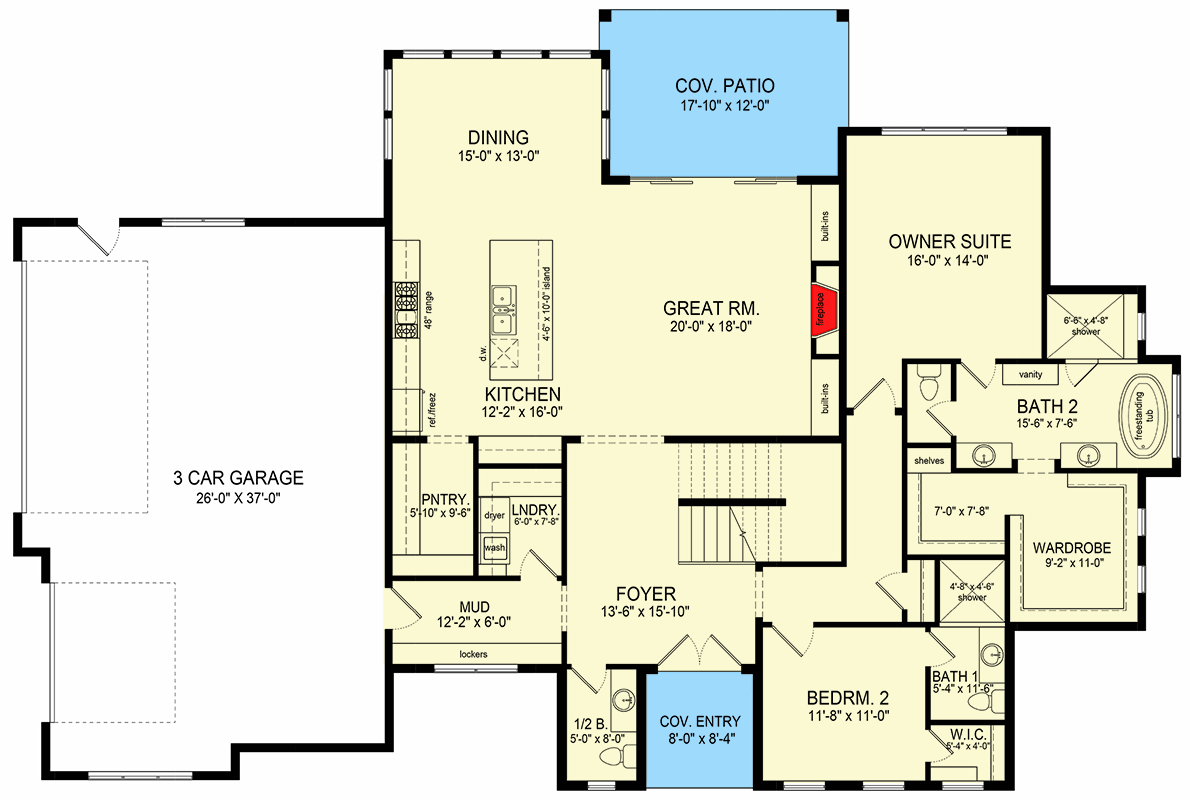

Main Level

Plan 493005GNT: Transitional Farmhouse Plan with 4 Beds Under 3100 Square Feet - Floor Plan - Main Level - Contemporary, Hill Country, New American, Transitional

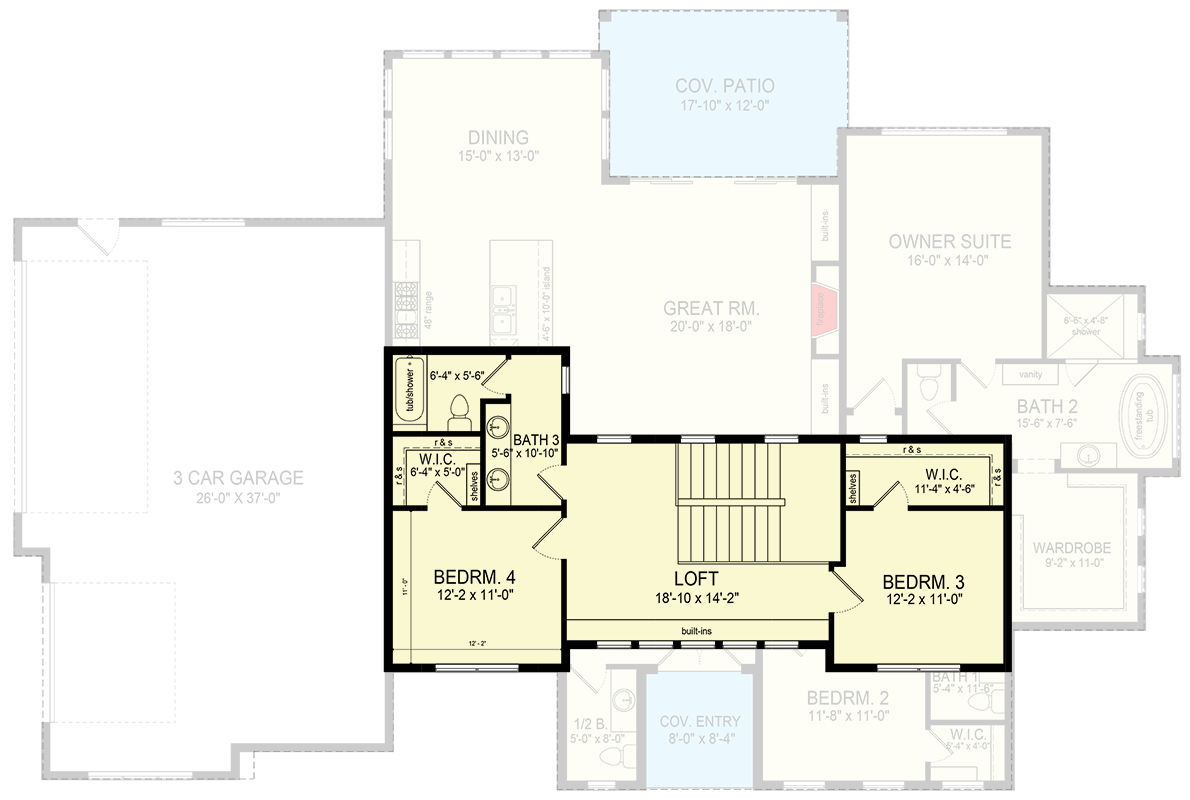

2nd Floor

Plan 493005GNT: Transitional Farmhouse Plan with 4 Beds Under 3100 Square Feet - Floor Plan - 2nd Floor - Contemporary, Hill Country, New American, Transitional

Plan Details

  • This transitional farmhouse plan has a contemporary exterior filled with windows front and back. Inside, it gives you 4 beds, 3.5 baths and 3,092 square feet of heated living with expansion possible in a basement.
  • The kitchen sits at the junction of the great room with fireplace and the natural-light-filled dining room and has a large (4'6" wide and 10' deep) island and a roomy pantry (5'10" by 9'6").
  • The back wall of the great room opens to the covered patio giving you indoor/outdoor living.
  • A private owner's suite with views to the back occupies the entire right side of the home and has an oversized walk-in closet with two sections, two vanities, large shower (6'6" by 4'8"), a spa tub and private toilet. A guest bedroom near the foyer has a shower and walk-in closet.
  • Upstairs gives you two beds with a shared bath and a loft area with 18' of built-ins, great for games and books.
  • Two doors open on the side of the 3-car garage which has access to the home through a mudroom with lockers.

What's Included

  • Cover Sheet
  • General Notes
  • Foundation Plan
  • Main Level/Second Level (if applicable) door and window schedules
  • Fully Dimensioned Floor Plans
  • Elevations
  • Exterior Perspective Views
  • Building Section
  • Typical Construction Details
  • Bird's Eye Roof Plan
  • Suggested Electrical Layout (Outlets, Fixtures, Switches)

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

3,092 sq. ft.

1st Floor

2,285 sq. ft.

2nd Floor

807 sq. ft.

Basement Unfinished

2,181 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

83' 4"

Depth

55' 8"

Max Ridge Height

29' 6"

Garage

Type

Attached

Count

3 Cars

Entry Location

Side

Ceiling Heights

Lower Level

0' 9"

First Floor

0' 10"

Second Floor

0' 9"

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

3 on 12

Architectural Style

Contemporary

Hill Country

New American

Transitional

Special Features

Bedrooms - Split

Home Office

Laundry - Main Level

Loft

Master Suite - 1st Floor

Mudroom

Walk-in Pantry

Plan Collections

Exclusive

Home Office
