Plan 65673BS Transitional Florida Home Plan with Private Master Suite and Flex Room

4,193 5 5.5 1 3
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Transitional Florida Home Plan with Private Master Suite and Flex Room

Plan 65673BS

  • 4,193

    Heated s.f.

  • 5

    Beds

  • 5.5

    Baths

  • 1

    Stories

  • 3

    Cars

  • This Transitional Florida home plan offers a smooth transition between the open concept living space and the rear porch in order to take advantage of warmer climates.
  • An oversized island sits in the center of the gourmet kitchen, creating plenty of workspace, and a walk-in pantry maximizes room for storage in the adjacent hallway.
  • Throughout the home, enjoy elegant tray or coffered ceilings ranging from 12 to 15 feet in height. A study and flex room offer versatile spaces that can change as your needs shift.
  • Set apart from the secondary bedrooms, discover the master suite, which delivers enough space for a sitting area, dual walk-in closets, and a luxury ensuite with a freestanding tub and custom tile shower.
  • Three bedroom suites are in line with the 3-car garage, and a sizable laundry room can be found in the mud hall.
  • Related Plans: Get alternate versions with house plans 65671BS and 65672BS.
  • BUILDING RESTRICTION: This plan my not be built in Lee and Collier Counties, Florida as well as Sarasota, Florida.

Plans include the following:

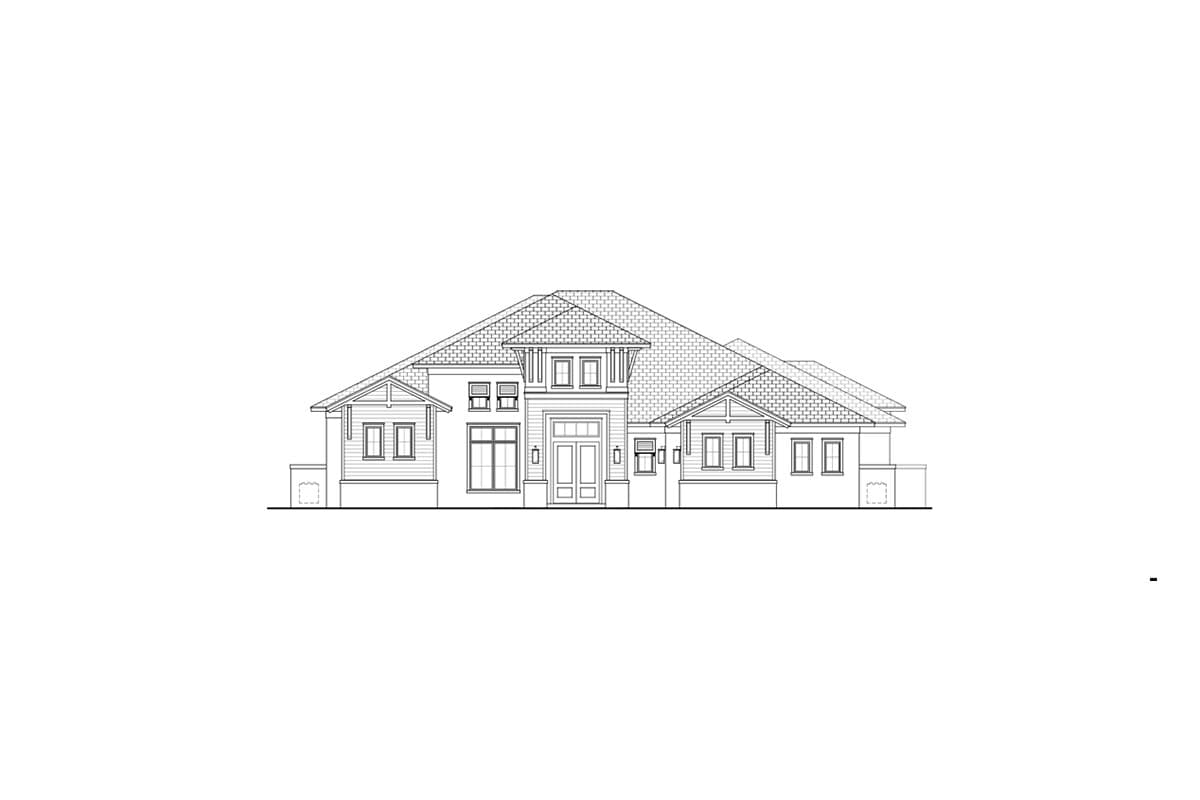

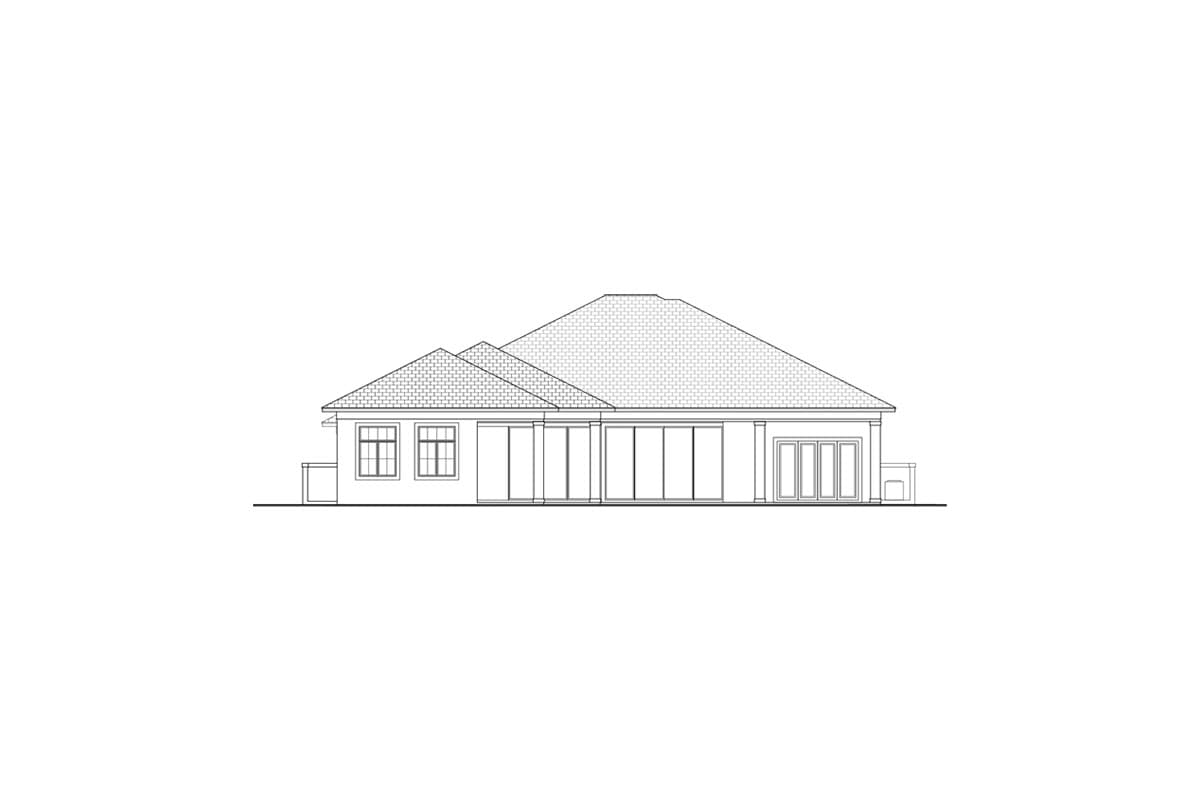

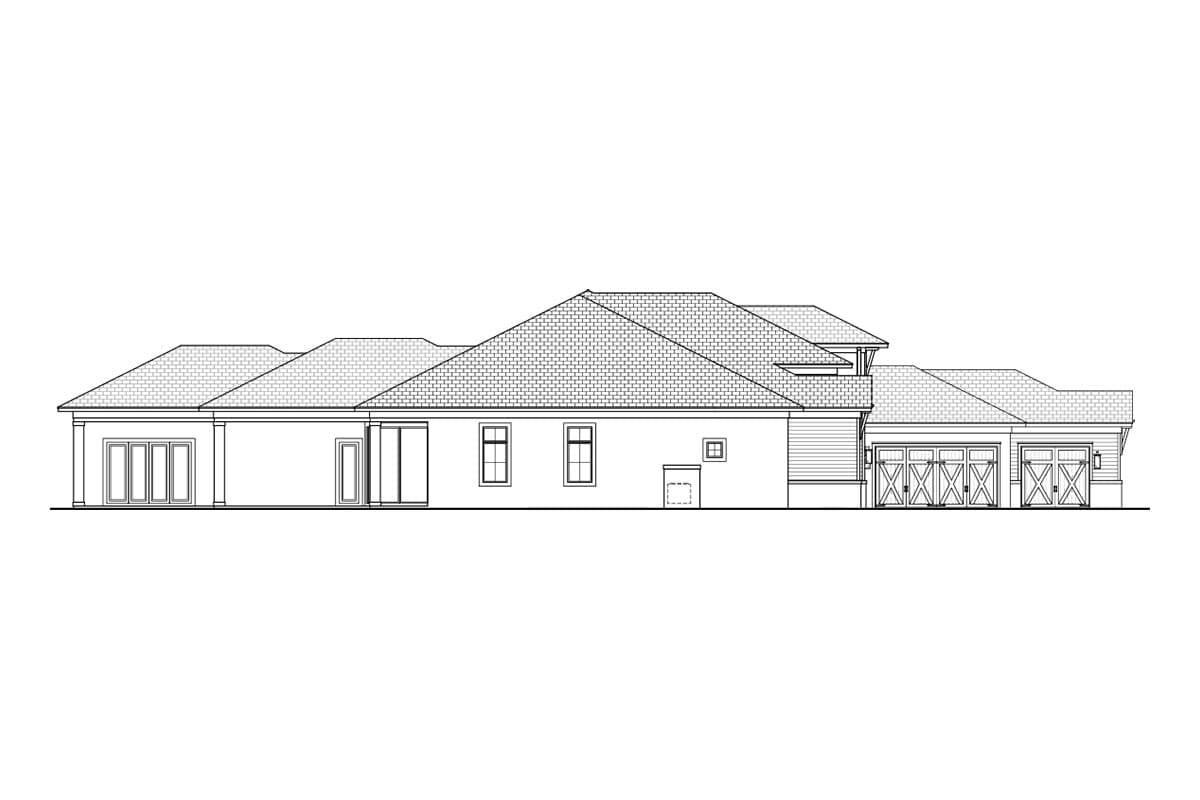

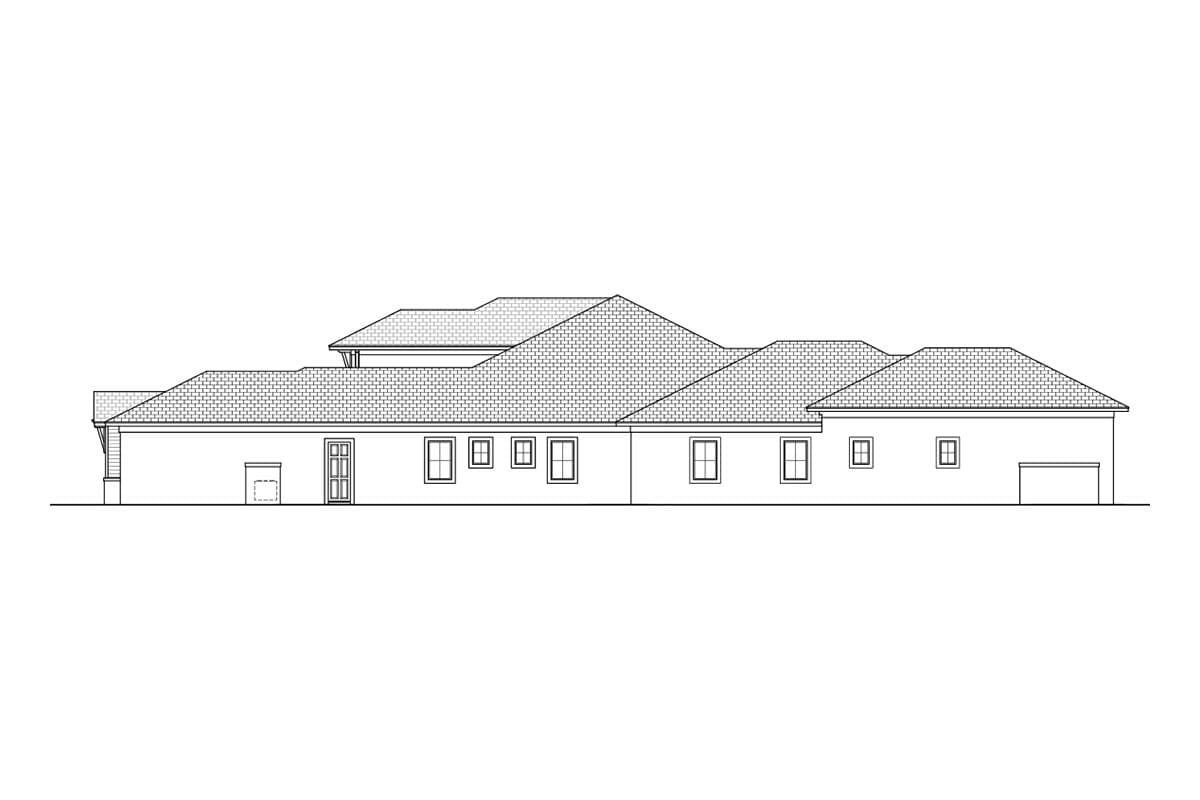

Elevations:

Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

  • Material Labels
  • Floor-To-Floor Heights
  • Roof Slope Indicators

Floor Plans:
Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

  • Door and Window Sizes
  • Completely Dimensioned Floor Plan
  • Room Labels and Interior Room Sizes

Electrical Layouts:

  • Building Section Markers
  • All Electrical Outlets, Fixtures and Switching

Foundation or Slab Plan:
Drawn at 1/8″ to 1/4″ = 1’0″ Scale

Roof Design Plan:
Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:

  • All Beam and Header Heights and Locations
  • All Hips, Gables, Ridges and Valley
  • Building Section Markers

Building Sections:
Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:

  • Floor-To-Floor Heights
  • Non-Typical Plate Heights Indicated

Typical Wall Sections:
Drawn at 1/8″ to 1/2″ = 1’0″ Scale and Includes:

  • All Labels Indicating Wall Construction
  • Foundation Wall Thickness
  • Insulation Type and Thickness

Miscellaneous Notes and Details:

  • Miscellaneous General Notes
  • Stairway Details (if applicable)
IMPORTANT NOTE:  Structural drawings, as well as heating and plumbing details, will not be included in your plan sets due to a variety of factors which include local codes, installation methods, personal preference, etc.  Your building professional (contractor/builder/supplier) can, without difficulty, supply these details and specifications on your behalf.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

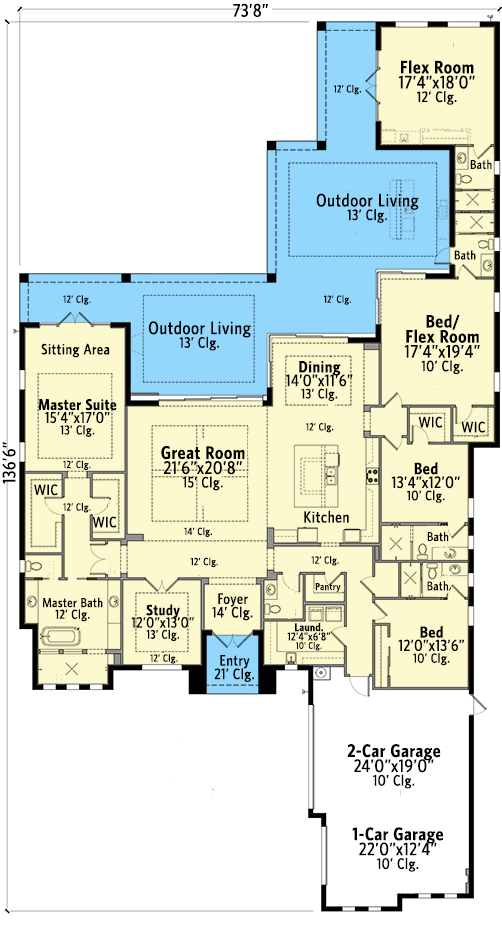

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Transitional Florida Home Plan with Private Master Suite and Flex Room - 65673BS floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 4,193 sq. ft.
  • 1st Floor: 4,193 sq. ft.
  • Lanai: 1,420 sq. ft.
  • Porch, Front: 92 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 5
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)
  • Optional Type(s): 2x6

Dimensions

  • Width: 73' 8"
  • Depth: 136' 6"
  • Max ridge height: 27' 10"

Garage

  • Type: Attached
  • Area: 838 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Roof Details

  • Primary Pitch: 6 on 12

Architectural Style

Special features

Transitional Florida Home Plan with Private Master Suite and Flex Room

  • 4,193

    Heated s.f.

  • 5

    Beds

  • 5.5

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • CAD + PDF - Single-Build $4,193
  • PDF - Single-Build $4,193
  • View all purchase option online

About This Plan

  • This Transitional Florida home plan offers a smooth transition between the open concept living space and the rear porch in order to take advantage of warmer climates.
  • An oversized island sits in the center of the gourmet kitchen, creating plenty of workspace, and a walk-in pantry maximizes room for storage in the adjacent hallway.
  • Throughout the home, enjoy elegant tray or coffered ceilings ranging from 12 to 15 feet in height. A study and flex room offer versatile spaces that can change as your needs shift.
  • Set apart from the secondary bedrooms, discover the master suite, which delivers enough space for a sitting area, dual walk-in closets, and a luxury ensuite with a freestanding tub and custom tile shower.
  • Three bedroom suites are in line with the 3-car garage, and a sizable laundry room can be found in the mud hall.
  • Related Plans: Get alternate versions with house plans 65671BS and 65672BS.
  • BUILDING RESTRICTION: This plan my not be built in Lee and Collier Counties, Florida as well as Sarasota, Florida.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,193 sq. ft.
  • 1st Floor: 4,193 sq. ft.
  • Lanai: 1,420 sq. ft.
  • Porch, Front: 92 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 5
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)
  • Optional Type(s): 2x6

Dimensions

  • Width: 73' 8"
  • Depth: 136' 6"
  • Max ridge height: 27' 10"

Garage

  • Type: Attached
  • Area: 838 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Roof

  • Primary Pitch: 6 on 12
Plan 65673BS
View this and more for this plan by visiting www.architechtecturaldesigns.com/65673BS
|
Need Help? 800-854-7852
|
Plan 65673BS
