Plan 65672BS
One-level Mediterranean Home Plan with Bonus Room and Study
Heated S.F.
4,000
Beds
4
Baths
4.5
Stories
1
Cars
3
What's Included
Plan Details
  • This one-level, Mediterranean home plan offers a smooth transition between the open concept living space and the rear porch in order to take advantage of warmer climates.
  • An oversized island sits in the center of the gourmet kitchen, creating plenty of workspace, and a walk-in pantry maximizes room for storage in the adjacent hallway.
  • Throughout the home, enjoy elegant tray or coffered ceilings ranging from 12 to 15 feet in height. A study and bonus room offer flexible spaces that can change as your needs shift.
  • Set apart from the secondary bedrooms, discover the master suite, which delivers enough space for a sitting area, dual walk-in closets, and a luxury ensuite with a freestanding tub and custom tile shower.
  • Three bedroom suites are in line with the 3-car garage, and a sizable laundry room can be found in the mud hall. The bonus room - factored into the total living area - has access to the outdoor living area.
  • Related Plans: Get alternate versions with house plan 65671BS and 65673BS.
  • BUILDING RESTRICTION: Restrictions may apply if building in Lee and Collier Counties, Florida as well as Sarasota, Florida. Please contact us with your site address to confirm.
What's Included
Plans include the following:

Elevations:

Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

  • Material Labels
  • Floor-To-Floor Heights
  • Roof Slope Indicators

Floor Plans:
Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

  • Door and Window Sizes
  • Completely Dimensioned Floor Plan
  • Room Labels and Interior Room Sizes

Electrical Layouts:

  • Building Section Markers
  • All Electrical Outlets, Fixtures and Switching

Foundation or Slab Plan:
Drawn at 1/8″ to 1/4″ = 1’0″ Scale

Roof Design Plan:
Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:

  • All Beam and Header Heights and Locations
  • All Hips, Gables, Ridges and Valley
  • Building Section Markers

Building Sections:
Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:

  • Floor-To-Floor Heights
  • Non-Typical Plate Heights Indicated

Typical Wall Sections:
Drawn at 1/8″ to 1/2″ = 1’0″ Scale and Includes:

  • All Labels Indicating Wall Construction
  • Foundation Wall Thickness
  • Insulation Type and Thickness

Miscellaneous Notes and Details:

  • Miscellaneous General Notes
  • Stairway Details (if applicable)
IMPORTANT NOTE:  Structural drawings, as well as heating and plumbing details, will not be included in your plan sets due to a variety of factors which include local codes, installation methods, personal preference, etc.  Your building professional (contractor/builder/supplier) can, without difficulty, supply these details and specifications on your behalf.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

One-level Mediterranean Home Plan with Bonus Room and Study

  • 4,000

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 1

    Floors

  • 3

    Car garage

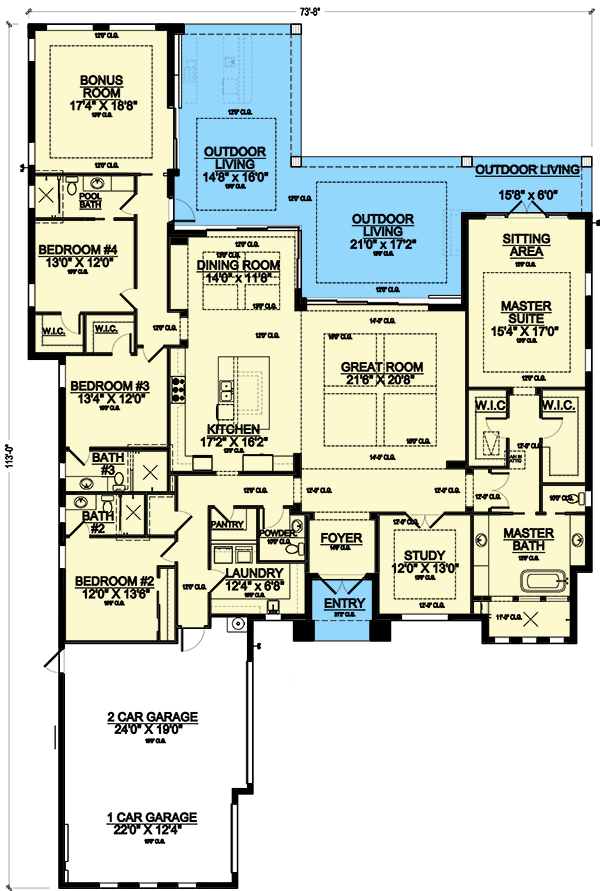

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 4,000 sq. ft.
  • 1st Floor: 4,000 sq. ft.

Dimensions

  • Width: 73' 8"
  • Depth: 113' 0"
  • Max ridge height: 27' 10"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 814 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)
  • Optional Type(s): 2x6

Roof

  • Primary Pitch: 6 on 12
All house plans are copyright ©2024 by the architects and designers represented on our web site

One-level Mediterranean Home Plan with Bonus Room and Study

  • 4,000

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 1

    Floors

  • 3

    Car garage

One-level Mediterranean Home Plan with Bonus Room and Study

  • 4,000

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 1

    Floors

  • 3

    Car garage

Plan Details

Square Footage Breakdown

  • Total: 4,000 sq. ft.
  • 1st Floor: 4,000 sq. ft.

Dimensions

  • Width: 73' 8"
  • Depth: 113' 0"
  • Max ridge height: 27' 10"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 814 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)
  • Optional Type(s): 2x6

Roof

  • Primary Pitch: 6 on 12

    Main Level
