Plan 65671BS

4-Bed Florida House Plan with Split Bedrooms and Large Outdoor Living Area

Name: Plan 65671BS: 4-Bed Florida House Plan with Split Bedrooms and Large Outdoor Living Area
Brand: Architectural Designs
SKU: 65671BS
Price: 2683.36 USD
Availability: InStock

Heated S.F.

3,714

Beds

3 - 4

Baths

4.5

Stories

Cars

Floor Plan

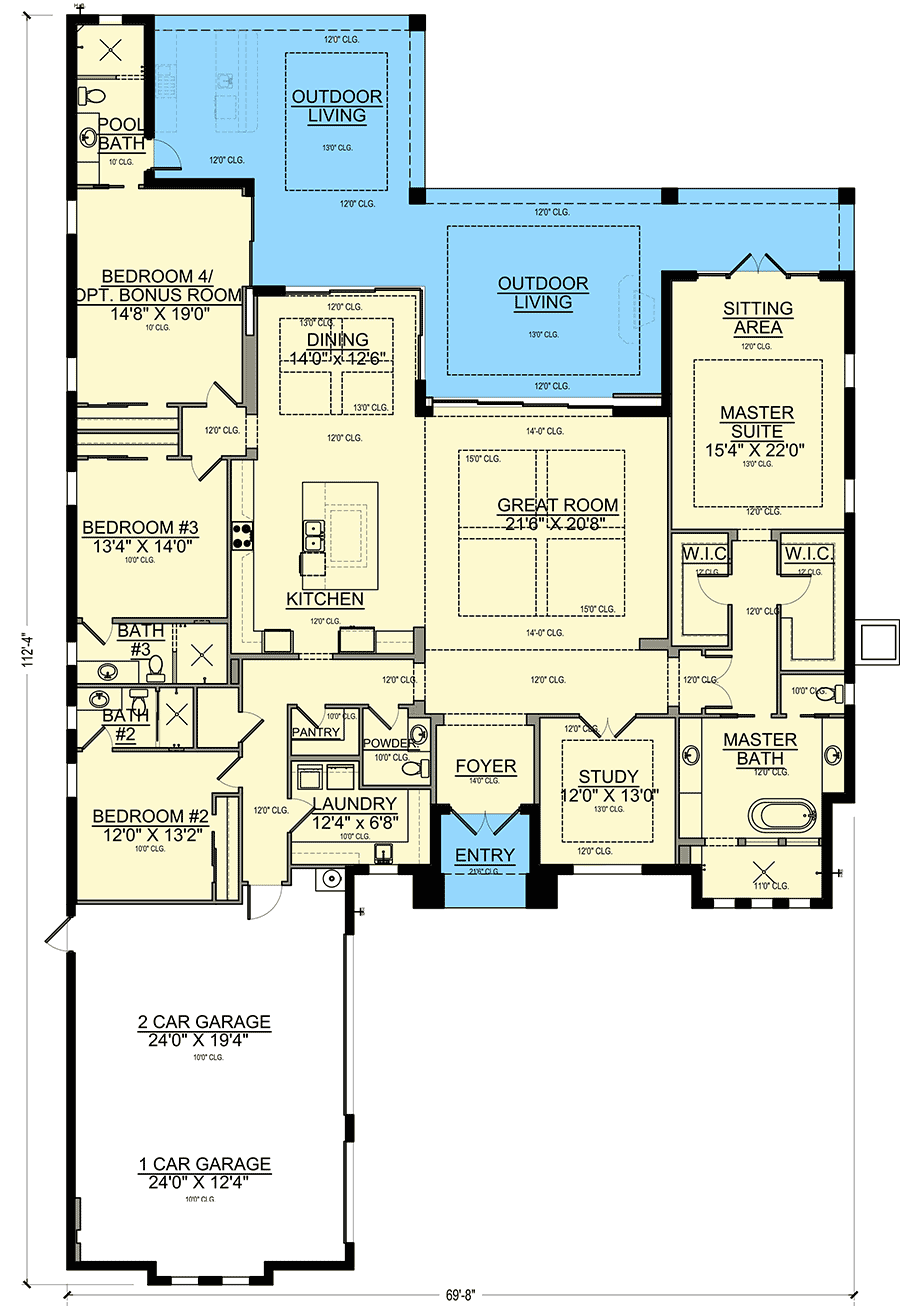

Main Level

Plan Details

This 4-bedroom, Florida house plan offers a smooth transition between the heart of the home and the outdoor living space in order to take advantage of warmer climates.
An oversized island sits in the center of the gourmet kitchen, creating plenty of workspace, and a walk-in pantry maximizes room for storage in the adjacent hallway.
Throughout the home, enjoy elegant tray or coffered ceilings ranging from 12 to 15 feet in height.
Set apart from the secondary bedrooms, discover the master suite, which delivers enough space for a sitting area, dual walk-in closets, and a luxury ensuite with a freestanding tub and custom tile shower.
Three bedroom suites are in line with the 3-car garage, and a sizable laundry room can be found in the mud hall.
Related Plans: Get alternate versions with house plans 65672BS and 65673BS.
BUILDING RESTRICTION: Restrictions may apply if building in Lee and Collier Counties, Florida as well as Sarasota, Florida. Please contact us with your site address to confirm.

What's Included

Elevations: - Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

Material Labels
Floor-To-Floor Heights
Roof Slope Indicators

Floor Plans: - Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

Door and Window Sizes
Completely Dimensioned Floor Plan
Room Labels and Interior Room Sizes

Electrical Layouts:

Building Section Markers
All Electrical Outlets, Fixtures and Switching

Foundation or Slab Plan: - Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

Floor and Deck Joist Sizes, Spacing and Direction
Electrical Locations

Roof Design Plan: - Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:

All Beam and Header Heights and Locations
All Hips, Gables, Ridges and Valley
Building Section Markers

Building Sections: - Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:

Floor-To-Floor Heights
Non-Typical Plate Heights Indicated

Typical Wall Sections: - Drawn at 1/8″ to 1/2″ = 1’0″ Scale and Includes:

All Labels Indicating Wall Construction
Foundation Wall Thickness
Insulation Type and Thickness

Miscellaneous Notes and Details:

Miscellaneous General Notes
Stairway Details (if applicable)

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

IMPORTANT NOTE: Structural drawings, as well as heating and plumbing details, will not be included in your plan sets due to a variety of factors which include local codes, installation methods, personal preference, etc. Your building professional (contractor/builder/supplier) can, without difficulty, supply these details and specifications on your behalf.
