Plan 61453UT Transitional House Plan with Rooftop Deck and Two Home Offices

7,080 3 4.5 3 5
Print
Compare HIDE
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Transitional House Plan with Rooftop Deck and Two Home Offices

Plan 61453UT

  • 7,080

    Heated s.f.

  • 3

    Beds

  • 4.5

    Baths

  • 3

    Stories

  • 5

    Cars

  • A circular stair goes from the second floor office to a third floor loft - also accessible by elevator - which opens to a rooftop deck on this Transitional house plan under 7,100 square feet.
  • The center portion of the main floor is wide open with the home office closed off by sliding doors that join in the corner.
  • The owner's suite opens to a private screen porch with a circular stair that takes you to the back yard.
  • Stairs - and elevator - service the loft with office that overlooks the open plan below.
  • The lower level has a bedroom and a casita, each with their own bathroom. A home theater, family room with wet bar and access to the back yard from the casita and family room.

Each plan set includes the following:


  • General notes
  • Foundation plan
  • Detailed floor plans
  • Floor framing
  • Roof framing

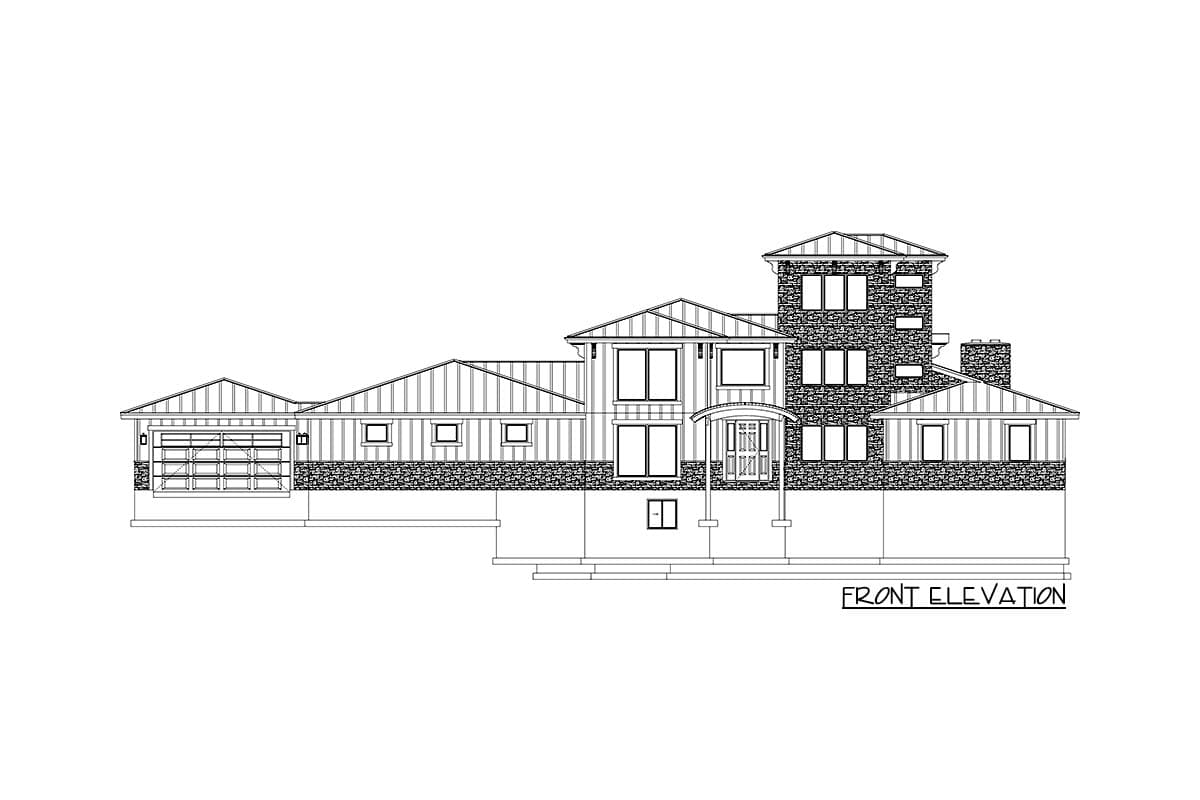

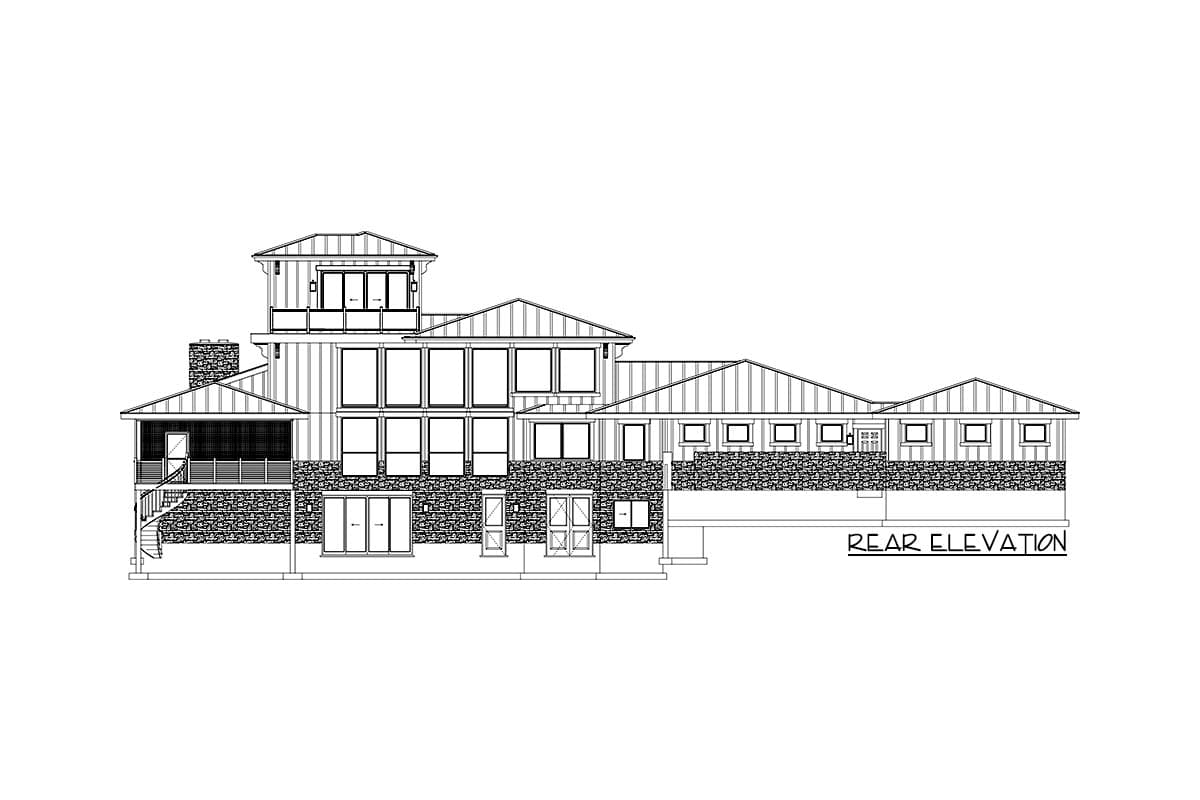

  • Elevations: front, left, rear, right
  • Cross sections
  • Electrical plans
  • General details
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

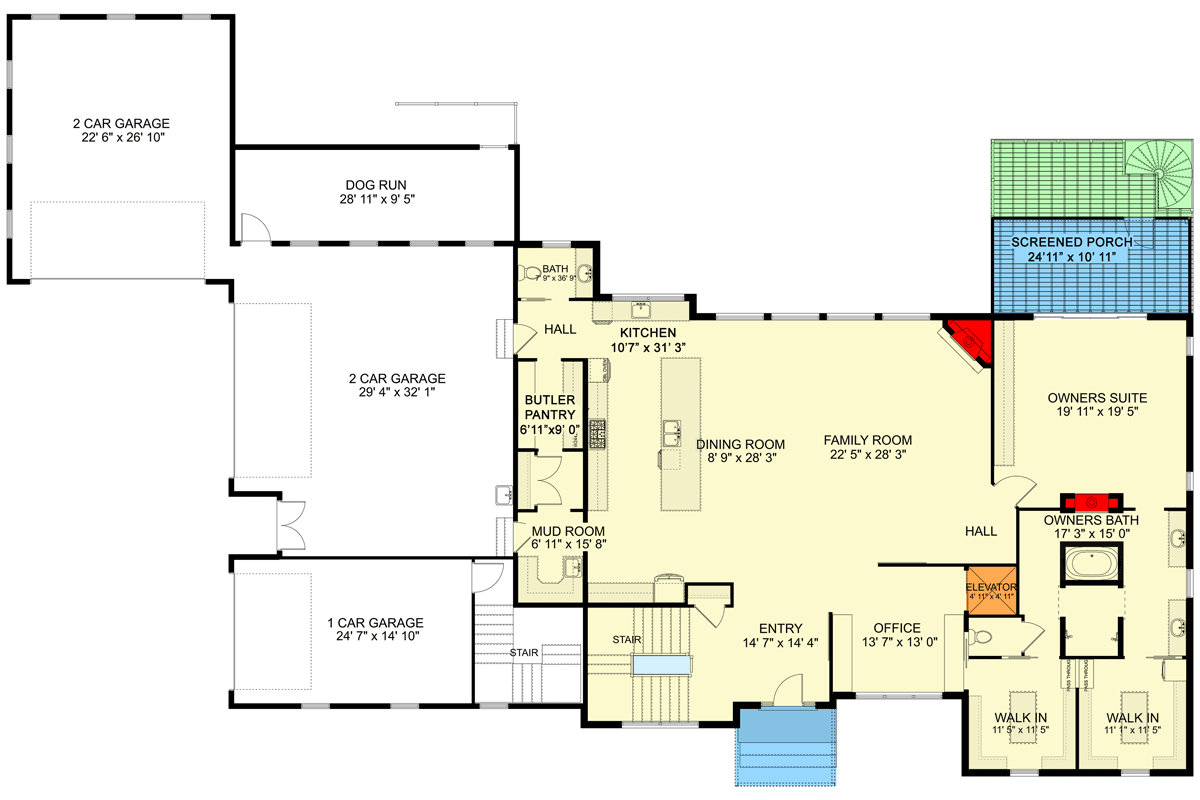

Transitional House Plan with Rooftop Deck and Two Home Offices - 61453UT floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

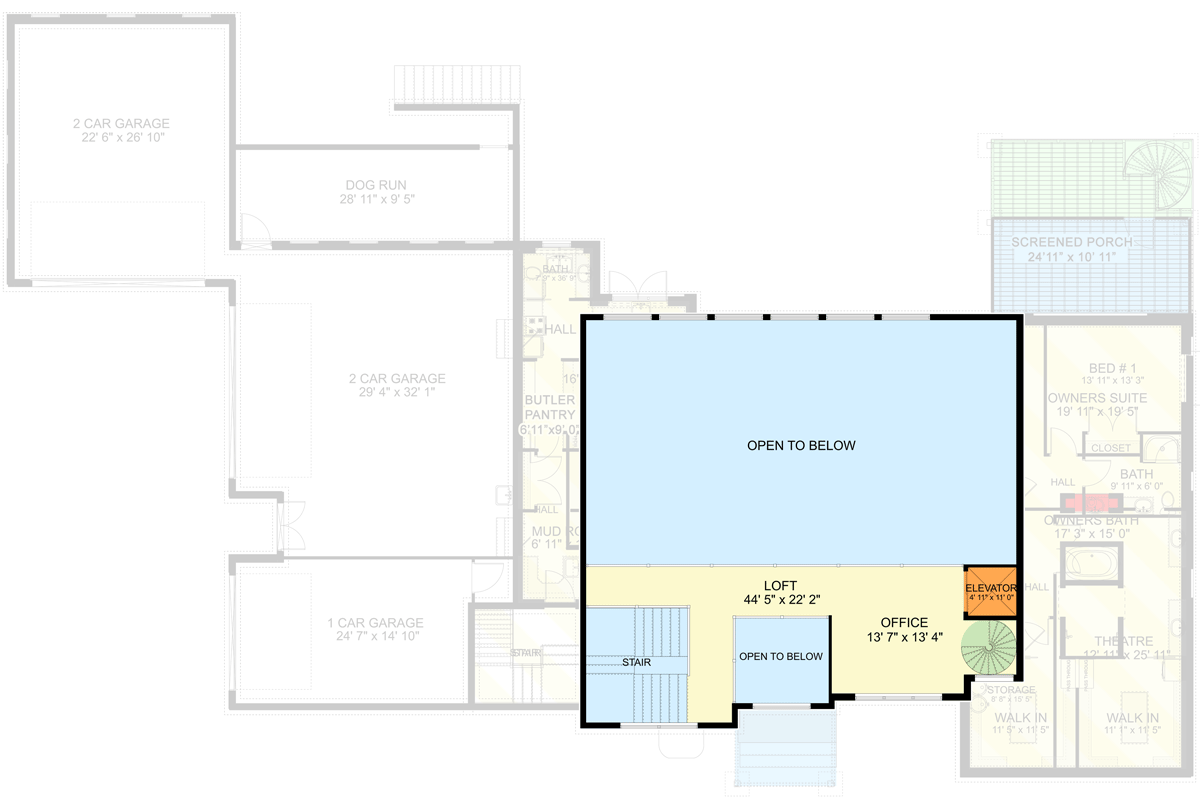

Transitional House Plan with Rooftop Deck and Two Home Offices - 61453UT floor plan - 2nd Floor

3rd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

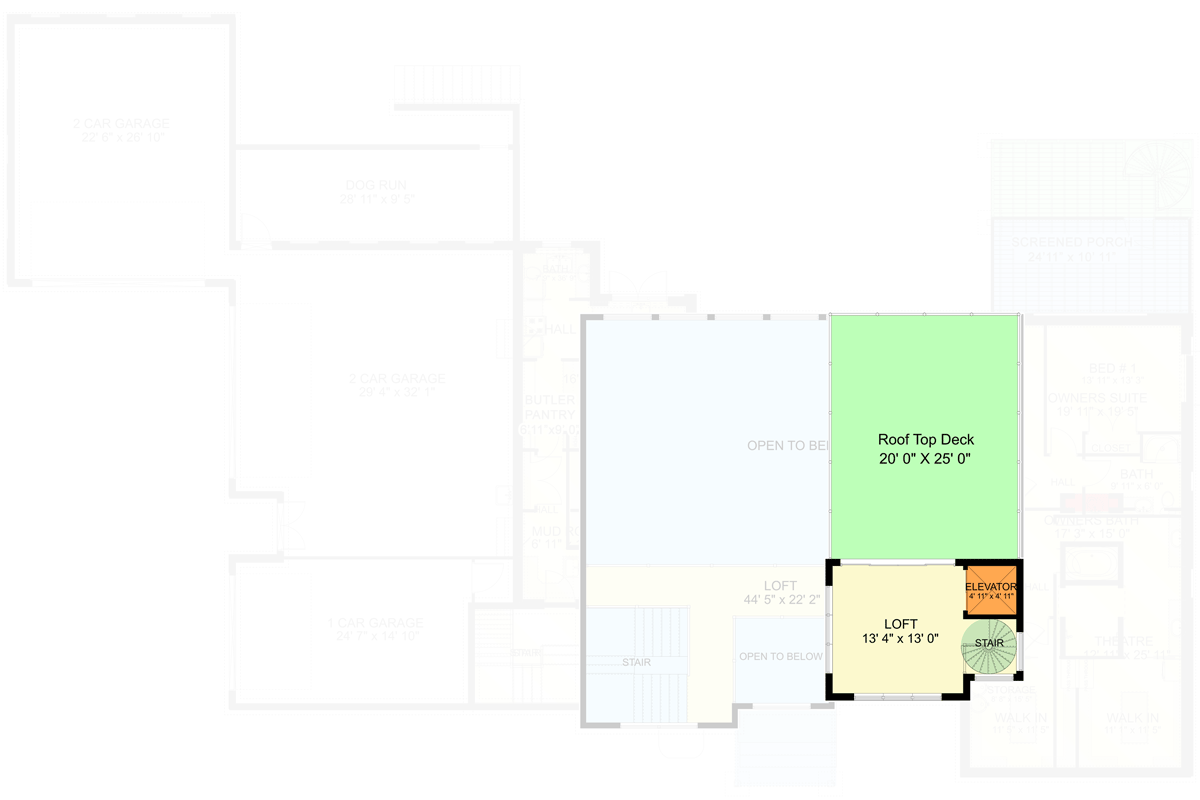

Transitional House Plan with Rooftop Deck and Two Home Offices - 61453UT floor plan - 3rd Floor

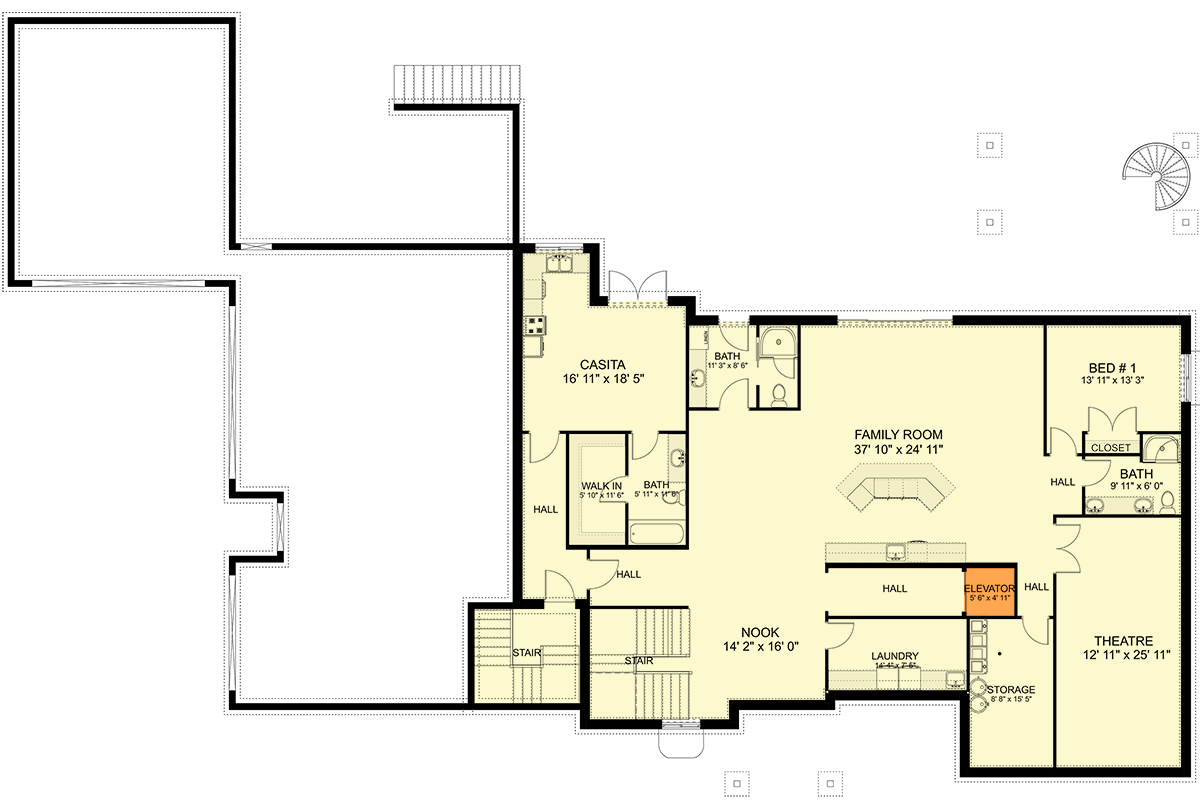

Lower Level
