Plan 340002STR
Transitional Mediterranean Home Plan for Indoor Outdoor Living
Heated S.F.
2,535
Beds
3
Baths
3.5
Stories
1
Cars
2
Plan Details
  • Enjoy an active lifestyle in this Transitional Mediterranean home plan with an emphasis on livability, convenience, and utility.
  • The open floor plan that flows onto the covered veranda creates an ideal space for entertaining. Intricate ceilings above the great room and dining area add visual interest overhead, and a central wet bar serves the entire home.
  • Plenty of space in the kitchen allows multiple chefs to craft culinary masterpieces, or utilize the outdoor kitchen on warmer evenings.
  • The master suite offers a multi-panel glass door to the veranda, along with twin walk-in closets and a deluxe ensuite.
  • Each of the two additional bedrooms include a full bath and walk-in closet.
What's Included
  • Cover Sheet, Index
  • Wall Sections & Notes
  • Typical Detail & Notes
  • Foundation Plan
  • Floor Plans
  • Reflected Ceiling Plan showing ceiling heights and treatments
  • Floor Framing Plan (basement, crawlspace or 2-story homes only)
  • Birds Eye Roof Plan
  • All Elevations
  • Building Section & Details
  • Interior Elevations (Details may vary based on the design)
  • Suggested Electrical Layout
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Transitional Mediterranean Home Plan for Indoor Outdoor Living

  • 2,535

    Heated s.f.

  • 3

    Beds

  • 3.5

    Baths

  • 1

    Floors

  • 2

    Car garage

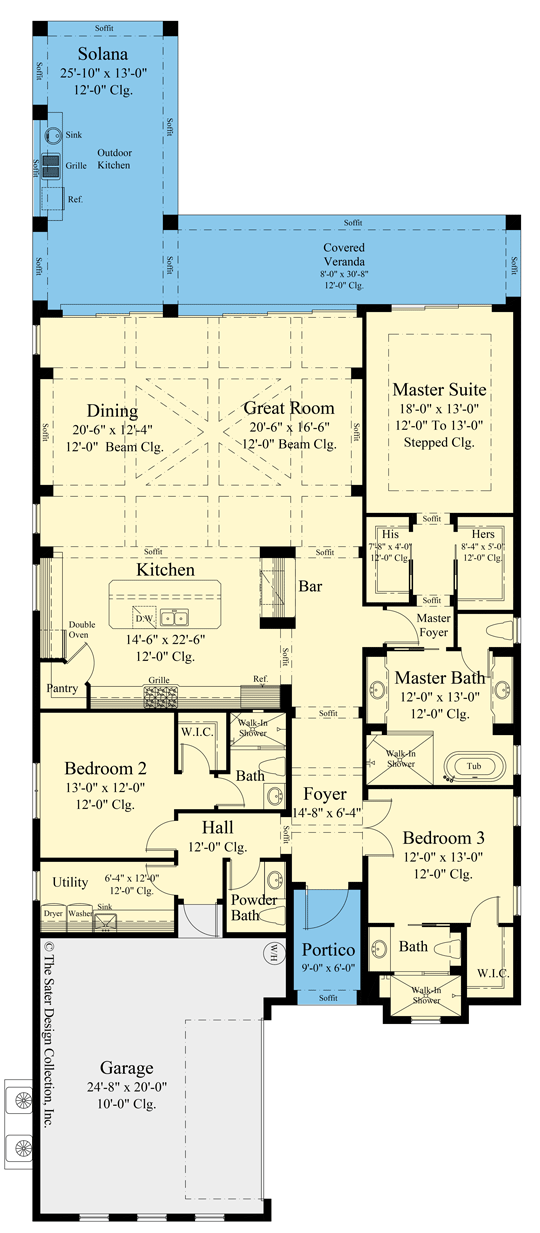

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 2,535 sq. ft.
  • 1st Floor: 2,535 sq. ft.

Dimensions

  • Width: 43' 8"
  • Depth: 107' 4"
  • Max ridge height: 22' 2"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 564 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Foundation Type

    • Standard Foundations: Stem Wall

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)

Ceiling Heights

  • Floor / Height: First Floor / 12' 0"
