Plan 580026DFT Transitional Ranch Plan with Second-level Flex Room

3,153 3-4 3.5 1 3
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Transitional Ranch Plan with Second-level Flex Room

Plan 580026DFT

  • 3,153

    Heated s.f.

  • 3-4

    Beds

  • 3.5

    Baths

  • 1

    Stories

  • 3

    Cars

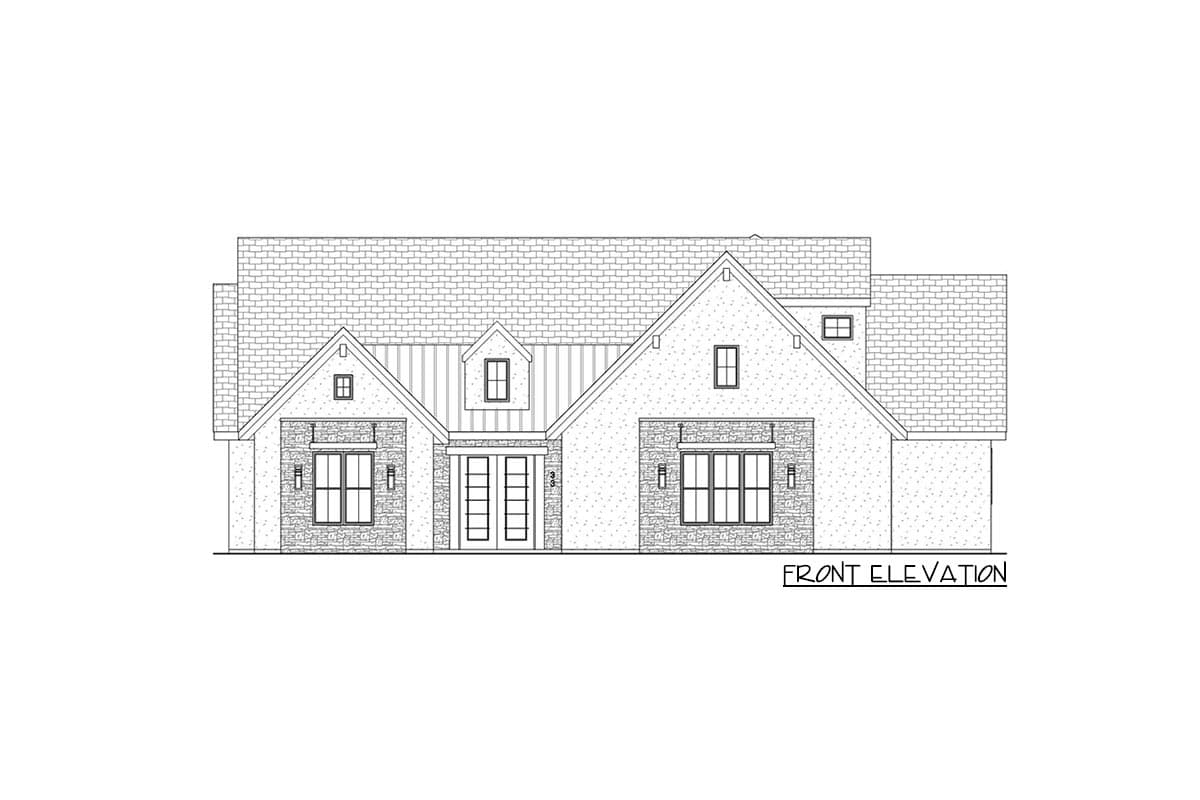

  • Steeply-pitched gables and a corresponding dormer window grace the front elevation of this Transitional Ranch plan that delivers a spacious flex room, full bath, and balcony above the garage.
  • A courtyard welcomes you in through double doors where a coat closet and powder bath greet you. A fireplace warms the great room and adjoining kitchen, and a sizable patio encourages you to spend time outdoors.
  • The island kitchen provides an easy flow and plenty of storage in the walk-in pantry, and the sun-drenched dining area offers an organic environment for family dinners.
  • The master bedroom is set apart from the family bedrooms for privacy purposes and includes patio access, a zero-threshold shower, and connects with the laundry room through the walk-in closet.
  • A dedicated storage room in the 3-car garage helps you organize lawn supplies and equipment.

  • Cover Sheet: General Notes and code criteria
  • Foundation Plan: Concrete layouts including footings, slabs and stem walls, dimensions, floor joist layout, plumbing fixture locations and construction notes and details
  • Floor Plan(s): Dimensions, wall framing, room sizes, door and window location and sizes, plumbing fixtures, kitchen layout with cabinetry location and construction notes and details
  • Roof Plan: Bird's eye view and general layout, roof pitches, eave sizes, special ceiling heights, trey ceilings located and construction notes and details
  • Section View(s): A cut or cuts through the home showing wall plate heights, stair sections, special construction sections including footings and crawl space or slab details
  • Exterior Elevations: Shows 2-D exterior views of all 4 sides of home locating and showing roof lines, roof pitches, material callouts, window locations, vents, trim style and plate heights
  • Electrical Plans: General layout of smoke detectors, carbon monoxide detectors, exhaust fans, lights, switches, outlets and GFI outlets

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

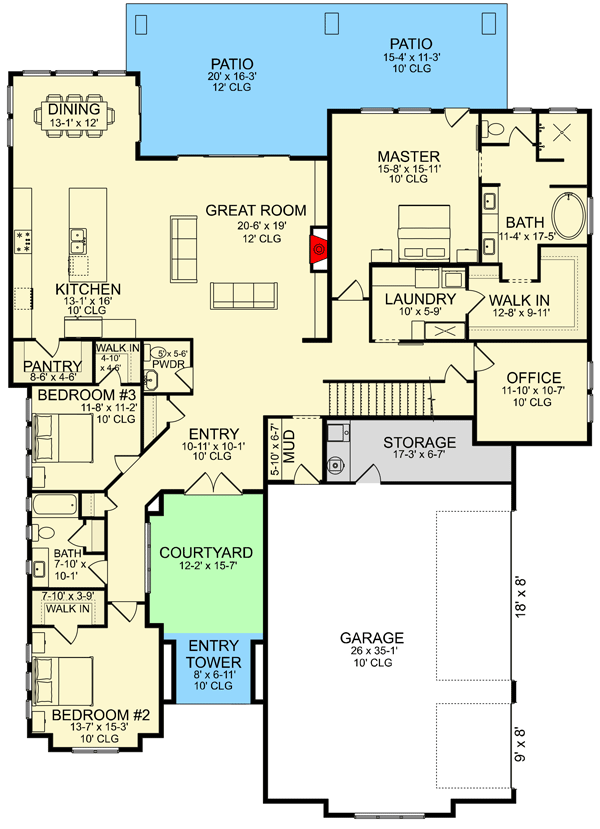

Transitional Ranch Plan with Second-level Flex Room - 580026DFT floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

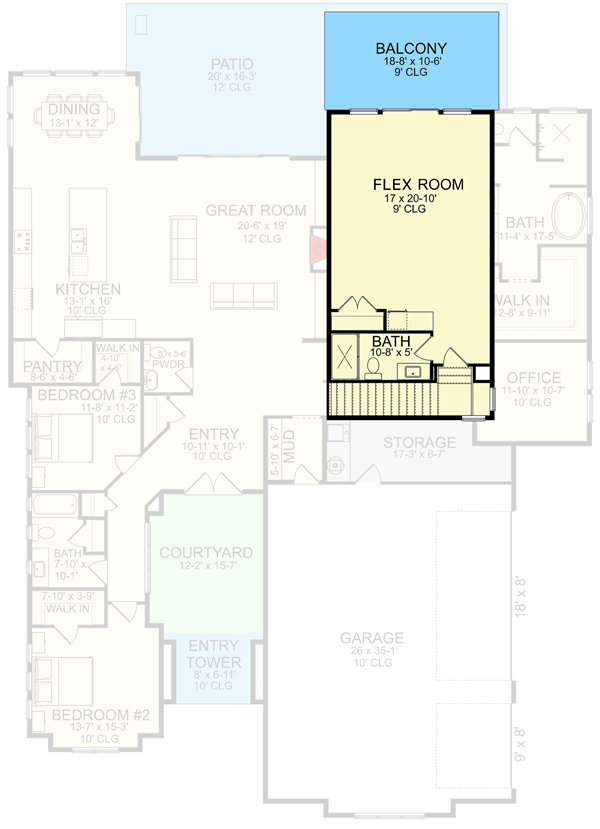

Transitional Ranch Plan with Second-level Flex Room - 580026DFT floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,153 sq. ft.
  • 1st Floor: 2,648 sq. ft.
  • 2nd Floor: 505 sq. ft.
  • Covered Patio: 739 sq. ft.
  • Balcony / Veranda: 179 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab, Crawl
  • Optional Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 62' 2"
  • Depth: 85' 6"

Garage

  • Type: Attached
  • Area: 1077 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof Details

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 8 on 12
  • Framing Type: Stick And Truss

Architectural Style

Special features

Transitional Ranch Plan with Second-level Flex Room

  • 3,153

    Heated s.f.

  • 3-4

    Beds

  • 3.5

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $1,750
  • CAD + PDF - Single Build $2,625
  • View all purchase option online

About This Plan

  • Steeply-pitched gables and a corresponding dormer window grace the front elevation of this Transitional Ranch plan that delivers a spacious flex room, full bath, and balcony above the garage.
  • A courtyard welcomes you in through double doors where a coat closet and powder bath greet you. A fireplace warms the great room and adjoining kitchen, and a sizable patio encourages you to spend time outdoors.
  • The island kitchen provides an easy flow and plenty of storage in the walk-in pantry, and the sun-drenched dining area offers an organic environment for family dinners.
  • The master bedroom is set apart from the family bedrooms for privacy purposes and includes patio access, a zero-threshold shower, and connects with the laundry room through the walk-in closet.
  • A dedicated storage room in the 3-car garage helps you organize lawn supplies and equipment.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,153 sq. ft.
  • 1st Floor: 2,648 sq. ft.
  • 2nd Floor: 505 sq. ft.
  • Covered Patio: 739 sq. ft.
  • Balcony / Veranda: 179 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab, Crawl
    • Optional Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 62' 2"
  • Depth: 85' 6"

Garage

  • Type: Attached
  • Area: 1077 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 8 on 12
  • Framing Type: Stick And Truss
Plan 580026DFT
