Transitional Shingle Home Plan with 3rd Floor Man Cave

Plan 93158EL

  • 3,971

    Heated s.f.

  • 5

    Beds

  • 4.5

    Baths

  • 2-3

    Stories

  • 3

    Cars

  • Loaded with amenities, this Transitional Shingle home plan delivers just under 4,000 square feet of living space, an interior drenched in natural light, and a fun 3rd-floor bonus level with a wet bar.
  • Entertaining is easy in this gourmet kitchen with a large island, 6-burner range, and pass-thru scullery with a prep sink. The open floor plan allows you to easily move into the family room and adjacent covered lanai.
  • Serenity defines the master suite, conveniently located on the main level, and paired with a 5-fixture ensuite and walk-in closet that connects with the laundry room.
  • Three bedroom suites reside on the second level, along with a generous play room above the garage.
  • Other notable features include a toy bay for a golf cart or ATV attached to the 2-car garage, along with a mudroom with built-in cubbies.
  • Related Plan: Eliminate the third floor with house plan 93166EL.
  • DELIVERY NOTE: Please allow 5 to 7 business days for delivery.

Each plan set includes the following:

  • Cover Sheet
  • General Note Sheet
  • Foundation Sheet
  • First Floor Plan
  • Second Floor Plan (if applicable)
  • Roof Framing Plan
  • Front & Rear Elevation
  • Left & Right Elevation
  • Openings & Sections Sheet
  • Foundation Details
  • Cornice Details
  • First Floor Electrical
  • Second Floor Electrical (if applicable)
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

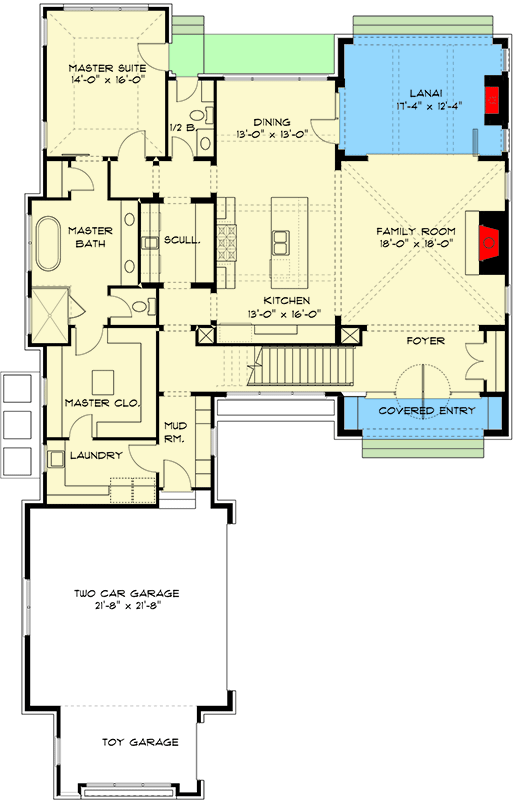

Transitional Shingle Home Plan with 3rd Floor Man Cave - 93158EL floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Transitional Shingle Home Plan with 3rd Floor Man Cave - 93158EL floor plan - 2nd Floor
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Transitional Shingle Home Plan with 3rd Floor Man Cave - 93158EL floor plan - Third Level

Transitional Shingle Home Plan with 3rd Floor Man Cave

  • 3,971

    Heated s.f.

  • 5

    Beds

  • 4.5

    Baths

  • 2-3

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

  • Third Level

Plan Details

Square Footage Breakdown

  • Total: 3,971 sq. ft.
  • 1st Floor: 1,964 sq. ft.
  • 2nd Floor: 1,665 sq. ft.
  • 3rd Floor: 342 sq. ft.

Dimensions

  • Width: 53' 10"
  • Depth: 87' 4"
  • Max ridge height: 33' 2"

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 4
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 661 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Walkout, Slab, Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"
