Plan 93166EL
EXCLUSIVE
Transitional Shingle Home Plan Under 3700 Square Feet with Indoor-Outdoor Living
Heated S.F.
3,667
Beds
4
Baths
4.5
Stories
2
Cars
3
Flyer
What's Included
Plan Details
  • Loaded with amenities, this Transitional Shingle home plan delivers just under 4,000 square feet of living space and an interior drenched in natural light.
  • Entertaining is easy in this gourmet kitchen with a large island, 6-burner range, and pass-thru scullery with a prep sink. The open floor plan allows you to easily move into the family room and adjacent covered lanai.
  • Serenity defines the master suite, conveniently located on the main level, and paired with a 5-fixture ensuite and walk-in closet that connects with the laundry room.
  • Three bedroom suites reside on the second level, along with a generous play room above the garage.
  • Other notable features include an attached to the 3-car garage, along with a mudroom with built-in cubbies.
  • Related: Get a third level with house plan 93158EL.
  • DELIVERY NOTE: Please allow 5 to 7 business days for delivery.
What's Included

  • Cover Sheet
  • General Note Sheet
  • Foundation Sheet
  • First Floor Plan
  • Second Floor Plan (if applicable)
  • Roof Framing Plan
  • Front & Rear Elevation
  • Left & Right Elevation
  • Openings & Sections Sheet
  • Foundation Details
  • Cornice Details
  • First Floor Electrical
  • Second Floor Electrical (if applicable)

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Transitional Shingle Home Plan Under 3700 Square Feet with Indoor-Outdoor Living

  • 3,667

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

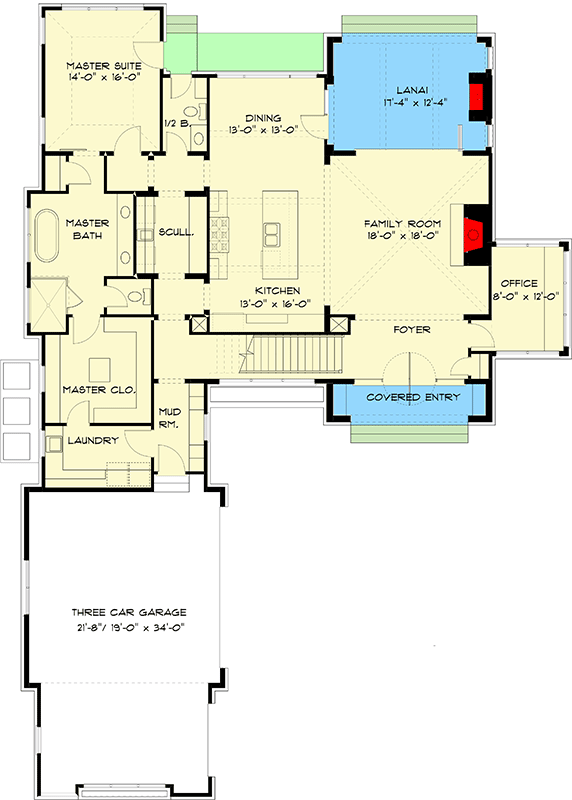

  • Main Level

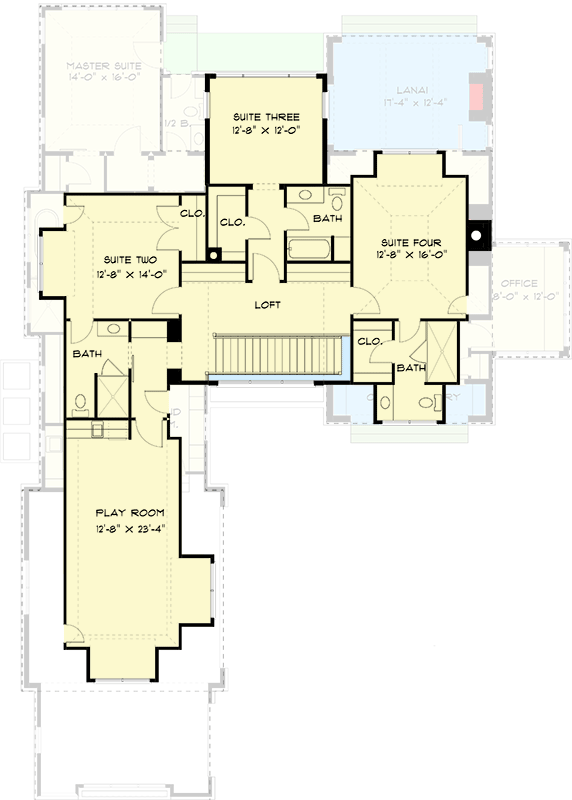

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 3,667 sq. ft.
  • 1st Floor: 2,076 sq. ft.
  • 2nd Floor: 1,591 sq. ft.

Dimensions

  • Width: 62' 6"
  • Depth: 90' 4"
  • Max ridge height: 33' 2"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 757 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Basement, Slab, Walkout

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"
