Plan 65727BS Transitional Southern Home Plan with Study and Split-bed Layout

Transitional Southern Home Plan with Study and Split-bed Layout

Plan 65727BS

  • 4,102

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 1

    Stories

  • 3

    Cars

  • Wooden brackets support deep overhanging eaves on the exterior of this Transitional Southern home plan. The 3-car garage extends from the front of the home to create a parking courtyard for friends and family.
  • Once inside, discover a dining room and study flanking the foyer, each with an elegant coffered ceiling. The great room allows you to move easily between the living space and covered lanai, which includes a summer kitchen to truly take advantage of warmer climates.
  • Two islands anchor the lavish kitchen and a walk-in pantry is only steps away with plenty of room for storage of dried foods and oversized appliances.
  • The homeowner will appreciate the privacy granted to the master suite, which includes enough space for a sitting nook, two walk-in closets, and a custom tile shower in the 5-fixture ensuite.
  • Three additional bedrooms feature their own full bathroom, while the rear bedroom delivers french doors that connect with the covered lanai.
  • BUILDING RESTRICTION: This plan may not be built in Lee and Collier Counties, Florida as well as Sarasota, Florida.

Plans include the following:

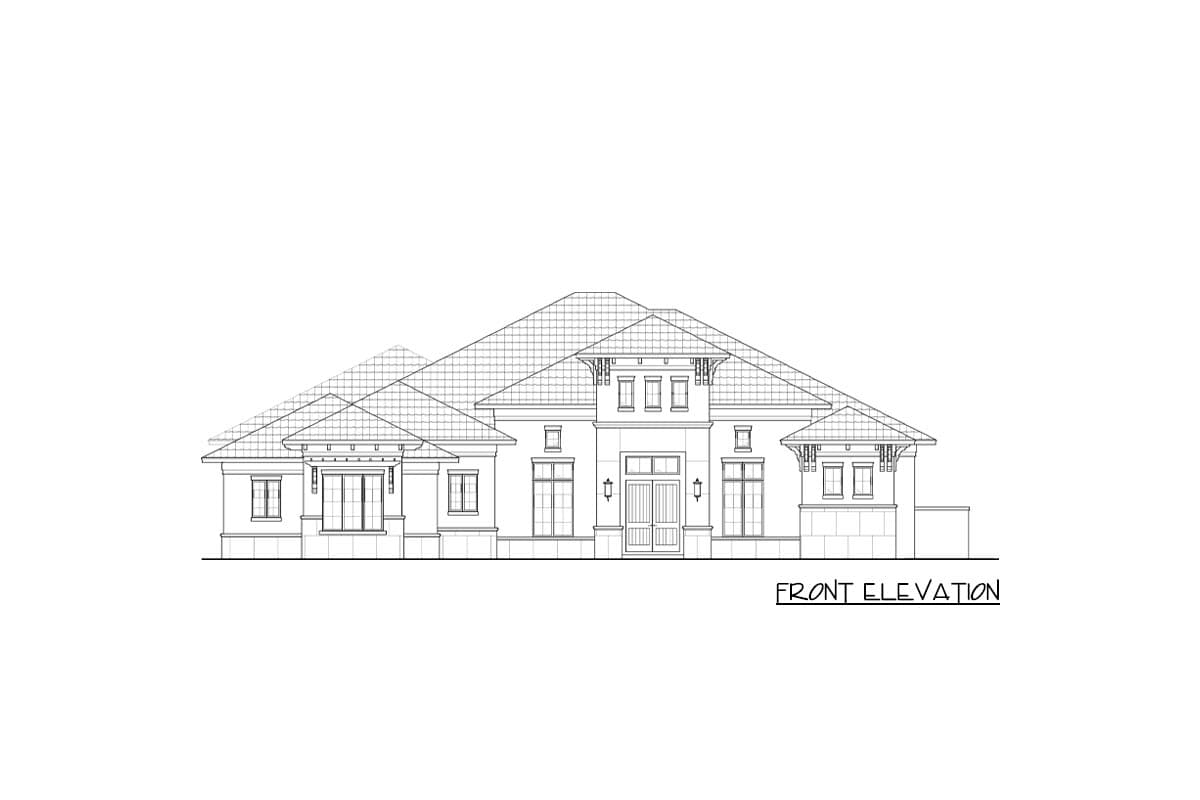

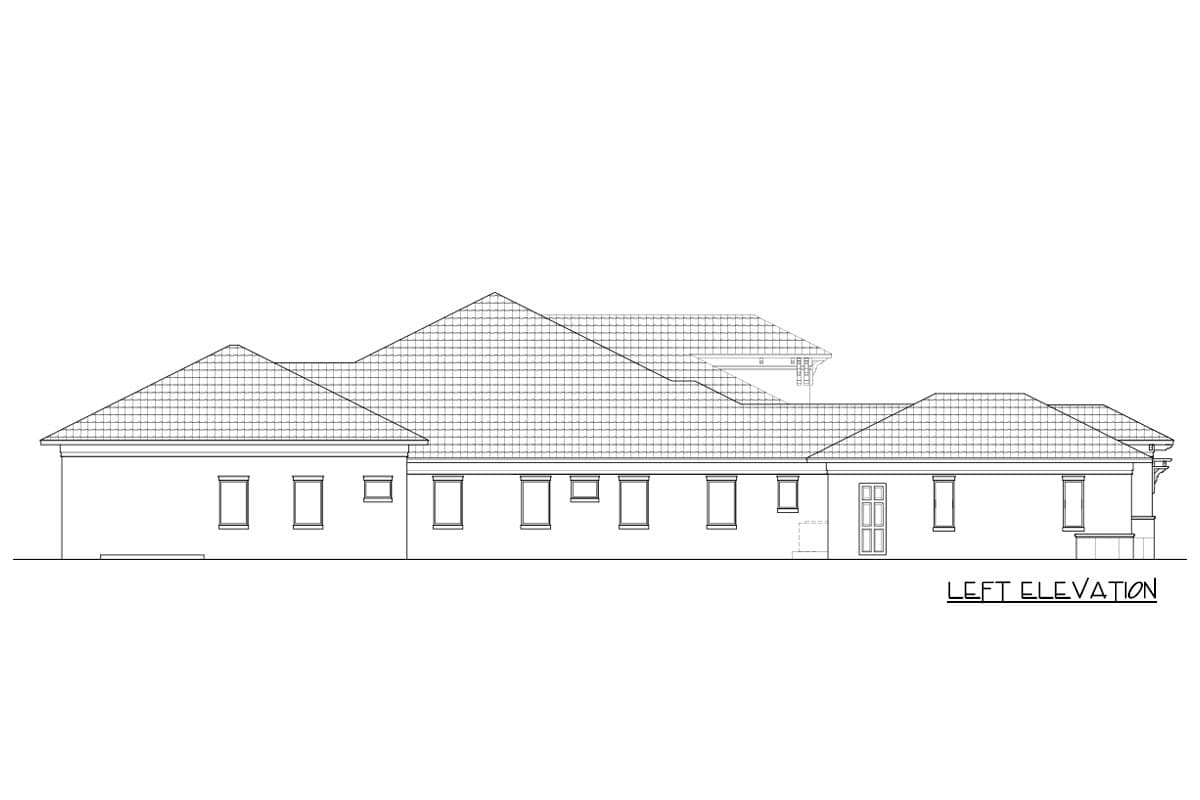

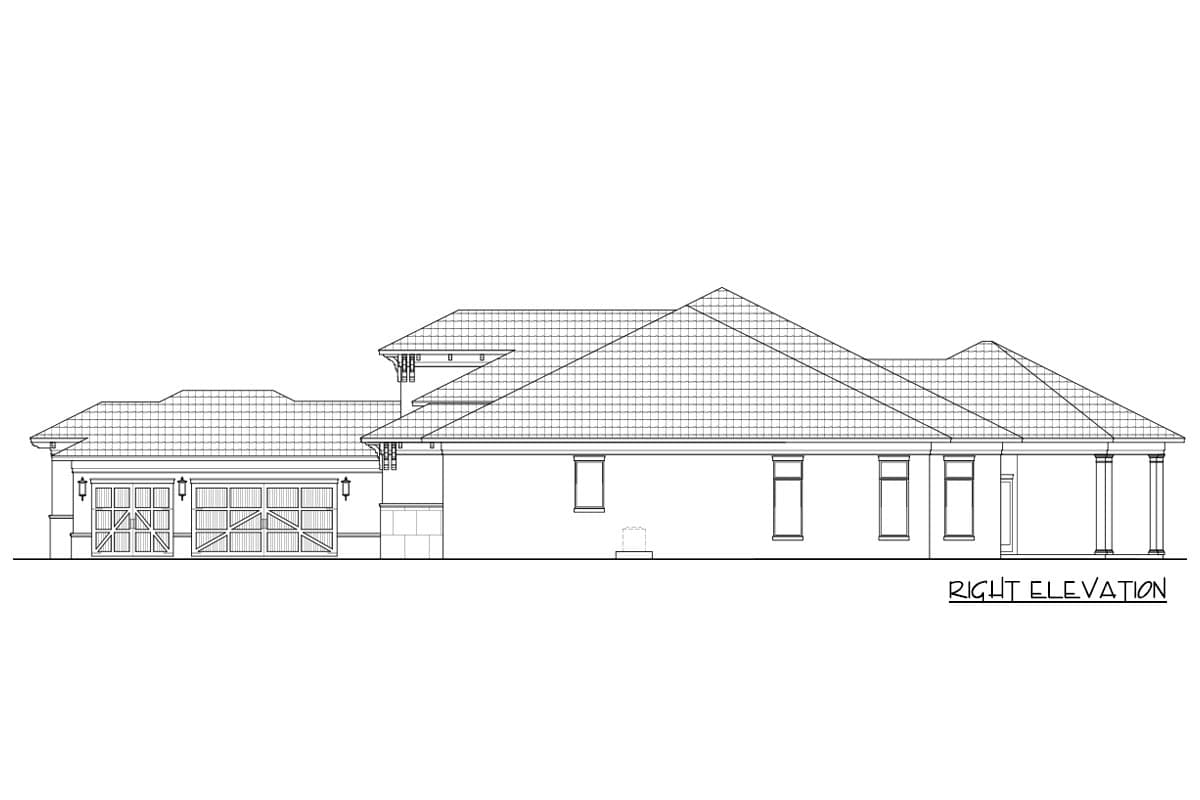

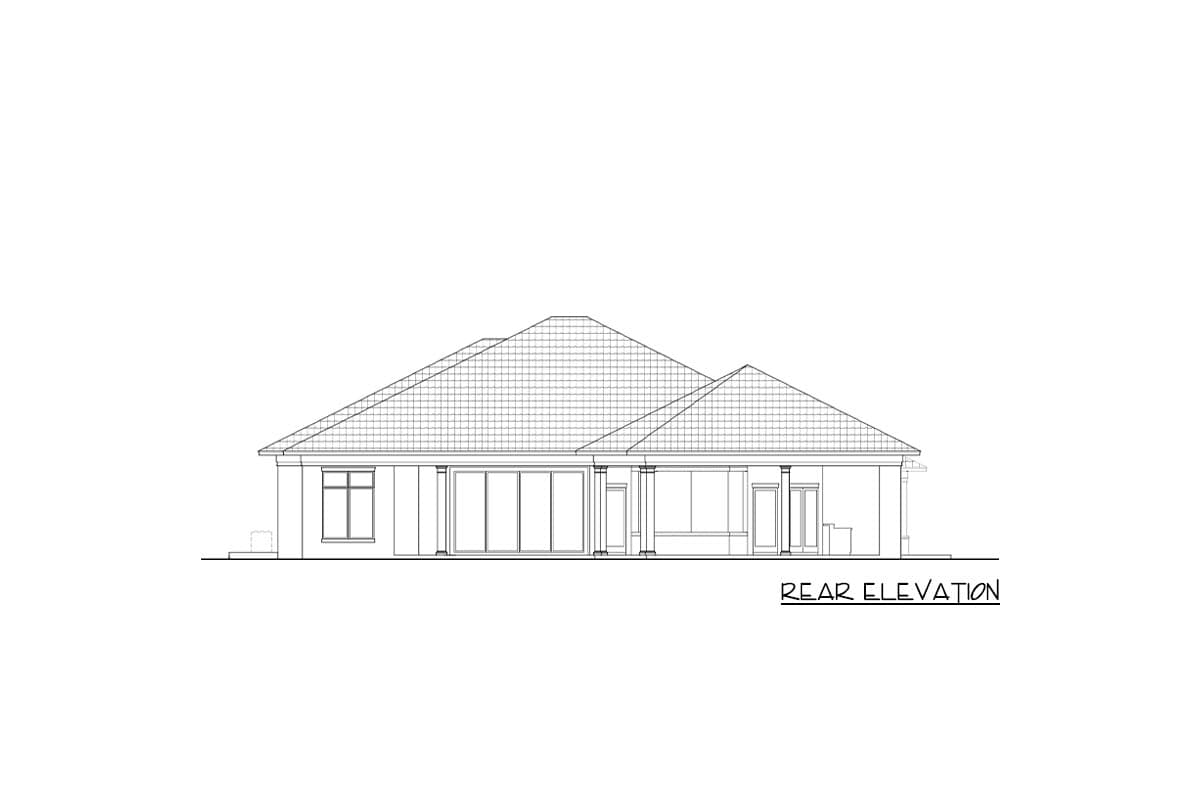

Elevations:

Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

  • Material Labels
  • Floor-To-Floor Heights
  • Roof Slope Indicators

Floor Plans:
Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

  • Door and Window Sizes
  • Completely Dimensioned Floor Plan
  • Room Labels and Interior Room Sizes

Electrical Layouts:

  • Building Section Markers
  • All Electrical Outlets, Fixtures and Switching

Foundation or Slab Plan:
Drawn at 1/8″ to 1/4″ = 1’0″ Scale

Roof Design Plan:
Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:

  • All Beam and Header Heights and Locations
  • All Hips, Gables, Ridges and Valley
  • Building Section Markers

Building Sections:
Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:

  • Floor-To-Floor Heights
  • Non-Typical Plate Heights Indicated

Typical Wall Sections:
Drawn at 1/8″ to 1/2″ = 1’0″ Scale and Includes:

  • All Labels Indicating Wall Construction
  • Foundation Wall Thickness
  • Insulation Type and Thickness

Miscellaneous Notes and Details:

  • Miscellaneous General Notes
  • Stairway Details (if applicable)
IMPORTANT NOTE:  Structural drawings, as well as heating and plumbing details, will not be included in your plan sets due to a variety of factors which include local codes, installation methods, personal preference, etc.  Your building professional (contractor/builder/supplier) can, without difficulty, supply these details and specifications on your behalf.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

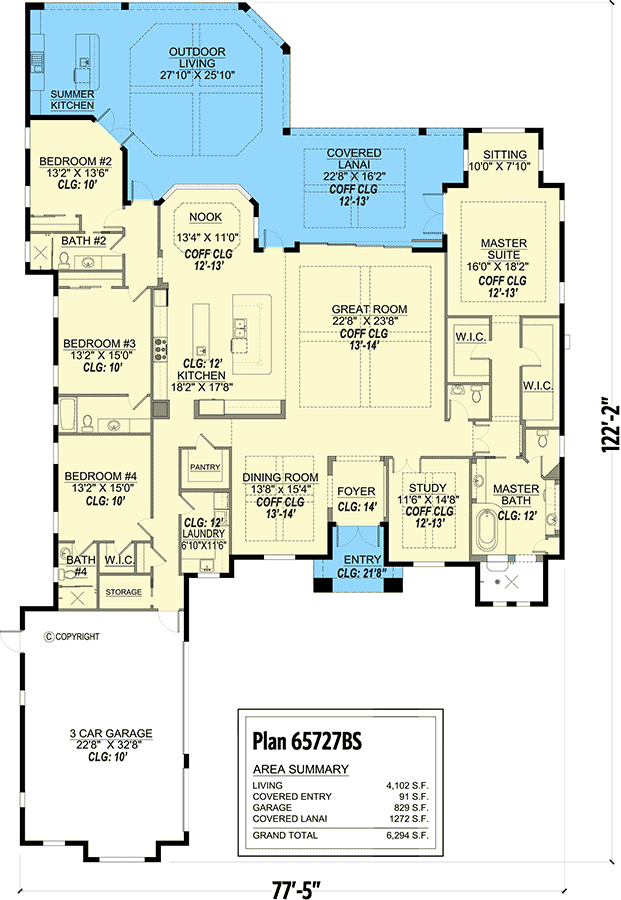

Transitional Southern Home Plan with Study and Split-bed Layout - 65727BS floor plan - Main Level

Plan details

Transitional Southern Home Plan with Study and Split-bed Layout

  • 4,102

    Heated s.f.

  • 4

    Beds

  • 5

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • CAD + PDF - Single-Build $3,695
  • PDF - Single-Build $3,695
  • View all purchase option online

About This Plan

  • Wooden brackets support deep overhanging eaves on the exterior of this Transitional Southern home plan. The 3-car garage extends from the front of the home to create a parking courtyard for friends and family.
  • Once inside, discover a dining room and study flanking the foyer, each with an elegant coffered ceiling. The great room allows you to move easily between the living space and covered lanai, which includes a summer kitchen to truly take advantage of warmer climates.
  • Two islands anchor the lavish kitchen and a walk-in pantry is only steps away with plenty of room for storage of dried foods and oversized appliances.
  • The homeowner will appreciate the privacy granted to the master suite, which includes enough space for a sitting nook, two walk-in closets, and a custom tile shower in the 5-fixture ensuite.
  • Three additional bedrooms feature their own full bathroom, while the rear bedroom delivers french doors that connect with the covered lanai.
  • BUILDING RESTRICTION: This plan may not be built in Lee and Collier Counties, Florida as well as Sarasota, Florida.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,102 sq. ft.
  • 1st Floor: 4,102 sq. ft.
  • Lanai: 1,272 sq. ft.
  • Porch, Front: 91 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)
  • Optional Type(s): 2x6

Dimensions

  • Width: 77' 5"
  • Depth: 122' 2"
  • Max ridge height: 29' 2"

Garage

  • Area: 829 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Truss
