Plan 31825DN

Transitonal House Plan with Entertaining Main Floor and Bedrooms Upstairs - 7117 Sq Ft

Heated S.F.

7,117

Beds

4

Baths

4.5

Stories

2

Cars

4

Floor Plan

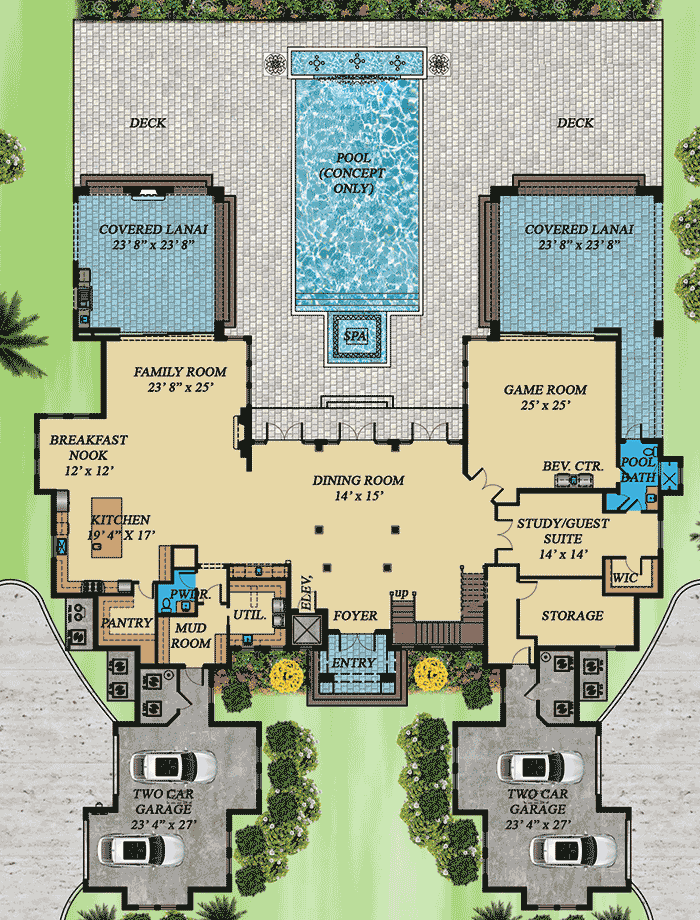

Main Level

floor plan image Main Level

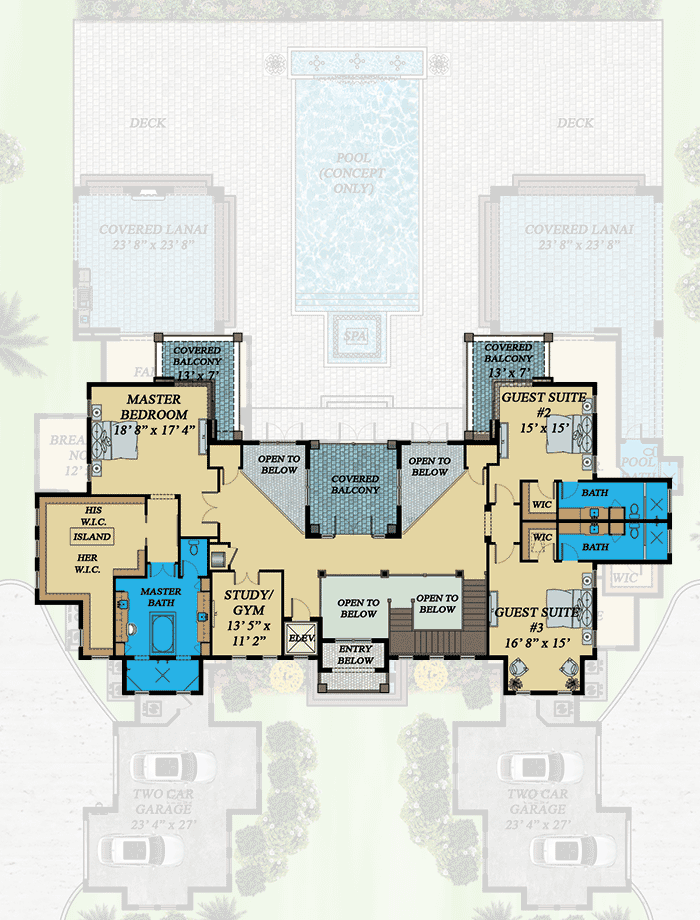

2nd Floor

floor plan image 2nd Floor

Plan Details

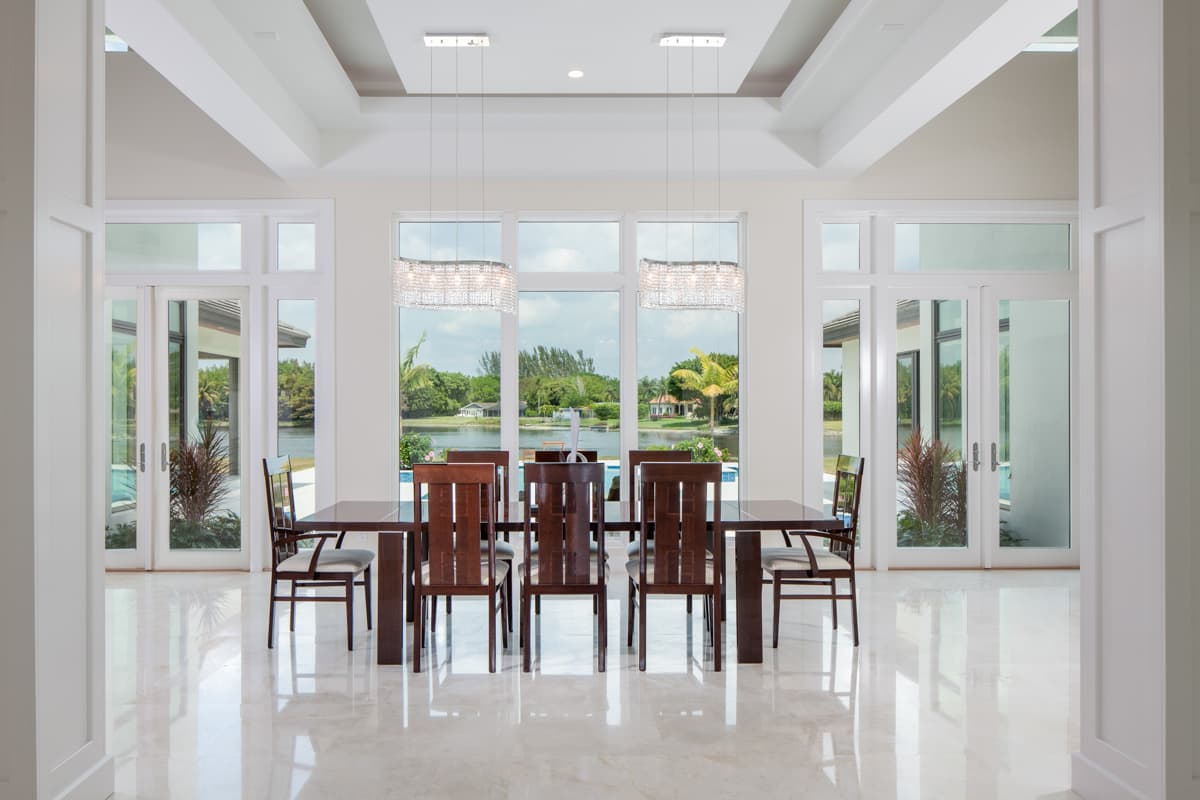

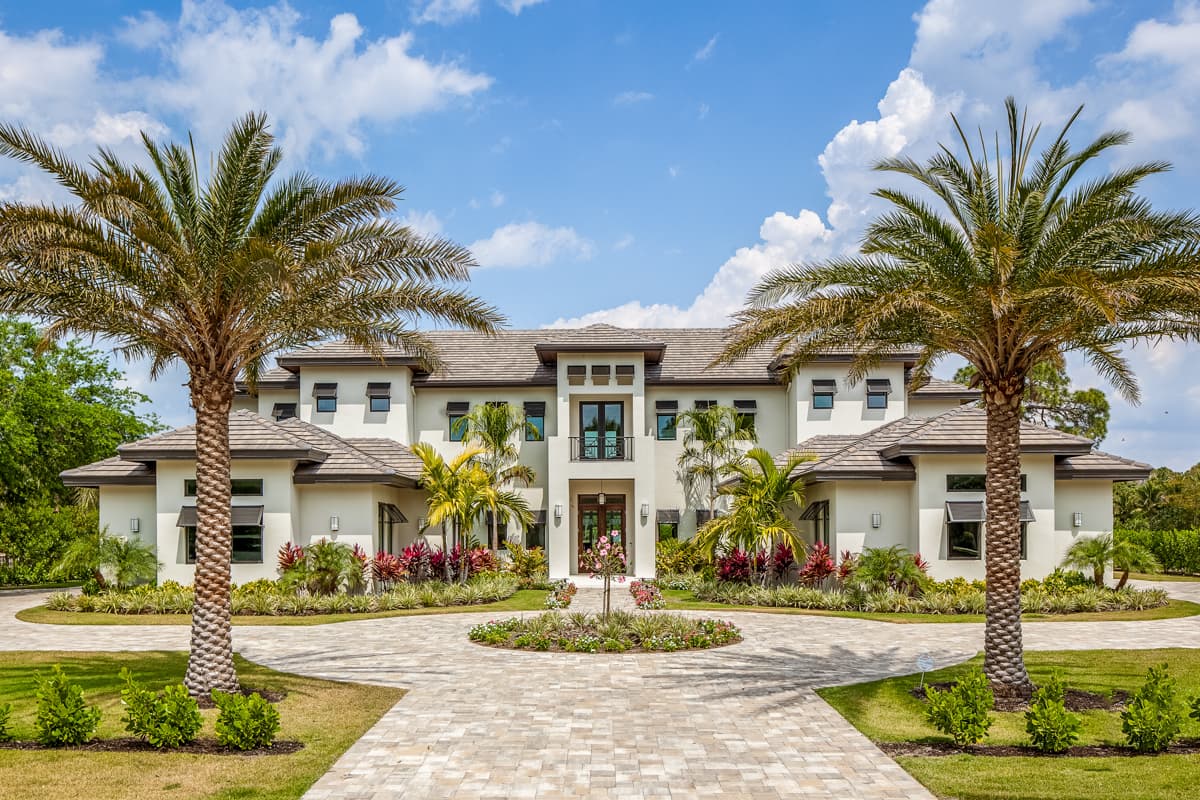

Glorious views can be had as soon as you step into the foyer of this fabulous Transitional House Plan.

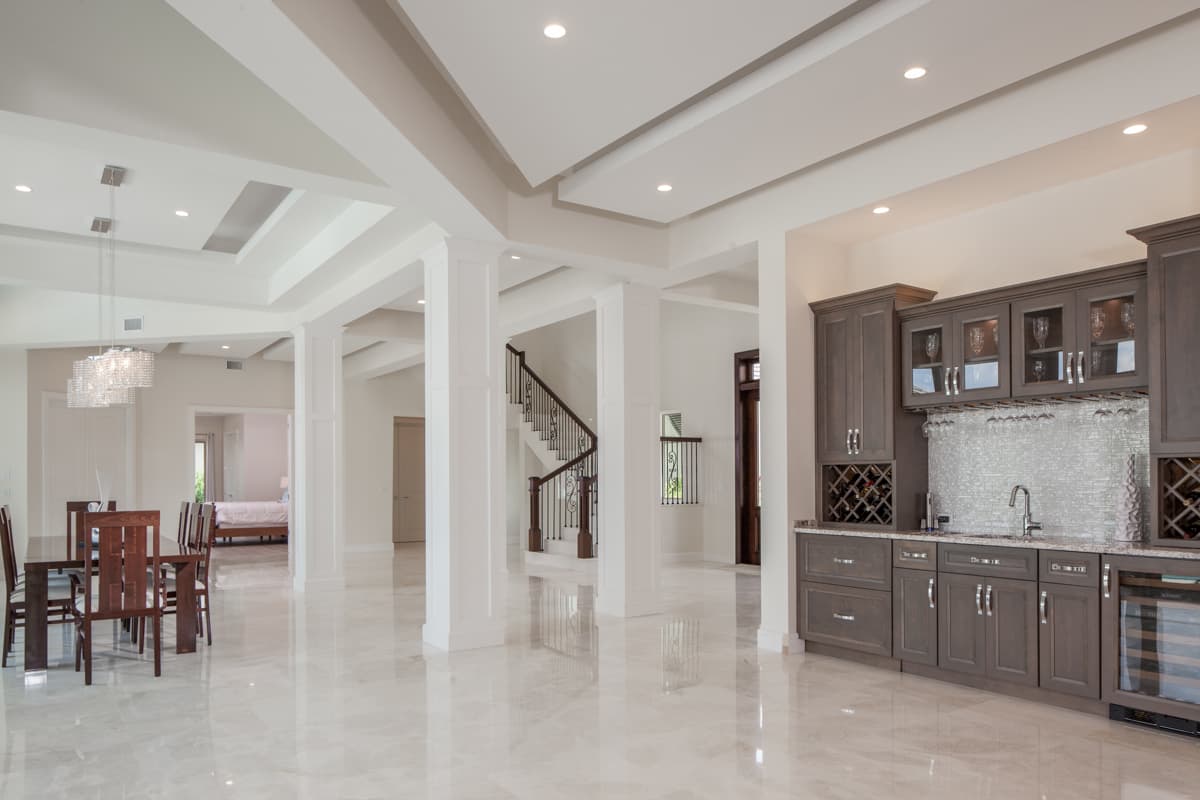

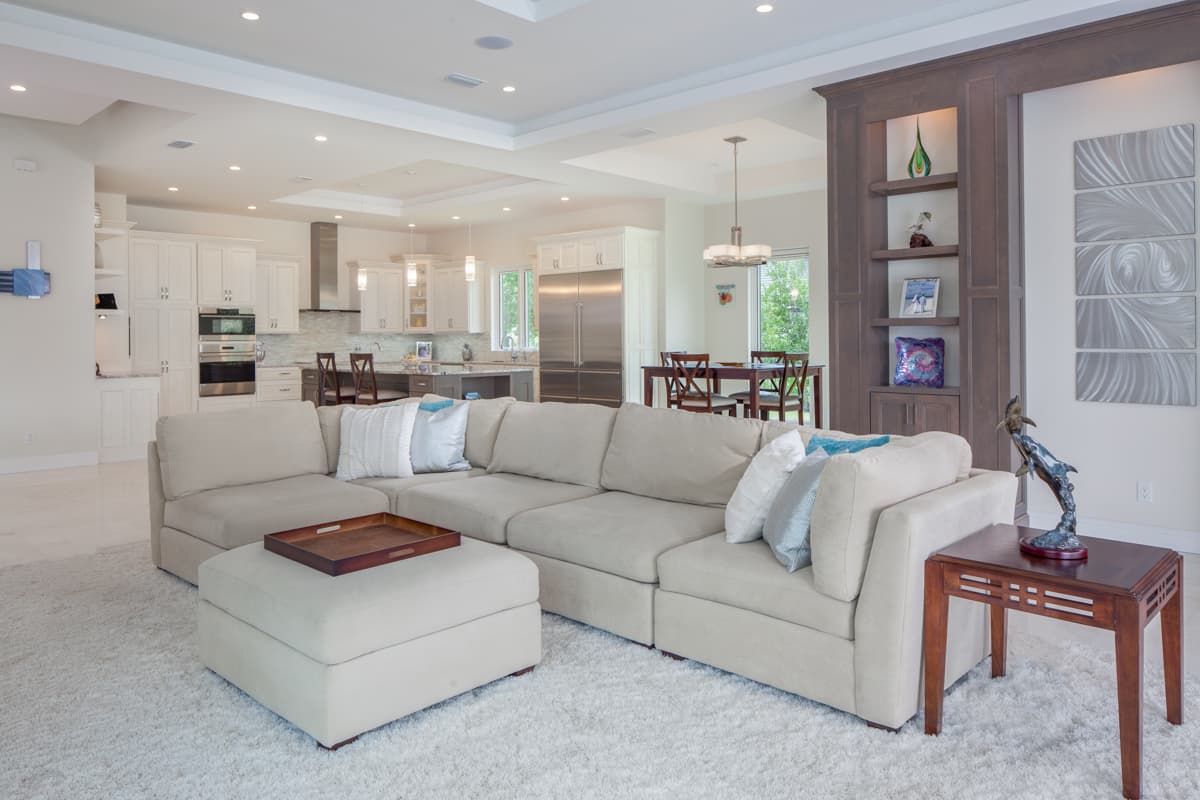

With four interior columns instead of walls, you get a huge, dramatic open space. The informal family living area is also open concept.

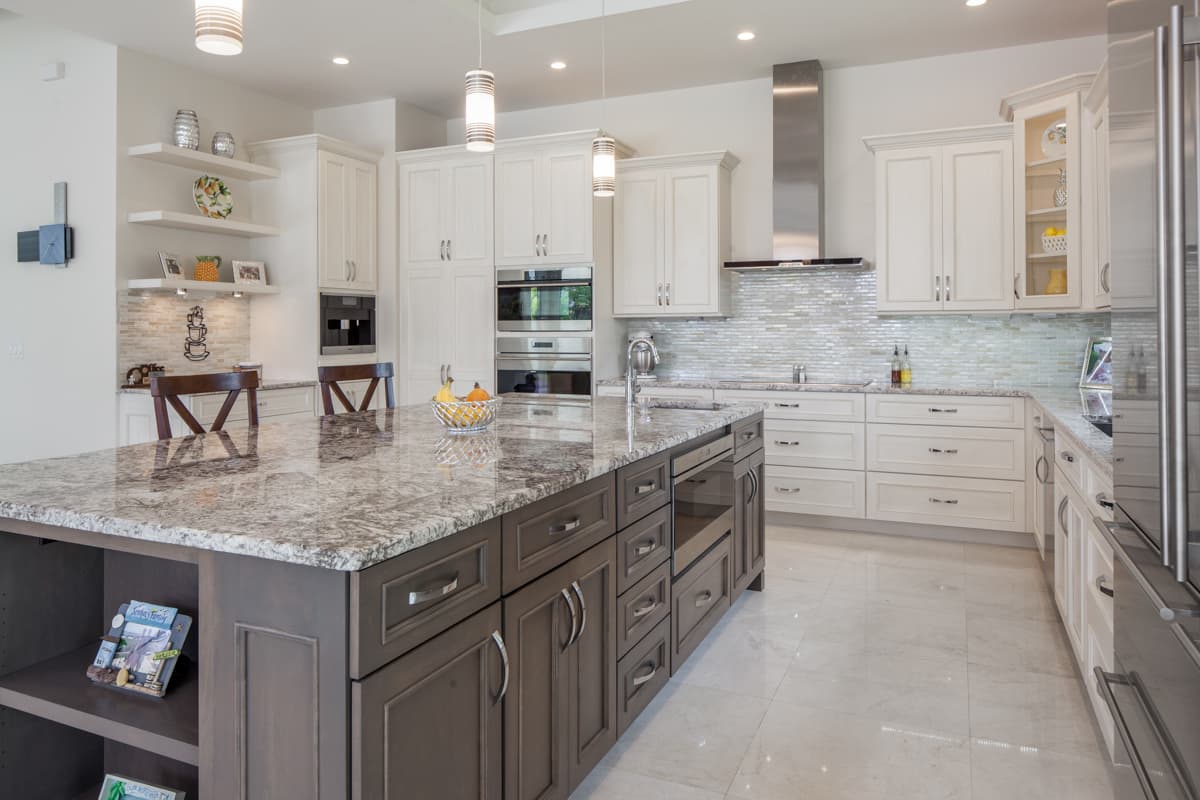

You'll have lots of counter space on the giant island in the kitchen and a second sink to keep things moving smoothly.
Party time takes place in the enormous game room that comes with a wet bar beverage center.

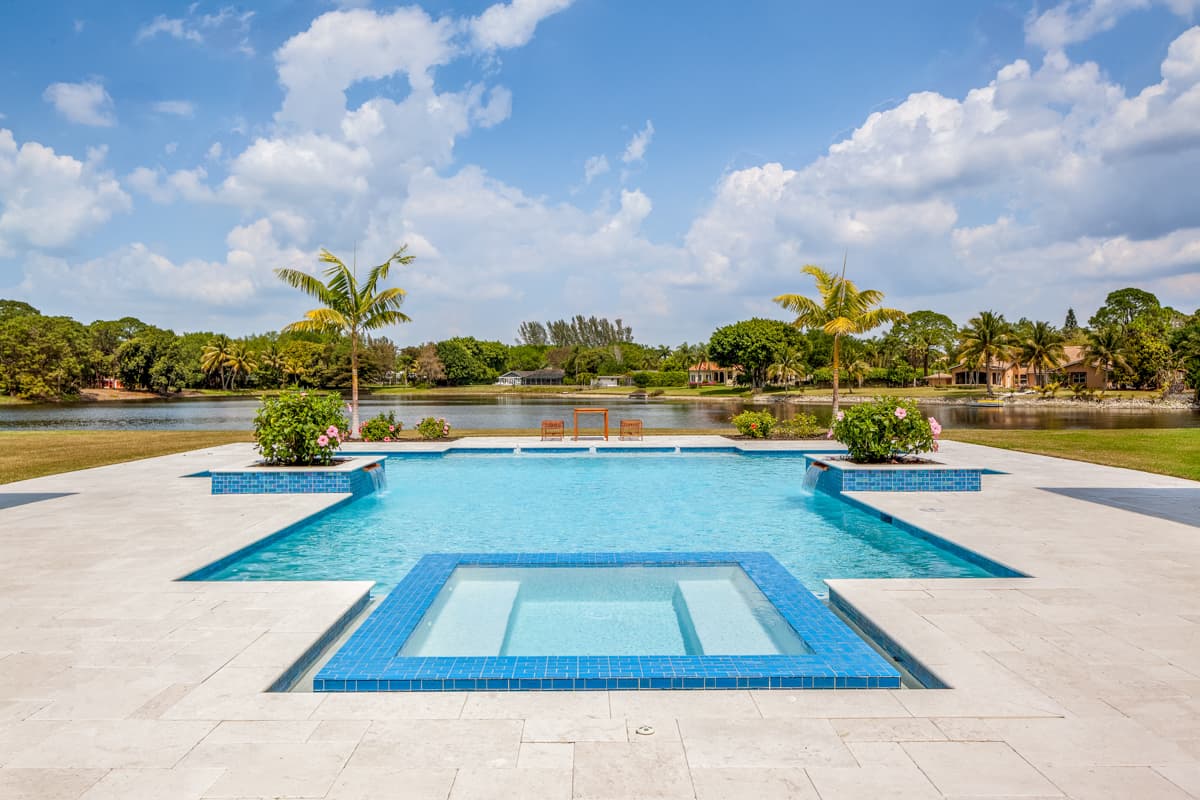

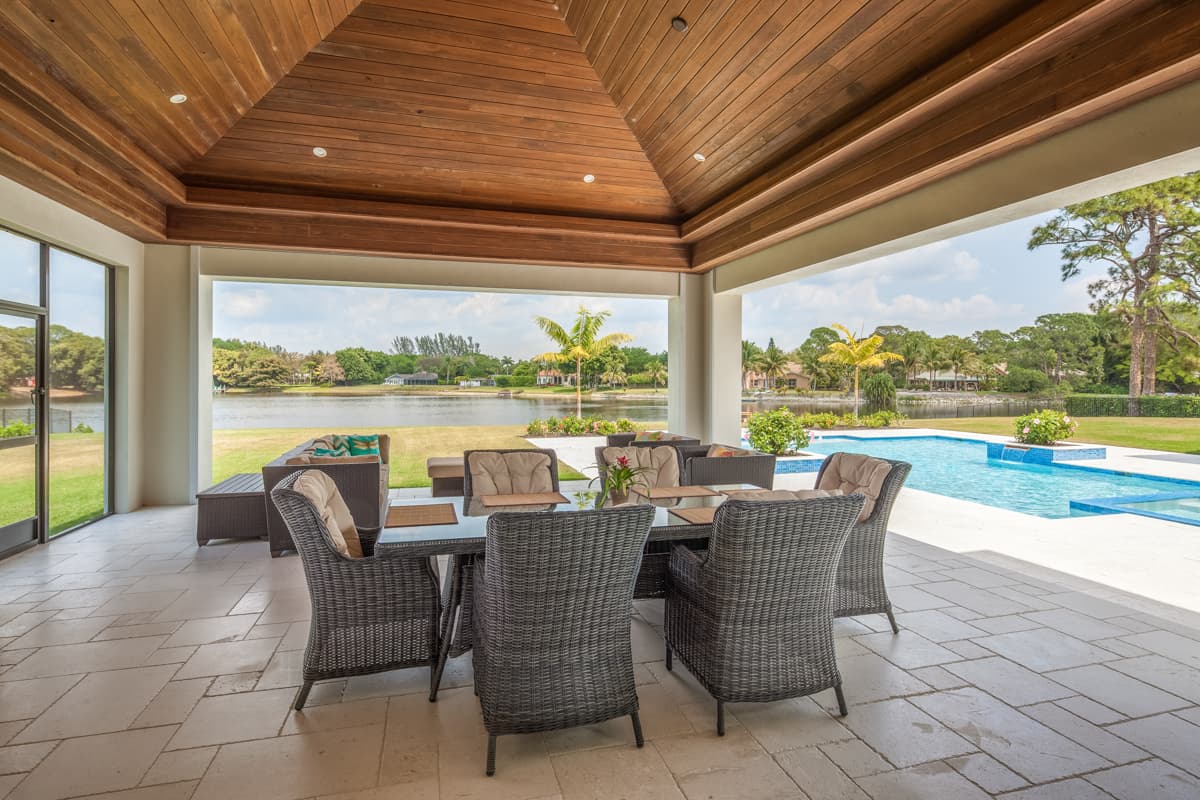

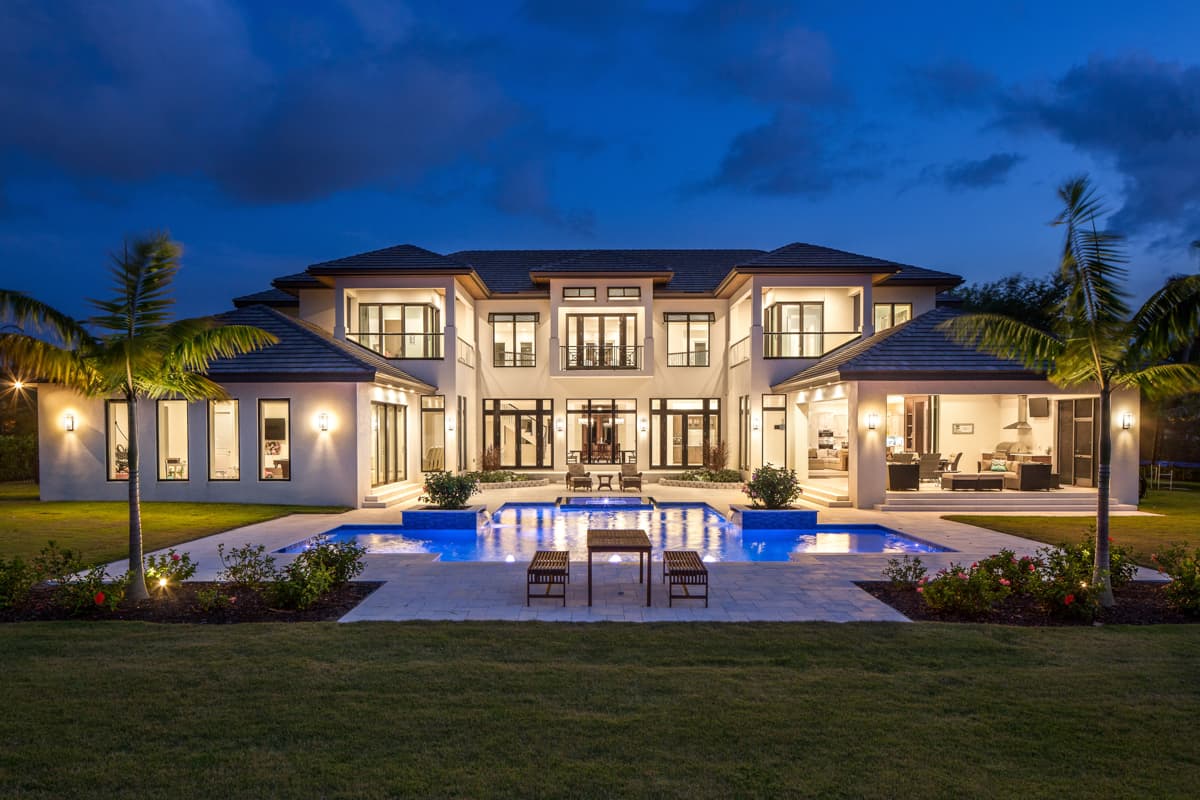

Take everyone outside to the huge covered lanai where you have easy access to a pool bath too.
Most of the bedrooms are up on the second floor and you can climb the stairs or take the residential elevator to get there.

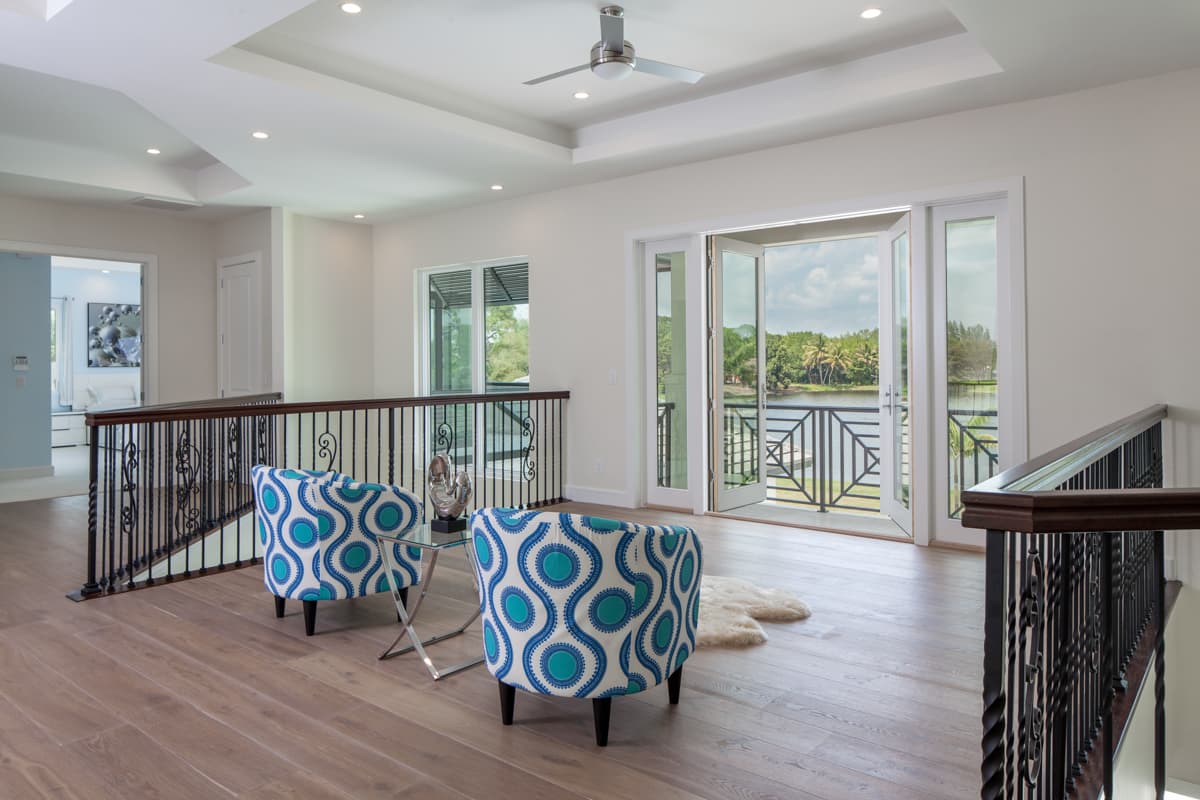

Open rails let you look down onto the first floor in several spots.
The master suite is an oasis of luxury with a massive walk-in closet big enough for an island chest of drawers. Private covered balconies can be found off the master and guest suite 2.

What's Included

Slab Plan
Floor Plans with Notes and Dimensions
Door and Window Schedules
Electrical Plans
Ceiling Plans
Elevations of All Sides
Roof Plans
Building Sections
Wall Sections
Fastener Requirements

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Modify This Plan

Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

7,117 sq. ft.

1st Floor

4,302 sq. ft.

2nd Floor

2,815 sq. ft.

Entry

88 sq. ft.

Balcony / Veranda

532 sq. ft.

Lanai

1,462 sq. ft.

OVERALL

11,159 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Dimensions

Width

98' 6"

Depth

120' 10"

Max Ridge Height

35' 0"

Garage

Type

Attached

Area

1960 sq. ft.

Count

4 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

10'

Room

Ceiling Type

Height

Family Room

11' 8''

Dining Room

12' 0''

Breakfast Room

12' 0''

Study

11' 0''

Master Bedroom

Vaulted

0' 0''

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Special Features

Butler Walk-in Pantry

Handicapped Accessible

Laundry - Main Level

Laundry - Upstairs

Master Suite - 2nd Floor

Outdoor Fireplace

Outdoor Kitchen

Plan Collections

Premium Collection
