Plan 801116PM

Triplex House Plan with 1419 Square Foot 3 Bed Units

Heated S.F.
4,257
Units
3
Width
Depth

Floor Plan

Plan 801116PM

Main Level (Unit A)
Main Level (Unit A)
Second Level (Unit B)
Second Level (Unit B)
Lower Level (Unit C)
Lower Level (Unit C)

Plan 801116PM

M-F 9am-5pm EST |

1-203-761-8500

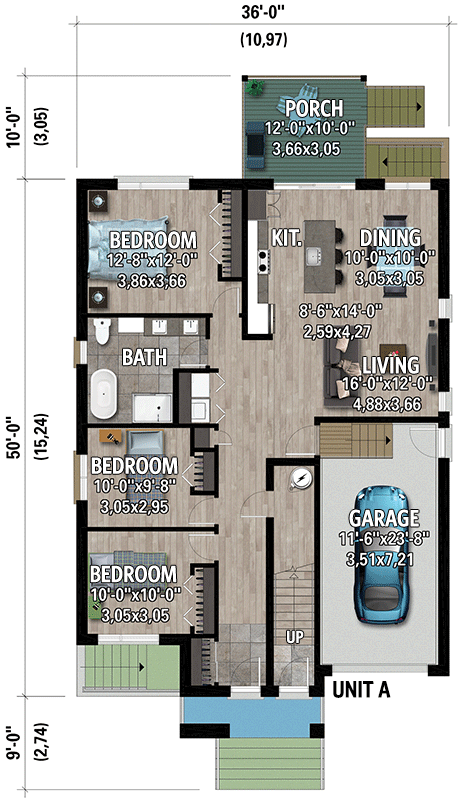

Main Level (Unit A)

Plan 801116PM: Triplex House Plan with 1419 Square Foot 3 Bed Units - Floor Plan - Main Level (Unit A) - Contemporary, Modern, Northwest

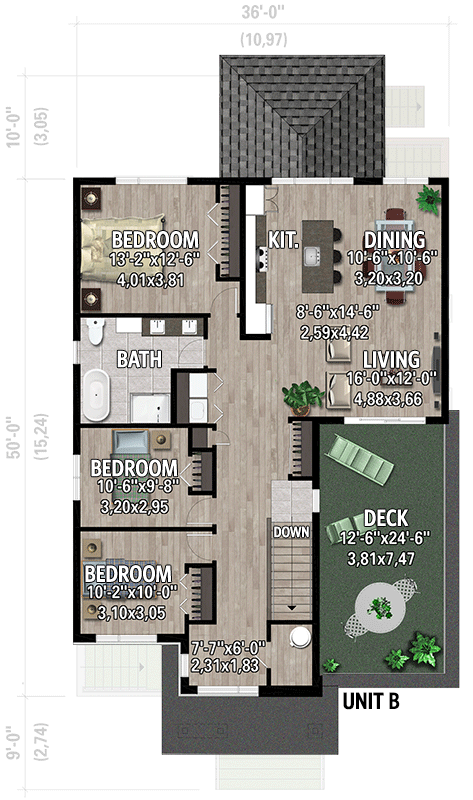

Second Level (Unit B)

Plan 801116PM: Triplex House Plan with 1419 Square Foot 3 Bed Units - Floor Plan - Second Level (Unit B) - Contemporary, Modern, Northwest

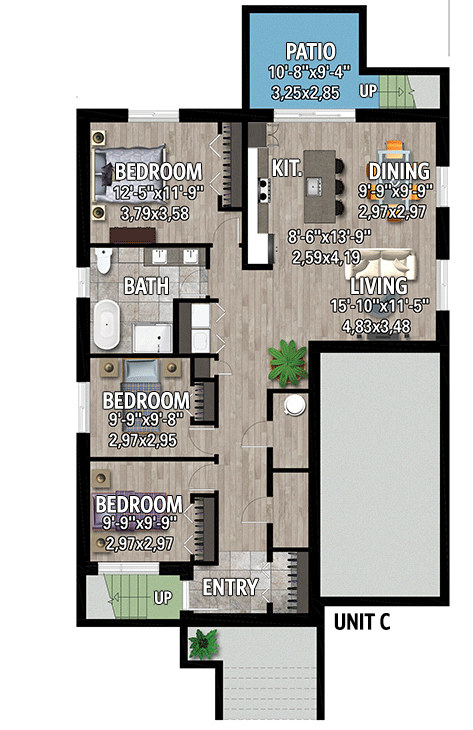

Lower Level (Unit C)

Plan 801116PM: Triplex House Plan with 1419 Square Foot 3 Bed Units - Floor Plan - Lower Level (Unit C) - Contemporary, Modern, Northwest

Plan Details

  • This three-family house plan has a stylish and contemporary exterior with a blend of stone brick.
  • All three units give you 1,419 square feet of heated living space. Unit A - the first floor) has a 306 square foot garage.
  • Each apartment has 3 beds and 1 bath. The living room, dining room and the kitchen are open-concept with a three-person island and a laundry corner.
  • NOTE: Please allow up to 15 business days for delivery.
Unit A
Heated Area
1,419Sq. Ft.
Beds
3Beds
Baths
1Full Bath
Dimensions
36'width
50'depth
Unit B
Heated Area
1,419Sq. Ft.
Beds
3Beds
Baths
1Full Bath
Dimensions
36'width
50'depth
Unit C
Heated Area
1,419Sq. Ft.
Beds
3Beds
Baths
1Full Bath
Dimensions
36'width
50'depth

What's Included

Please note this plan is designed to the National Building Code of Canada.

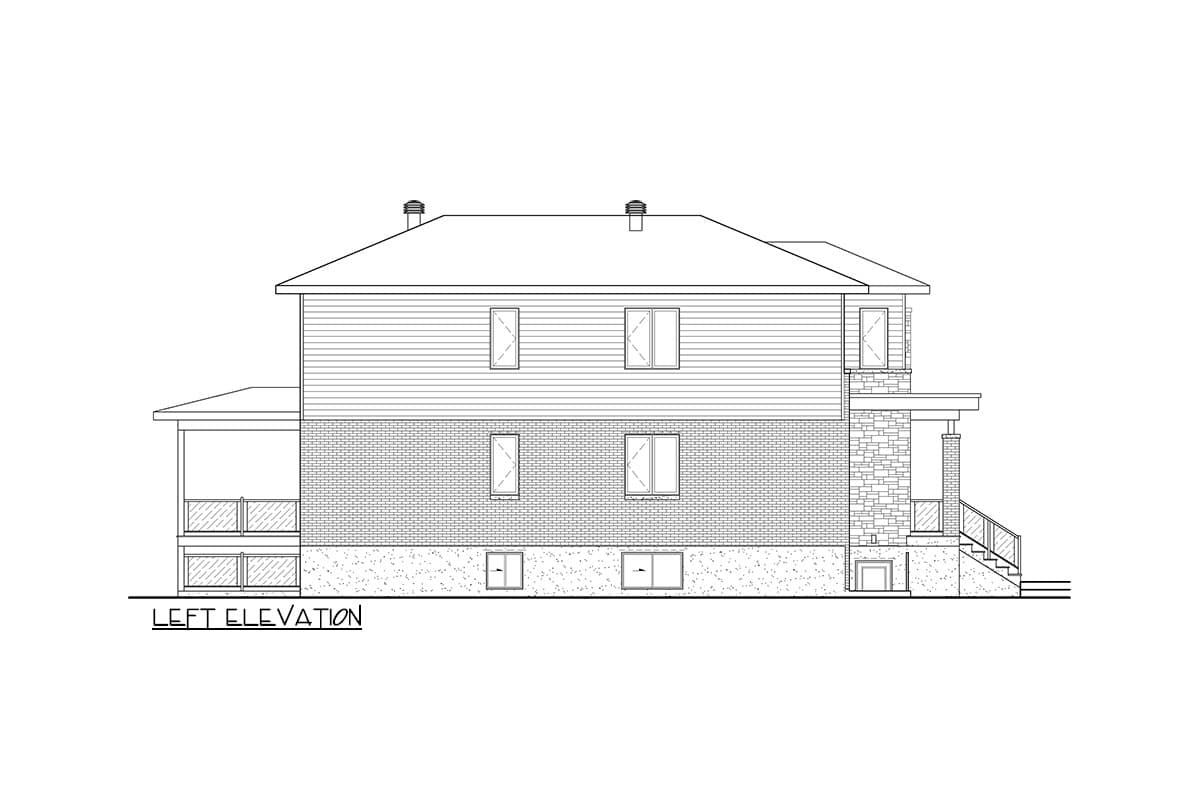

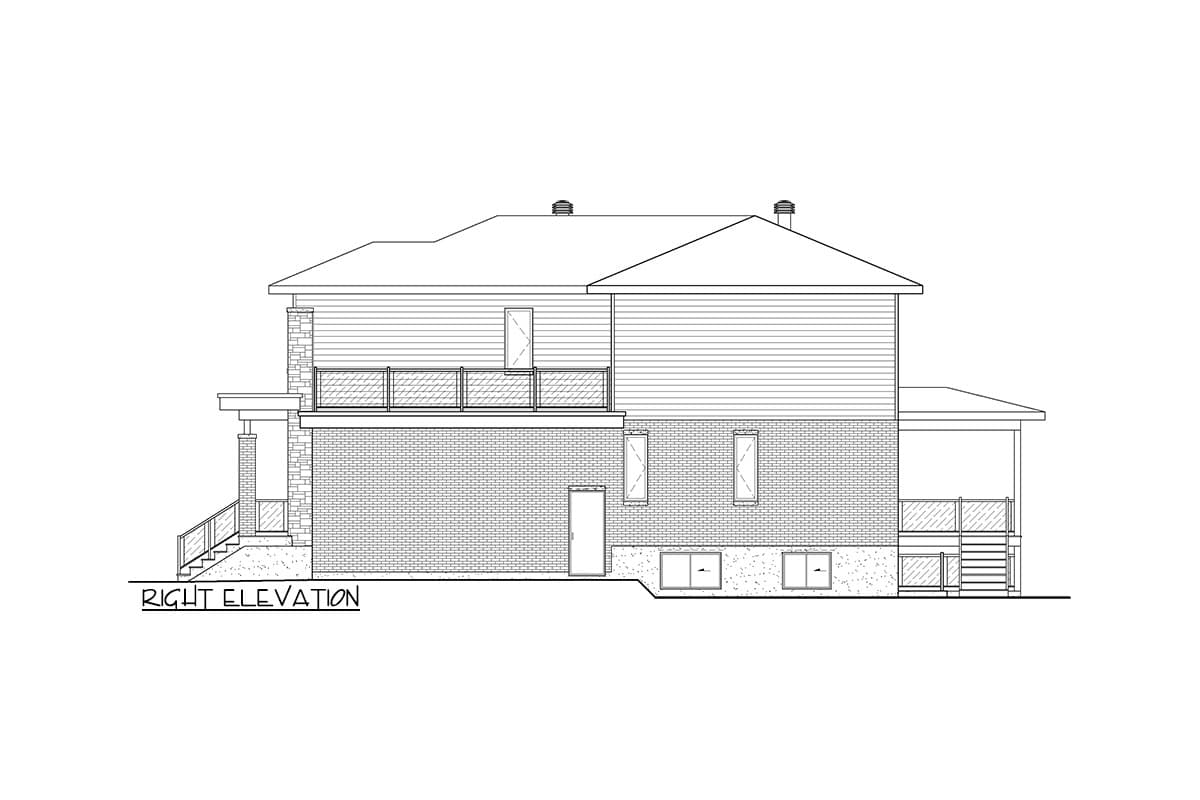

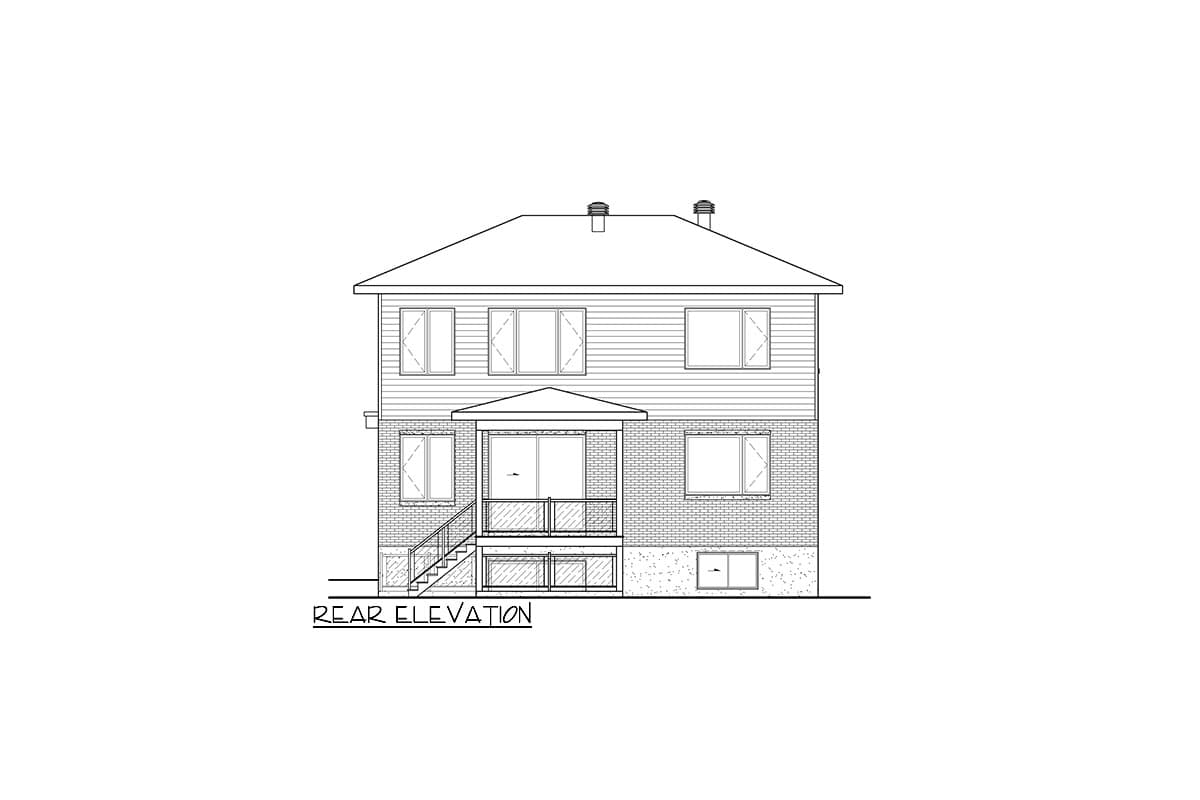

  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.

View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

4,257 sq. ft.

Lower Level

1,419 sq. ft.

1st Floor

1,419 sq. ft.

2nd Floor

1,419 sq. ft.

Beds/Baths

Bedrooms

9

Full bathrooms

3

Foundation Type

Standard Foundations

Basement, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

36' 0"

Depth

50' 0"

Max Ridge Height

31' 3"

Garage

Type

Attached

Area

306 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

9'

Roof Details

Primary Pitch

5 on 12

Secondary Pitch

5 on 12

Architectural Style

Contemporary

Modern

Northwest

Special Features

Bedrooms - Clustered

Laundry - Lower Level

Laundry - Main Level

Master Suite - 1st Floor

Master Suite - Lower Level

Master Suite - Upstairs

Plan Collections
