Triplex House Plan with 3 Bed 2.5 Bath Units in 2 Different Sizes - 1256 Sq Ft and 1285 Sq Ft

Heated S.F.
3,797
Units
3
Width
Depth

Floor Plan

Plan 81843AB

Main Level
Main Level
2nd Floor
2nd Floor
Third Floor
Third Floor

Plan 81843AB

M-F 9am-5pm EST |

1-203-761-8500

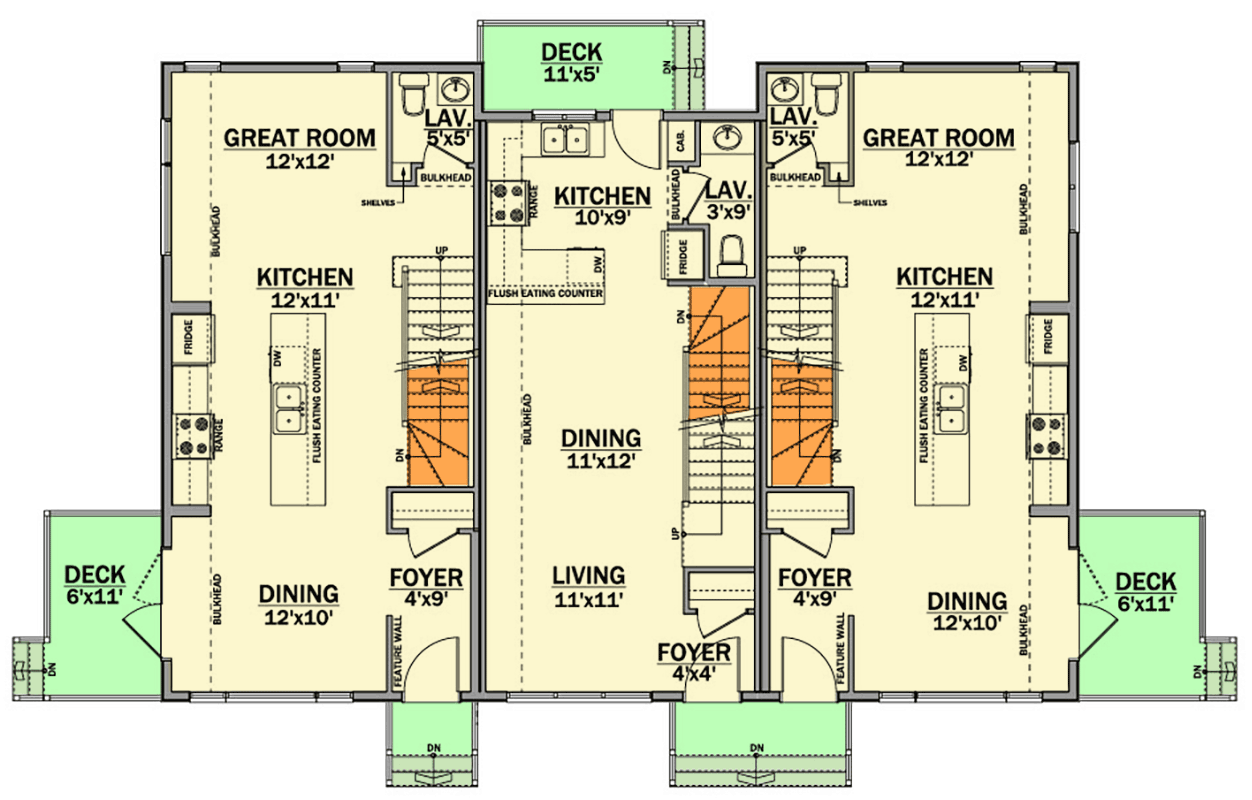

Main Level

Plan 81843AB: Triplex House Plan with 3 Bed 2.5 Bath Units in 2 Different Sizes - 1256 Sq Ft and 1285 Sq Ft - Floor Plan - Main Level - Contemporary, Transitional

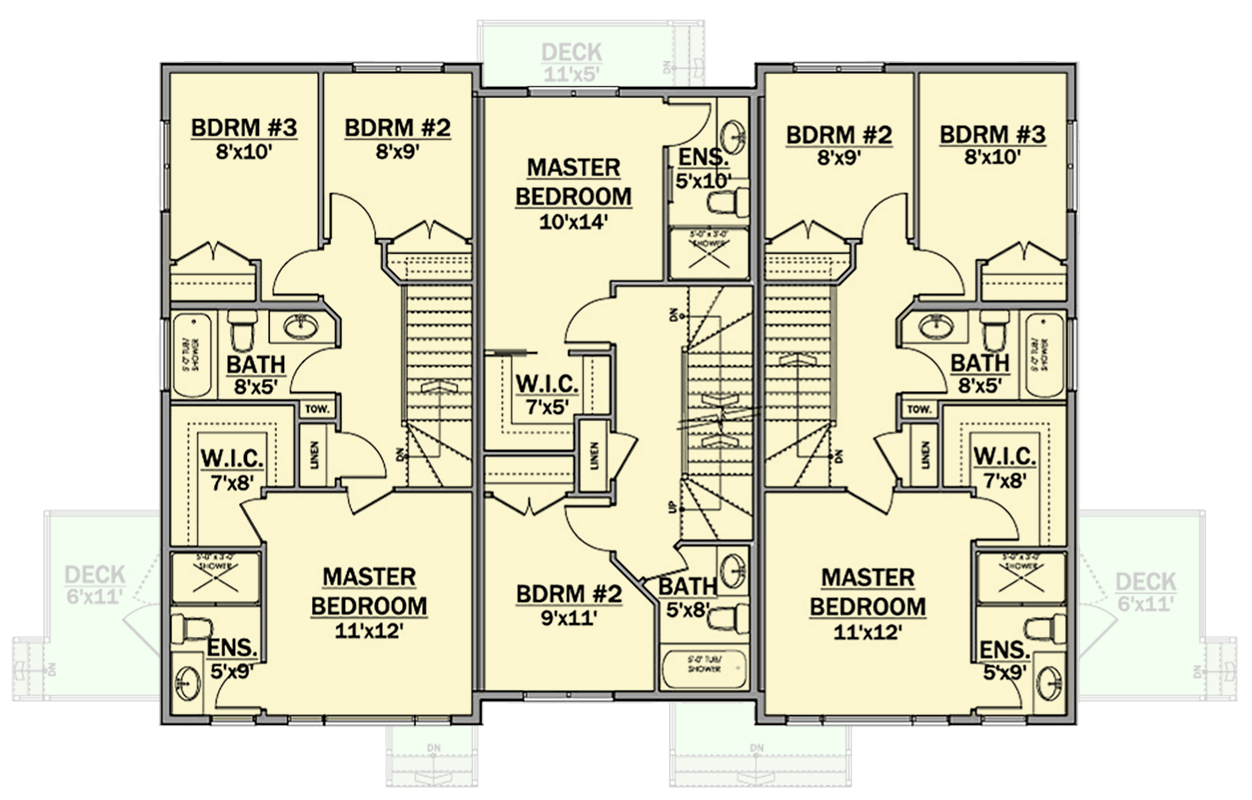

2nd Floor

Plan 81843AB: Triplex House Plan with 3 Bed 2.5 Bath Units in 2 Different Sizes - 1256 Sq Ft and 1285 Sq Ft - Floor Plan - 2nd Floor - Contemporary, Transitional

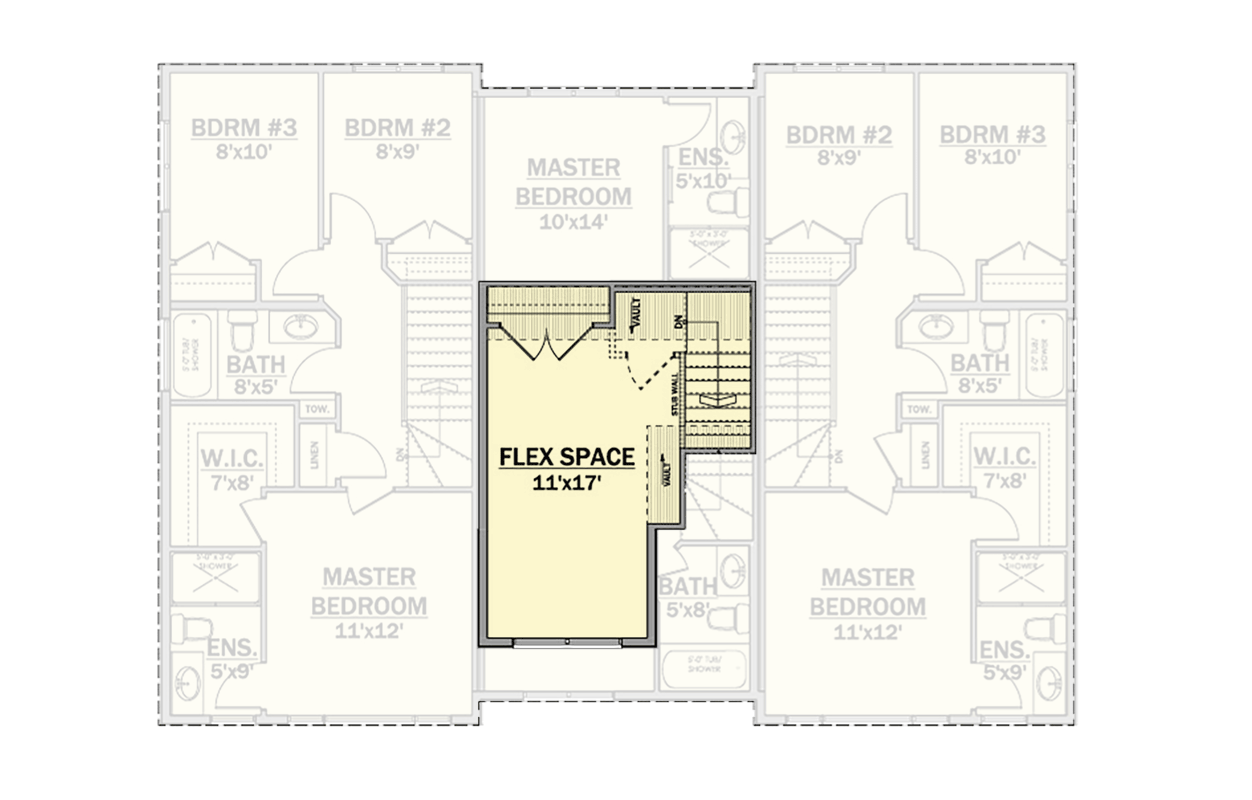

Third Floor

Plan 81843AB: Triplex House Plan with 3 Bed 2.5 Bath Units in 2 Different Sizes - 1256 Sq Ft and 1285 Sq Ft - Floor Plan - Third Floor - Contemporary, Transitional

Plan Details

  • This triplex house plan gives you two differently sized 3 bed, 2.5 bath units.
  • The units on the end are identical and give you 1,256 square feet of 2-story living (616 sq. ft. on the main floor and 640 sq. ft. on the second floor). The middle unit gives you 3-level living with a third floor flex room (504 sq. ft. on the main floor, 523 sq. ft. on the second floor and 258 sq. ft. on the third floor).
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
Unit A
Heated Area
1,256Sq. Ft.
616 Sq. Ft. 1st
640 Sq. Ft. 2nd
Beds
3Beds
Baths
2Full Baths
1Half Bath
Dimensions
17'width
35'depth
Unit B
Heated Area
1,285Sq. Ft.
504 Sq. Ft. 1st
523 Sq. Ft. 2nd
258 Sq. Ft. 3rd
Beds
3Beds
Baths
2Full Baths
1Half Bath
Dimensions
15'width
32'depth
Unit C
Heated Area
1,256Sq. Ft.
616 Sq. Ft. 1st
640 Sq. Ft. 2nd
Beds
3Beds
Baths
2Full Baths
1Half Bath
Dimensions
17'width
35'depth

What's Included

  • Elevations (Front, Rear, Left and Right)
  • Floor plans
  • Foundation plan
  • Cross section
  • Roof plan

We also include a list of building specifications, and notes for each page, with any important info the builder may need.

View Sample Plan

What's Not Included

  • Electrical plan
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

3,797 sq. ft.

1st Floor

1,736 sq. ft.

2nd Floor

1,803 sq. ft.

3rd Floor

248 sq. ft.

Beds/Baths

Bedrooms

2 or 3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

48' 0"

Depth

35' 2"

Max Ridge Height

32' 2"

Ceiling Heights

Lower Level

8' 4"

First Floor

8' 1"

Second Floor

8' 1"

Roof Details

Primary Pitch

6.5 on 12

Framing Type

Truss

Architectural Style

Contemporary

Transitional

Special Features

Bedrooms - Clustered

Flex Room

Master Suite - Upstairs

Plan Collections

Canadian House Plans

Square Footage Breakdown

Total Heated Area

3,797 sq. ft.

1st Floor

1,736 sq. ft.

2nd Floor

1,803 sq. ft.

3rd Floor

248 sq. ft.

Beds/Baths

Bedrooms

2 or 3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

48' 0"

Depth

35' 2"

Max Ridge Height

32' 2"

Ceiling Heights

Lower Level

8' 4"

First Floor

8' 1"

Second Floor

8' 1"

Roof Details

Primary Pitch

6.5 on 12

Framing Type

Truss

Architectural Style

Contemporary

Transitional

Special Features

Bedrooms - Clustered

Flex Room

Master Suite - Upstairs

Plan Collections

Canadian House Plans
