Plan 801161PM

Triplex House Plan with 3 Full Floor 2 Bed Units - 969 Sq Ft Ea

Heated S.F.
2,907
Units
3
Width
Depth

Floor Plan

Plan 801161PM

Main Level
Main Level
2nd Floor
2nd Floor
Lower Leel
Lower Leel

Plan 801161PM

M-F 9am-5pm EST |

1-203-761-8500

Main Level

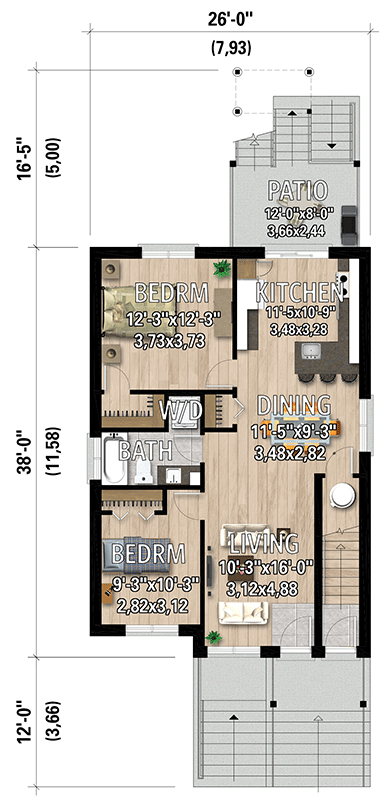

Plan 801161PM: Triplex House Plan with 3 Full Floor 2 Bed Units - 969 Sq Ft Ea - Floor Plan - Main Level - Contemporary, Northwest

2nd Floor

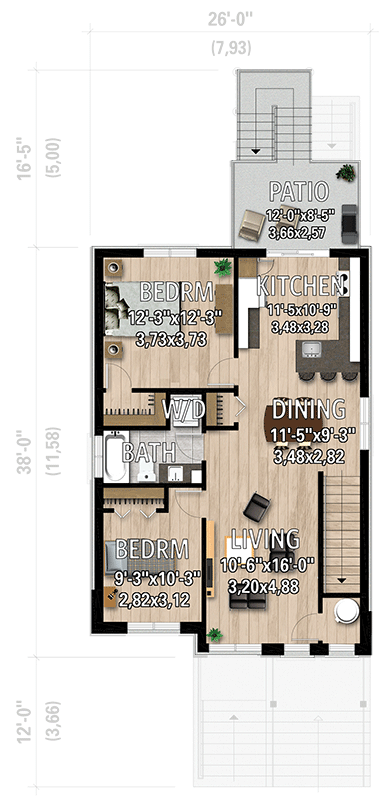

Plan 801161PM: Triplex House Plan with 3 Full Floor 2 Bed Units - 969 Sq Ft Ea - Floor Plan - 2nd Floor - Contemporary, Northwest

Lower Leel

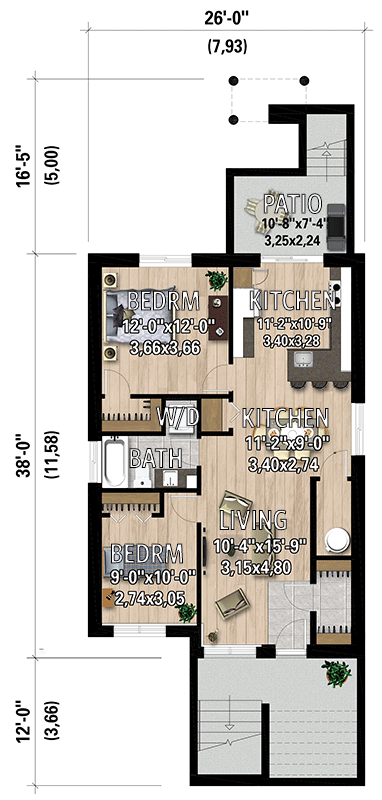

Plan 801161PM: Triplex House Plan with 3 Full Floor 2 Bed Units - 969 Sq Ft Ea - Floor Plan - Lower Leel - Contemporary, Northwest

Plan Details

  • This modern triplex house plan gives you 3 full-floor units - lower level, main floor and second floor - each delivering 969 square feet of heated living with 2 beds and 1 bath.
  • Each unit has two bedrooms, a complete bathroom and an area for a superimposed dryer and washer.
  • The common areas are all open concept. The kitchen has an L-shaped counter.
  • Each unit has its own private entrance.
  • NOTE: Please allow 15 to 20 business days for delivery.
Unit A
Heated Area
969Sq. Ft.
969 Sq. Ft. 1st
Beds
3Beds
Baths
1Full Bath
Dimensions
26'width
38'depth
Unit B
Heated Area
969Sq. Ft.
969 Sq. Ft. 2nd
Beds
3Beds
Baths
1Full Bath
Dimensions
26'width
38'depth
28'height
Unit Lower Level
Heated Area
969Sq. Ft.
969 Sq. Ft. LL
969 Sq. Ft. 1st
969 Sq. Ft. 2nd
Beds
3Beds
Baths
1Full Bath
Dimensions
26'width
38'depth
28'height

What's Included

Please note this plan is designed to the National Building Code of Canada.

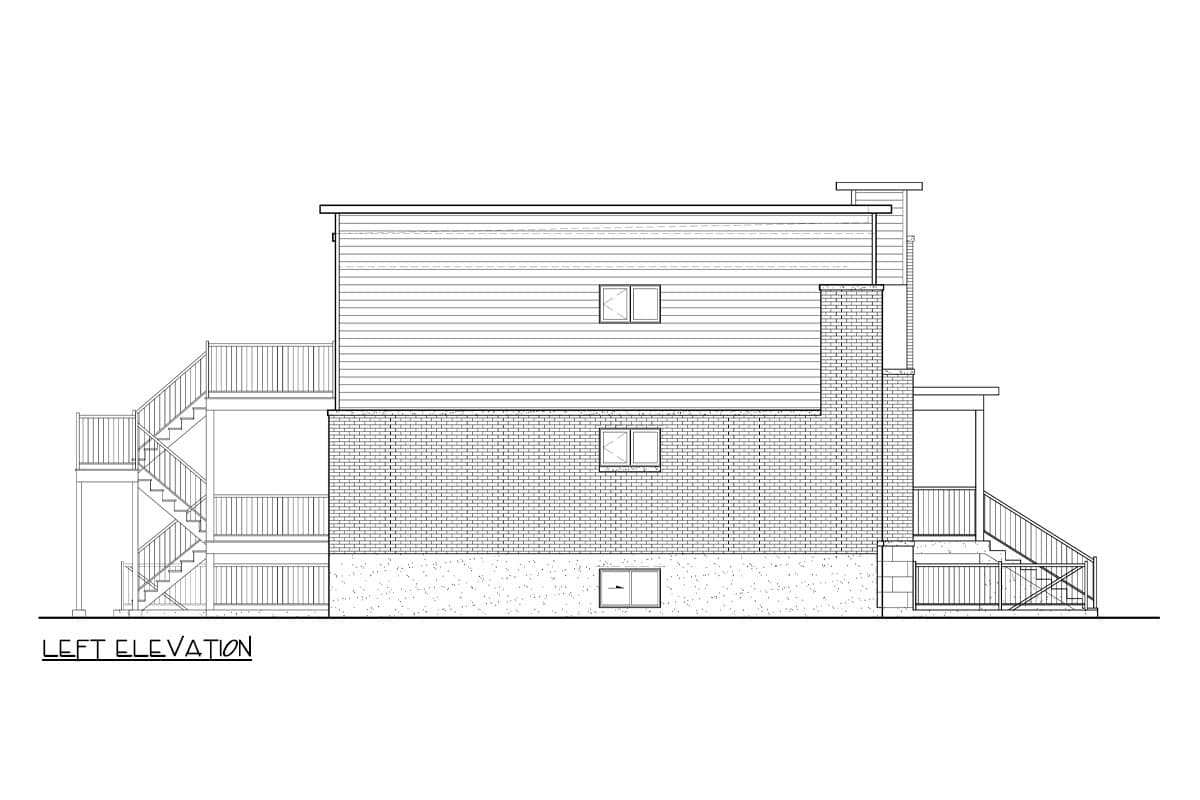

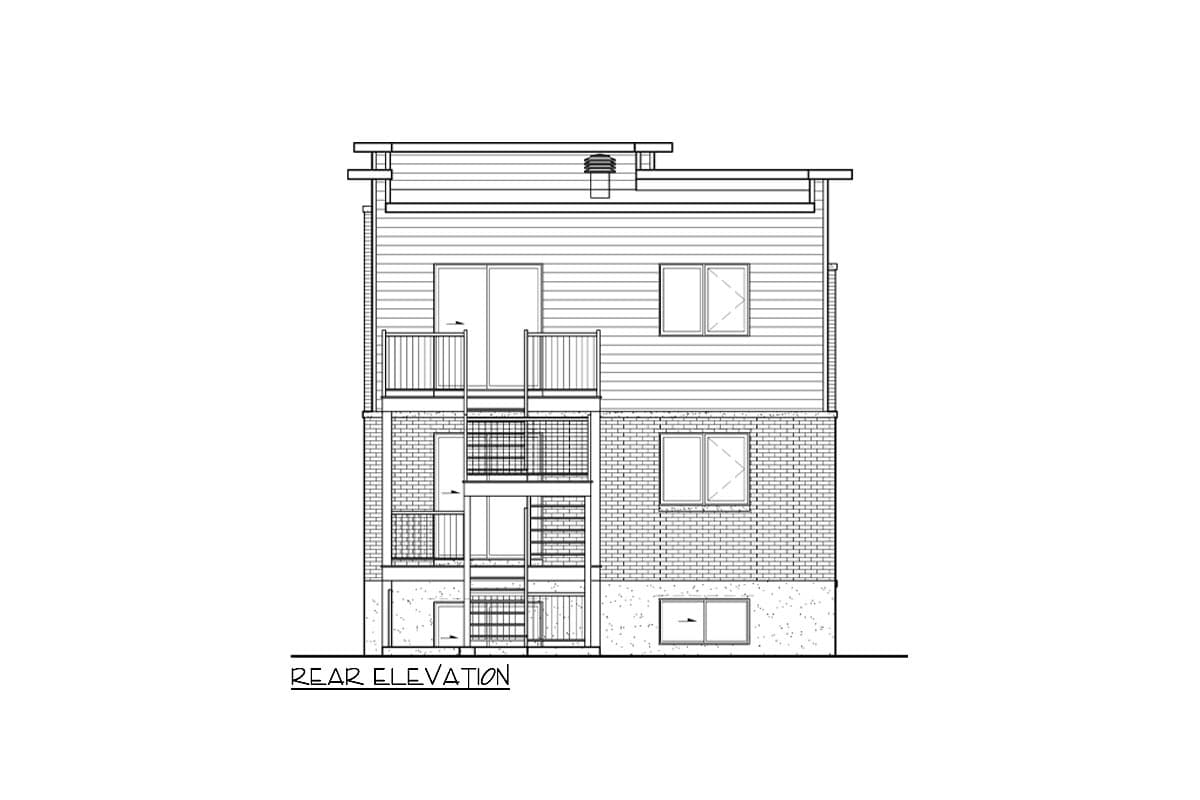

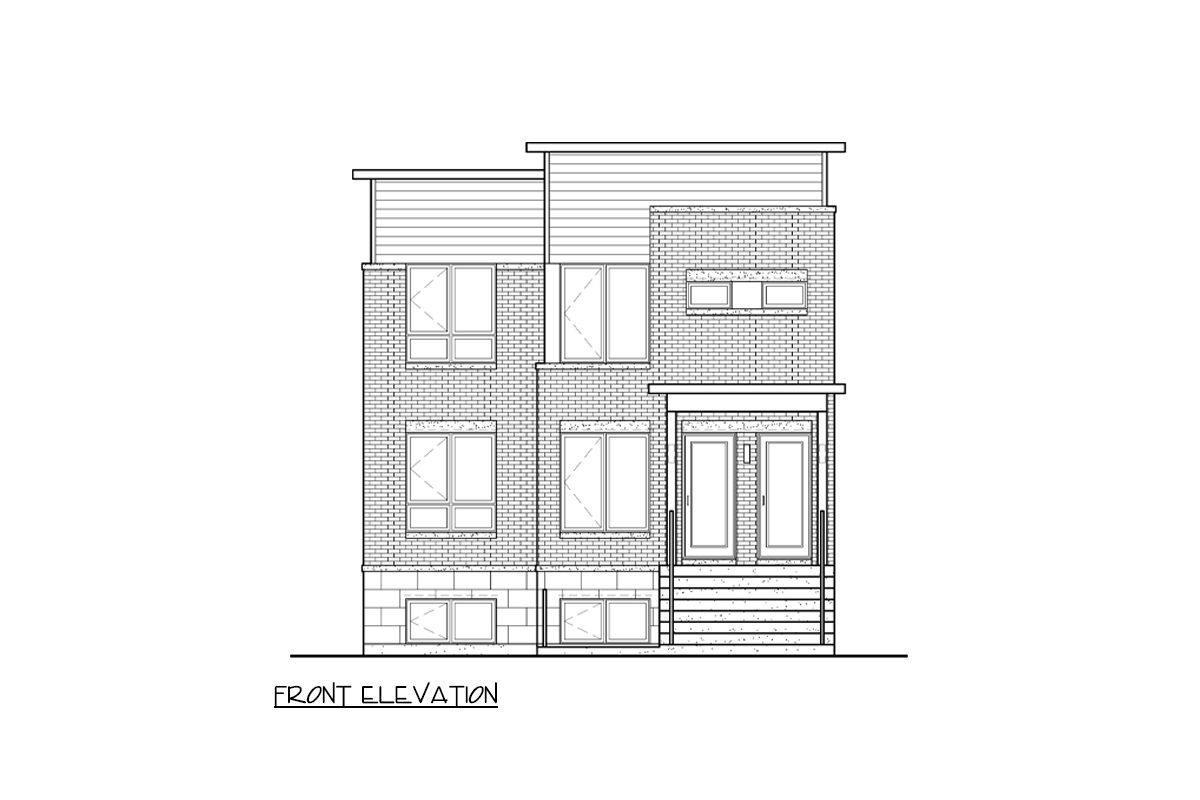

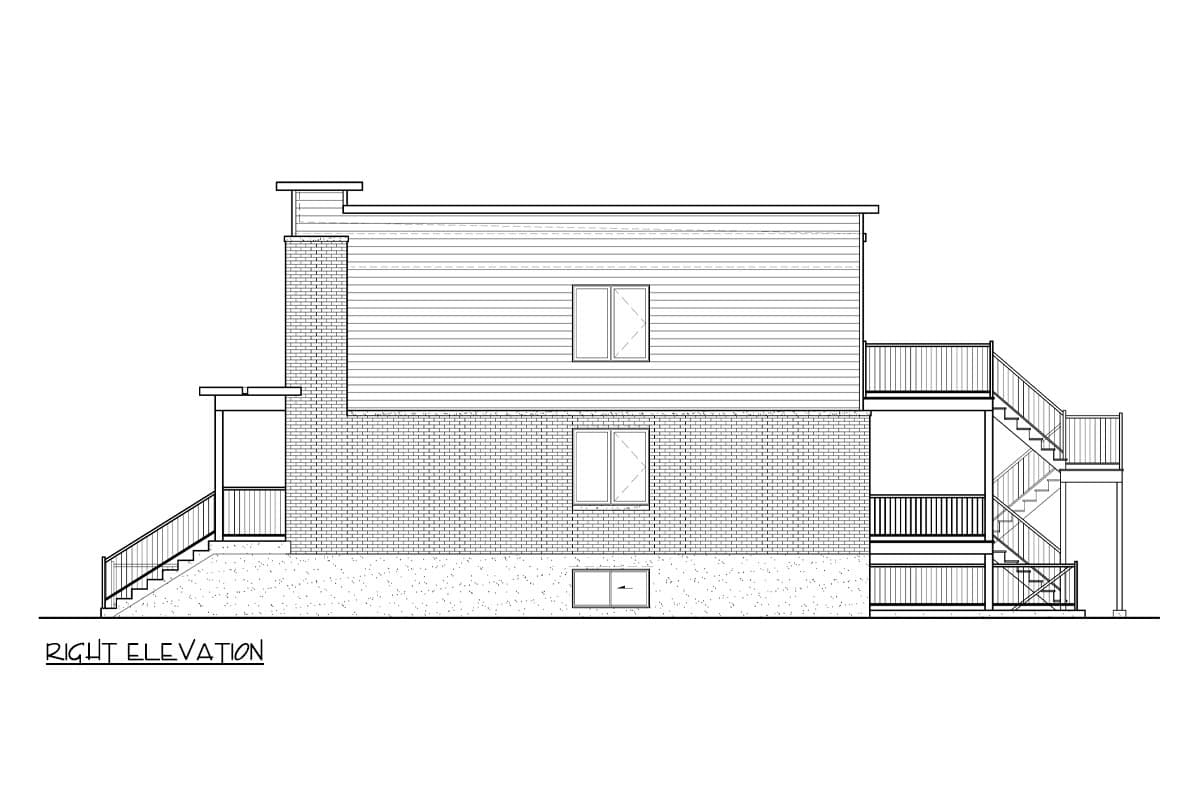

  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.

View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

2,907 sq. ft.

Lower Level

969 sq. ft.

1st Floor

969 sq. ft.

2nd Floor

969 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

3

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

26' 0"

Depth

38' 0"

Max Ridge Height

28' 4"

Ceiling Heights

Lower Level

8'

First Floor

8'

Second Floor

8'

Architectural Style

Contemporary

Northwest

Special Features

Laundry - Lower Level

Laundry - Main Level

Laundry - Upstairs

Master Suite - 1st Floor

Master Suite - Lower Level

Master Suite - Upstairs

Plan Collections

Canadian House Plans

Square Footage Breakdown

Total Heated Area

2,907 sq. ft.

Lower Level

969 sq. ft.

1st Floor

969 sq. ft.

2nd Floor

969 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

3

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

26' 0"

Depth

38' 0"

Max Ridge Height

28' 4"

Ceiling Heights

Lower Level

8'

First Floor

8'

Second Floor

8'

Architectural Style

Contemporary

Northwest

Special Features

Laundry - Lower Level

Laundry - Main Level

Laundry - Upstairs

Master Suite - 1st Floor

Master Suite - Lower Level

Master Suite - Upstairs

Plan Collections

Canadian House Plans
