Plan 85053MS

Exclusive

Tudor Duplex with Matching 2-Story Units with Drive-Under Garages - 1540 Sq Ft 2 Beds

Heated S.F.
3,080
Units
2
Width
Depth

Floor Plan

Plan 85053MS

Main Level
Main Level
2nd Floor
2nd Floor
Basement
Basement

Plan 85053MS

M-F 9am-5pm EST |

1-203-761-8500

Main Level

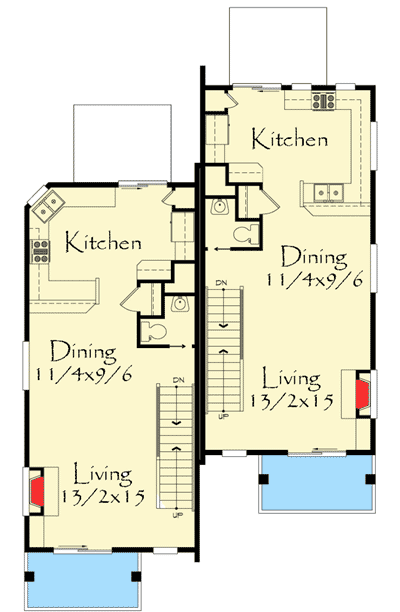

Plan 85053MS: Tudor Duplex with Matching 2-Story Units with Drive-Under Garages - 1540 Sq Ft 2 Beds - Floor Plan - Main Level - Tudor

2nd Floor

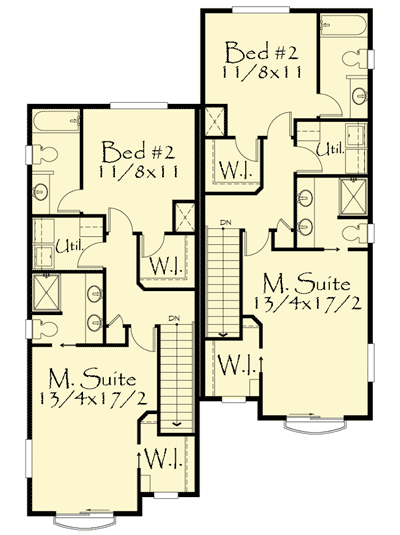

Plan 85053MS: Tudor Duplex with Matching 2-Story Units with Drive-Under Garages - 1540 Sq Ft 2 Beds - Floor Plan - 2nd Floor - Tudor

Basement

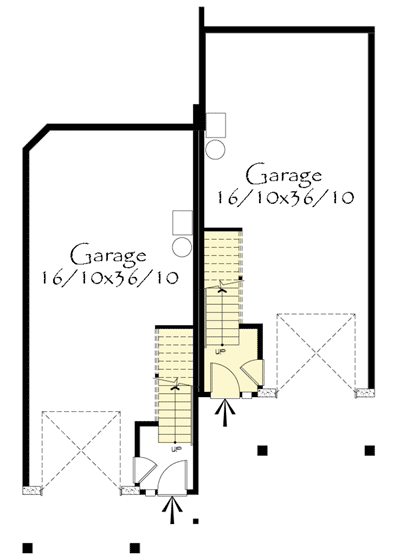

Plan 85053MS: Tudor Duplex with Matching 2-Story Units with Drive-Under Garages - 1540 Sq Ft 2 Beds - Floor Plan - Basement - Tudor

Plan Details

  • Designed for a lot that slopes to the front, this gorgeous duplex home plan has marvelous Tudor detailing. Each 2 bed, 2.5 bath unit gives you 1,540 square feet of heated living space and a 2-car 681 square foot drive under garage.
  • Both units get a fireplace and open floor plan where the views flow from living room to kitchen.
  • Each bedroom on the second floor has a walk-in closet and the laundry is located on this level for convenience.
  • The main foyer is on the ground level where you find a large tandem garage.
  • Related Plan: Get a triplex with house plan 85056MS.
Unit A
Heated Area
1,540Sq. Ft.
684 Sq. Ft. 1st
717 Sq. Ft. 2nd
Beds
2Beds
Baths
2Full Baths
1Half Bath
Cars
Drive Under
681 Sq. Ft.
Dimensions
18'width
44'depth
35'height
Unfinished Areas
681 Sq. Ft. Garage
Unit B
Heated Area
1,540Sq. Ft.
684 Sq. Ft. 1st
717 Sq. Ft. 2nd
Beds
2Beds
Baths
2Full Baths
1Half Bath
Cars
Drive Under
681 Sq. Ft.
Dimensions
18'width
44'depth
35'height
Unfinished Areas
681 Sq. Ft. Garage

What's Included

  • Elevations: Front, Right, Rear, Left
  • Fully Dimensioned Floor Plans (window and door sizes called out at openings)
  • Foundation Plan with notes
  • Roof Framing Plan with notes
  • Section Views
  • Electrical Layout
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

3,080 sq. ft.

1st Floor

1,368 sq. ft.

2nd Floor

1,434 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

36' 0"

Depth

44' 0"

Max Ridge Height

35' 0"

Garage

Type

Drive Under

Area

1362 sq. ft.

Count

4 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

9'

Roof Details

Primary Pitch

9 on 12

Framing Type

Truss

Architectural Style

Tudor

Special Features

Laundry - Upstairs

Master Suite - Upstairs

Tandem Garage

Plan Collections

Exclusive

Square Footage Breakdown

Total Heated Area

3,080 sq. ft.

1st Floor

1,368 sq. ft.

2nd Floor

1,434 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

36' 0"

Depth

44' 0"

Max Ridge Height

35' 0"

Garage

Type

Drive Under

Area

1362 sq. ft.

Count

4 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

9'

Roof Details

Primary Pitch

9 on 12

Framing Type

Truss

Architectural Style

Tudor

Special Features

Laundry - Upstairs

Master Suite - Upstairs

Tandem Garage

Plan Collections

Exclusive
