Plan 93056EL

Exclusive

Tudor with a Game Room and a Playroom

Heated S.F.
3,440
Beds
4
Baths
3.5
Stories
2
Cars
2

Floor Plan

Plan 93056EL

Main Level
Main Level
2nd Floor
2nd Floor

Plan 93056EL

M-F 9am-5pm EST |

1-203-761-8500

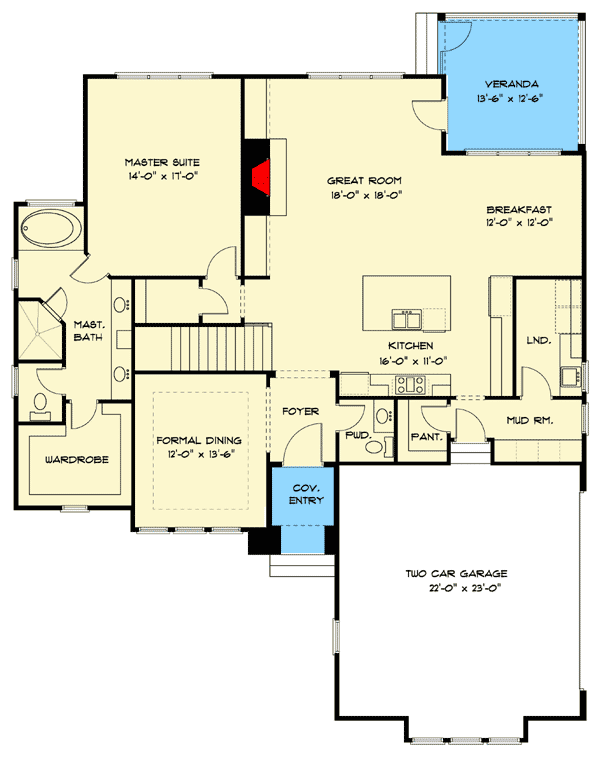

Main Level

Plan 93056EL: Tudor with a Game Room and a Playroom - Floor Plan - Main Level - European, Tudor

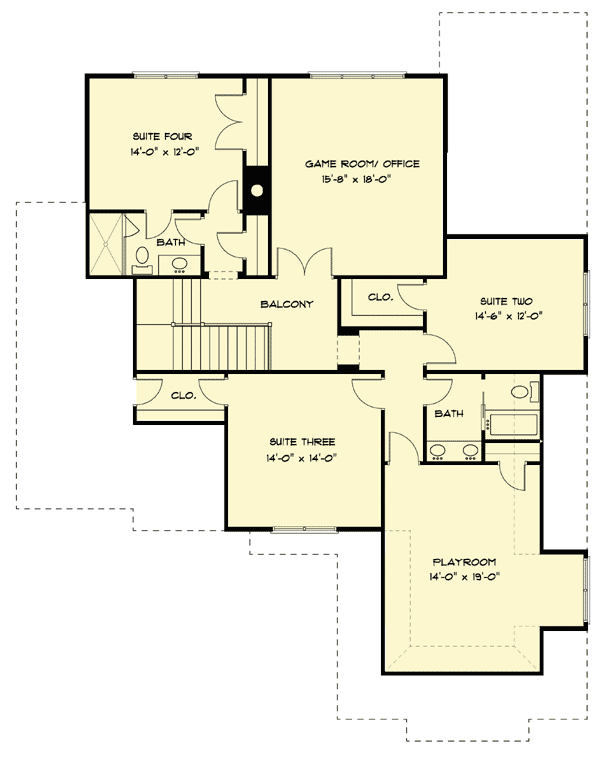

2nd Floor

Plan 93056EL: Tudor with a Game Room and a Playroom - Floor Plan - 2nd Floor - European, Tudor

Plan Details

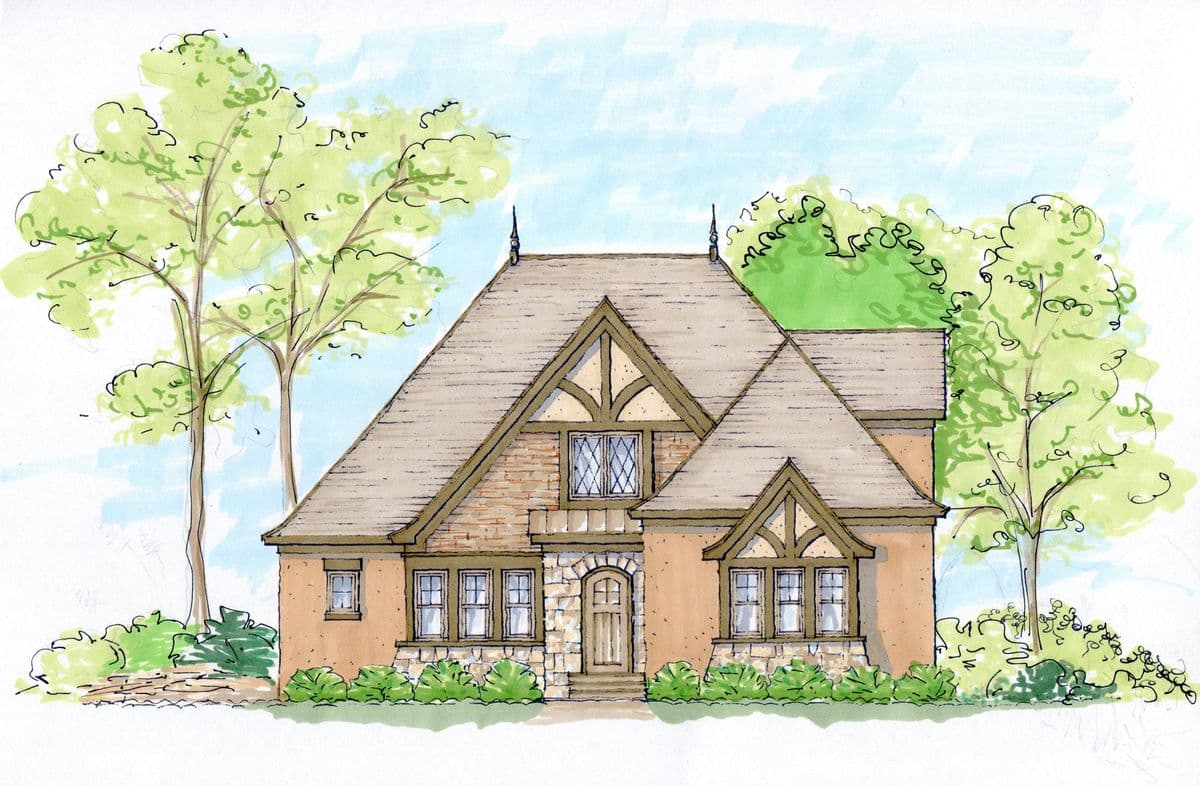

  • Beautiful detailing on the exterior of this impressive Tudor home will appeal to those who love European homes.
  • The modern, open floor plan unites the kitchen, breakfast nook and great room so everyone can stay connected.
  • Built-ins flank the big fireplace that can be seen from all three rooms.
  • This home features a first floor master suite and a spacious master bathroom with two sinks, a big soaking tub and giant walk-in closet.
  • The second floor is huge with three large bedrooms and both a playroom and game room.

What's Included

  • Cover Sheet
  • General Note Sheet
  • Foundation Sheet
  • Floor Plan
  • Bird's Eye Roof Plan
  • 4 Elevations
  • Openings & Sections Sheet
  • Foundation Details
  • Cornice Details
  • Electrical

View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

3,440 sq. ft.

1st Floor

1,807 sq. ft.

2nd Floor

1,633 sq. ft.

Porch, Rear

169 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x4 or 2x6

Dimensions

Width

52' 4"

Depth

66' 8"

Garage

Type

Attached

Area

506 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

9'

Architectural Style

European

Tudor

Special Features

Breakfast Nook

Butler Walk-in Pantry

Game/Rec Room

Laundry - Main Level

Master Suite - 1st Floor

Playroom

Plan Collections

Exclusive
