Plan 66223WE Tuscan Influences

4,926 3-4 5.5 2 4
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Tuscan Influences

Plan 66223WE

  • 4,926

    Heated s.f.

  • 3-4

    Beds

  • 5.5

    Baths

  • 2

    Stories

  • 4

    Cars

  • The enchanting rotunda serves as the focal point of this Tuscan-influenced exterior. Stone columns and trim, tiled roof, front fountain, and a pair of entry steps conjoin to create a captivating fa'ade.
  • As you enter the home through the gracious foyer, you ascend short stairs to the first floor, where the living room entices you with its splendid views and grand stone fireplace.
  • A quick step to the left and you enter the master suite, where a large bedroom and sitting area offer views that never end. Upon entering the master bath, you are awestruck by the whirlpool tub nestled under a beautiful window configuration. The walk-in shower, double sinks and coffered ceiling solidify to complete the master bath.
  • Passing under the second floor bridge, you enter the dining room, where coffered ceiling and access to the kitchen provides for a pleasurable dining experience. With impressive views from the dinette, open layout, center island and great amenities, the kitchen is ideal for every occasion.
  • The family room boasts a wet bar, central entertainment center and connecting sliding glass doors that open onto the covered lanai, all of which allow for seamless integration and wonderful flow throughout the entire first floor.
  • Traveling up the staircase to the second floor, you cannot help but take in the magnificent views offered by the front rotunda windows and spectacular ceiling design above. Crossing the second floor bridge to the loft, you catch views of the living room below and views beyond.
  • Each of the three spacious bedrooms is adorned with a sizable closet, private bath and balcony access.
  • Related Plan: For an alternate version, see house plan 66222WE.

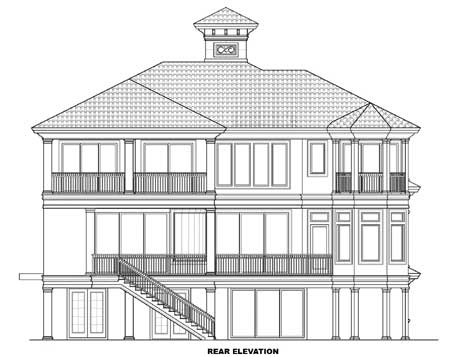

Elevations

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  Material Labels
  Floor-to-Floor Heights
  Roof Slope Indicators


Floor Plans

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  Door and Window Sizes
  Completely Dimensioned Floor Plan
  Room Labels and Interior Room Sizes


Electrical Layouts

Building Section Markers
All Electrical Outlets, Fixtures, and Switching


*Slab Plan

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
Floor and Deck Joist Size and Spacing
Rough-in Plumbing Location (if applicable)
Mechanical Equipment Locations (if applicable)
Electrical Locations (if applicable)



Roof Design Plan

Drawn at 1/8″ to 1/4″ = 1′-0″scale, and Includes:
All Beam and Header Heights and Locations
All Hips, Gables, Ridges, and Valleys
Building Section Markers


Building Sections

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
Floor Joist Size and Spacing
Floor-to-Floor Heights
Non-Typical Plate Heights Indicated


Typical Wall Sections

Drawn at 1/8″ to 1/2″ = 1′-0″ Scale, and Includes:
All Labels Indicating Wall Construction
Foundation Wall Thickness and Reinforcing
Insulation Type and Thickness


Miscellaneous Notes and Details

Miscellaneous General Notes
Stairway details (if applicable)



*We do provide a slab plan, however, the structural foundation plan is to be provided by the structural engineer selected by your builder or yourself. This is done because our slab plan cannot anticipate the variations in soil, footings and other conditions per your specific site. We provide the design of the roof as well, however, the truss layouts need to be provided by a truss engineer or your lumber company. Your builder can provide these contacts for you.  Please keep in mind that these are additional expenses outside of the cost of the original plan that you purchase from us.


These items are NOT included:


Architectural or Engineering Stamp - handled locally if required

Site Plan - handled locally when required

Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this

Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this

Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

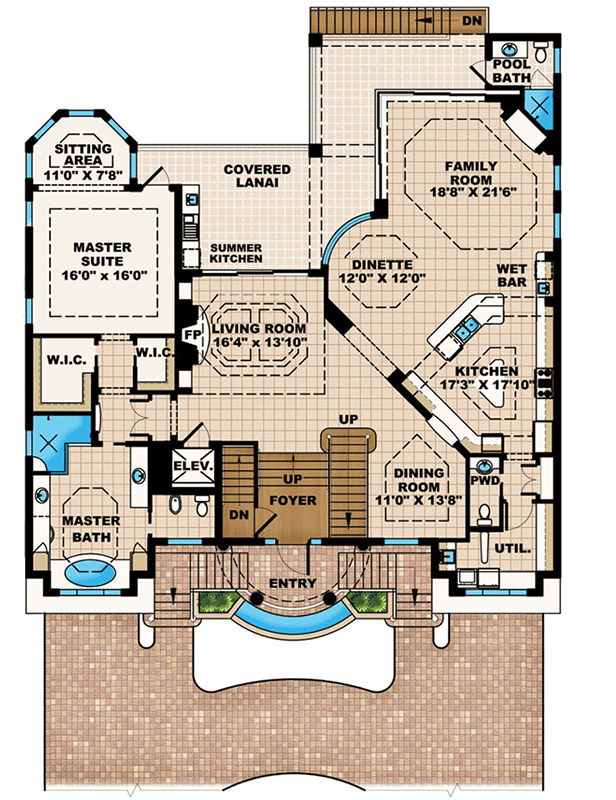

Tuscan Influences - 66223WE floor plan - Main Level

Second Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

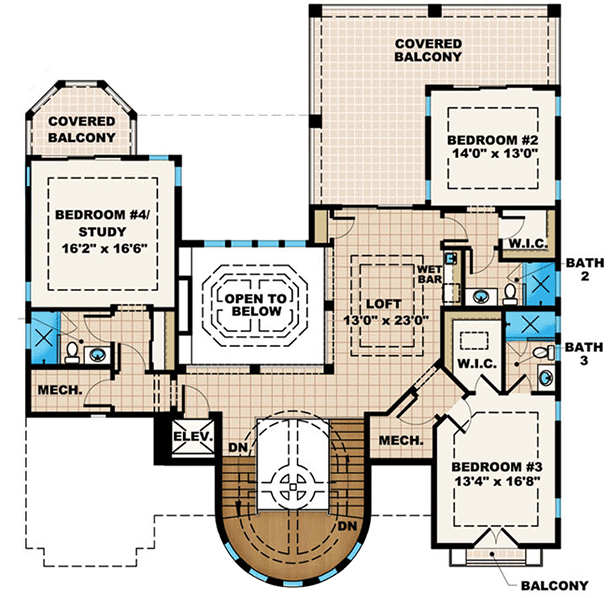

Tuscan Influences - 66223WE floor plan - Second Level

Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

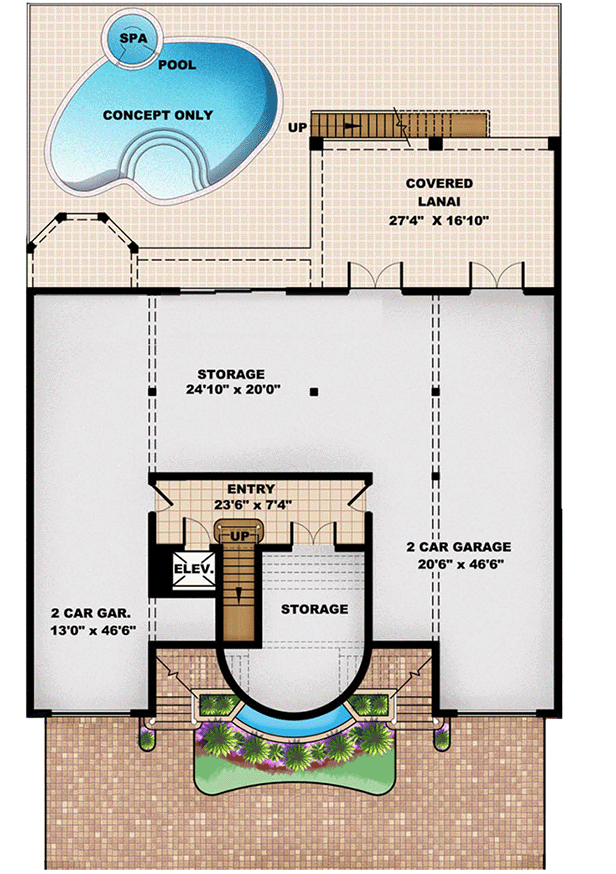

Tuscan Influences - 66223WE floor plan - Lower Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 4,926 sq. ft.
  • Lower Level: 505 sq. ft.
  • 1st Floor: 2,728 sq. ft.
  • 2nd Floor: 1,693 sq. ft.
  • Lanai: 1,111 sq. ft.
  • Balcony / Veranda: 514 sq. ft.
  • Entry: 106 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 5
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Piling

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)
  • Optional Type(s): 2x6

Dimensions

  • Width: 59' 8"
  • Depth: 65' 0"
  • Max ridge height: 45' 4"

Garage

  • Type: Drive Under
  • Area: 2174 sq. ft.
  • Count: 4 Cars
  • Entry Location: Front

Ceiling Heights

Room Details Ceiling Type Width Depth Height
Lanai Flat 12' 0"
Living Room Coffered 26' 10"
Dinette Coffered 12' 0"
Master Bath Coffered 12' 0"
Master Bedroom Coffered 12' 0"
Dining Room Coffered 12' 0"
Entry Flat 9' 8"
Family Room Coffered 12' 0"
Loft Coffered 13' 6"
All Bedrooms Coffered 10' 8"
Foyer Coffered 28' 8"
Kitchen Coffered 12' 0"

Roof Details

  • Primary Pitch: 6 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Tuscan Influences

  • 4,926

    Heated s.f.

  • 3-4

    Beds

  • 5.5

    Baths

  • 2

    Floors

  • 4

    Car garage

Buy This Plan
  • 5 Sets $2,790
  • 8 Sets $2,945
  • PDF - Single-Build $3,100
  • CAD - Single-Build $3,100
  • View all purchase option online

About This Plan

  • The enchanting rotunda serves as the focal point of this Tuscan-influenced exterior. Stone columns and trim, tiled roof, front fountain, and a pair of entry steps conjoin to create a captivating fa'ade.
  • As you enter the home through the gracious foyer, you ascend short stairs to the first floor, where the living room entices you with its splendid views and grand stone fireplace.
  • A quick step to the left and you enter the master suite, where a large bedroom and sitting area offer views that never end. Upon entering the master bath, you are awestruck by the whirlpool tub nestled under a beautiful window configuration. The walk-in shower, double sinks and coffered ceiling solidify to complete the master bath.
  • Passing under the second floor bridge, you enter the dining room, where coffered ceiling and access to the kitchen provides for a pleasurable dining experience. With impressive views from the dinette, open layout, center island and great amenities, the kitchen is ideal for every occasion.
  • The family room boasts a wet bar, central entertainment center and connecting sliding glass doors that open onto the covered lanai, all of which allow for seamless integration and wonderful flow throughout the entire first floor.
  • Traveling up the staircase to the second floor, you cannot help but take in the magnificent views offered by the front rotunda windows and spectacular ceiling design above. Crossing the second floor bridge to the loft, you catch views of the living room below and views beyond.
  • Each of the three spacious bedrooms is adorned with a sizable closet, private bath and balcony access.
  • Related Plan: For an alternate version, see house plan 66222WE.

Floor Plans

  • Main Level

  • Second Level

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,926 sq. ft.
  • Lower Level: 505 sq. ft.
  • 1st Floor: 2,728 sq. ft.
  • 2nd Floor: 1,693 sq. ft.
  • Lanai: 1,111 sq. ft.
  • Balcony / Veranda: 514 sq. ft.
  • Entry: 106 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 5
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Piling

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)
  • Optional Type(s): 2x6

Dimensions

  • Width: 59' 8"
  • Depth: 65' 0"
  • Max ridge height: 45' 4"

Garage

  • Type: Drive Under
  • Area: 2174 sq. ft.
  • Count: 4 Cars
  • Entry Location: Front

Ceiling Heights

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Truss
Plan 66223WE
View this and more for this plan by visiting www.architechtecturaldesigns.com/66223WE
|
