Two Covered Patios and Parking Courtyard

Plan 48311FM

This plan plants 3 trees

4,482
Heated s.f.
4
Beds
3.5
Baths
2
Stories
4
Cars

A grand parking courtyard with access from the side and through a breezeway and two covered patios are distinctive features of this luxury house plan.
The great room commands your attention. A wet bar and media center as well as fireplace and built-in bookcases are all included, as well as views to the kitchen/nook and the rear patio.
The formal study has its own fireplace and built-ins. French doors add privacy.
The master suite has a sitting area and access to the patio. A spa tub and spacious walk-in closets (note one under the stairs) are welcome features.
The kitchen is spacious and opens to the breakfast room. The pantry is oversized. You can also take your meals on the second covered patio or make your meal in the outdoor kitchen.
A guest suite and formal dining room are also included on this level.
Upstairs, two bedroom suites share a bath and a game room features its own balcony overlooking the back.
Related Plans: Need less room? See these related courtyard designs - 48128FM (3,355 sq. ft.), 48002FM (3,769 sq. ft.), 48014FM (4,182 sq. ft.) and 48000FM (4,237 sq. ft.).

Each plan set includes the following:

Cover Sheet
Floor Plans
Electrical Plan
Foundation Plan
Front and Left Elevation
Rear and Right Elevation
Roof Plan
Cabinets and Section
Building Section

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

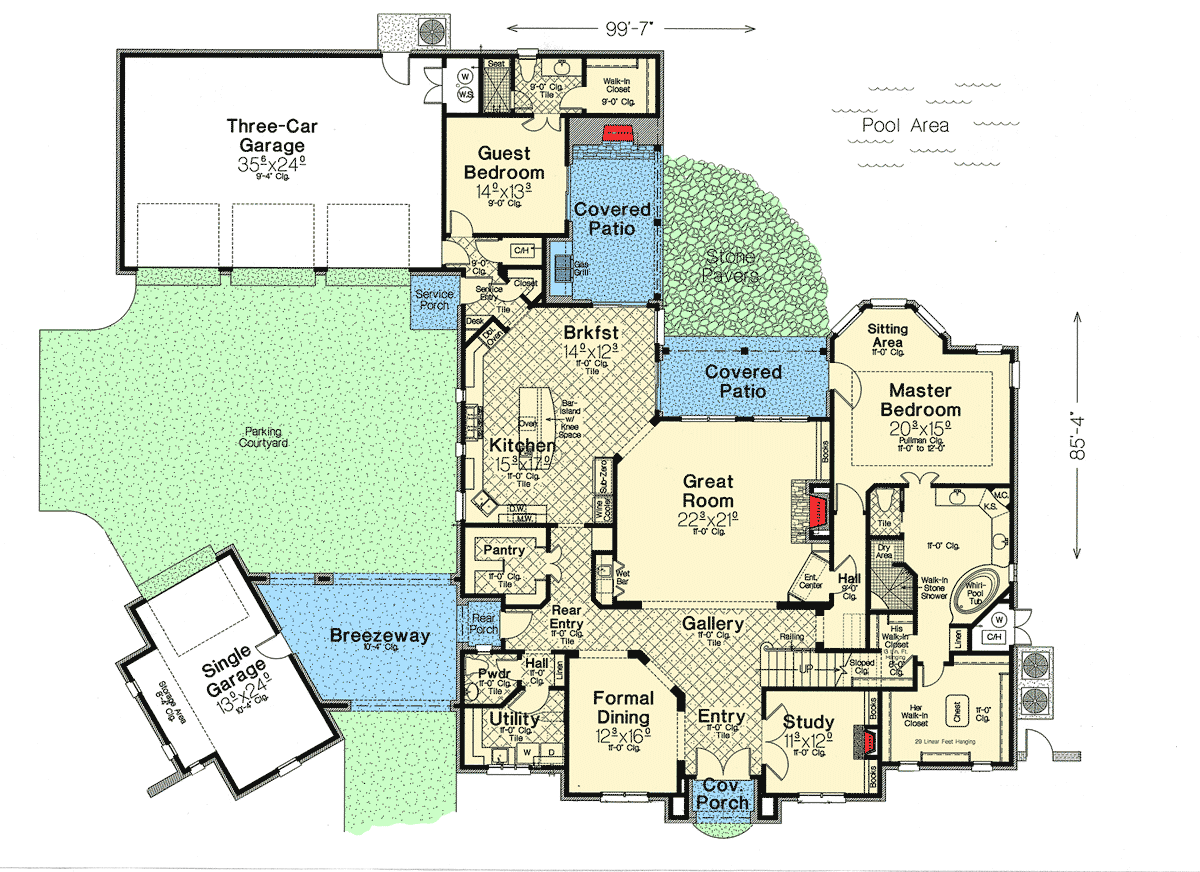

Two Covered Patios and Parking Courtyard - 48311FM floor plan - Main Level

2nd Floor

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

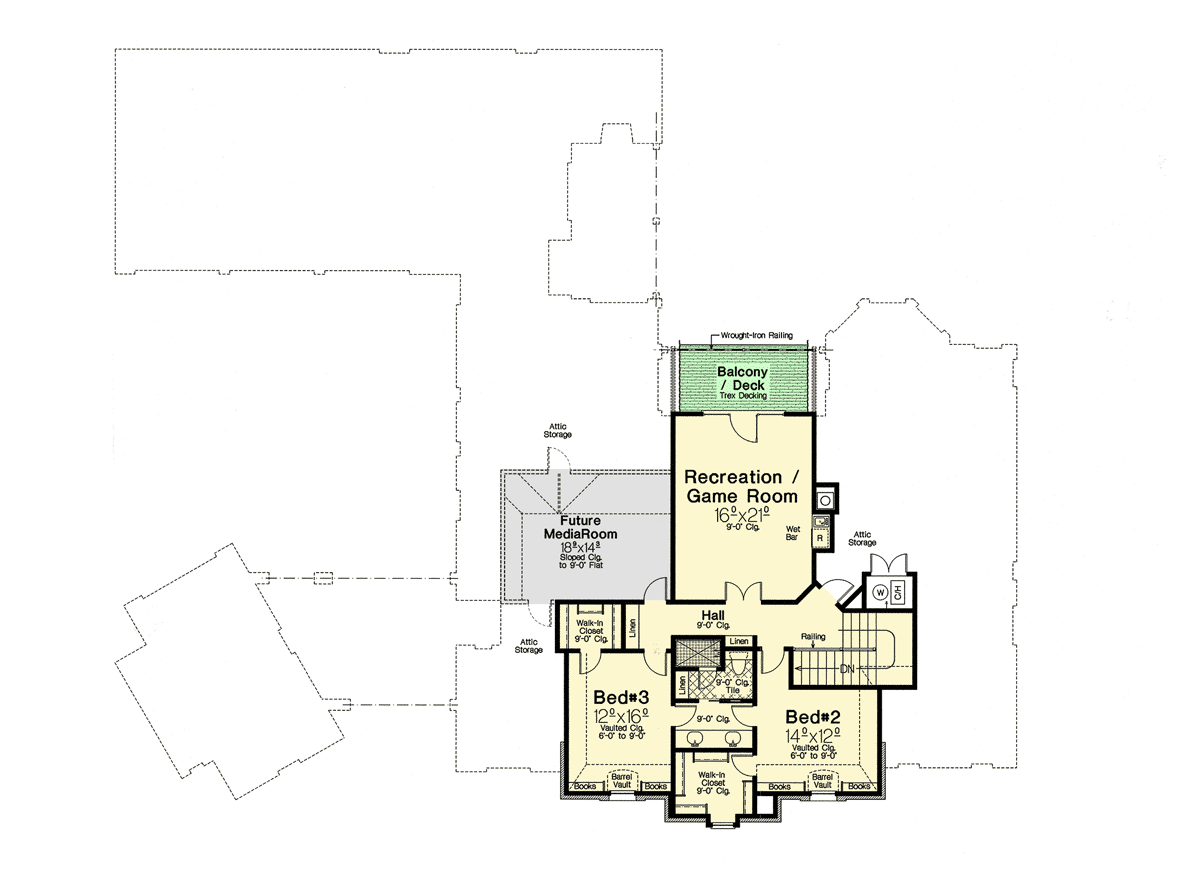

Two Covered Patios and Parking Courtyard - 48311FM floor plan - 2nd Floor

Plan details

Square Footage Breakdown

Total Heated Area: 4,482 sq. ft.
1st Floor: 3,412 sq. ft.
2nd Floor: 1,070 sq. ft.

Bonus: 273 sq. ft.

Beds/Baths

Bedrooms: 4

Full bathrooms: 3
Half bathrooms: 1

Foundation Type

Standard Foundations: Slab, Crawl

Optional Foundations: Basement

Need A Different Foundation? Request A Modification Quote

Exterior Walls

Standard Type(s): 2x4

Dimensions

Width: 99' 7"
Depth: 85' 4"
Max ridge height: 38' 0"

Garage

Type: Attached
Area: 1324 sq. ft.
Count: 4 Cars
Entry Location: Courtyard

Ceiling Heights

Floor / Height: First Floor / 9' 0"

Roof Details

Framing Type: Stick

Architectural Style

Special features

Plan Collections
