Home Plan with Private Parking Courtyard

Plan 48128FM

  • 3,355

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • This elegant French Country home plan has a drive through porchere that leads to an inner courtyard with a three car garage.
  • An arched entry porch ushers you into a large foyer flanked by the dining room and study with built-in bookshelves.
  • Spend time with your family in the huge great room with its cozy fireplace with built-ins on each side.
  • The master suite has a bay window sitting area, spacious bathroom and a huge walk-in closet with an island chest.
  • On the upper level, a game room has its own wood deck.
  • The two bedrooms on this level share a jack and jill bathroom.
  • Related Plans: Need more room? See these related courtyard home plans - 48002FM (3,769 sq. ft.), 48014FM (4,182 sq. ft.) and 48000FM (4,237 sq. ft.) 48414FM (4,309 sq. ft.) 48211FM (4,276 sq. ft.) and 48320FM (4,868 sq. ft.).
  • Have something even more grand in mind? See house plan 48266FM (6,274 sq. ft.).
  • For an alternate layout without the parking courtyard, see house plan 48131FM.

Each plan set includes the following:

Cover Sheet
Floor Plans
Electrical Plan
Foundation Plan
Front and Left Elevation

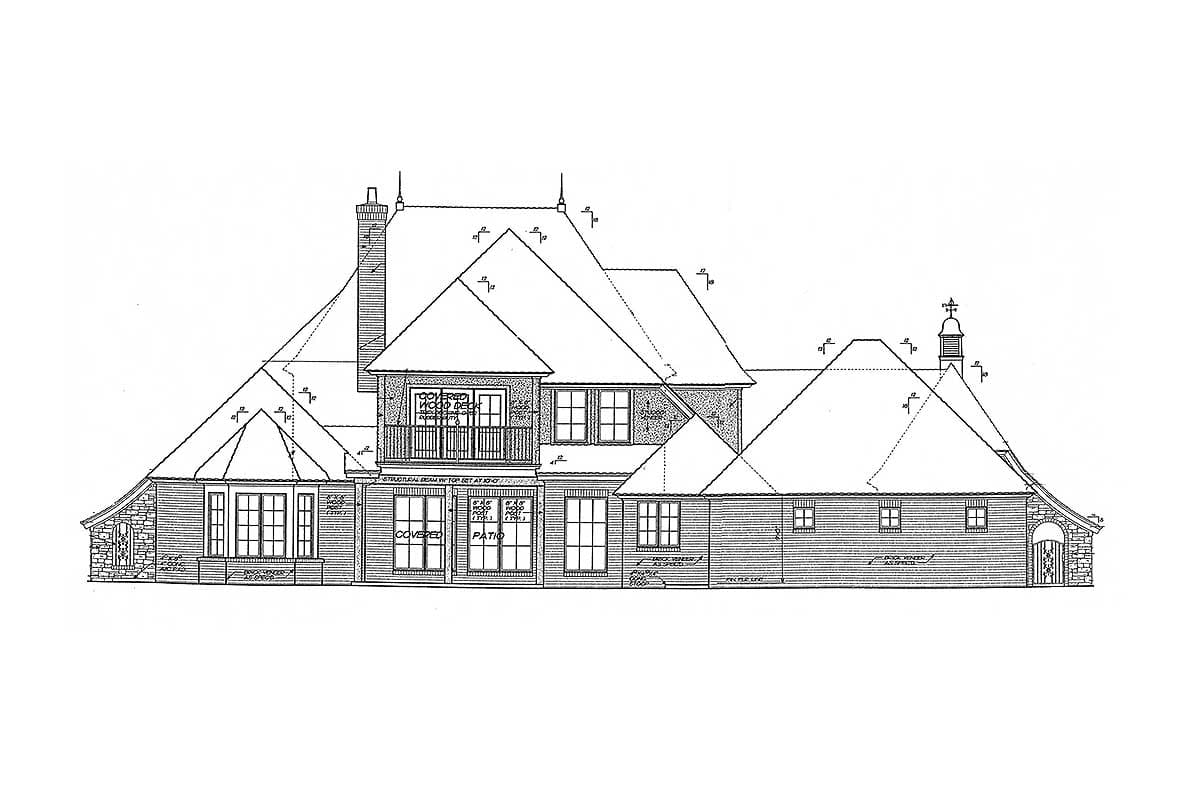

Rear and Right Elevation
Roof Plan
Cabinets and Section
Building Section


These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

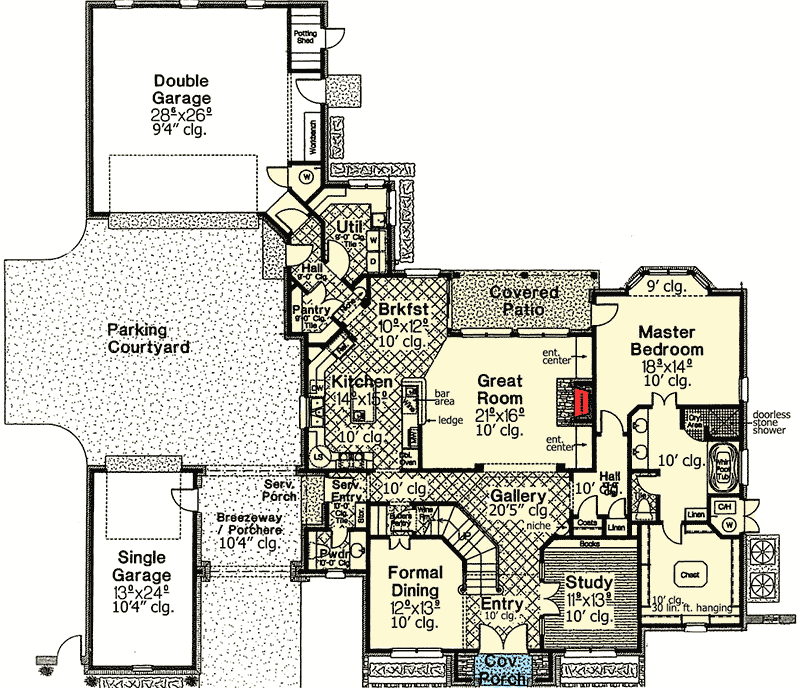

Home Plan with Private Parking Courtyard - 48128FM floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

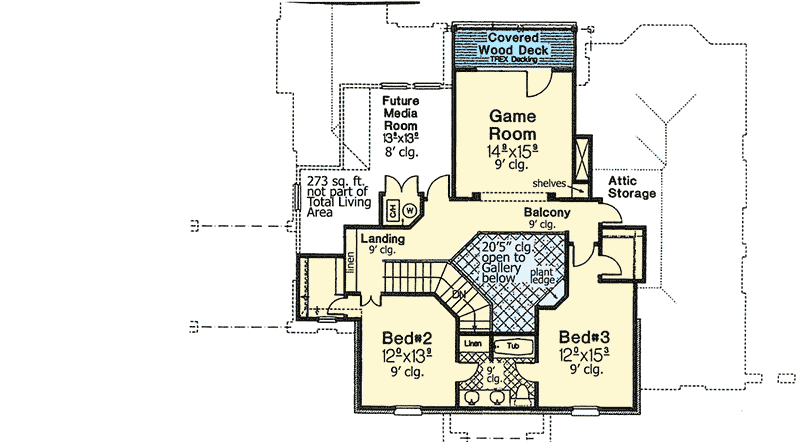

Home Plan with Private Parking Courtyard - 48128FM floor plan - 2nd Floor
