Private Parking Courtyard House Plan

Plan 48002FM

3,769
Heated s.f.
4
Beds
4.5
Baths
2
Stories
2
Cars

This elegant French Country home plan has a drive through porchere that leads to an inner courtyard with a three car garage.
Double doors usher you into a large foyer flanked by the dining room and study with built-in bookshelves.
Spend time with your family in the huge great room with its cozy fireplace with built-ins on each side.
The master suite has a bay window sitting area, spacious bathroom and a huge walk-in closet with an island chest.
A first floor guest suite is off by itself for privacy and would make a nice in-law suite.
On the upper level, a media/game room has its own wood deck.
Each of the two bedrooms on this level have their own bathroom.
Related Plans: Downsize with house plan 48128FM (3,355 sq. ft.).
Get more room with house plan 48014FM (4,182 sq. ft.) and 48000FM (4,237 sq. ft.) and 48414FM (4,309 sq. ft.).
To get this plan in reverse, see house plans 48211FM (4,276 sq. ft.) and 48320FM (4,868 sq. ft.).
For the largest version, see house plan 48266FM (6,274 sq. ft.).

Each plan set includes the following:

Cover Sheet
Floor Plans
Electrical Plan
Foundation Plan
Front and Left Elevation

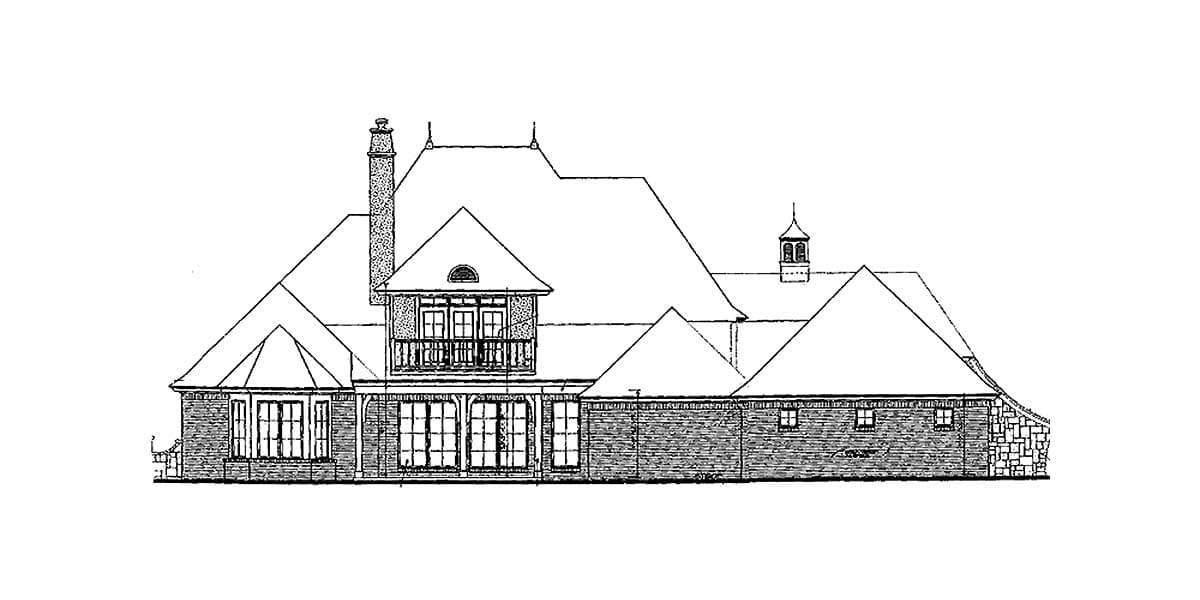

Rear and Right Elevation
Roof Plan
Cabinets and Section
Building Section

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

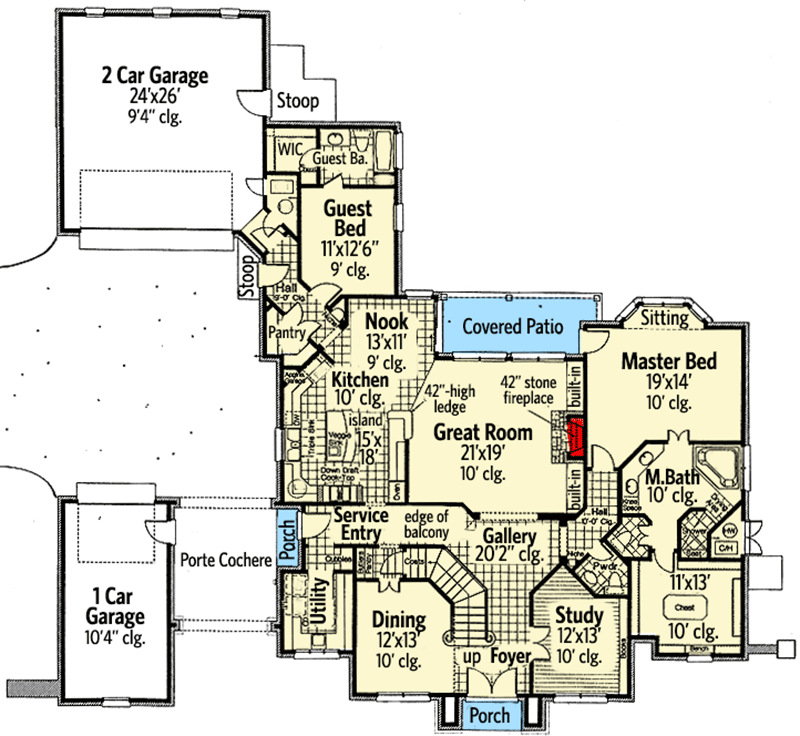

Private Parking Courtyard House Plan - 48002FM floor plan - Main Level

2nd Floor

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

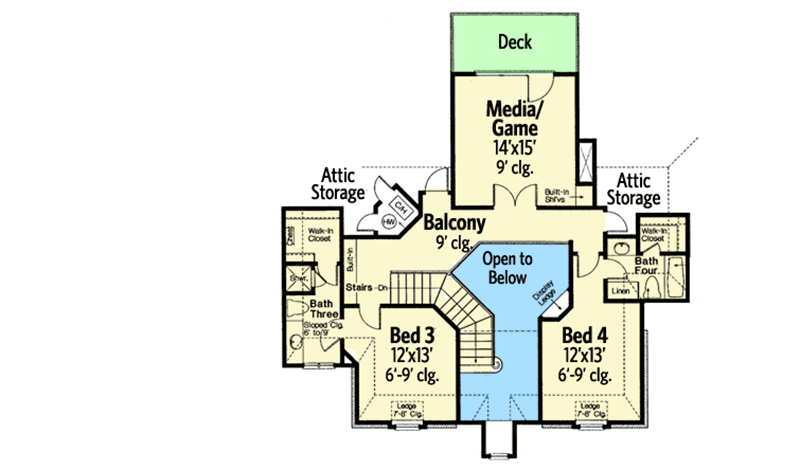

Private Parking Courtyard House Plan - 48002FM floor plan - 2nd Floor

Plan details

Square Footage Breakdown

Total Heated Area: 3,769 sq. ft.
1st Floor: 2,742 sq. ft.
2nd Floor: 1,027 sq. ft.

Beds/Baths

Bedrooms: 4

Full bathrooms: 4
Half bathrooms: 1

Foundation Type

Standard Foundations: Slab, Crawl, Basement

Need A Different Foundation? Request A Modification Quote

Exterior Walls

Standard Type(s): 2x4

Dimensions

Width: 82' 4"
Depth: 85' 4"
Max ridge height: 35' 0"

Garage

Type: Detached
Area: 624 sq. ft.
Count: 2 Cars
Entry Location: Courtyard

Ceiling Heights

Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Room Details	Ceiling Type	Width	Depth	Height
Guest Room				9' 0"
Bedroom 3	Slope			9' 0"

Roof Details

Primary Pitch: 12 on 12

Framing Type: Stick

Architectural Style

Special features

Plan Collections

Scroll
