Plan 82095KA

Two Exteriors to Choose From

Heated S.F.
3,114
Beds
4
Baths
3
Stories
2
Cars
2

Floor Plan

Plan 82095KA

Main Level
Main Level
2nd Floor
2nd Floor

Plan 82095KA

M-F 9am-5pm EST |

1-203-761-8500

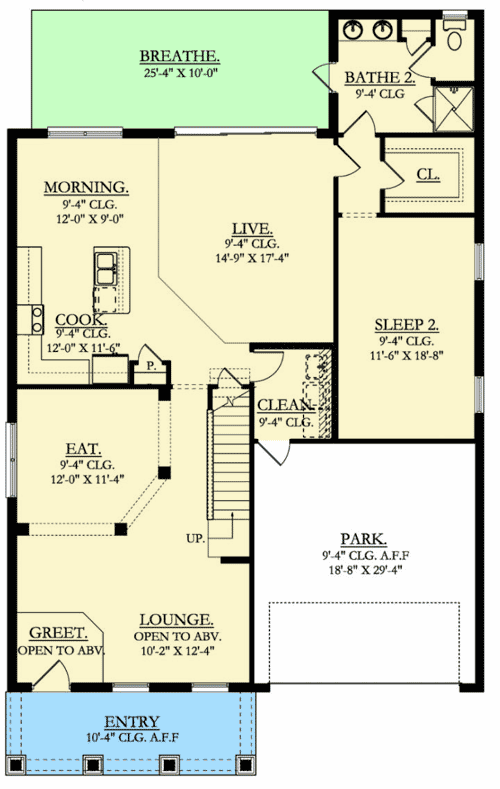

Main Level

Plan 82095KA: Two Exteriors to Choose From - Floor Plan - Main Level - Traditional

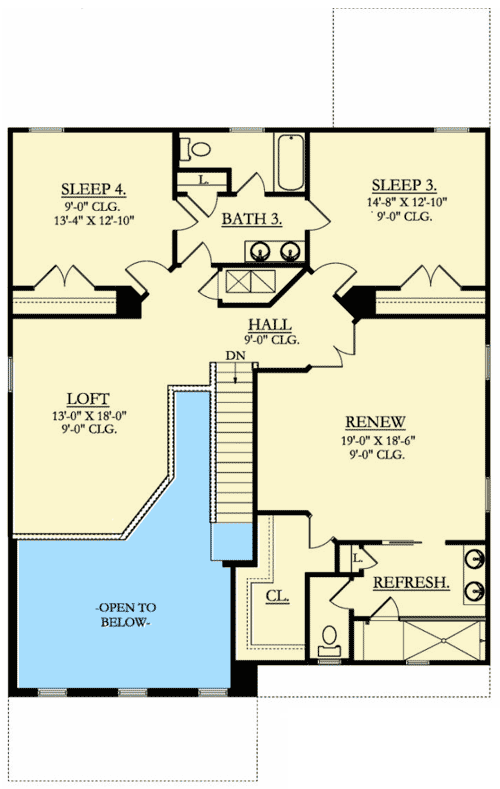

2nd Floor

Plan 82095KA: Two Exteriors to Choose From - Floor Plan - 2nd Floor - Traditional

Plan Details

  • Owners get to choose from a first or second floor master suite and a choice of elevations, from Traditional to Craftsman.
  • Both the foyer and lounge area are two-story, making the space feel bigger.
  • Elegant columns frame the dining area, preserving the views.
  • In back, the nook, kitchen and living space are all combined into one big room with views of the rear patio.
  • There's one big bedroom with a private bathroom and walk-in closet on the main floor and a second master suite up on the second floor.
  • A large loft overlooks the lounge area below through an open rail.
  • Related Plan: Get an alternate exterior with house plan 82096KA.

What's Included

  • Foundation Plan: Complete with dimensions, dimensioned plumbing, referenced details, General Notes and Schedules.
  • Elevations: Minimal four completed elevations with dimensions, notes and material call outs. Also exterior details where applicable.
  • Floor Plan(s): Complete with dimensions and notes of all elements. On our high-end plans we provide architectural and structural floor plans, as typical part of our sets to avoid clatter and for easy construction.
  • Roof Plan: Complete with roof pitches overhangs and notes for special condition also dimensions on any special condition as per plan.
  • Building Sections: Where applicable, building sections are included. The quantity of these drawings is determined by the plan set complexity.
  • Details: Interior and Exterior details as require per plan. Common details are: Applicable Cornice (Eve) and Special Details designed directly from the plan (not typical details that are reused for every plan produced). We do this to improve the accuracy and integrity that should be expected from quality set of plans.
  • Interior Elevations: Some sets include interior Kitchen, Bathrooms and other significant detailed plan specific areas.
  • Roof Framing Plan: Engineered truss layout from a local truss company. All hangers, connectors and or special details are shown. Since local codes and conditions very, this plan is for reference only.
  • Floor Framing Plan: Only were needed. Engineered floor truss layout from a local truss company. All hangers, connectors and or special details are shown. Since local codes and conditions very, this plan is for reference only.
  • Building Sections: Complete with layout, light fixtures, outlets, legend and notes.
  • Electrical Plan: Complete with layout, Light fixtures, Outlets and legend.
  • Lintel Plan: Provided with block concrete masonry unit plans only. Lintel sizes and details for all exterior openings. Since local codes and conditions very, this plan is for reference only.
  • Structural Details: Including wall sections and all framing details needed per plans. Since local codes and conditions very, this plan is for reference only.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

3,114 sq. ft.

1st Floor

1,617 sq. ft.

2nd Floor

1,497 sq. ft.

Porch, Front

141 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Foundation Type

Standard Foundations

Monolithic Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Dimensions

Width

40' 0"

Depth

64' 4"

Max Ridge Height

28' 8"

Garage

Type

Attached

Area

404 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9' 4"

Second Floor

9'

Roof Details

Primary Pitch

5 on 12

Framing Type

Truss

Architectural Style

Traditional

Special Features

Breakfast Nook

Jack & Jill Bath

Laundry - Main Level

Loft

Master Suite - 1st Floor

Master Suite - Upstairs

Square Footage Breakdown

Total Heated Area

3,114 sq. ft.

1st Floor

1,617 sq. ft.

2nd Floor

1,497 sq. ft.

Porch, Front

141 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Foundation Type

Standard Foundations

Monolithic Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Dimensions

Width

40' 0"

Depth

64' 4"

Max Ridge Height

28' 8"

Garage

Type

Attached

Area

404 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9' 4"

Second Floor

9'

Roof Details

Primary Pitch

5 on 12

Framing Type

Truss

Architectural Style

Traditional

Special Features

Breakfast Nook

Jack & Jill Bath

Laundry - Main Level

Loft

Master Suite - 1st Floor

Master Suite - Upstairs
