Owners get to choose from a first or second floor master suite and a choice of elevations, from Traditional to Craftsman.
Both the foyer and lounge area are two-story, making the space feel bigger.
Elegant columns frame the dining area, preserving the views.
In back, the nook, kitchen and living space are all combined into one big room with views of the rear patio.
There's one big bedroom with a private bathroom and walk-in closet on the main floor and a second master suite up on the second floor.
A large loft overlooks the lounge area below through an open rail.
Related Plan: Get an alternate exterior with house plan 82095KA.
What's Included
Each plan set includes the following:
Foundation
Plan: Complete with dimensions,
dimensioned plumbing, referenced details, General Notes and Schedules.
Elevations: Minimal four completed elevations with dimensions, notes
and material call outs. Also exterior details where applicable.
Floor
Plan(s): Complete with dimensions and notes
of all elements. On our high-end plans we provide architectural and structural
floor plans, as typical part of our sets to avoid clatter and for easy
construction.
Roof
Plan: Complete with roof pitches
overhangs and notes for special condition also dimensions on any special
condition as per plan.
Building
Sections: Where applicable, building sections
are included. The quantity of these drawings is determined by the plan set
complexity.
Details: Interior and Exterior details as require per plan. Common
details are: Applicable Cornice (Eve) and Special Details designed directly
from the plan (not typical details that are reused for every plan produced). We
do this to improve the accuracy and integrity that should be expected from quality
set of plans.
Interior
Elevations: Some sets include interior Kitchen,
Bathrooms and other significant detailed plan specific areas.
Roof
Framing Plan: Engineered truss layout from a local
truss company. All hangers, connectors and or special details are shown. Since
local codes and conditions very, this plan is for reference only.
Floor
Framing Plan: Only were needed. Engineered floor
truss layout from a local truss company. All hangers, connectors and or special
details are shown. Since local codes and conditions very, this plan is for
reference only.
Building
Sections: Complete with layout, light
fixtures, outlets, legend and notes.
Electrical
Plan: Complete with layout, Light
fixtures, Outlets and legend.
Lintel
Plan: Provided with block concrete
masonry unit plans only. Lintel sizes and details for all exterior openings.
Since local codes and conditions very, this plan is for reference only.
Structural
Details: Including wall sections and all
framing details needed per plans. Since local codes and conditions very, this
plan is for reference only.
These items are NOT included:
Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping!
Let's go back to the top.
Not all items qualify for discounts. Discounts are only applied to plans, not to Cost-to-Build Reports, plan options and optional foundations and some of our designers don't allow us to discount their plans.
×
Please note the following
Your Materials List will match the base plan only. The following options will not be reflected on the materials list:
Two Exteriors to Choose From
3,114
Heated s.f.
4
Beds
3
Baths
2
Floors
2
Car garage
Floor Plan

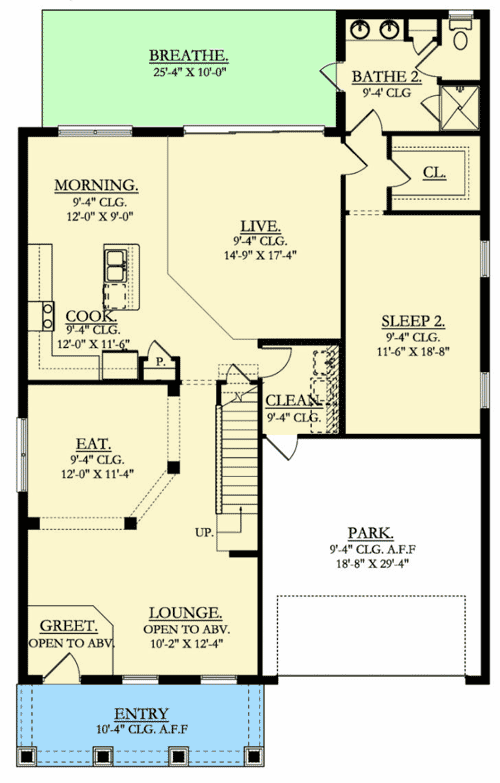

Main Level

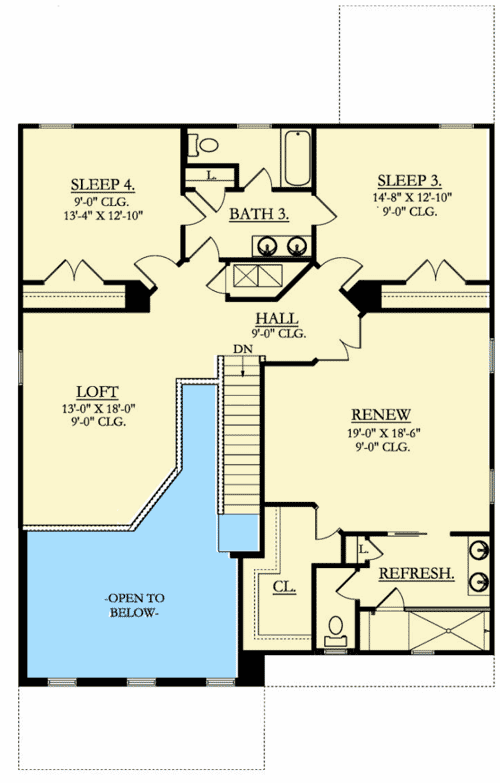

2nd Floor
Plan Details
Square Footage Breakdown
Total:
3,114 sq. ft.
1st Floor:1,617 sq. ft.
2nd Floor:1,497 sq. ft.
Dimensions
Width:40' 0"
Depth:64' 4"
Max ridge height:28' 8"
Beds/Baths
Bedrooms:
4
Full bathrooms:3
Garage
Type:Attached
Area:404 sq. ft.
Count:2 Cars
Entry Location:Front
Foundation Type
Standard Foundations:Monolithic Slab
Exterior Walls
Standard Type(s):Block / CMU (main floor)
Ceiling Heights
Floor / Height:
First Floor /
9' 4"
Second Floor /
9' 0"
