Plan 80579PM
Two Family Home Plan
Heated S.F.
3,798
Units
2
Width
50'
Depth
34'
What's Included
Plan Details
  • This impressive 3,798 square feet home plan is ideal to accommodate two generations. The two semi-detached houses have been functionally designed on three floors so that each family can feel perfectly at home.

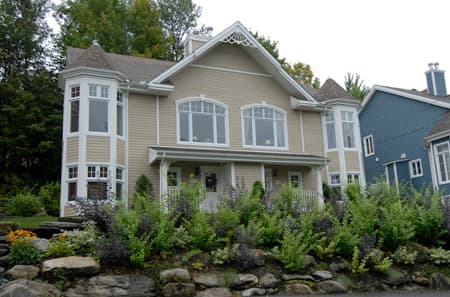

  • A small roof overhang above the two separate entrances adds personality to the house and reinforces the feeling of autonomy.
  • The basement has a living area of 1,515 square feet and includes a living room, a bedroom and a bathroom.

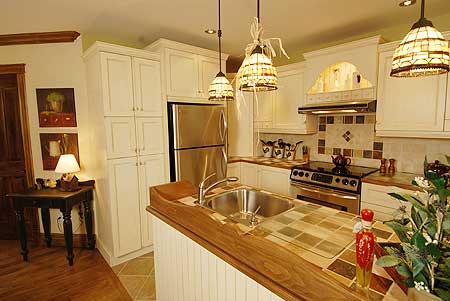

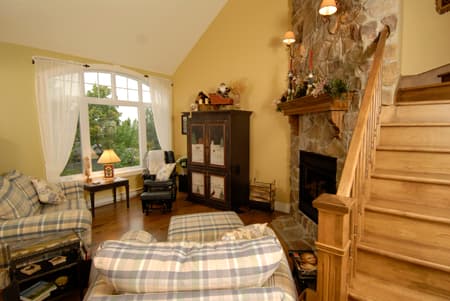

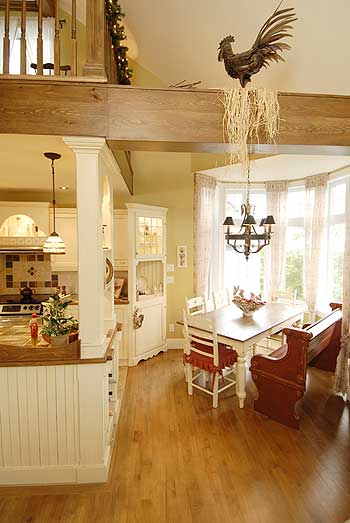

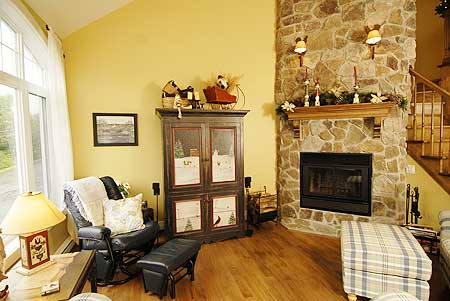

  • With a living area of 1,515 square feet, the ground floor has a kitchen overlooking a living room as well as a dining room with large bay windows. The living room with its large arched window is also very bright. This floor also includes a powder room and a bedroom.
  • The upper floor has a living area of 768 square feet and includes a bedroom and a full bathroom.
Unit A
1,900 Sq. Ft.
757 Sq. Ft. Lower Level
757 Sq. Ft. 1st Floor
384 Sq. Ft. 2nd Floor
3 Beds
2 Full Baths
1 Half Bath
25' w 34' d 34' h
Unit B
1,898 Sq. Ft.
757 Sq. Ft. Lower Level
757 Sq. Ft. 1st Floor
384 Sq. Ft. 2nd Floor
3 Beds
2 Full Baths
1 Half Bath
25' w 34' d 34' h
What's Included
Please note this plan is designed to the National Building Code of Canada.

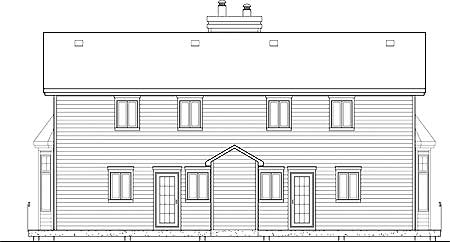

  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Two Family Home Plan

  • 3,798

    Heated s.f.

  • 2

    Units

  • 50'

    Width

  • 34'

    Depth

Floor Plan

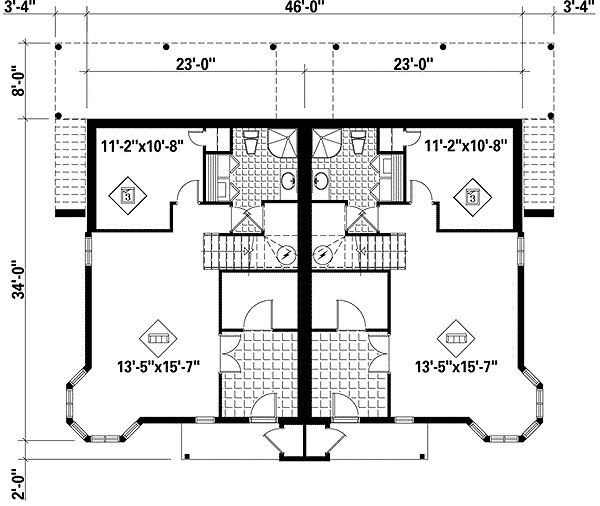

  • Basement

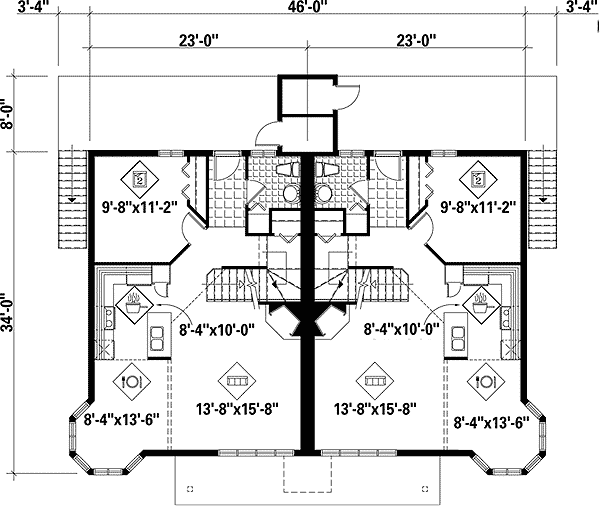

  • Main Level

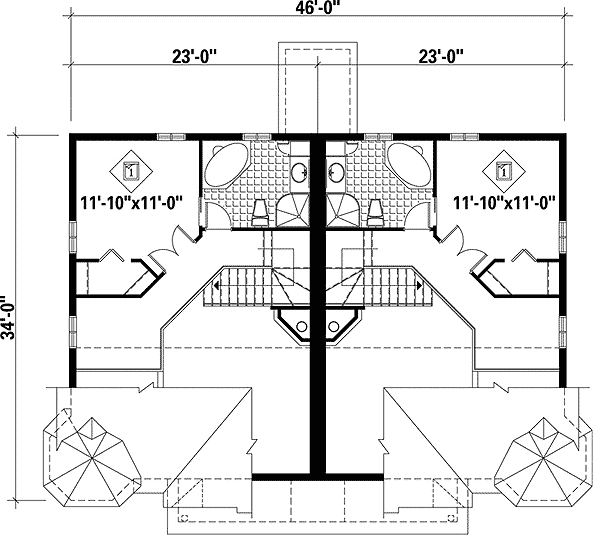

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 3,798 sq. ft.
  • Lower Level: 1,515 sq. ft.
  • 1st Floor: 1,515 sq. ft.
  • 2nd Floor: 768 sq. ft.

Dimensions

  • Width: 50' 0"
  • Depth: 34' 0"

Beds/Baths

  • Bedrooms: 6
  • Full bathrooms: 4
  • Half bathrooms: 2

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 8' 0"
