Plan 67834MG

Two-Story Contemporary Duplex House Plan Perfect for Narrow Lot - 1106 Sq Ft Per Unit

Heated S.F.
2,212
Units
2
Width
Depth

Floor Plan

Plan 67834MG

Main Level
Main Level
2nd Floor
2nd Floor

Plan 67834MG

M-F 9am-5pm EST |

1-203-761-8500

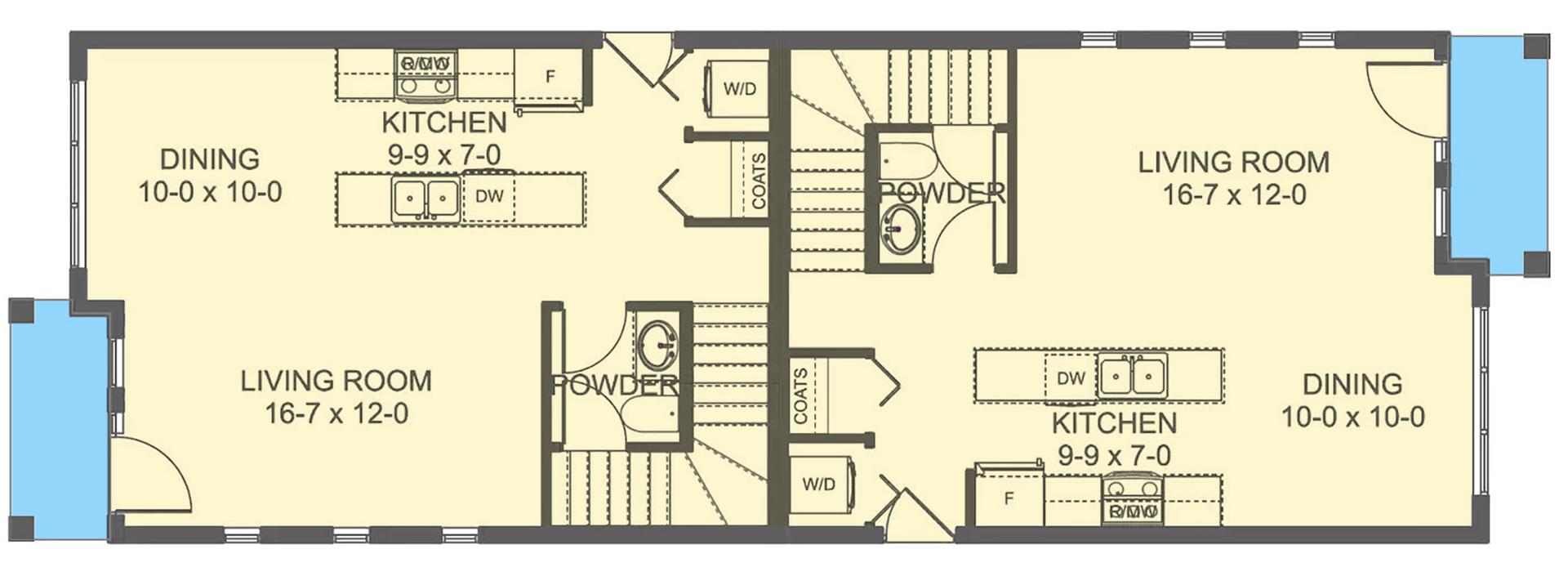

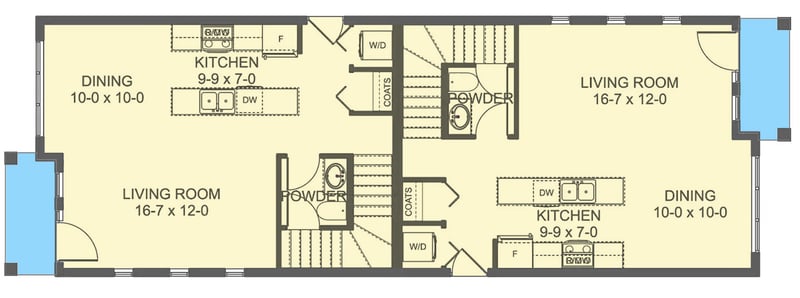

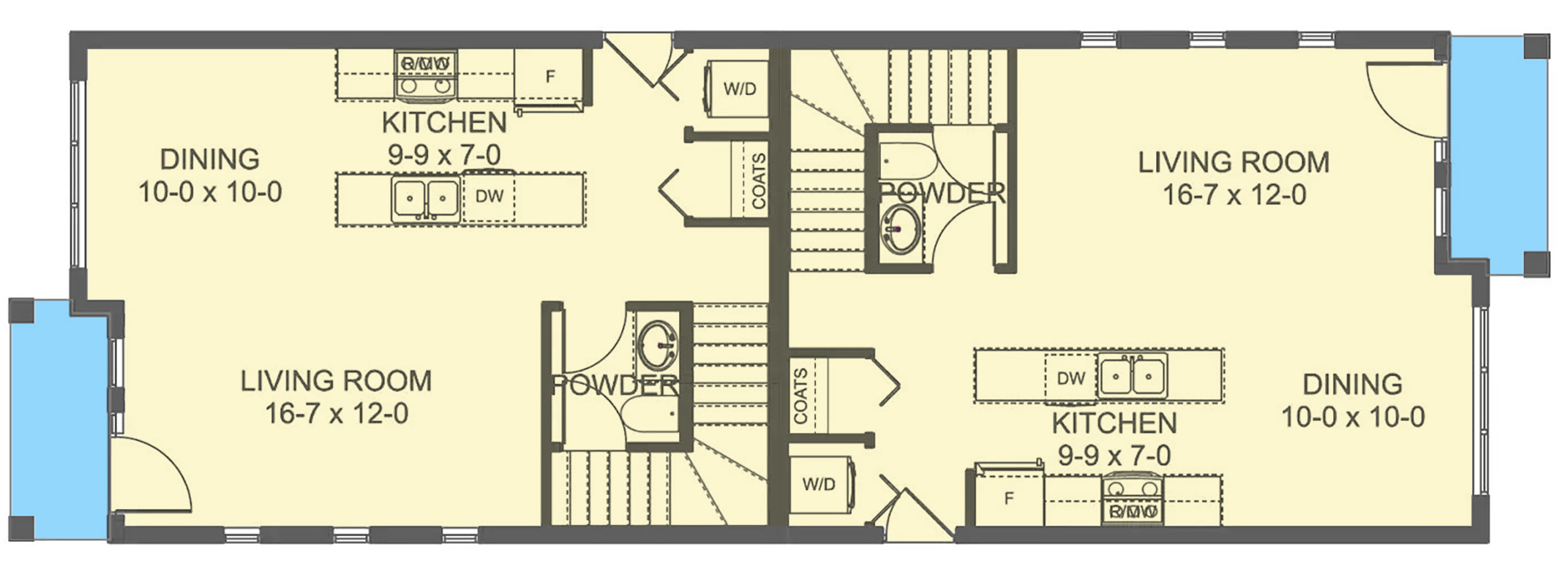

Main Level

Plan 67834MG: Two-Story Contemporary Duplex House Plan Perfect for Narrow Lot - 1106 Sq Ft Per Unit - Floor Plan - Main Level - Contemporary, Traditional

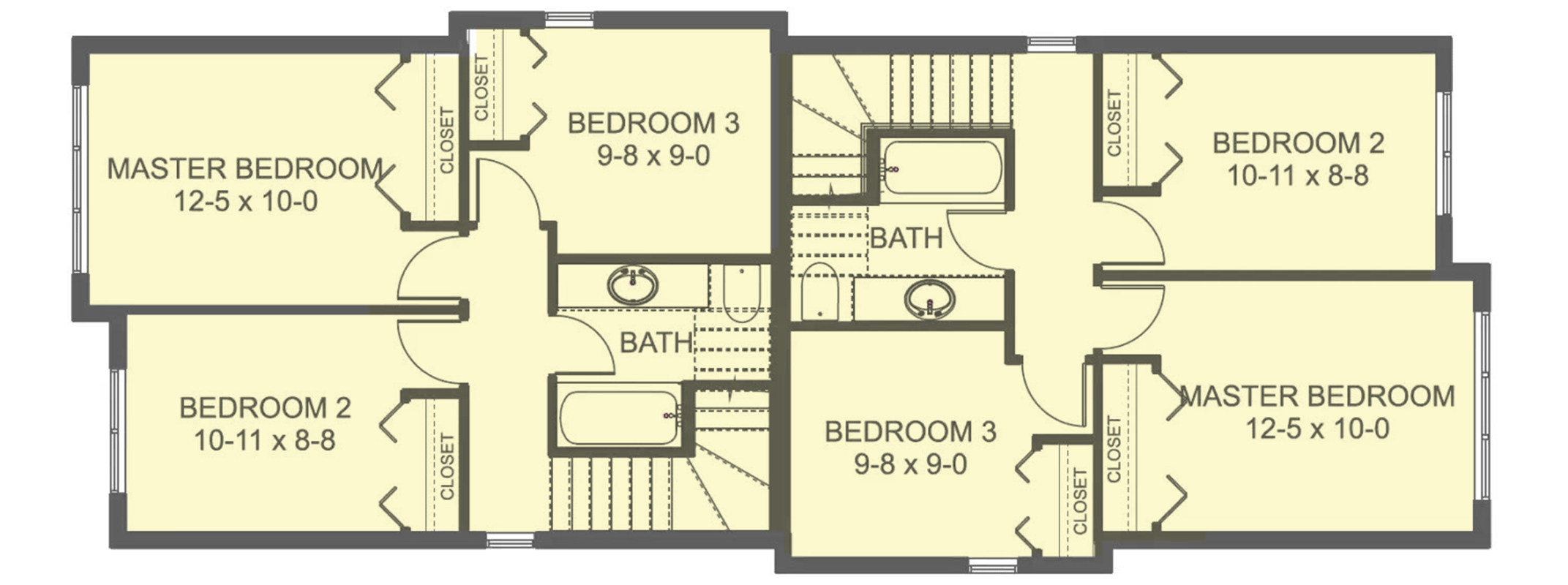

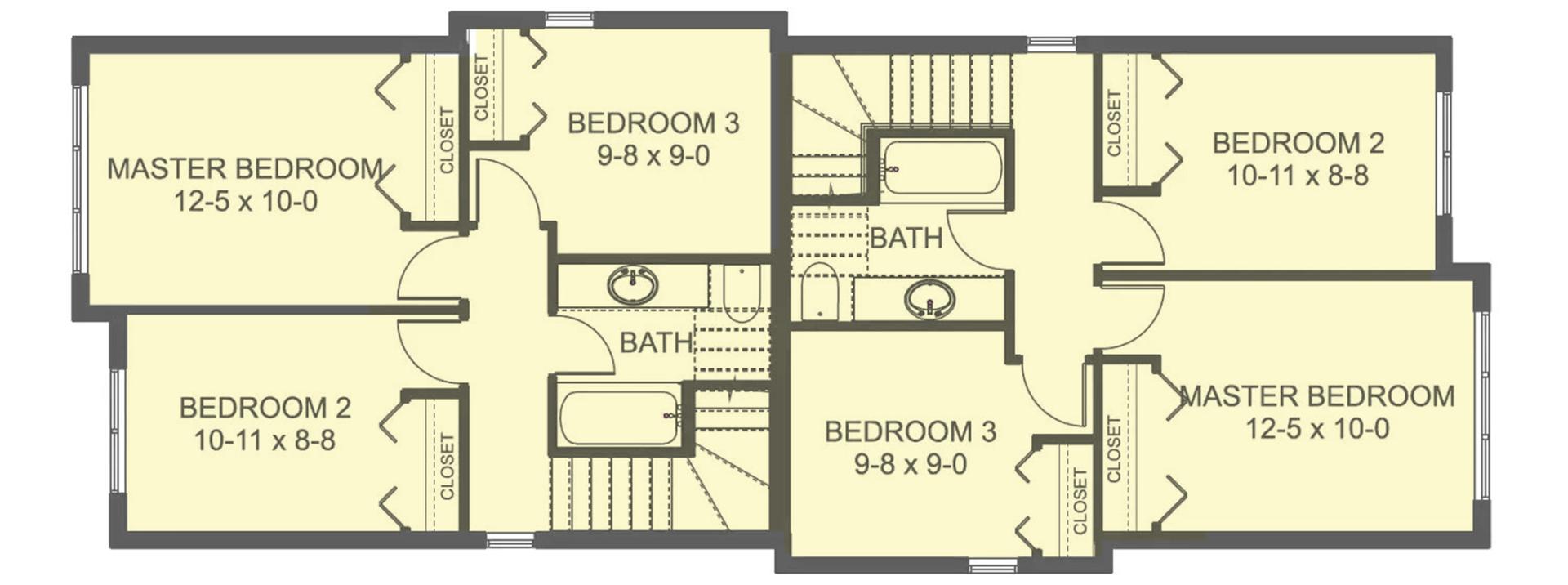

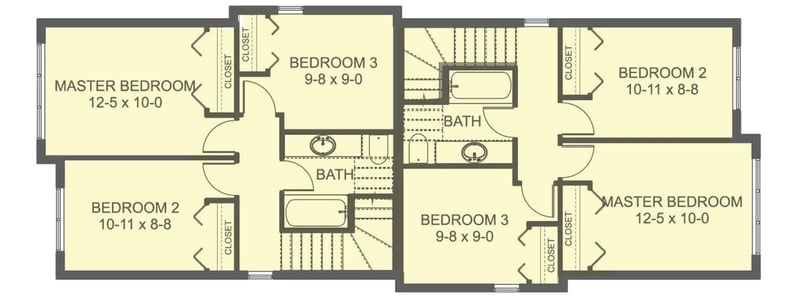

2nd Floor

Plan 67834MG: Two-Story Contemporary Duplex House Plan Perfect for Narrow Lot - 1106 Sq Ft Per Unit - Floor Plan - 2nd Floor - Contemporary, Traditional

Plan Details

  • This back-to-back duplex features private entrances for each unit, offering 3 bedrooms, 1.5 baths, and 1,106 square feet of living space per unit.
  • The open layout on the main floor (547 sq. ft.) creates a spacious feel, while the second floor (560 sq. ft.) houses all the bedrooms, sharing a hall bathroom. A washer/dryer closet adds convenience.
  • With a width of 20' at the foundation and 22' with second-floor cantilevers, this duplex is ideal for narrow lots and infill developments.
  • Related Plan: Get an alternate modern exterior with house plan 67715MG.
Unit A
Heated Area
1,106Sq. Ft.
547 Sq. Ft. 1st
560 Sq. Ft. 2nd
Beds
3Beds
Baths
1Full Bath
1Half Bath
Dimensions
20'width
30' 6"depth
26' 10"height
Unfinished Areas
38 Sq. Ft. Porch, Front
Unit B
Heated Area
1,106Sq. Ft.
547 Sq. Ft. 1st
560 Sq. Ft. 2nd
Beds
3Beds
Baths
1Full Bath
1Half Bath
Dimensions
20'width
30' 6"depth
20' 10"height
Unfinished Areas
38 Sq. Ft. Porch, Front

What's Included

  • Foundation plan
  • Electrical plan calling out locations,  not wiring
  • Fully dimensioned floor plans

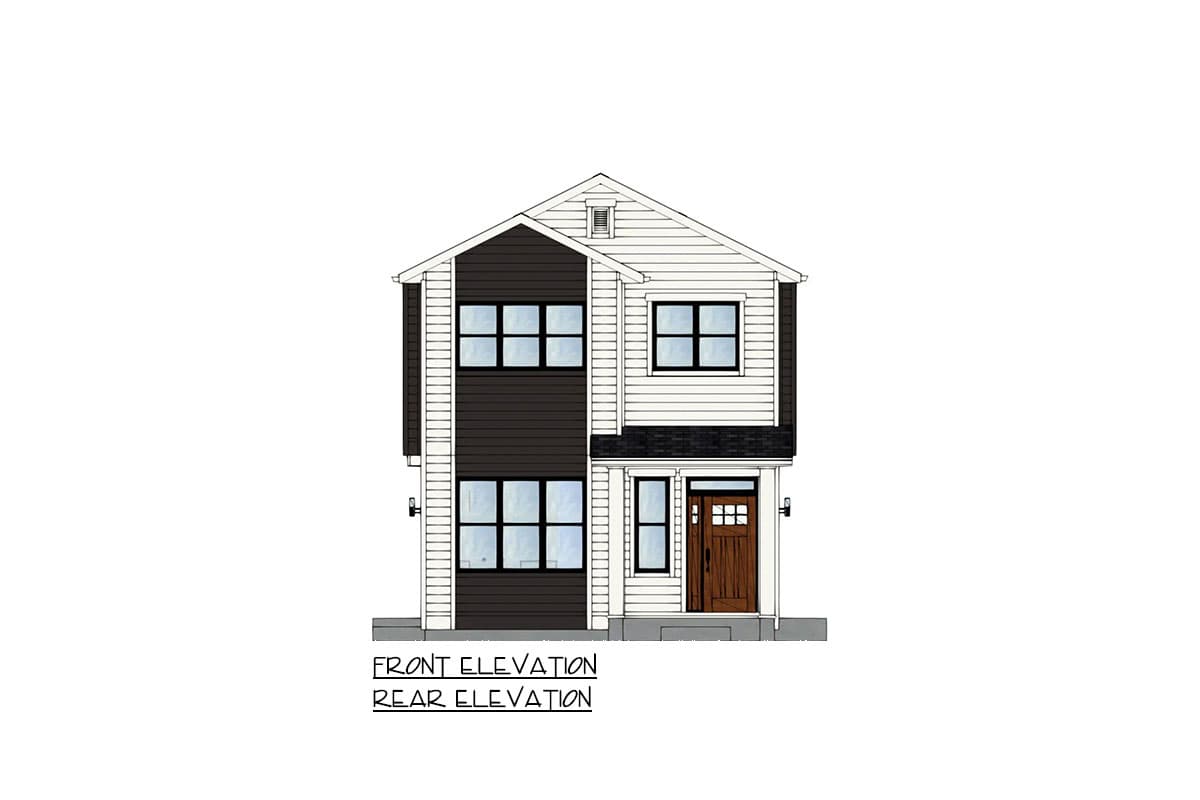

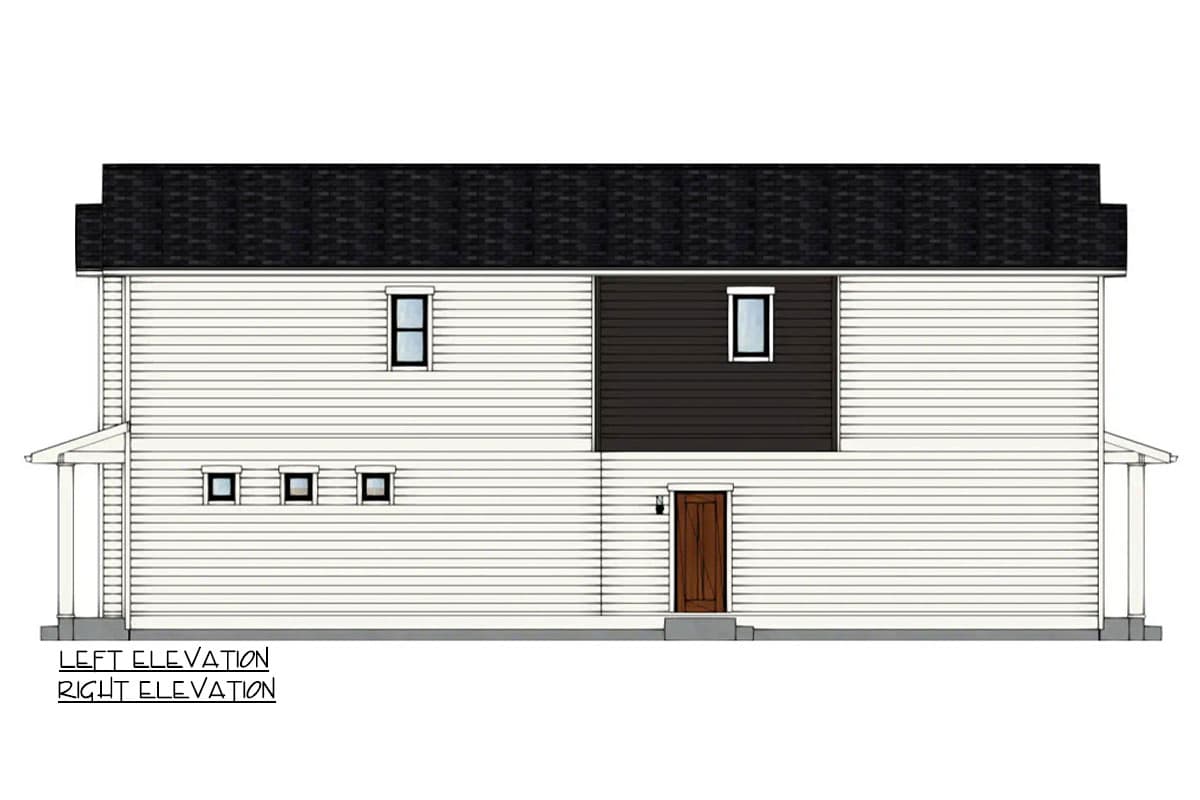

  • Elevations
  • Cross section
  • Wall details, etc.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

2,212 sq. ft.

1st Floor

1,093 sq. ft.

2nd Floor

1,119 sq. ft.

Porch, Front

38 sq. ft.

Porch, Rear

38 sq. ft.

Porch, Combined

76 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

2

Half bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

20' 0"

Depth

61' 0"

Max Ridge Height

26' 10"

Ceiling Heights

First Floor

9'

Second Floor

9'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

4 on 12

Framing Type

Truss

Architectural Style

Contemporary

Traditional

Special Features

Bedrooms - Clustered

Laundry - Main Level

Master Suite - Upstairs

Plan Collections

Canadian House Plans

Square Footage Breakdown

Total Heated Area

2,212 sq. ft.

1st Floor

1,093 sq. ft.

2nd Floor

1,119 sq. ft.

Porch, Front

38 sq. ft.

Porch, Rear

38 sq. ft.

Porch, Combined

76 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

2

Half bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

20' 0"

Depth

61' 0"

Max Ridge Height

26' 10"

Ceiling Heights

First Floor

9'

Second Floor

9'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

4 on 12

Framing Type

Truss

Architectural Style

Contemporary

Traditional

Special Features

Bedrooms - Clustered

Laundry - Main Level

Master Suite - Upstairs

Plan Collections

Canadian House Plans
