Plan 260014RVC Two-story Contemporary Prairie Home with Extra Storage in Garage

Two-story Contemporary Prairie Home with Extra Storage in Garage

Plan 260014RVC

  • 2,468

    Heated s.f.

  • 3

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • The two-toned exterior adds a modern twist to this two-story Contemporary Prairie home plan.
  • The main level presents an open living space where the kitchen flows into the dining area and family room.
  • A built-in window seat and gas fireplace provide charming elements to the family room and sliding doors part to provide access to the backyard.
  • Extra room in the double garage lends storage space for lawn supplies or holiday decor, and a mudroom just inside provides a drop zone when coming home in a hurry.
  • Two bedroom suites and the laundry room are located upstairs, including the primary bedroom, while bedroom 3 can be found on the main level.

This house plan includes the follow details:


Title sheet with general notes
Elevations
Foundation plan
Detailed floor plans
Roof framing plan
Cross sections & details
Interior trim details

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

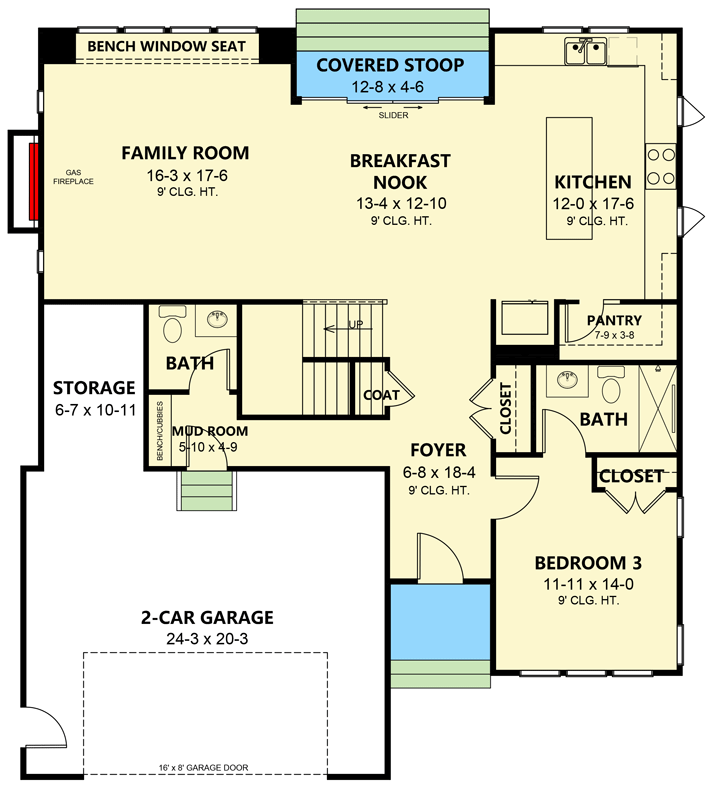

Two-story Contemporary Prairie Home with Extra Storage in Garage - 260014RVC floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

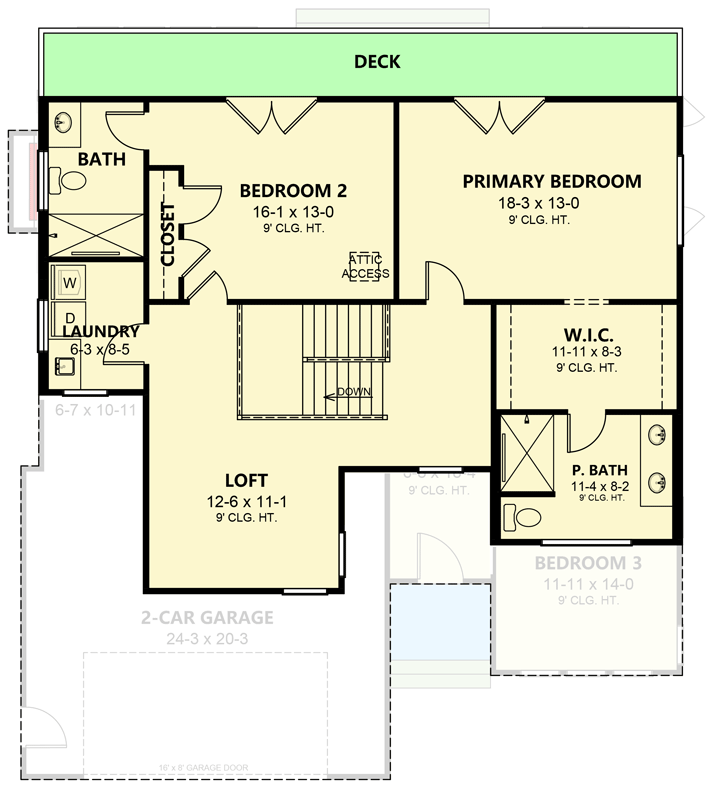

Two-story Contemporary Prairie Home with Extra Storage in Garage - 260014RVC floor plan - 2nd Floor

Plan details

Two-story Contemporary Prairie Home with Extra Storage in Garage

  • 2,468

    Heated s.f.

  • 3

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,250
  • CAD + PDF - Single Build $1,895
  • PDF - Unlimited Build $1,895
  • CAD + PDF - Unlimited Build $2,495
  • View all purchase option online

About This Plan

  • The two-toned exterior adds a modern twist to this two-story Contemporary Prairie home plan.
  • The main level presents an open living space where the kitchen flows into the dining area and family room.
  • A built-in window seat and gas fireplace provide charming elements to the family room and sliding doors part to provide access to the backyard.
  • Extra room in the double garage lends storage space for lawn supplies or holiday decor, and a mudroom just inside provides a drop zone when coming home in a hurry.
  • Two bedroom suites and the laundry room are located upstairs, including the primary bedroom, while bedroom 3 can be found on the main level.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,468 sq. ft.
  • 1st Floor: 1,330 sq. ft.
  • 2nd Floor: 1,138 sq. ft.
  • Deck: 189 sq. ft.
  • Porch, Front: 57 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 42' 3"
  • Depth: 49' 4"
  • Max ridge height: 27' 3"

Garage

  • Type: Attached
  • Area: 565 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 4 on 12
  • Secondary Pitch: 3 on 12
  • Framing Type: Stick And Truss
