Two Story Mediterranean House Plan

Plan 66237WE

  • 3,736

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • This two-story Mediterranean house plan features 4 bedrooms and 3 1/2 bathrooms. This home plan is offered as a two story home with the master suite on the first floor.
  • Enjoy a large family room with built-in entertainment center or sit on your covered lanai with outdoor kitchen.
  • A double-coffered ceiling in the living room rising to 23'8' creates a magnificent space for entertaining.
  • Upstairs you'll find a loft and study great for a play area or area for homework.
  • A covered balcony allows you to enjoy your view on warm summer evenings.
  • Related Plans: Building in reverse? See house plan 66010WE, 66211WE for an alternate second story with with an expanded balcony in place of the study, and 66180WE for a three-car wide garage and an expanded second floor.

Elevations

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  Material Labels
  Floor-to-Floor Heights
  Roof Slope Indicators


Floor Plans

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  Door and Window Sizes
  Completely Dimensioned Floor Plan
  Room Labels and Interior Room Sizes


Electrical Layouts

Building Section Markers
All Electrical Outlets, Fixtures, and Switching


*Slab Plan

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
Floor and Deck Joist Size and Spacing
Rough-in Plumbing Location (if applicable)
Mechanical Equipment Locations (if applicable)
Electrical Locations (if applicable)



Roof Design Plan

Drawn at 1/8″ to 1/4″ = 1′-0″scale, and Includes:
All Beam and Header Heights and Locations
All Hips, Gables, Ridges, and Valleys
Building Section Markers


Building Sections

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
Floor Joist Size and Spacing
Floor-to-Floor Heights
Non-Typical Plate Heights Indicated


Typical Wall Sections

Drawn at 1/8″ to 1/2″ = 1′-0″ Scale, and Includes:
All Labels Indicating Wall Construction
Foundation Wall Thickness and Reinforcing
Insulation Type and Thickness


Miscellaneous Notes and Details

Miscellaneous General Notes
Stairway details (if applicable)



*We do provide a slab plan, however, the structural foundation plan is to be provided by the structural engineer selected by your builder or yourself. This is done because our slab plan cannot anticipate the variations in soil, footings and other conditions per your specific site. We provide the design of the roof as well, however, the truss layouts need to be provided by a truss engineer or your lumber company. Your builder can provide these contacts for you.  Please keep in mind that these are additional expenses outside of the cost of the original plan that you purchase from us.


These items are NOT included:


Architectural or Engineering Stamp - handled locally if required

Site Plan - handled locally when required

Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this

Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this

Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

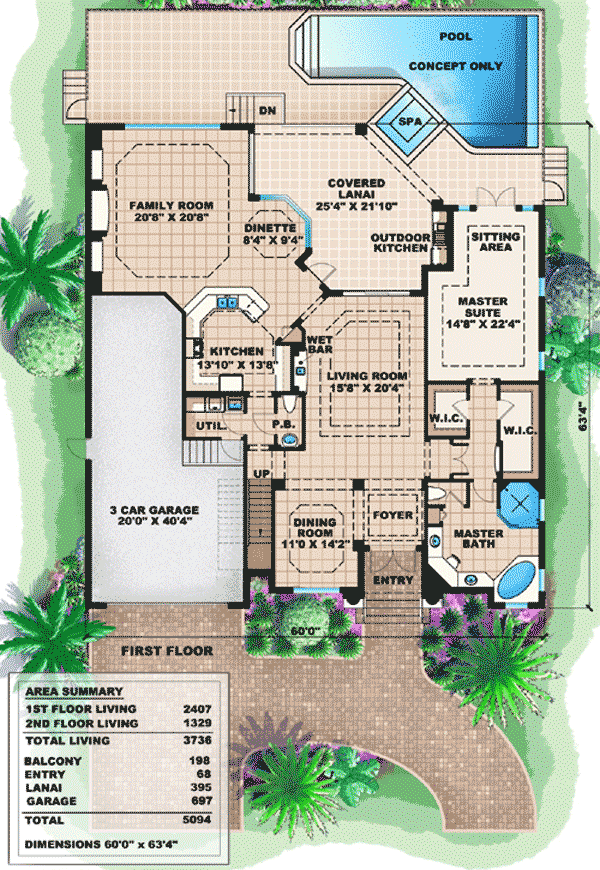

Two Story Mediterranean House Plan - 66237WE floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

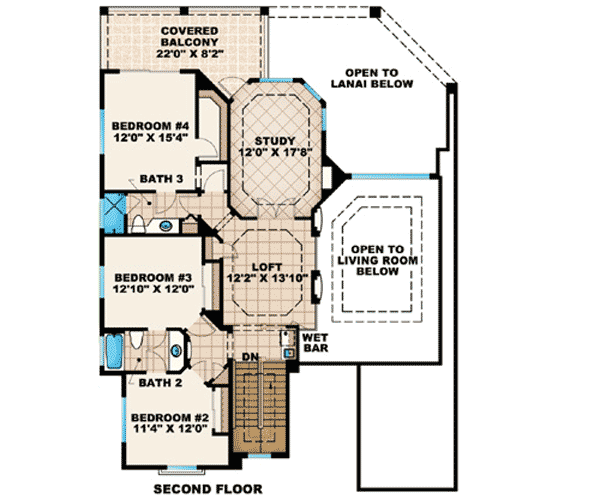

Two Story Mediterranean House Plan - 66237WE floor plan - 2nd Floor

Two Story Mediterranean House Plan

  • 3,736

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 3,736 sq. ft.
  • 1st Floor: 2,407 sq. ft.
  • 2nd Floor: 1,329 sq. ft.

Dimensions

  • Width: 60' 0"
  • Depth: 63' 4"
  • Max ridge height: 37' 4"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 697 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)
  • Optional Type(s): 2x6

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Truss
