Plan 833051WAT

Exclusive

Two-Story Modern Farmhouse Plan with Second Level Loft - 3006 Sq Ft
Heated S.F.
3,006
Beds
4
Baths
3.5
Stories
2
Cars
2
Floor Plan

Plan 833051WAT

Main Level
slide image 0
2nd Floor
slide image 1

Plan 833051WAT

1-800-854-7852

1-262-521-4596

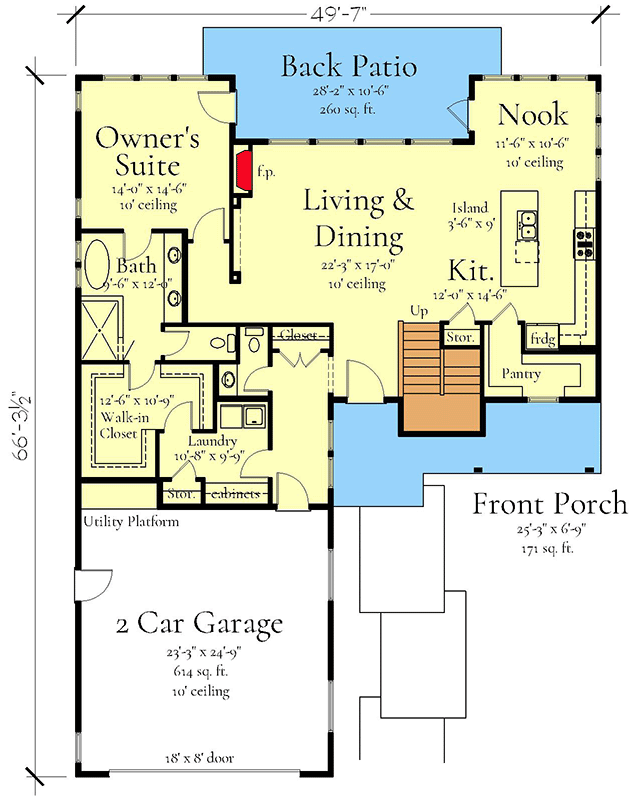

Main Level
floor plan image Main Level

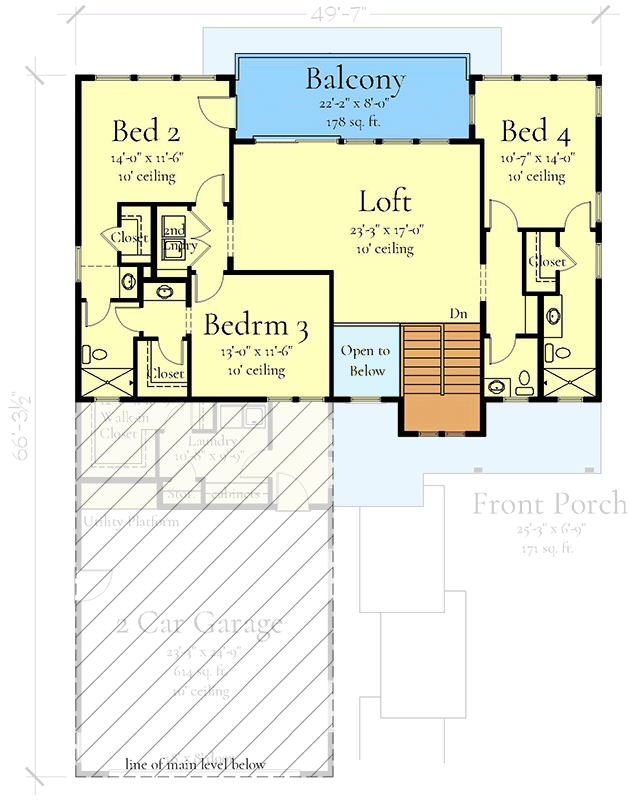

2nd Floor
floor plan image 2nd Floor
Plan Details
  • This modern farmhouse plan offers you 3,006 square feet of heated living space with 4 beds, 3.5 baths and a 614 square foot 2-car garage.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
What's Included
  • Cover Sheet
  • Floor Plan
  • Elevations
  • Roof Plan
  • Thermal Envelope Plan (General Prescriptive Energy Compliance)
  • Detail Sheet
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

3,006 sq. ft.

1st Floor

1,626 sq. ft.

2nd Floor

1,423 sq. ft.

Loft

349 sq. ft.

Porch, Front

171 sq. ft.

Porch, Rear

260 sq. ft.

Entry

42 sq. ft.

Balcony / Veranda

178 sq. ft.

Covered Patio

260 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

49' 7"

Depth

66' 4"

Max Ridge Height

26' 3"

Garage

Type

Attached

Area

614 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Second Floor

10'

Roof Details

Primary Pitch

4 on 12

Secondary Pitch

7 on 12

Framing Type

Truss

Architectural Style

Modern Farmhouse

New American

Special Features

Bedrooms - Split

Breakfast Nook

Butler Walk-in Pantry

Jack & Jill Bath

Laundry Access from Master Suite

Laundry - Main Level

Laundry - Upstairs

Loft

Master Suite - 1st Floor

Master Suite - 2nd Floor

Mudroom

Outdoor Kitchen

Two Master Suites

Wet Bar

Plan Collections

Exclusive
