Plan 42437DB

Two-Story Modern Guest House Plan with Privacy Wall

Heated S.F.
1,072
Beds
1
Baths
2
Stories
2

Floor Plan

Plan 42437DB

Main Level
Main Level
2nd Floor
2nd Floor

Plan 42437DB

M-F 9am-5pm EST |

1-203-761-8500

Main Level

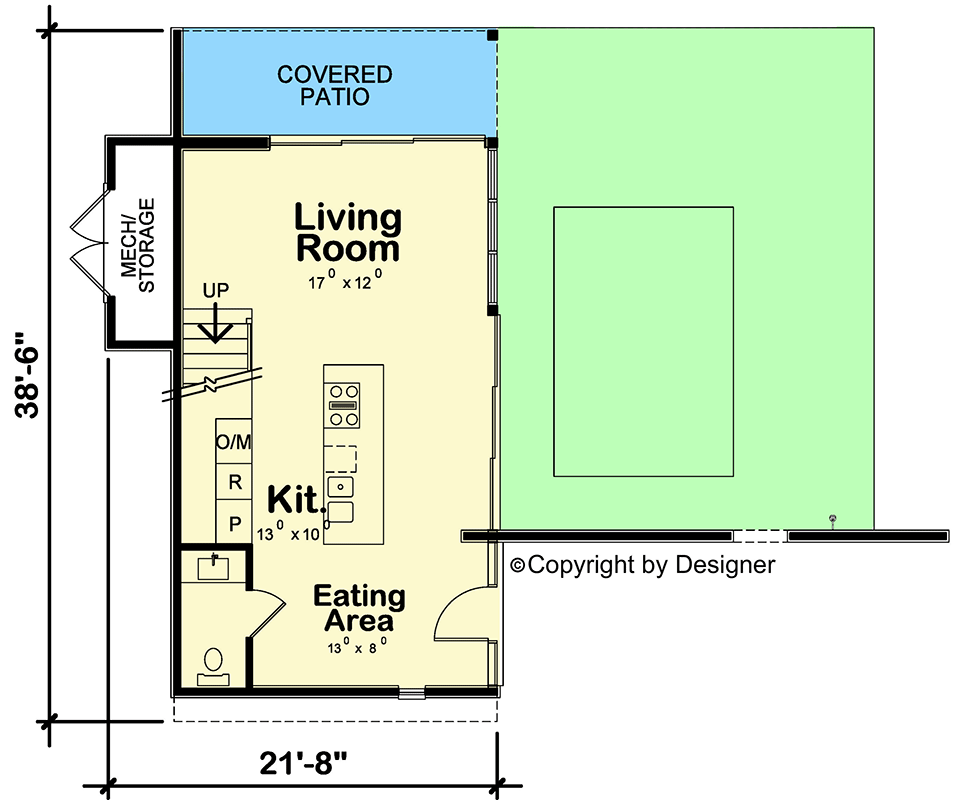

Plan 42437DB: Two-Story Modern Guest House Plan with Privacy Wall - Floor Plan - Main Level - Contemporary, Mid Century Modern, Modern

2nd Floor

Plan 42437DB: Two-Story Modern Guest House Plan with Privacy Wall - Floor Plan - 2nd Floor - Contemporary, Mid Century Modern, Modern

Plan Details

  • This 1,072 square foot modern house plan gives you two levels of living space and a privacy wall on the ground level to help create your own private oasis.
  • The right side of the main level is sheathed in glass, filling the space with natural light. A collapsible wall gives enables you to enjoy indoor/outdoor living.
  • The second floor gives you a bedroom suite with sitting area and a private covered patio.

What's Included

  • General Notes

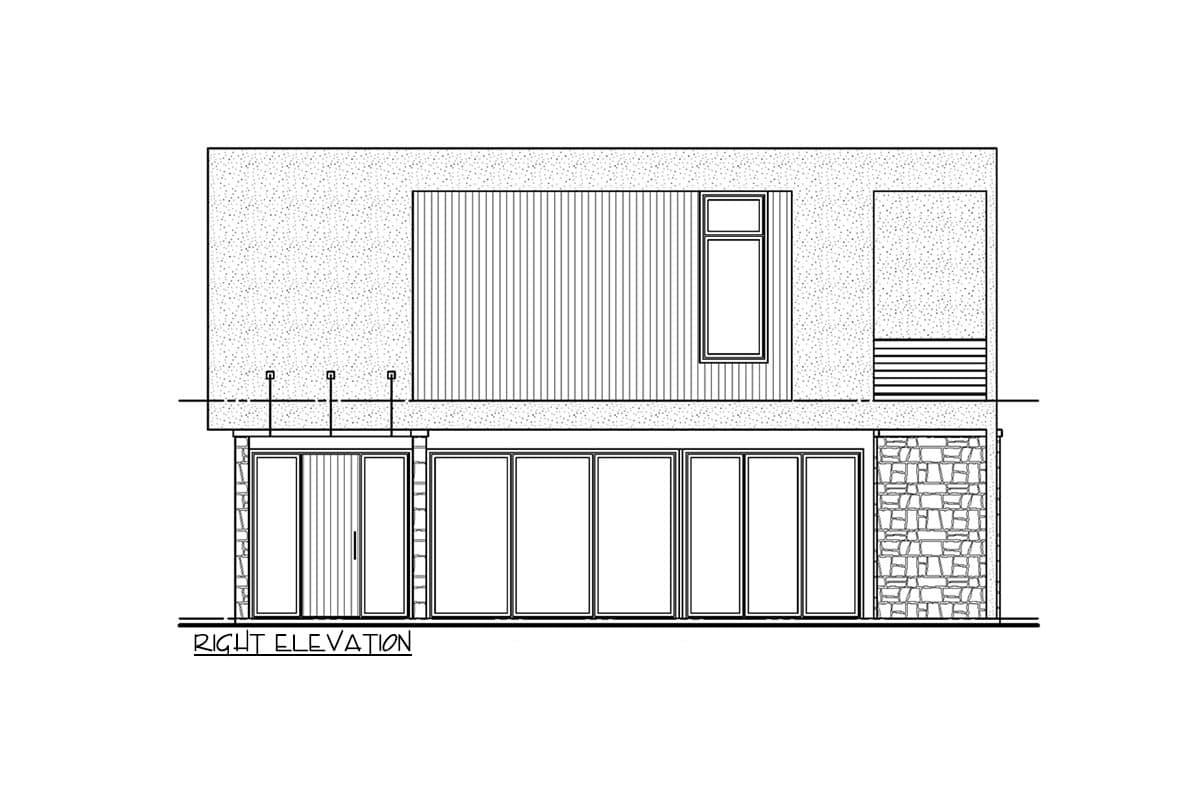

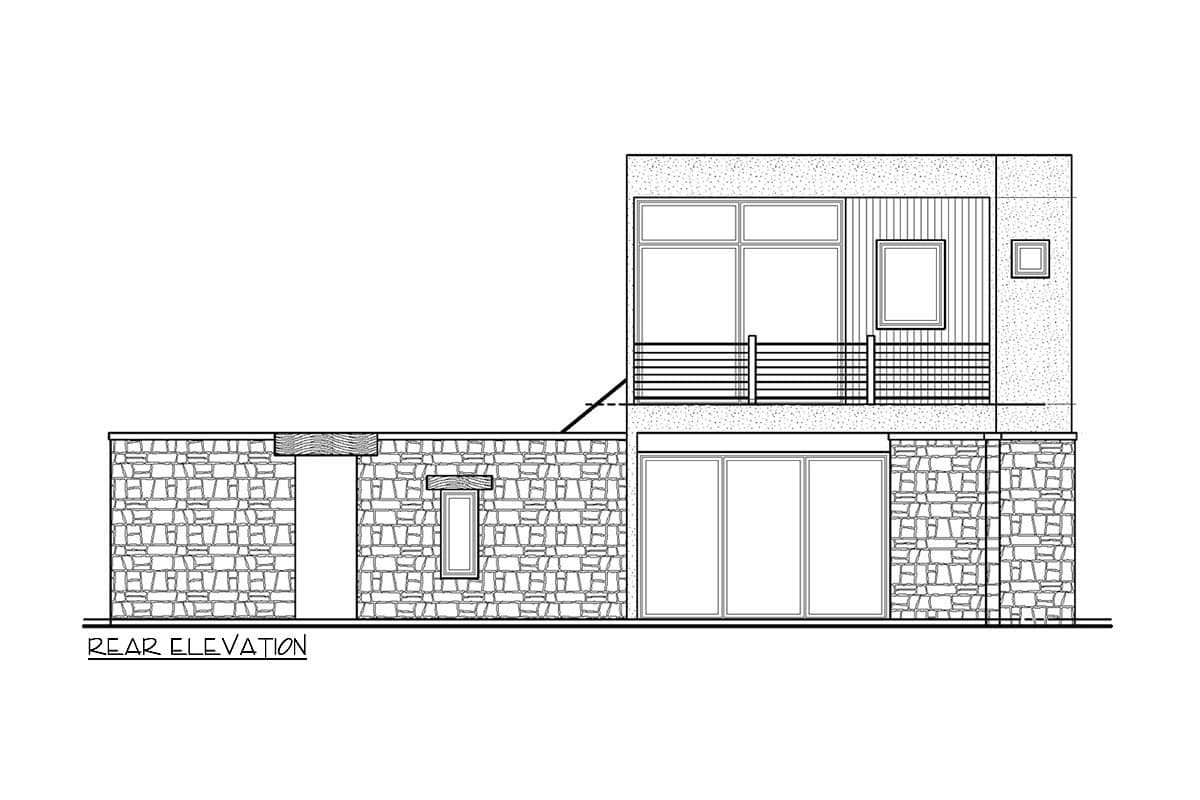

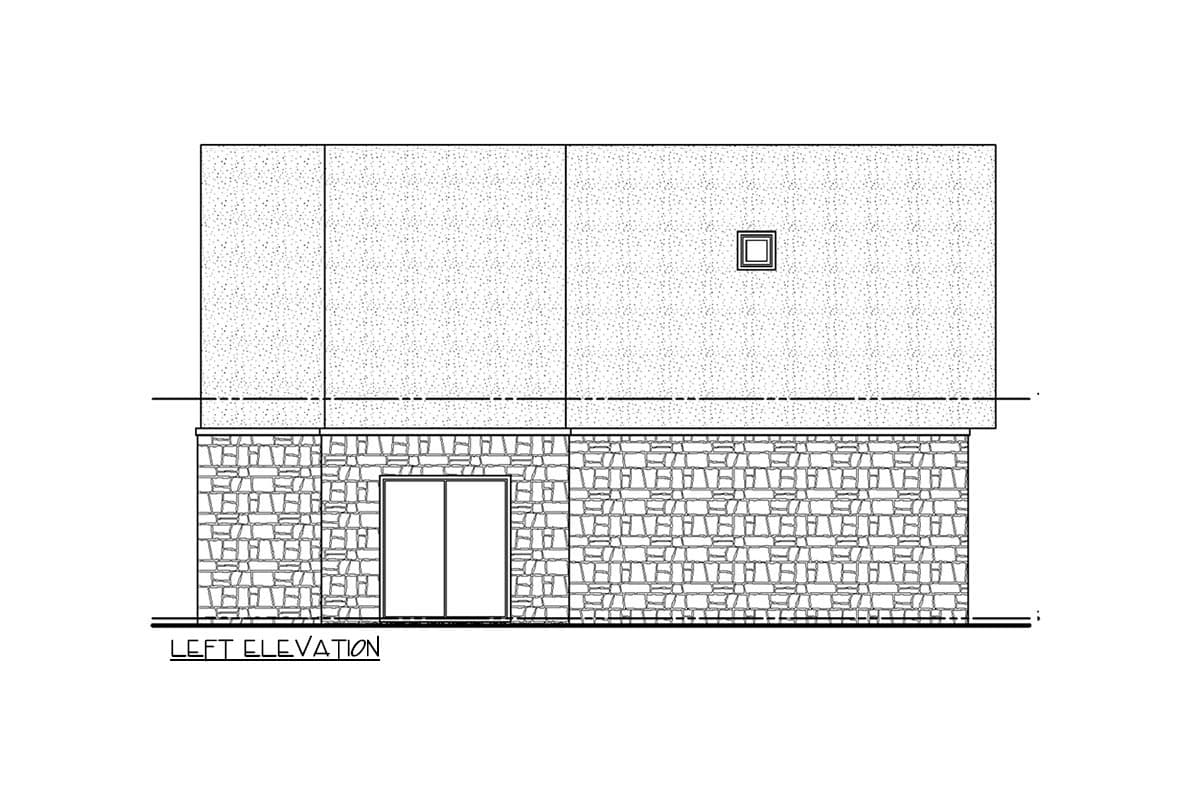

  • Front, Rear, Left, Right Elevations
  • Roof Plan - Birds Eye View
  • Foundation plan, Wall Section, Stair Section
  • Main Level Floor Plan
  • Second Level Floor Plan (if applicable)
  • Electrical Plan (showing fixtures, switches, outlets)
  • *Some plans include cabinet elevations. Please contact us for more information.
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,072 sq. ft.

1st Floor

558 sq. ft.

2nd Floor

514 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

21' 8"

Depth

38' 6"

Max Ridge Height

22' 8"

Ceiling Heights

First Floor

9'

Second Floor

10'

Architectural Style

Contemporary

Mid Century Modern

Modern

Special Features

Laundry Access from Master Suite

Laundry - Upstairs

Master Suite - Sitting Area

Master Suite - Upstairs

Plan Collections

ADU

Square Footage Breakdown

Total Heated Area

1,072 sq. ft.

1st Floor

558 sq. ft.

2nd Floor

514 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

21' 8"

Depth

38' 6"

Max Ridge Height

22' 8"

Ceiling Heights

First Floor

9'

Second Floor

10'

Architectural Style

Contemporary

Mid Century Modern

Modern

Special Features

Laundry Access from Master Suite

Laundry - Upstairs

Master Suite - Sitting Area

Master Suite - Upstairs

Plan Collections

ADU
