Plan 666127RAF Two-story Northwest Home Plan with Modern Appeal

5,900 5 5 2 3
Print
Compare HIDE
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Two-story Northwest Home Plan with Modern Appeal

Plan 666127RAF

  • 5,900

    Heated s.f.

  • 5

    Beds

  • 5

    Baths

  • 2

    Stories

  • 3

    Cars

  • This two-story Northwest home plan is filled with natural light due to the abundance of oversized windows throughout the home.
  • From the foyer, french doors provide privacy to a secondary living space, located across from the formal dining room, while the great room hosts a fireplace and flows into the rear covered patio through grand sliding doors.
  • The spacious kitchen boasts a prep island that includes a breakfast table, prep kitchen with a second range, and walk-in pantry.
  • A guest suite with a full bath and wet bar completes the main level and neighbors a quiet den, or study.
  • Upstairs, four sizable bedrooms and the laundry room can be found, including the master suite. A sizable bonus / media room (factored into the total living area) features a wet bar.

Included:
• Cover Sheet with plan info
• General notes - Note: codes will not include local state adopted amendments
• Fully dimensions and detailed floor plans
• Elevations
• Building cross section
• Roof Plan
• Details
• Window Schedule
• Original Structural plan FOR REFERENCE ONLY

These items are NOT included:

• Architectural or Engineering Stamp  - handled locally when required
• Site plans - handled locally - handled locally when required
• Mechanical Drawings - handled locally when required
• Plumbing Drawings  - handled locally when required
• Electrical Drawings  - handled locally when required
• Energy Calculations  - handled locally when required
• Foundation and Framing plans   - handled locally when required

Floor Plan

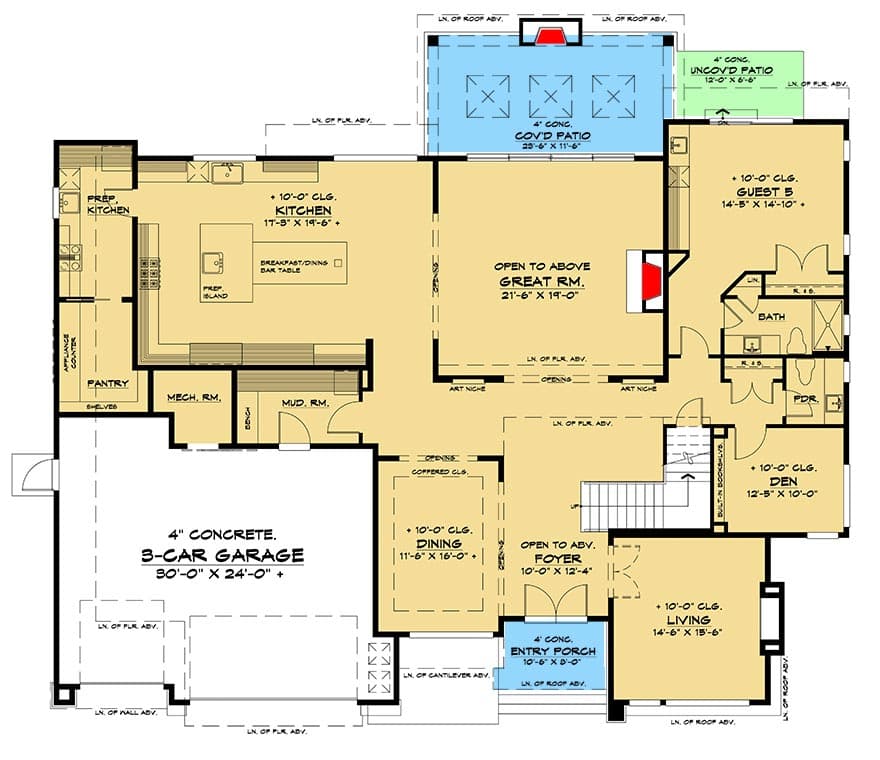

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Two-story Northwest Home Plan with Modern Appeal - 666127RAF floor plan - Main Level

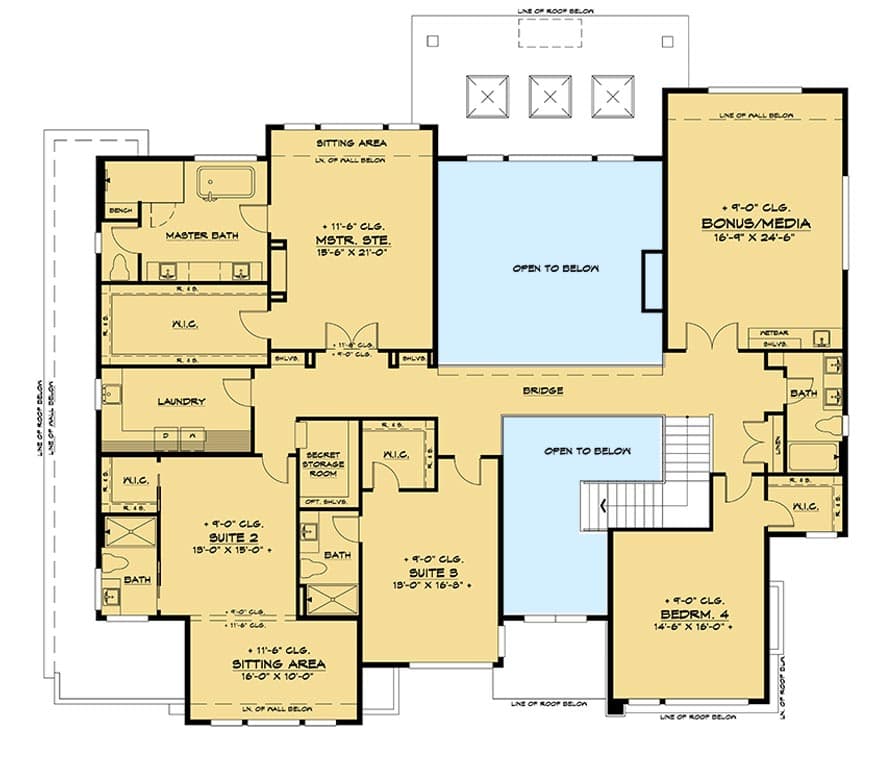

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Two-story Northwest Home Plan with Modern Appeal - 666127RAF floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 5,900 sq. ft.
  • 1st Floor: 2,962 sq. ft.
  • 2nd Floor: 2,938 sq. ft.
  • Covered Patio: 281 sq. ft.
  • Porch, Front: 72 sq. ft.
  • Uncovered Patio: 79 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 5

Foundation Type

  • Standard Foundations: Combo Slab-Crawl, Joist

Exterior Walls

  • Standard Type(s): 2x4 and 2x6

Dimensions

  • Width: 76' 0"
  • Depth: 55' 0"
  • Max ridge height: 29' 3"

Garage

  • Type: Attached
  • Area: 832 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof Details

  • Primary Pitch: 4 on 12

Architectural Style

Special features

Two-story Northwest Home Plan with Modern Appeal

  • 5,900

    Heated s.f.

  • 5

    Beds

  • 5

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 5,900 sq. ft.
  • 1st Floor: 2,962 sq. ft.
  • 2nd Floor: 2,938 sq. ft.
  • Uncovered Patio: 79 sq. ft.

Dimensions

  • Width: 76' 0"
  • Depth: 55' 0"
  • Max ridge height: 29' 3"

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 5

Garage

  • Type: Attached
  • Area: 832 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Combo Slab-Crawl, Joist

Exterior Walls

  • Standard Type(s): 2x4 and 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 4 on 12
