Plan 52398WM

Two-Story Traditional Duplex house Plan with Dual Laundry - 1447 Sq Ft Per Unit

Heated S.F.
2,894
Units
2
Width
Depth

Floor Plan

Plan 52398WM

Main Level
Main Level
2nd Floor
2nd Floor

Plan 52398WM

M-F 9am-5pm EST |

1-203-761-8500

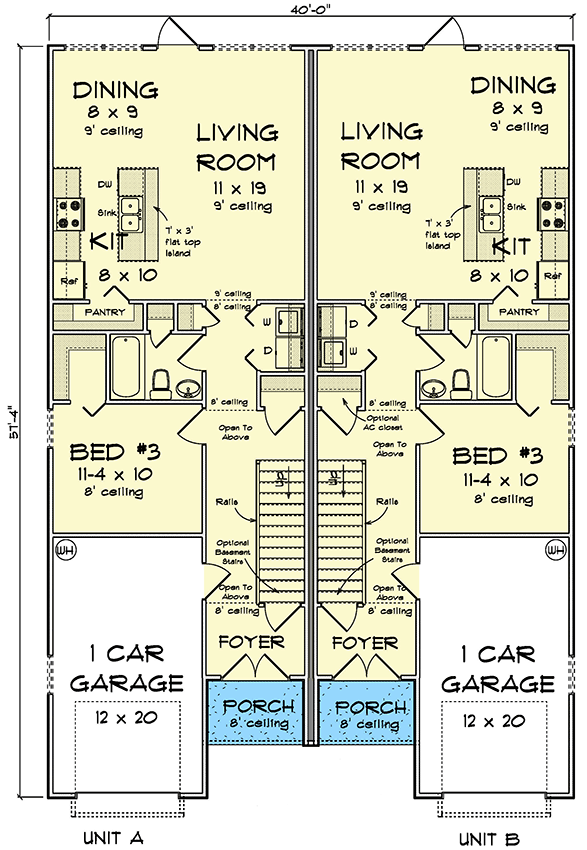

Main Level

Plan 52398WM: Two-Story Traditional Duplex house Plan with Dual Laundry - 1447 Sq Ft Per Unit - Floor Plan - Main Level - Traditional

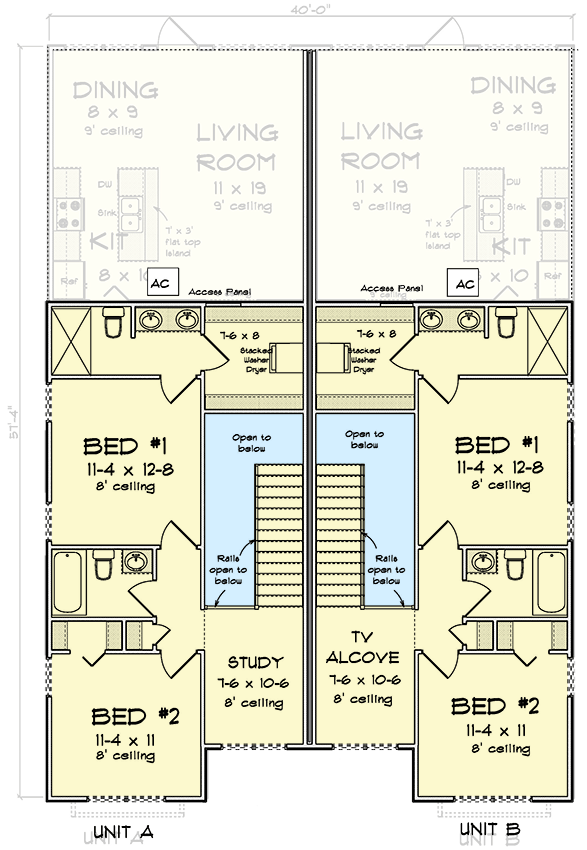

2nd Floor

Plan 52398WM: Two-Story Traditional Duplex house Plan with Dual Laundry - 1447 Sq Ft Per Unit - Floor Plan - 2nd Floor - Traditional

Plan Details

  • This duplex house plan gives you 2 units each with 1,447 square feet of heated living space (835 sq. ft. on the first floor, 612 sq. ft. on the second floor), 3 beds, 3 baths and a 240 sq. ft. 1-car garage.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
  • Related Plan: Get a single family version with house plan 52396WM (1,434 sq. ft.).
Unit A
Heated Area
1,447Sq. Ft.
835 Sq. Ft. 1st
612 Sq. Ft. 2nd
Beds
3Beds
Baths
3Full Baths
Cars
Attached
240 Sq. Ft.
Dimensions
20'width
57'depth
26'height
Unfinished Areas
240 Sq. Ft. Garage
80 Sq. Ft. Porch, Front
Unit B
Heated Area
1,447Sq. Ft.
835 Sq. Ft. 1st
1224 Sq. Ft. 2nd
Beds
3Beds
Baths
3Full Baths
Cars
Attached
240 Sq. Ft.
Dimensions
20'width
57'depth
26'height
Unfinished Areas
240 Sq. Ft. Garage
40 Sq. Ft. Porch, Front
