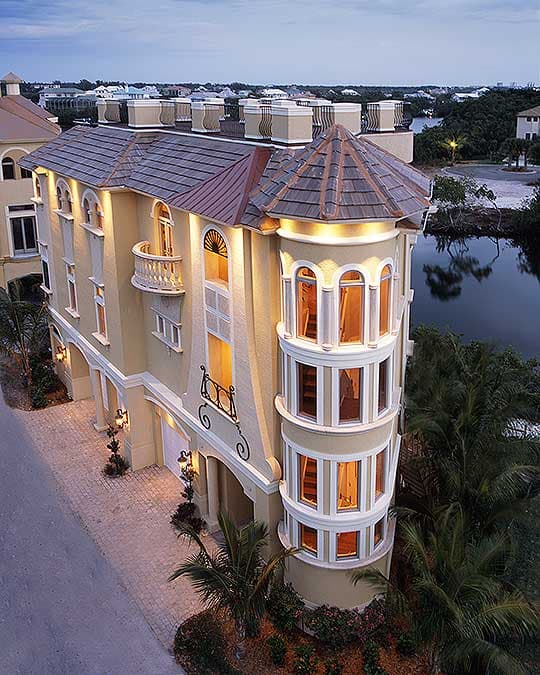

Unique Luxury Home Plan

Plan 24076BG

  • 2,716

    Heated s.f.

  • 3

    Beds

  • 3.5+

    Baths

  • 2

    Stories

  • 3

    Cars

  • Designed for an irregular narrow lot, this magnificent one-of-a-kind home has two main levels and a fabulous roof deck.
  • A residential elevator takes you from the ground level to the middle bedroom level to the top floor where you find the main living area.
  • A spiral staircase leads up to the very special roof deck where you can enjoy your views.
  • The deluxe master suite has a tray ceiling and a private covered balcony.

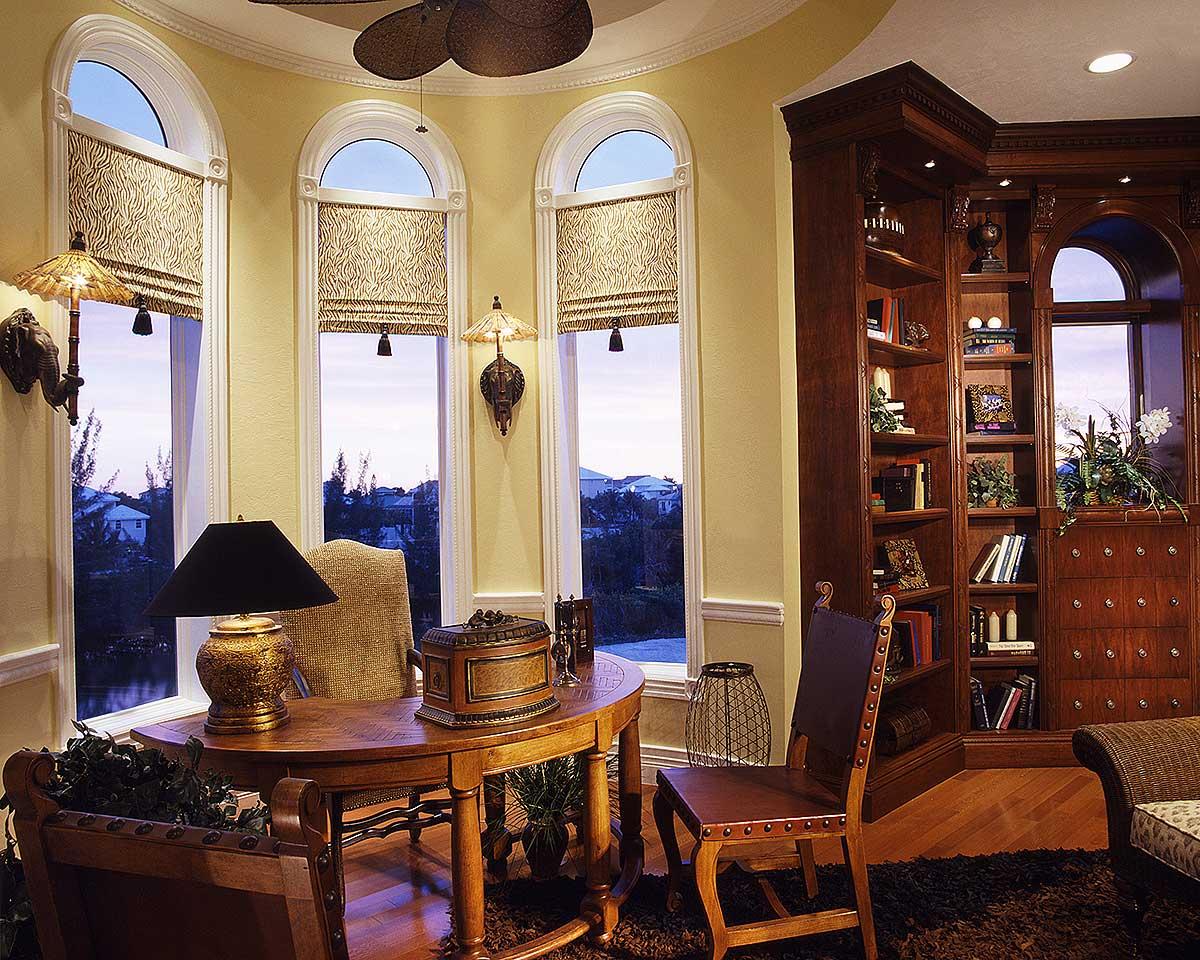

  • Both the circular study and the master suite can take advantage of the wet bar close by.

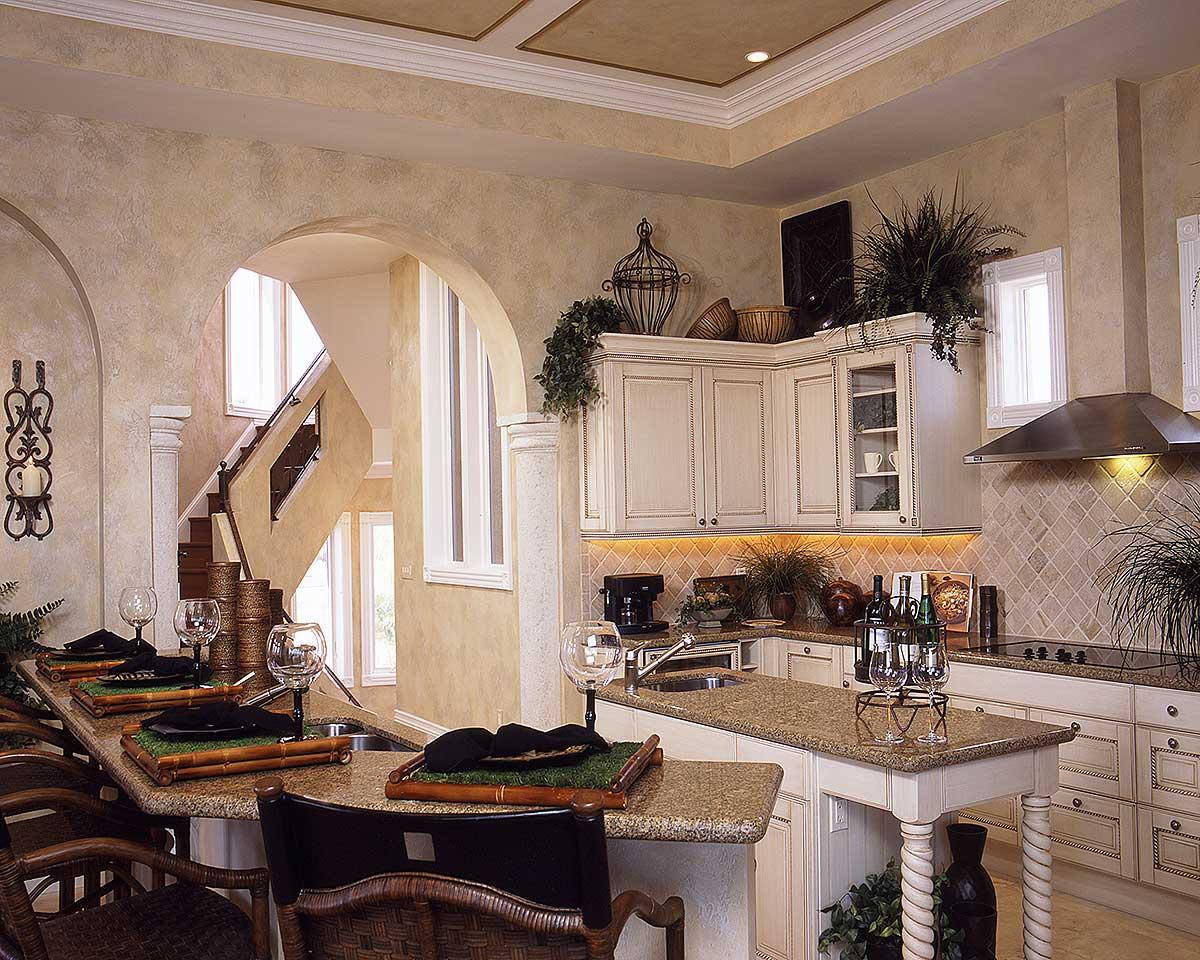

  • The open floor plan combines the kitchen, great room and circular dinette.

Plans include the following:

  • Cover page showing front elevation, contents and notes
  • Fully dimensioned floor plans including ceiling heights
  • Roof plan
  • All four exterior elevations
  • Typical cross section
  • Suggested electrical schematic
These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

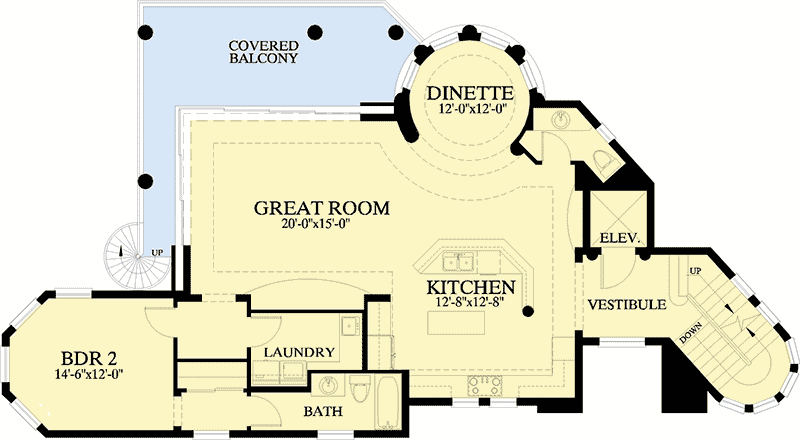

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Unique Luxury Home Plan - 24076BG floor plan - Main Level

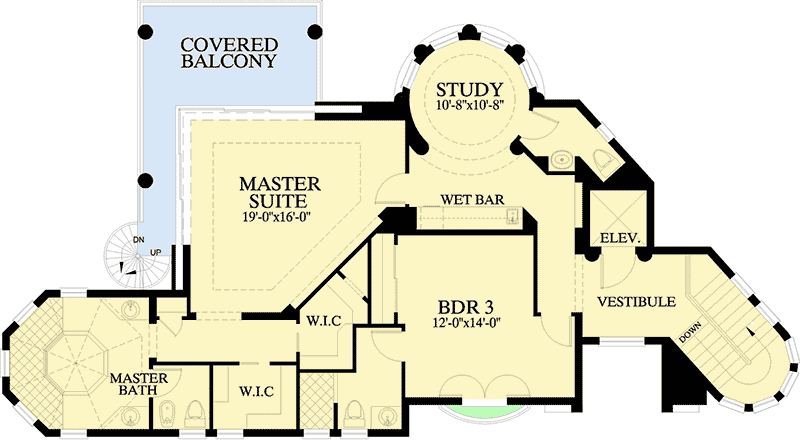

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Unique Luxury Home Plan - 24076BG floor plan - 2nd Floor

Roof Deck

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Unique Luxury Home Plan - 24076BG floor plan - Roof Deck

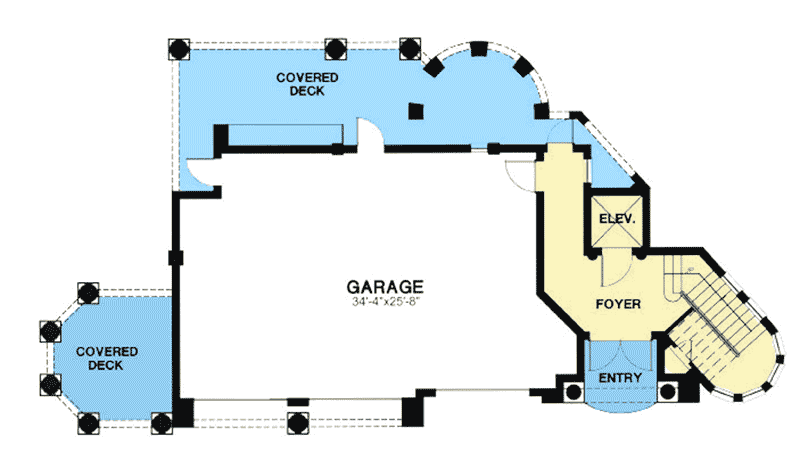

Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Unique Luxury Home Plan - 24076BG floor plan - Lower Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,716 sq. ft.
  • 1st Floor: 1,358 sq. ft.
  • 2nd Floor: 1,358 sq. ft.
  • Balcony / Veranda: 978 sq. ft.
  • Deck: 298 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3
  • Half bathrooms: 2 or 3

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)

Dimensions

  • Width: 71' 1"
  • Depth: 37' 6"
  • Max ridge height: 43' 9"

Garage

  • Type: Drive Under
  • Area: 880 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: Lower Level / 12' 4" First Floor / 12' 0" Second Floor / 10' 0"

Roof Details

  • Primary Pitch: 12 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Unique Luxury Home Plan

  • 2,716

    Heated s.f.

  • 3

    Beds

  • 3.5+

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $2,495
  • CAD - Single-Build $2,795
  • View all purchase option online
