Vacation Escape

Plan 90164PD

  • 1,128

    Heated s.f.

  • 1-3

    Beds

  • 1 - 2

    Baths

  • 1

    Stories

  • 1

    Cars

  • Designed to take advantage of a sloping lot, this plan's 34' width also makes it suitable for a narrow lot.
  • Tall windows rising up in the living/dining rooms enhance the views from the rear. Double doors lead to a spacious deck that runs along the entire width of the home.
  • The large kitchen is open to the living/dining area and has seating for casual meals.
  • An optional 2-sided fireplace is a nice addition to the main floor master.
  • On the lower level, two more bedrooms and a bath share space with the huge family room giving you lots of optional future expansion.
  • Related Plans: Gain more room with house plan 90075PD.
  • Eliminate the lower level with house plan 90165PD.

Each plan set includes the following:

  • Elevations
  • Lower level plan -- including floor above structure, concrete level and thickness, electrical layout
  • Main floor plan w/ structure for the roof above, electrical layout
  • Building section
  • Construction details
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

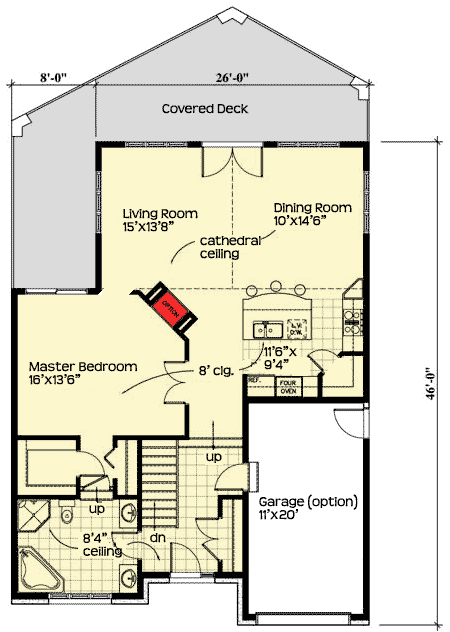

Vacation Escape - 90164PD floor plan - Main Level

Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

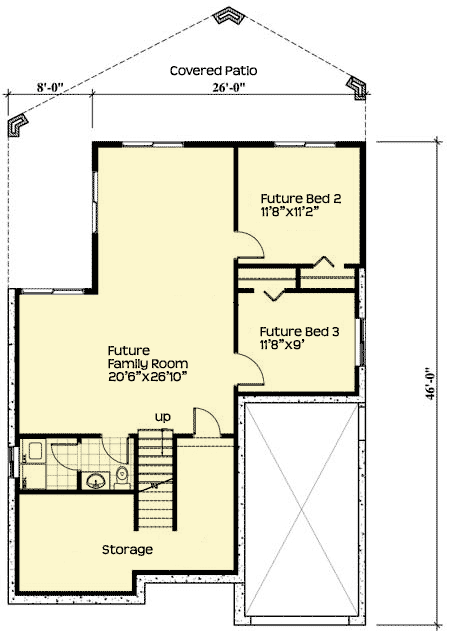

Vacation Escape - 90164PD floor plan - Lower Level
