Vacation Home or Primary Residence

Plan 21183DR

  • 1,992

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Stories

  • No matter where the location, this charming house plan can be either a vacation retreat or a primary residence.
  • A covered porch accentuated by a gazebo area surrounds three sides of the house. The entry is also covered.
  • On the main floor, the open living area comprises a U-shaped kitchen with an island, a dining area and a sitting area.
  • The master bedroom is convenient to the bath on this floor, which has dual sinks, a tub and a separate shower.
  • Another sitting area is found below with access to the outside through sliding glass doors, along with two more bedrooms and a replica of the first-floor bath.
  • Related Plans: Downsize with house plans 2168DR and 21568DR, identical 840 sq. ft. house plans with reverse layouts.
  • Get an attached garage with house plan 22312DR.
  • For an alternate exterior, see house plan 21854DR.

Each plan includes the following:

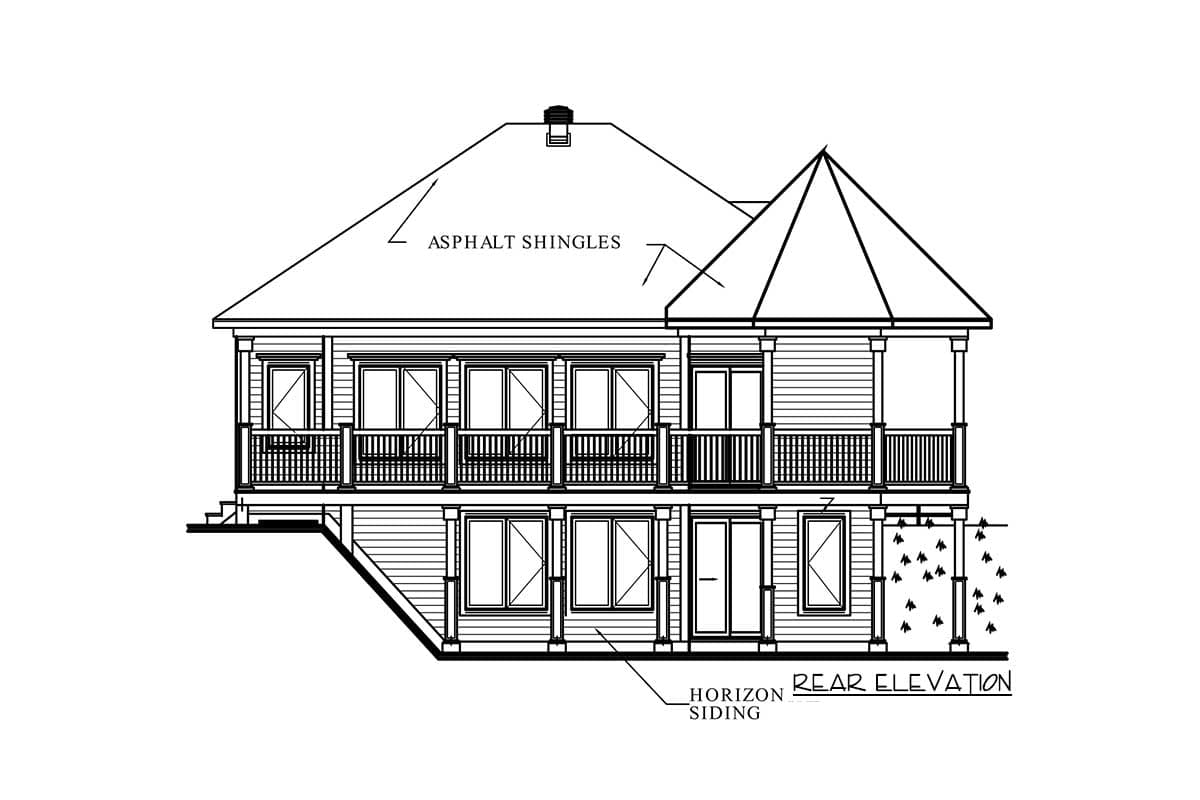

* 4 Elevations
* Foundation Plan
* Main Floor Plan
* Upper Floor Plans (if applicable)
* Roof Plan
* Truss Diagrams & Building Section
* Construction Details
* Typical Wall Section

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Vacation Home or Primary Residence - 21183DR floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

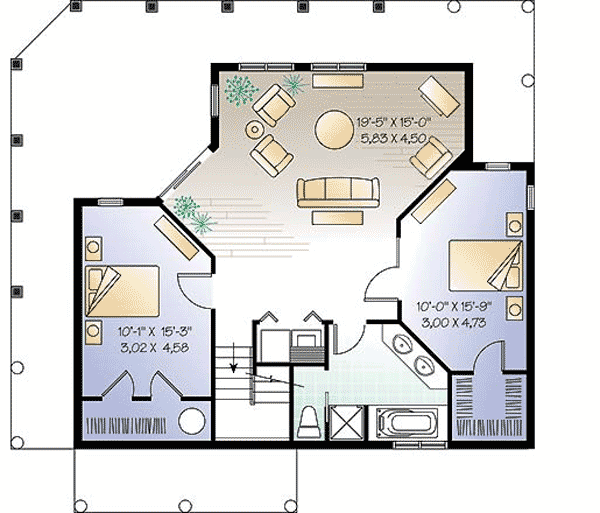

Vacation Home or Primary Residence - 21183DR floor plan - Basement

Plan details

Vacation Home or Primary Residence

  • 1,992

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

Buy This Plan
  • PDF - Single-Build $1,195
  • Reproducible Set $1,195
  • 5 Sets + PDF $1,320
  • CAD - Single-Build $1,795
  • View all purchase option online

About This Plan

  • No matter where the location, this charming house plan can be either a vacation retreat or a primary residence.
  • A covered porch accentuated by a gazebo area surrounds three sides of the house. The entry is also covered.
  • On the main floor, the open living area comprises a U-shaped kitchen with an island, a dining area and a sitting area.
  • The master bedroom is convenient to the bath on this floor, which has dual sinks, a tub and a separate shower.
  • Another sitting area is found below with access to the outside through sliding glass doors, along with two more bedrooms and a replica of the first-floor bath.
  • Related Plans: Downsize with house plans 2168DR and 21568DR, identical 840 sq. ft. house plans with reverse layouts.
  • Get an attached garage with house plan 22312DR.
  • For an alternate exterior, see house plan 21854DR.

Floor Plans

  • Main Level

  • Basement

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,992 sq. ft.
  • Lower Level: 996 sq. ft.
  • 1st Floor: 996 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 37' 0"
  • Depth: 31' 0"
  • Max ridge height: 29' 8"

Ceiling Heights

  • Floor / Height: Lower Level / 8' 0" First Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Framing Type: Truss
