Plan 80683PM Vacation Home Plan with Private Master Suite Deck

1,340 3 2 2
Print
Compare
...

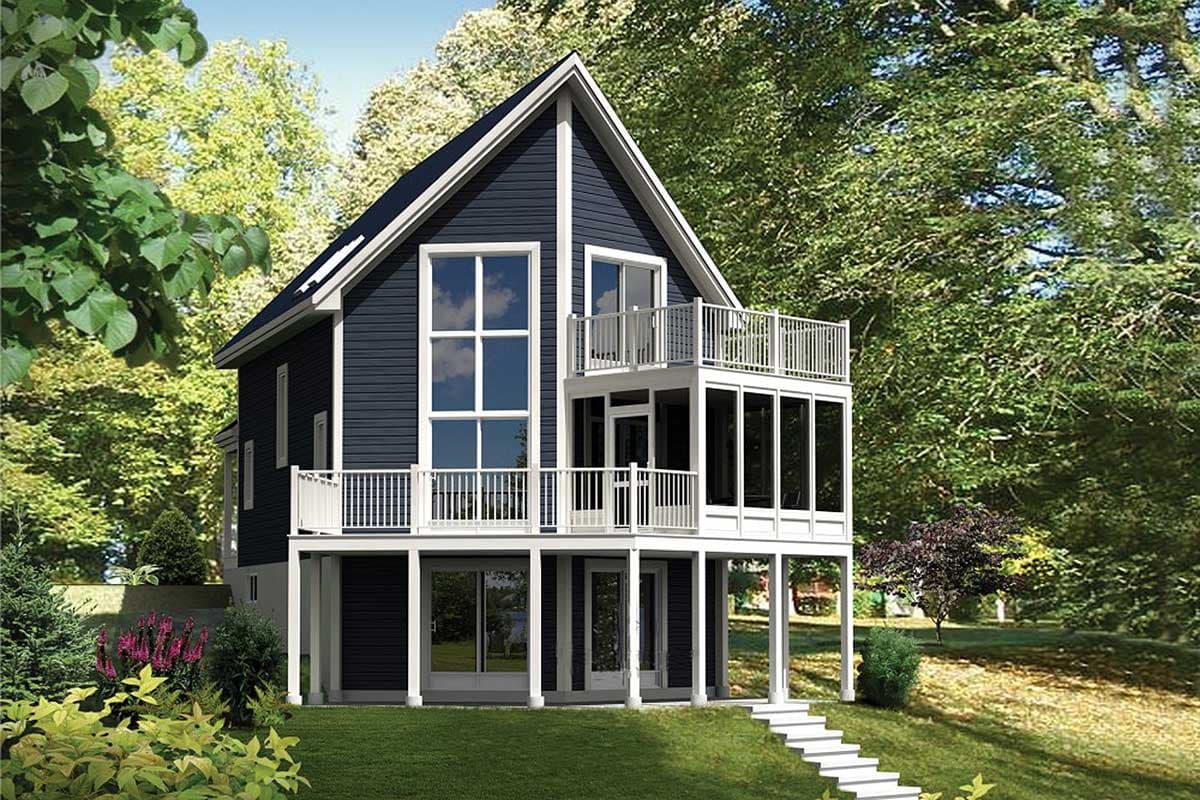

All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Vacation Home Plan with Private Master Suite Deck

Plan 80683PM

  • 1,340

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 2

    Stories

  • This vacation home plan has a second floor master suite with its own private deck.
  • Below the deck, the rest of the family gets to enjoy the screened-in porch and an even larger open deck.
  • The living room with corner fireplace gets the benefit of extra light from the two-story windows.
  • Storage is plentiful with a big walk-in closet off the foyer.
  • If your lot slopes open up the lower level and enjoy access to the outdoors and a below deck patio.

Plan sets include the following:

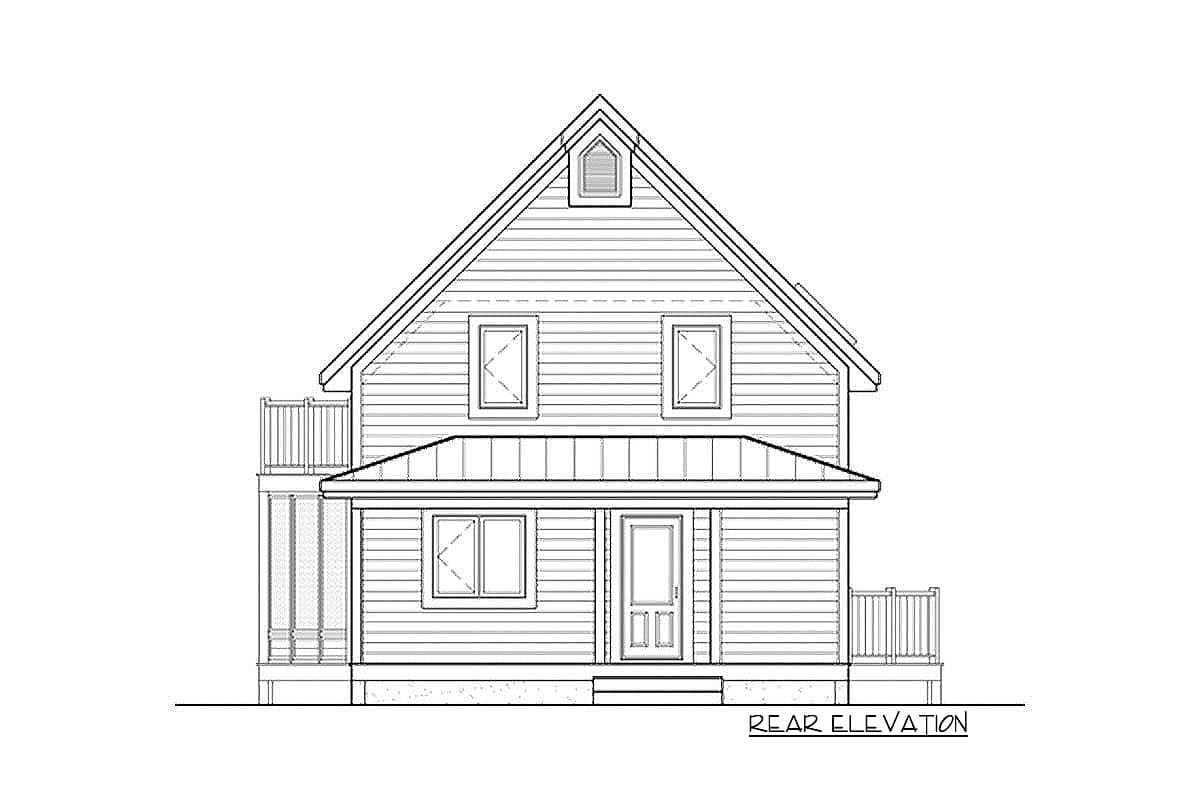

  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.


These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

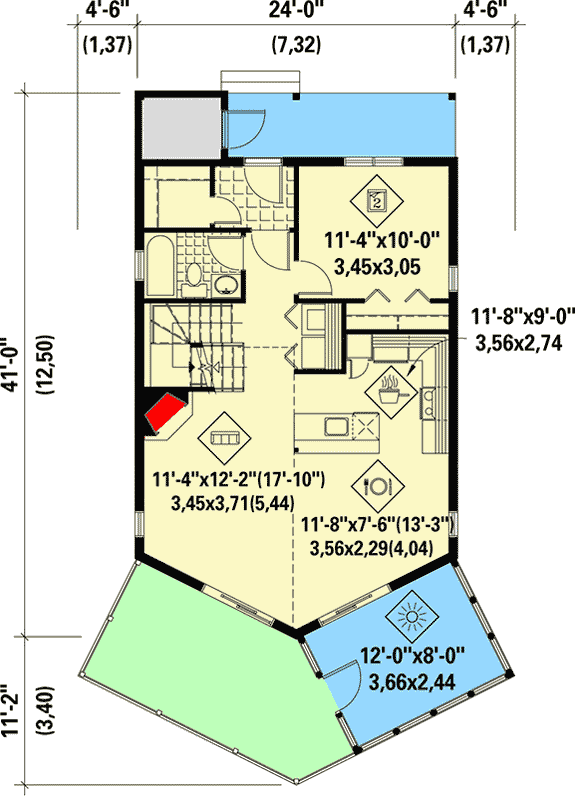

Vacation Home Plan with Private Master Suite Deck - 80683PM floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

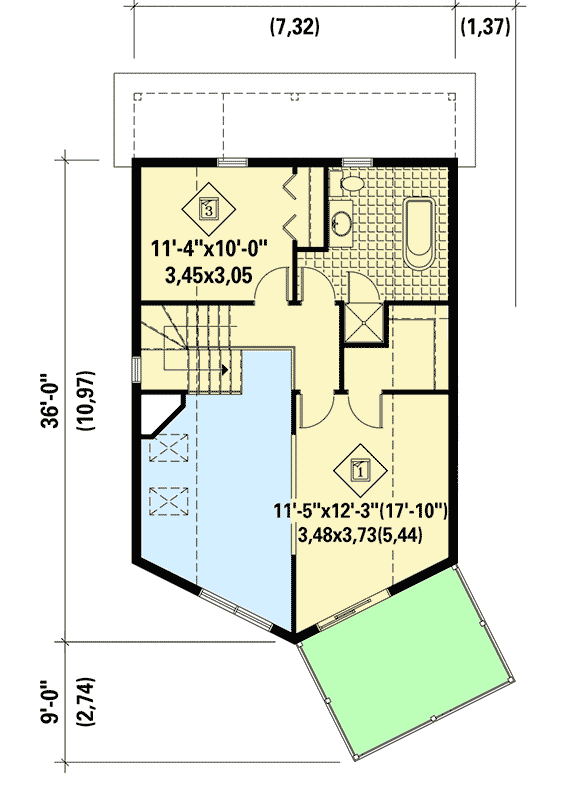

Vacation Home Plan with Private Master Suite Deck - 80683PM floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,340 sq. ft.
  • 1st Floor: 792 sq. ft.
  • 2nd Floor: 548 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

  • Standard Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 24' 0"
  • Depth: 41' 0"
  • Max ridge height: 36' 8"

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof Details

  • Secondary Pitch: 12 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Vacation Home Plan with Private Master Suite Deck

  • 1,340

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 2

    Floors

Buy This Plan
  • 5 Sets $806
  • 8 Sets $853
  • PDF - Single-Build $1,097
  • CAD - Single-Build $1,675
  • View all purchase option online

About This Plan

  • This vacation home plan has a second floor master suite with its own private deck.
  • Below the deck, the rest of the family gets to enjoy the screened-in porch and an even larger open deck.
  • The living room with corner fireplace gets the benefit of extra light from the two-story windows.
  • Storage is plentiful with a big walk-in closet off the foyer.
  • If your lot slopes open up the lower level and enjoy access to the outdoors and a below deck patio.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,340 sq. ft.
  • 1st Floor: 792 sq. ft.
  • 2nd Floor: 548 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 24' 0"
  • Depth: 41' 0"
  • Max ridge height: 36' 8"

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof

  • Secondary Pitch: 12 on 12
  • Framing Type: Truss
