Vacation Home With Wrap-Around Deck

Plan 21075DR

  • 1,879

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 2

    Stories

  • A deck wraps around two sides of this vacation getaway, where sun streams into the main-level family room through banks of windows. Fireplaces warm both this room and the second family room in the walk-out basement below.
  • The basement also contains two bedrooms, a bathroom with laundry facilities, and another room that could be used for storage or as a fourth bedroom.
  • On the main floor, the family room is open to the eat-in kitchen. A full bath and a guest bedroom complete the floor.
  • A roomy loft area overlooks the family room and kitchen below.
  • Related Plans: Gain a main floor sunroom with house plan 21178DR (2,243 sq. ft.).
  • Eliminate the upper floor with these smaller versions - house plan 21090DR (1,574 sq. ft.) and 2143DR (1,648 sq. ft.).

Each plan includes the following:

* 4 Elevations
* Foundation Plan
* Main Floor Plan
* Upper Floor Plans (if applicable)
* Roof Plan
* Truss Diagrams & Building Section
* Construction Details
* Typical Wall Section

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

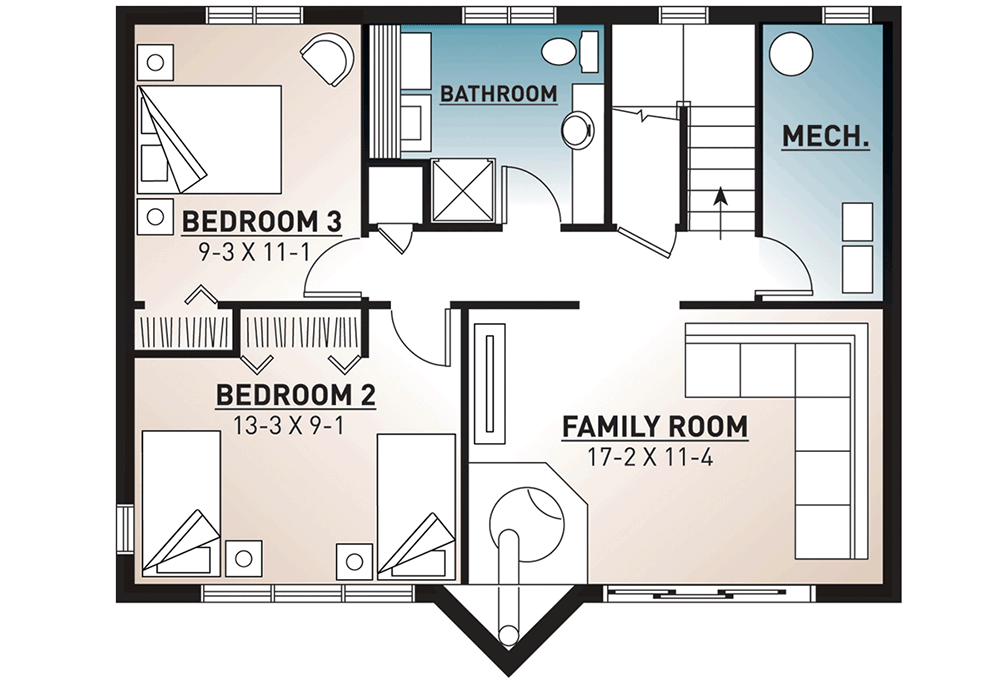

Vacation Home With Wrap-Around Deck - 21075DR floor plan - Lower Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Vacation Home With Wrap-Around Deck - 21075DR floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Vacation Home With Wrap-Around Deck - 21075DR floor plan - 2nd Floor

Plan details

Vacation Home With Wrap-Around Deck

  • 1,879

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 2

    Floors

Buy This Plan
  • PDF - Single-Build $1,255
  • 5 Sets + PDF $1,380
  • Reproducible Set $1,380
  • CAD + PDF - Single-Build $1,855
  • View all purchase option online

About This Plan

  • A deck wraps around two sides of this vacation getaway, where sun streams into the main-level family room through banks of windows. Fireplaces warm both this room and the second family room in the walk-out basement below.
  • The basement also contains two bedrooms, a bathroom with laundry facilities, and another room that could be used for storage or as a fourth bedroom.
  • On the main floor, the family room is open to the eat-in kitchen. A full bath and a guest bedroom complete the floor.
  • A roomy loft area overlooks the family room and kitchen below.
  • Related Plans: Gain a main floor sunroom with house plan 21178DR (2,243 sq. ft.).
  • Eliminate the upper floor with these smaller versions - house plan 21090DR (1,574 sq. ft.) and 2143DR (1,648 sq. ft.).

Floor Plans

  • Lower Level

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,879 sq. ft.
  • Lower Level: 790 sq. ft.
  • 1st Floor: 790 sq. ft.
  • 2nd Floor: 299 sq. ft.
  • Porch, Front: 280 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 32' 4"
  • Depth: 24' 4"
  • Max ridge height: 32' 10"

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Truss
