Contemporary Vacation Home Design

Plan 21178DR

  • 2,243

    Heated s.f.

  • 4

    Beds

  • 2

    Baths

  • 2

    Stories

  • With its ability to sleep many people, this contemporary home plan would make an ideal vacation home. Extensive deck and patio space allow for easy outdoor living; lots of windows let in the light.
  • Besides the open kitchen and living area, the main level houses a master suite with a whirlpool tub and separate shower. The second level comprises a bedroom loft that overlooks the living area.
  • Note the fireplaces in both the living area and the downstairs family room or fifth bedroom. Also found downstairs are the second full bath and two more bedrooms.
  • Ceilings: 9' first floor; 8' second floor.
  • Related Plans: Eliminate the sunroom with house plan 21075DR (1,879 sq. ft.).
  • Eliminate the upper floor with these smaller versions - house plan 21090DR (1,574 sq. ft.) and 2143DR (1,648 sq. ft.).

Each plan includes the following:

* 4 Elevations
* Foundation Plan
* Main Floor Plan
* Upper Floor Plans (if applicable)
* Roof Plan
* Truss Diagrams & Building Section
* Construction Details
* Typical Wall Section

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

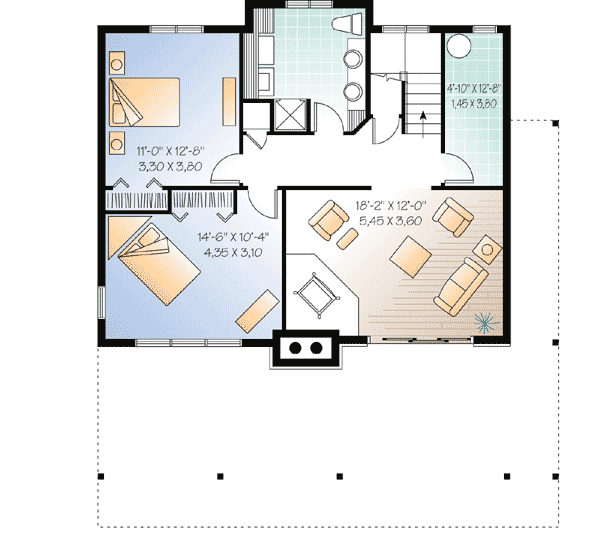

Contemporary Vacation Home Design - 21178DR floor plan - Basement
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

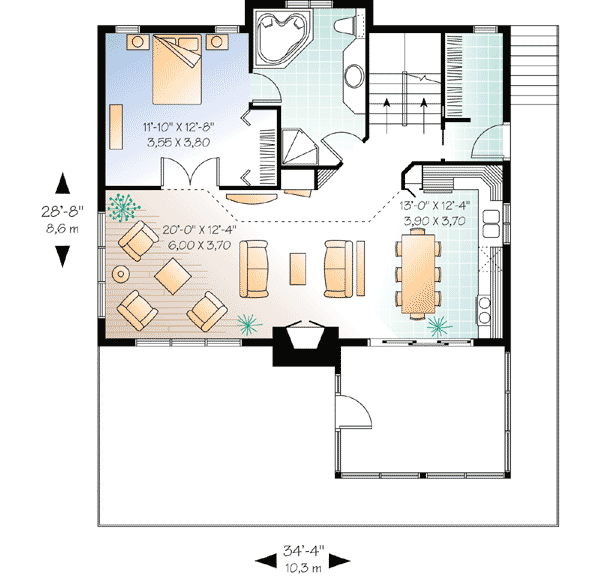

Contemporary Vacation Home Design - 21178DR floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

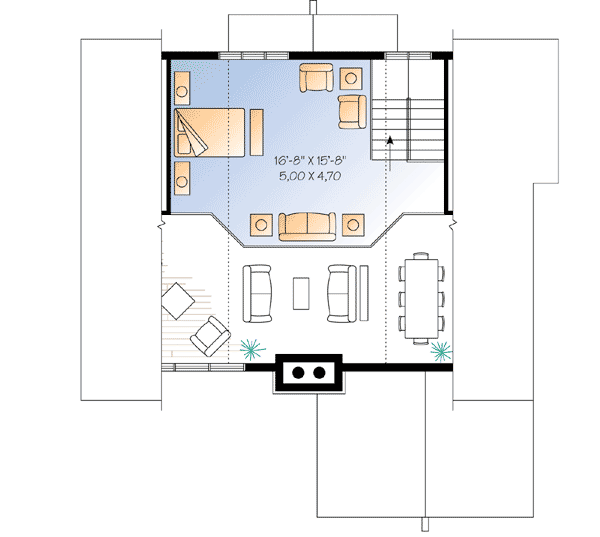

Contemporary Vacation Home Design - 21178DR floor plan - 2nd Floor

Plan details

Contemporary Vacation Home Design

  • 2,243

    Heated s.f.

  • 4

    Beds

  • 2

    Baths

  • 2

    Floors

Buy This Plan
  • Reproducible Set $1,260
  • PDF - Single-Build $1,260
  • 5 Sets + PDF $1,385
  • CAD + PDF - Single-Build $1,860
  • View all purchase option online

About This Plan

  • With its ability to sleep many people, this contemporary home plan would make an ideal vacation home. Extensive deck and patio space allow for easy outdoor living; lots of windows let in the light.
  • Besides the open kitchen and living area, the main level houses a master suite with a whirlpool tub and separate shower. The second level comprises a bedroom loft that overlooks the living area.
  • Note the fireplaces in both the living area and the downstairs family room or fifth bedroom. Also found downstairs are the second full bath and two more bedrooms.
  • Ceilings: 9' first floor; 8' second floor.
  • Related Plans: Eliminate the sunroom with house plan 21075DR (1,879 sq. ft.).
  • Eliminate the upper floor with these smaller versions - house plan 21090DR (1,574 sq. ft.) and 2143DR (1,648 sq. ft.).

Floor Plans

  • Basement

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,243 sq. ft.
  • Lower Level: 937 sq. ft.
  • 1st Floor: 937 sq. ft.
  • 2nd Floor: 369 sq. ft.
  • Porch, Front: 478 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 34' 4"
  • Depth: 28' 8"
  • Max ridge height: 33' 9"

Ceiling Heights

  • Floor / Height: Lower Level / 8' 0" First Floor / 8' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Truss
