Vacation Retreat

Plan 80772PM

  • 1,838

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 2

    Stories

  • Just the right size for a beachside or lakeside retreat, this Vacation house plan has tall, contemporary windows to bring in lots of light.
  • Sliding glass doors off the dining room take you out to an uncovered patio where you can set up table and chairs.
  • From the kitchen you have a view clear down to the end of the living room where the corner fireplace adds a warm glow.
  • Bedroom 1 is tucked in back and there's two more bedrooms on the upper floor.
  • The open rail hallway lets you look down into the great room below.



Plan sets include the following:

  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.


These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

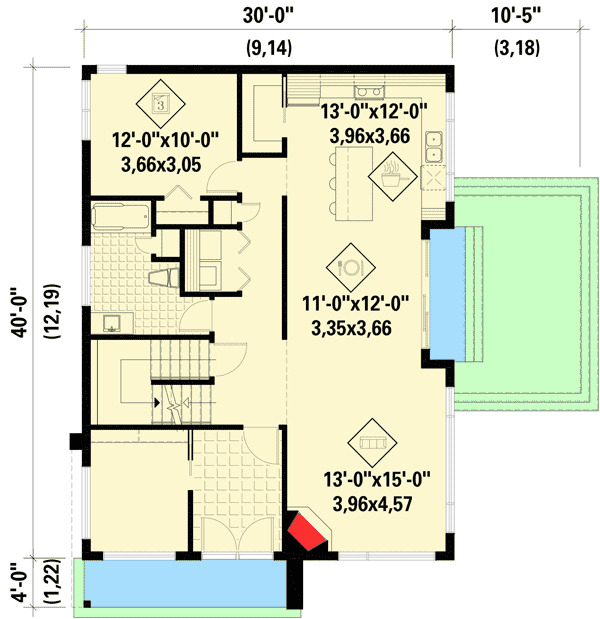

Vacation Retreat - 80772PM floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

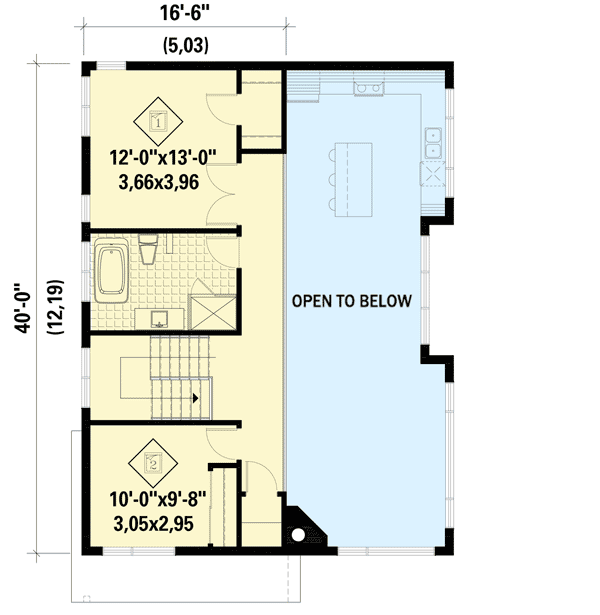

Vacation Retreat - 80772PM floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,838 sq. ft.
  • 1st Floor: 1,178 sq. ft.
  • 2nd Floor: 660 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

  • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 44' 0"
  • Depth: 40' 5"
  • Max ridge height: 27' 1"

Roof Details

  • Primary Pitch: 4 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Vacation Retreat
