Vacation Retreat With Great Views

Plan 6799MG

  • 2,141

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 2

    Stories

  • This vacation retreat has it all - big windows that flood the living room and dining room with light, a wrap-around deck and a spacious master suite.
  • From the kitchen you can see right out to the sundeck or enjoy the fireplace.
  • The two main level bedrooms are large and the nearby laundry room comes in handy.
  • The huge master suite is off by itself on the second floor and has a private deck for sipping your morning coffee.
  • A balcony loft overlooks the main living area below.
  • Future space in the basement can be finished off when you are ready.
  • The width and depth shown includes the decks.
  • Related Plan: Get a walkout basement with house plan 6740MG (1,915 sq. ft.).

  • Foundation plan
  • Electrical plan calling out locations,  not wiring
  • Fully dimensioned floor plans

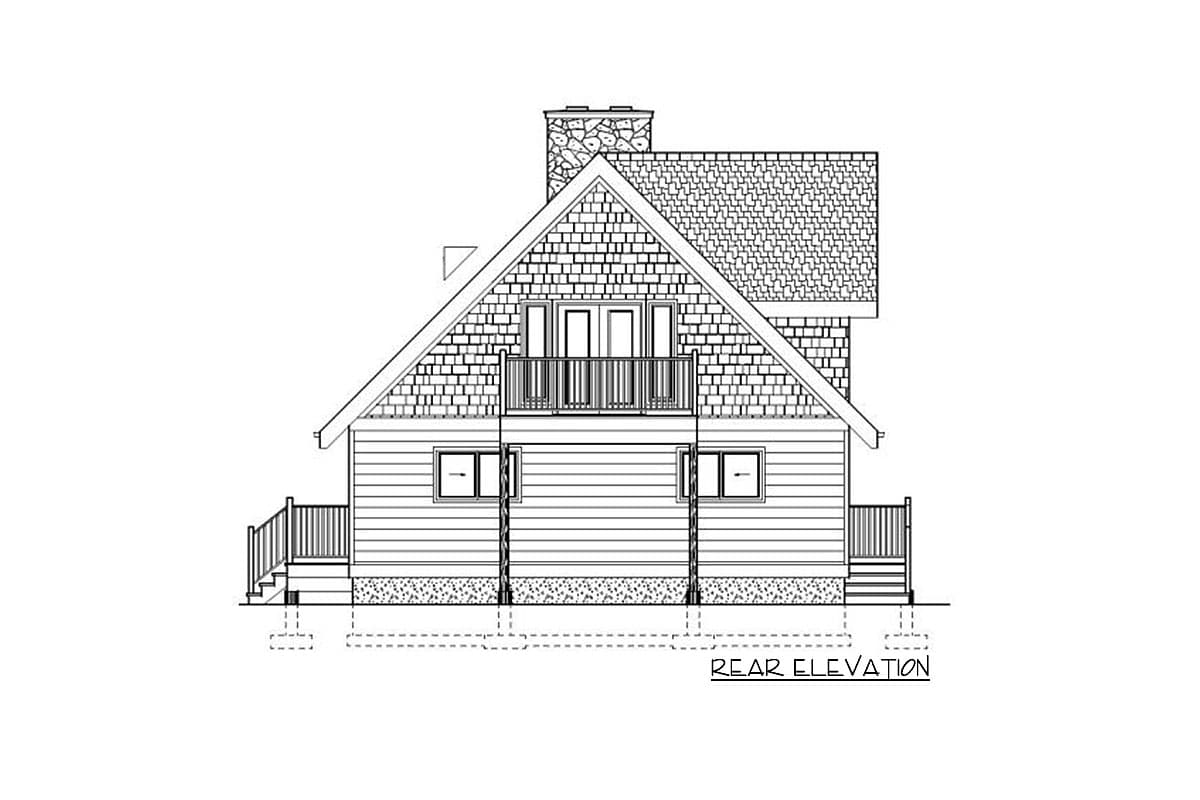

  • 4 elevations
  • Cross section
  • Wall details, etc.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

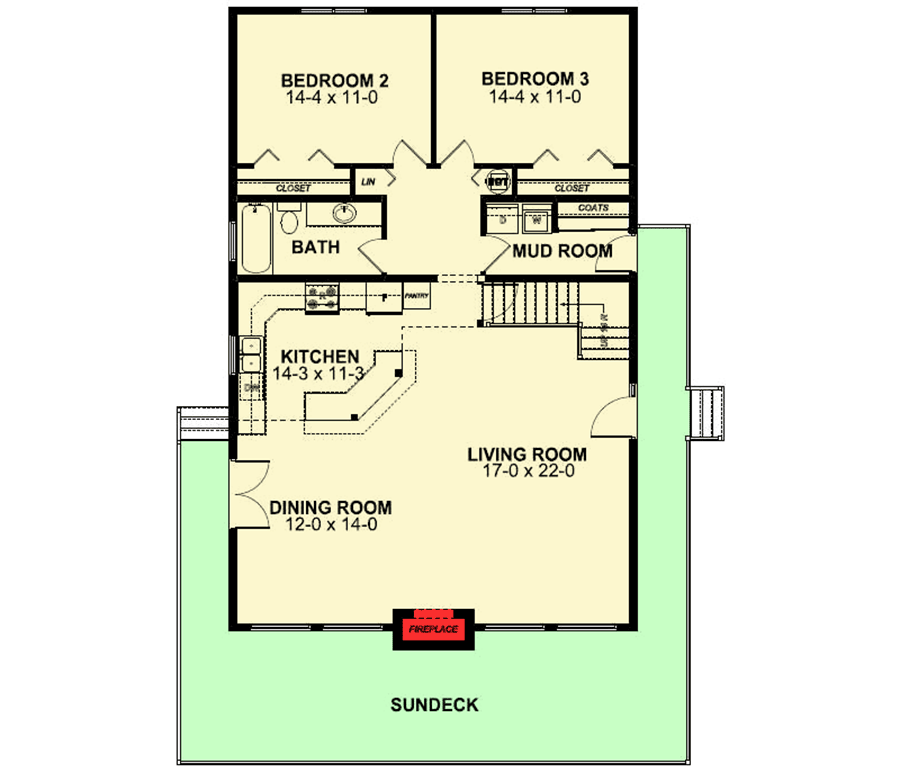

Vacation Retreat With Great Views - 6799MG floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

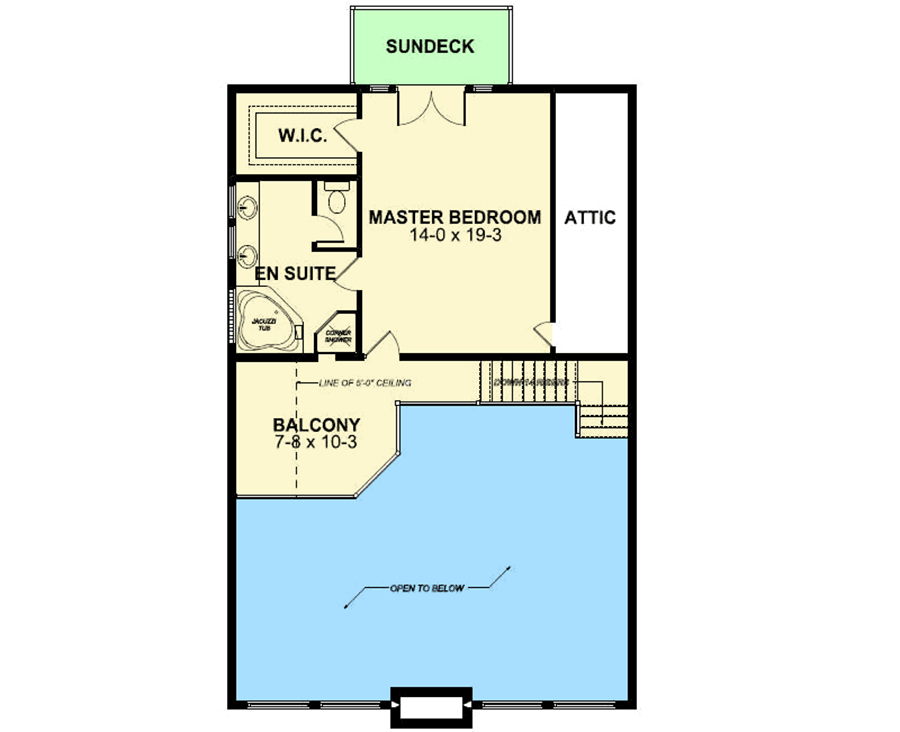

Vacation Retreat With Great Views - 6799MG floor plan - 2nd Floor

Vacation Retreat With Great Views

  • 2,141

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 2

    Floors

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 2,141 sq. ft.
  • 1st Floor: 1,389 sq. ft.
  • 2nd Floor: 752 sq. ft.

Dimensions

  • Width: 38' 0"
  • Depth: 62' 0"
  • Max ridge height: 25' 6"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 12 on 12
  • Framing Type: Truss
