Plan 92328MX
EXCLUSIVE
Mountain (or Lake) House Plan with Outdoor Fireplace and Vaulted Ceilings
Heated S.F.
2,618
Beds
3-4
Baths
3.5 - 4.5
Stories
2
Photos
What's Included
Plan Details
  • Both the foyer and the family room are vaulted in this rugged Mountain (or lake) home plan with a delightful open floor plan. Inside, it gives you 2,618 square feet of heated living with an additional 1,760 square feet if you finish the lower level.
  • The large rear porch has a fireplace to warm your family gatherings.
  • Double doors in the master suite open to its own rear porch.
  • Two bedrooms on the second floor are set up for charming window seats and a loft overlooks both the foyer and the family room below.
  • Added Bonus: The basement is unfinished but plans include a layout for a bunk room, rec room and storage at no extra cost.
  • Related Plans: Remove the golf cart garage and get an attached garage with house plans 92391MX and 92350MX.
What's Included
The structured plan set includes:
  • Front, side and rear elevations at 1/4" scale.  All elevations include notes, dimensions and recommended materials.
  • Complete dimensioned and detailed floor plans
  • Foundation plan.  Typically, the plans show a basement foundation. Slab and crawlspace foundations are also available for most plans for an additional fee.
  • Roof plans at 1/4" scale showing all pitches, ridges, hips and valleys
  • Building cross section
  • Electrical plans are customer specific and not included.  A custom electrical plan can be created for $350.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
  • Electrical plans are customer specific and not included.  A custom electrical plan can be created for $350.

Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Mountain (or Lake) House Plan with Outdoor Fireplace and Vaulted Ceilings

  • 2,618

    Heated s.f.

  • 3-4

    Beds

  • 3.5 - 4.5

    Baths

  • 2

    Floors

Floor Plan

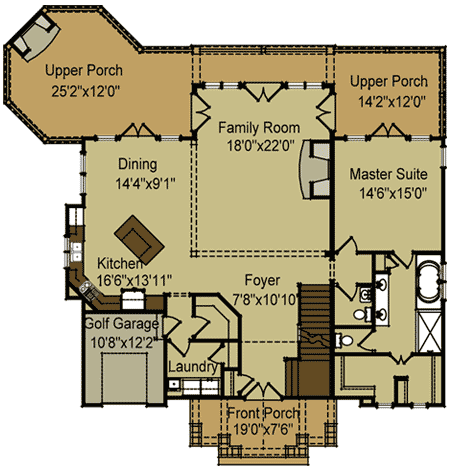

  • Main Level

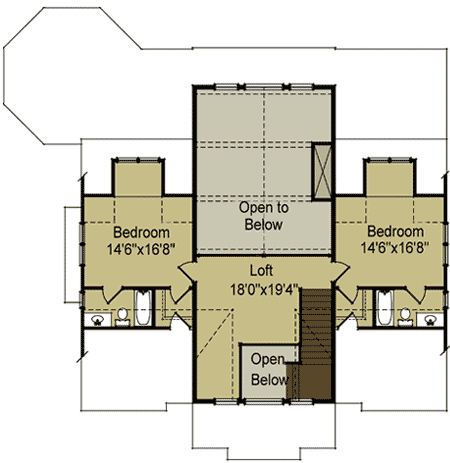

  • 2nd Floor

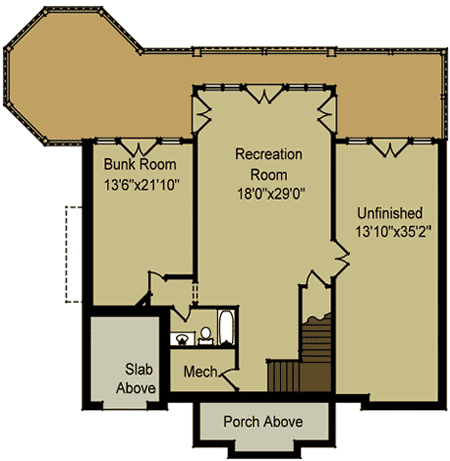

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total: 2,618 sq. ft.
  • 1st Floor: 1,760 sq. ft.
  • 2nd Floor: 858 sq. ft.

Dimensions

  • Width: 59' 0"
  • Depth: 60' 0"
  • Max ridge height: 24' 0"

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 3 or 4
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Walkout
    • Optional Foundations: Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 9 on 12
  • Secondary Pitch: 12 on 12
