Waterfront Northwest House Plan with Stacked Rear Decks

Plan 23927JD

This plan plants 3 trees

4,740
Heated s.f.
3
Beds
4
Baths
2
Stories
4
Cars

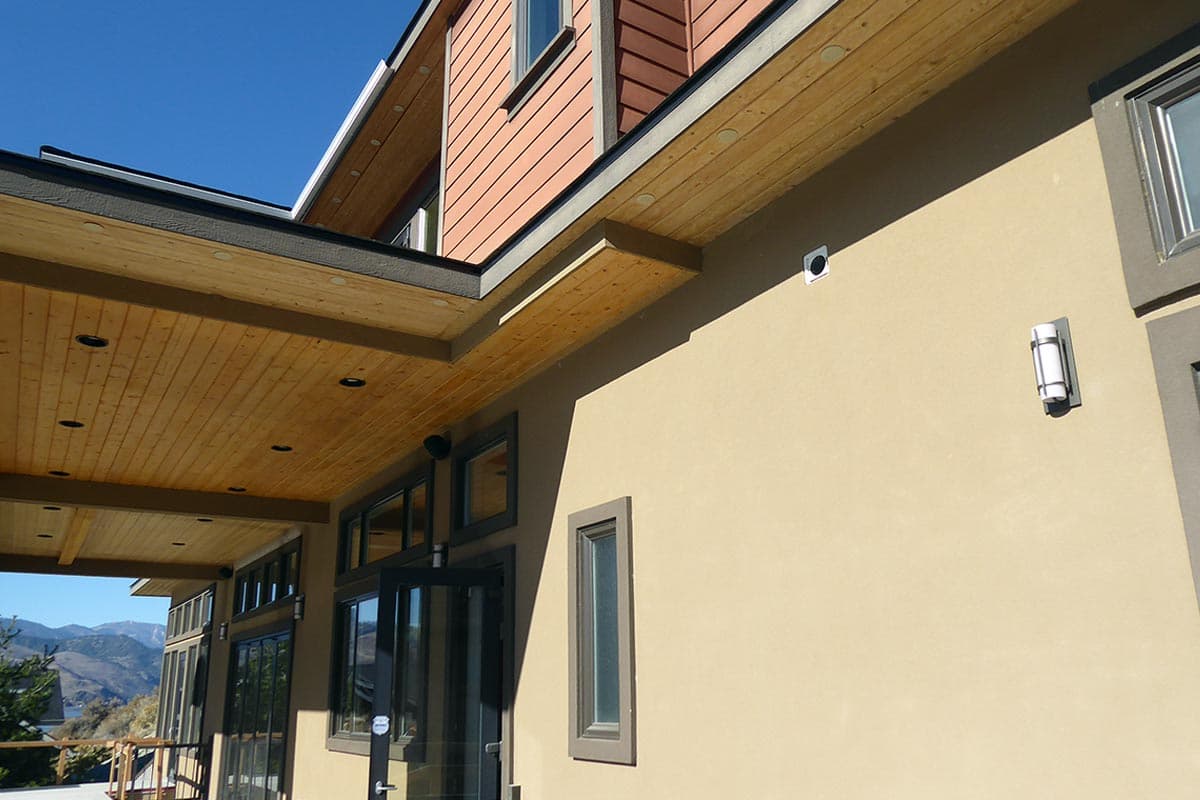

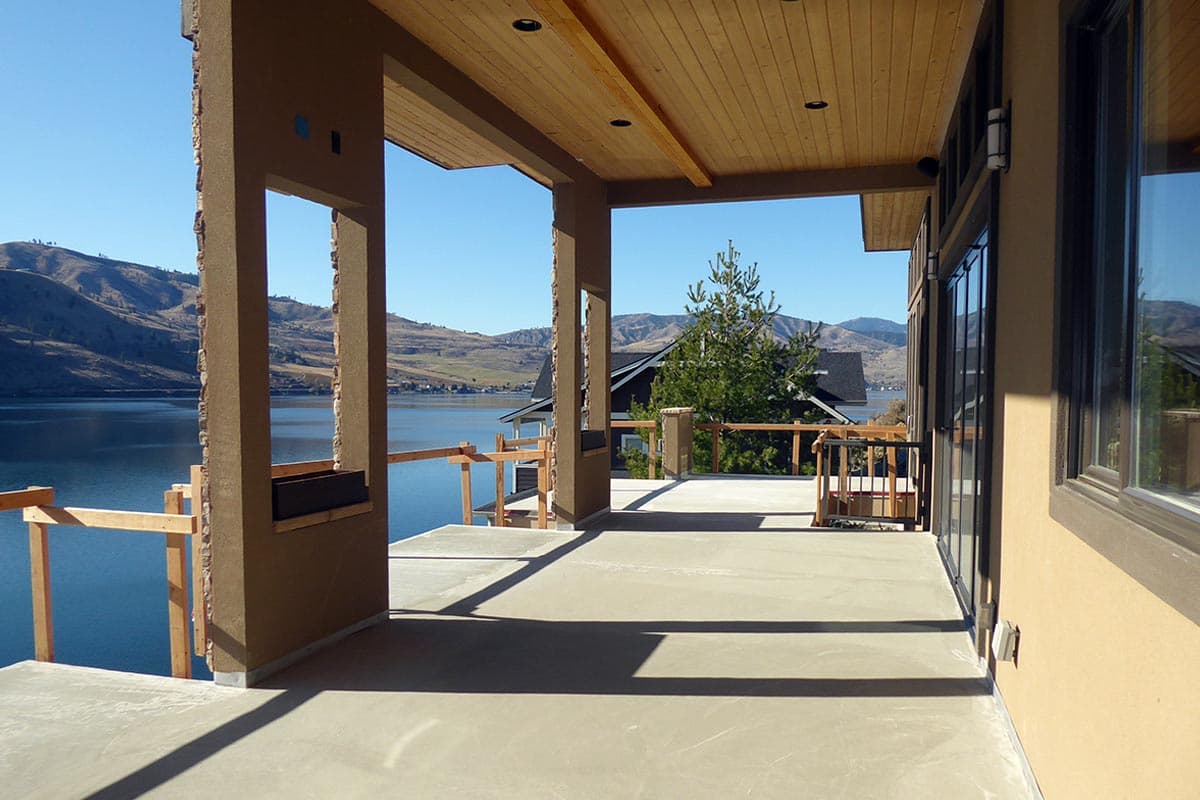

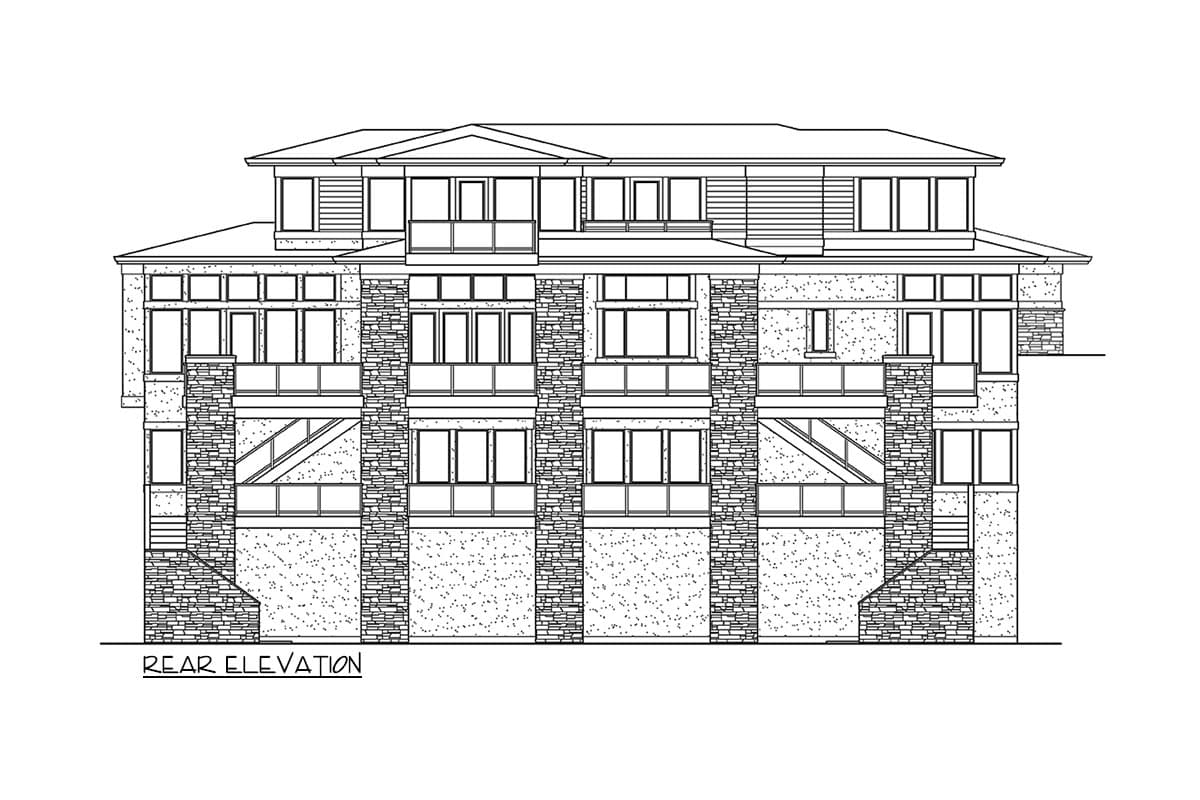

Three levels of covered decks span the rear elevation of this Northwest home plan creating the ideal space to enjoy the surrounding views.

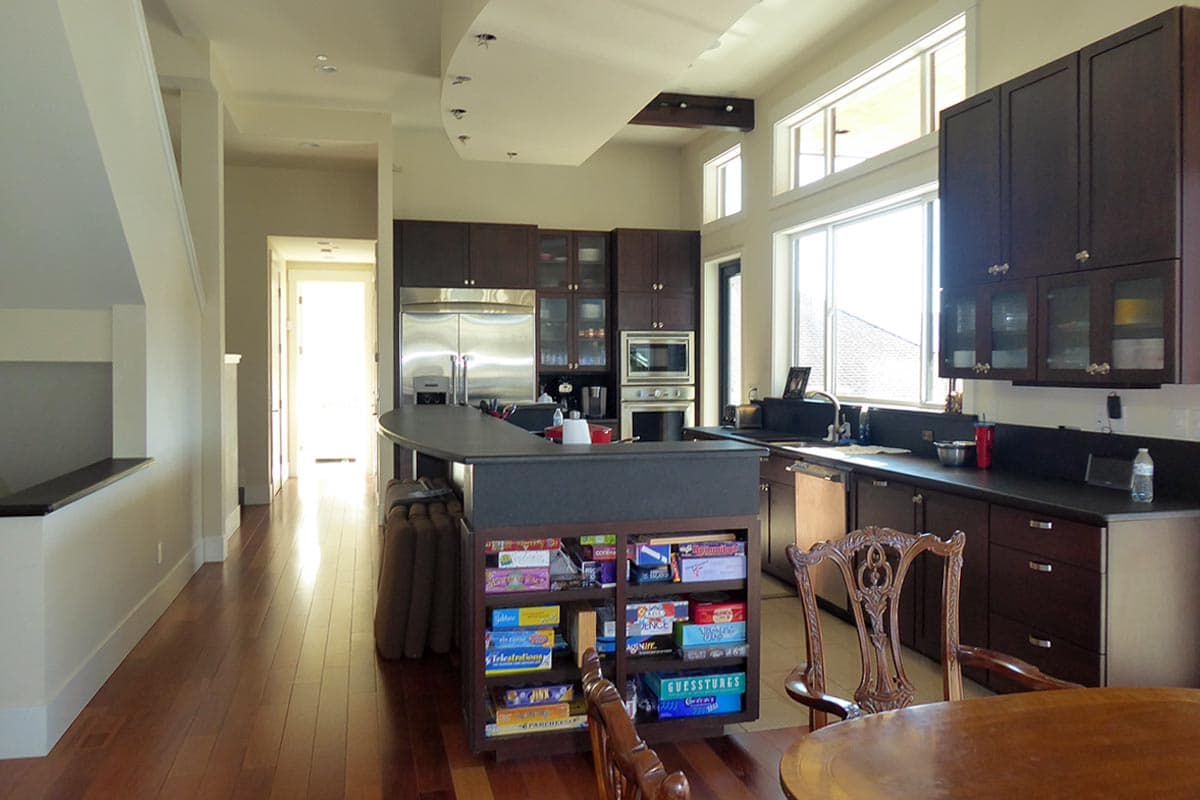

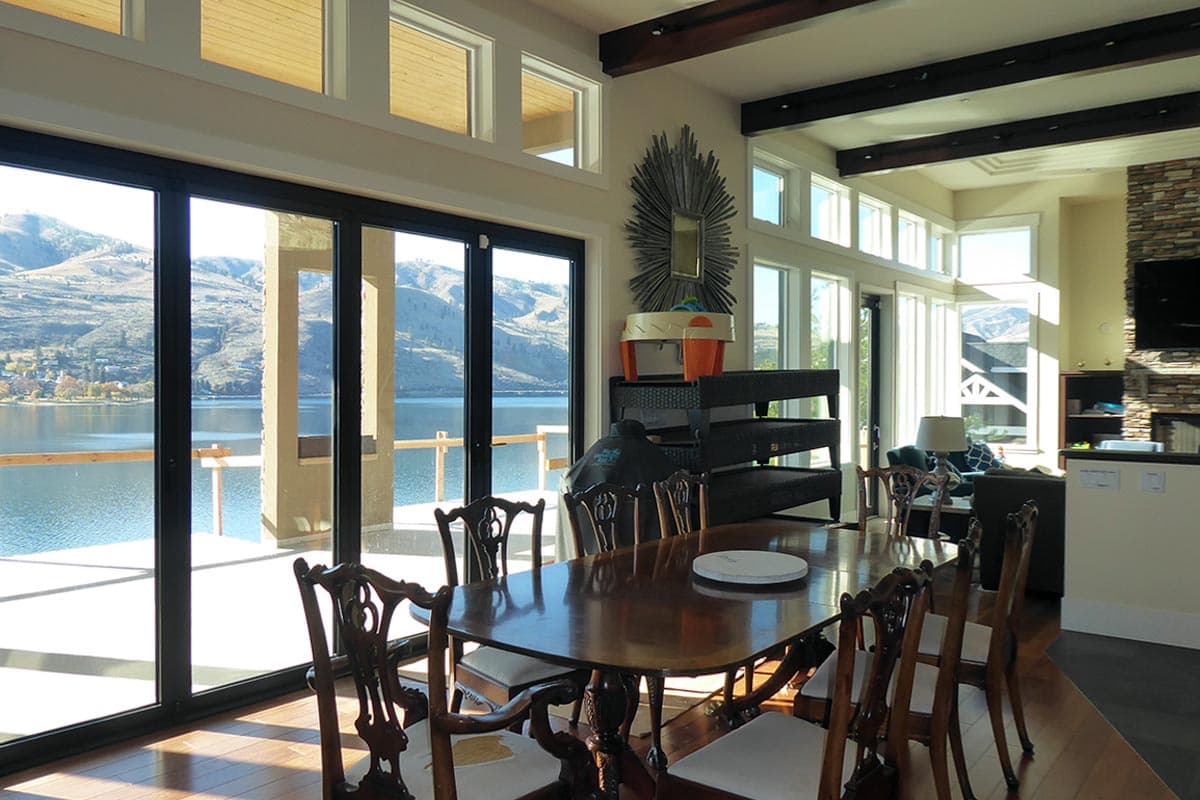

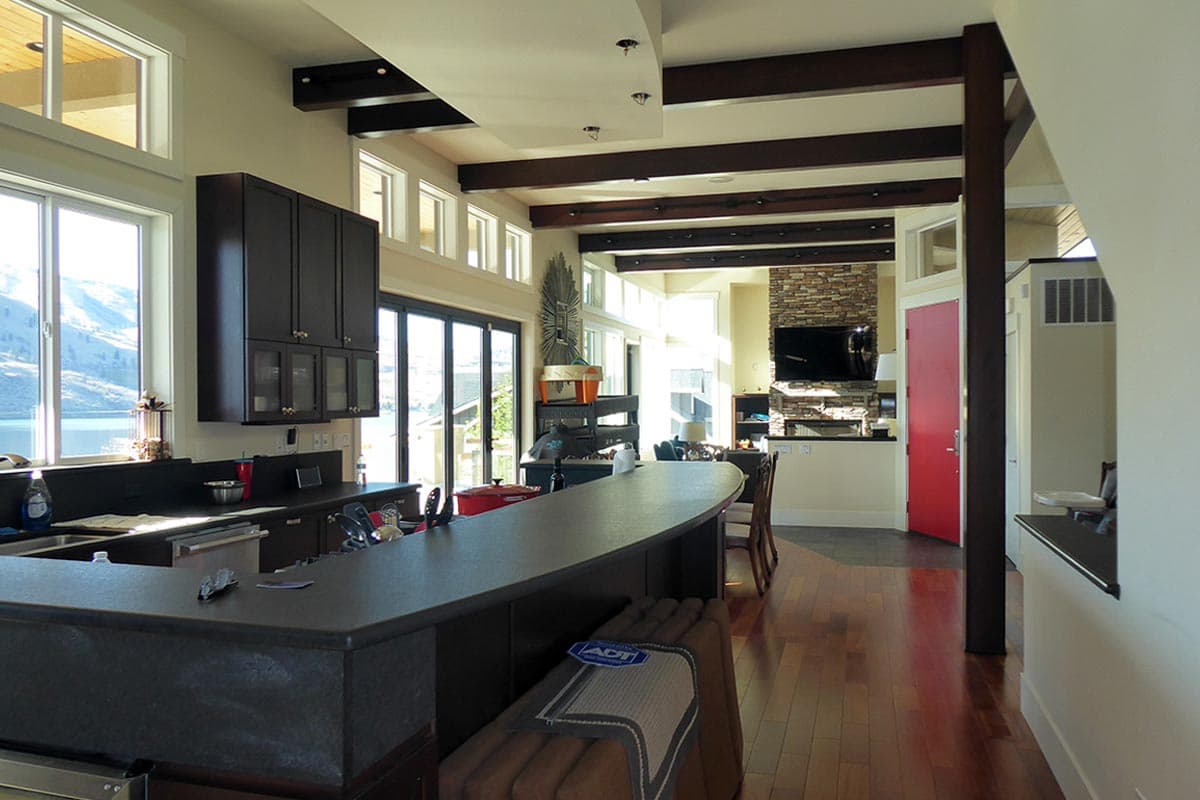

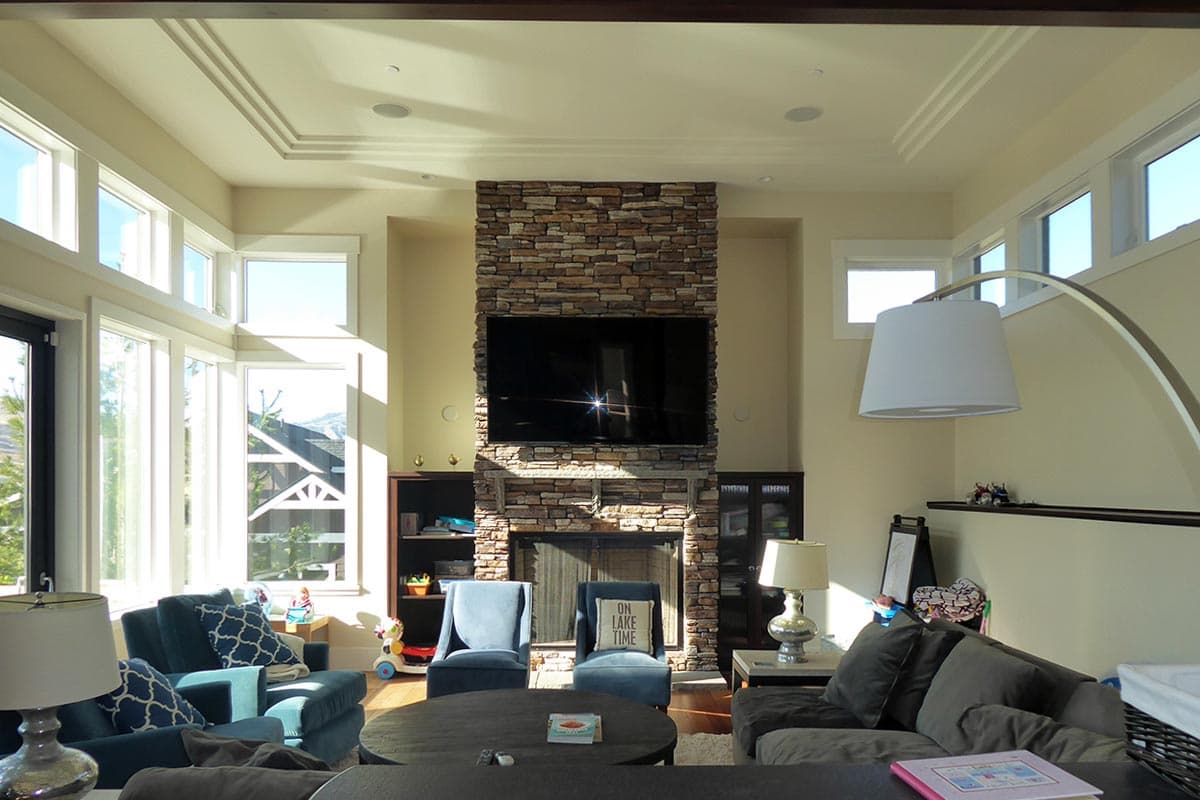

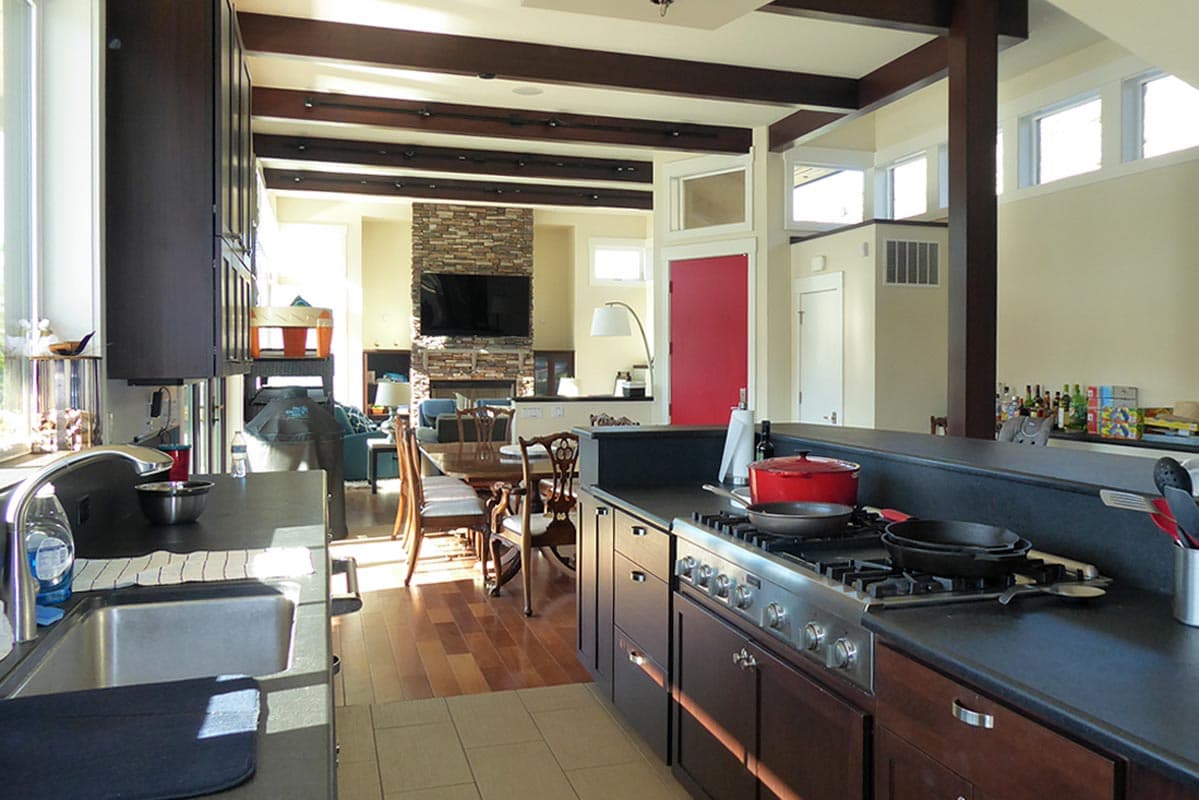

A double-sided fireplace warms the living room and dining area, which flows into the kitchen. These shared living spaces are filled with natural lighting from an abundance of windows.
A home office completes the main level, located behind the 4-car, tandem garage.

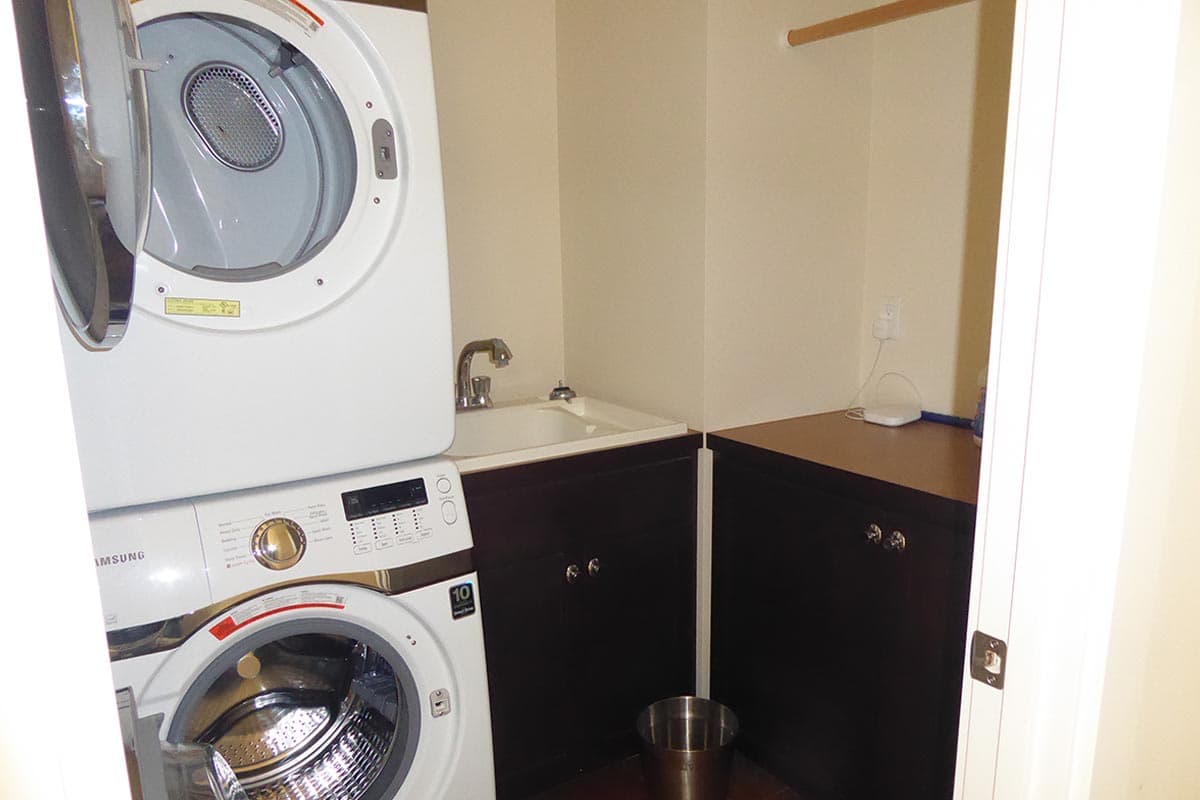

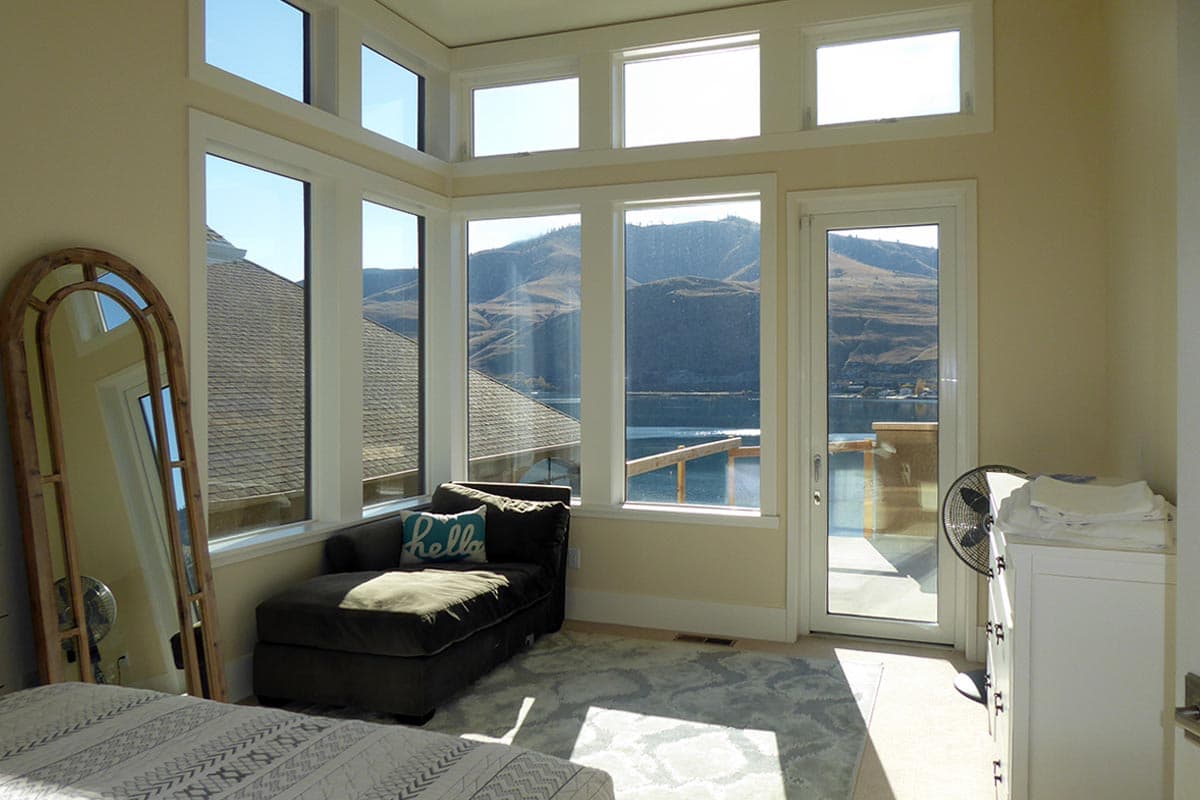

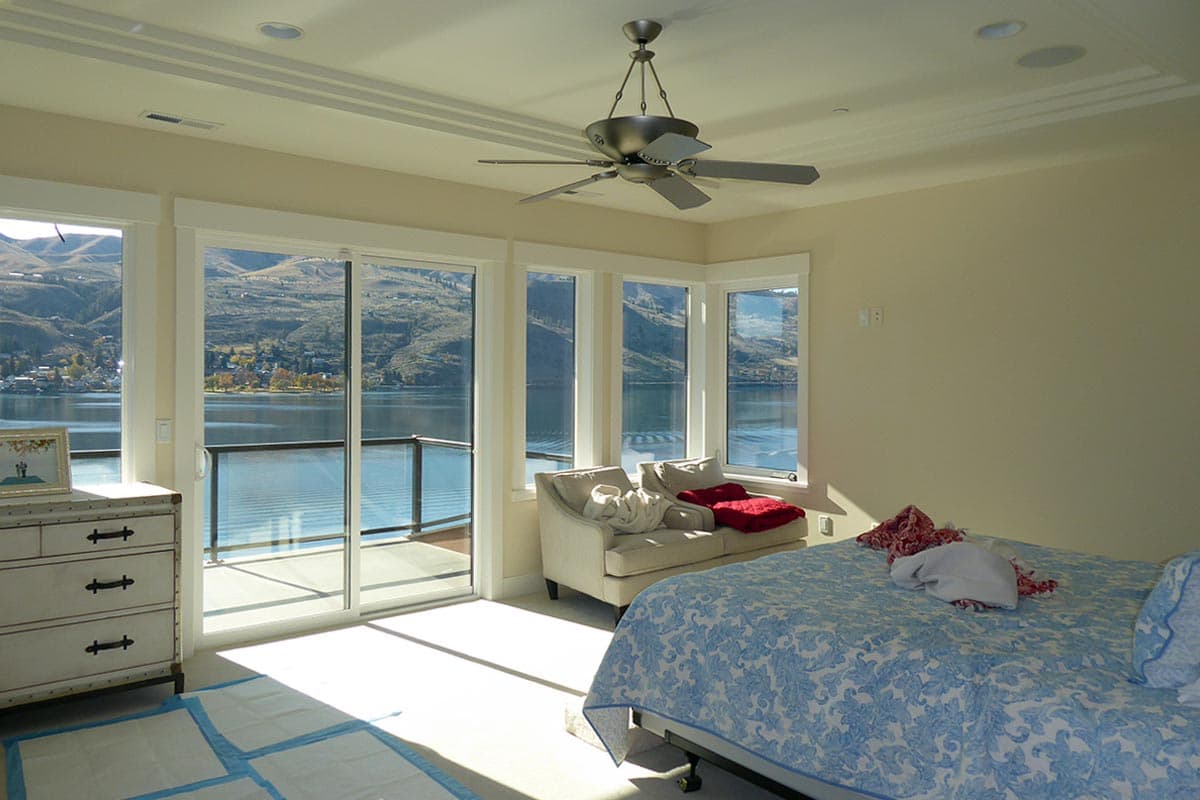

Three bedrooms, a bonus room, and the laundry room can be found upstairs. The master and one of the secondary bedrooms offer their own private deck.
Discover a spacious rec room in the walk-out basement, along with a wine making room for the hobbyist and a media room.
NOTE: If building in the state of Washington, your plan purchase cannot be done online. Please contact us directly.

Each plan set includes the following:

Cover Sheet
The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.

Schedule Sheet
The schedule sheet includes the roof and foundation ventilation schedules, insulation and vapor barrier specifications, and exhaust fan ventilation schedule.

Detail Sheet
The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.

Foundation Plan Sheet
The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information. If you require a different foundation type, please contact us for modifications to your plan.

Floor Plan Sheet
Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.

Roof Framing Plan Sheet
The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.

Elevation Sheet

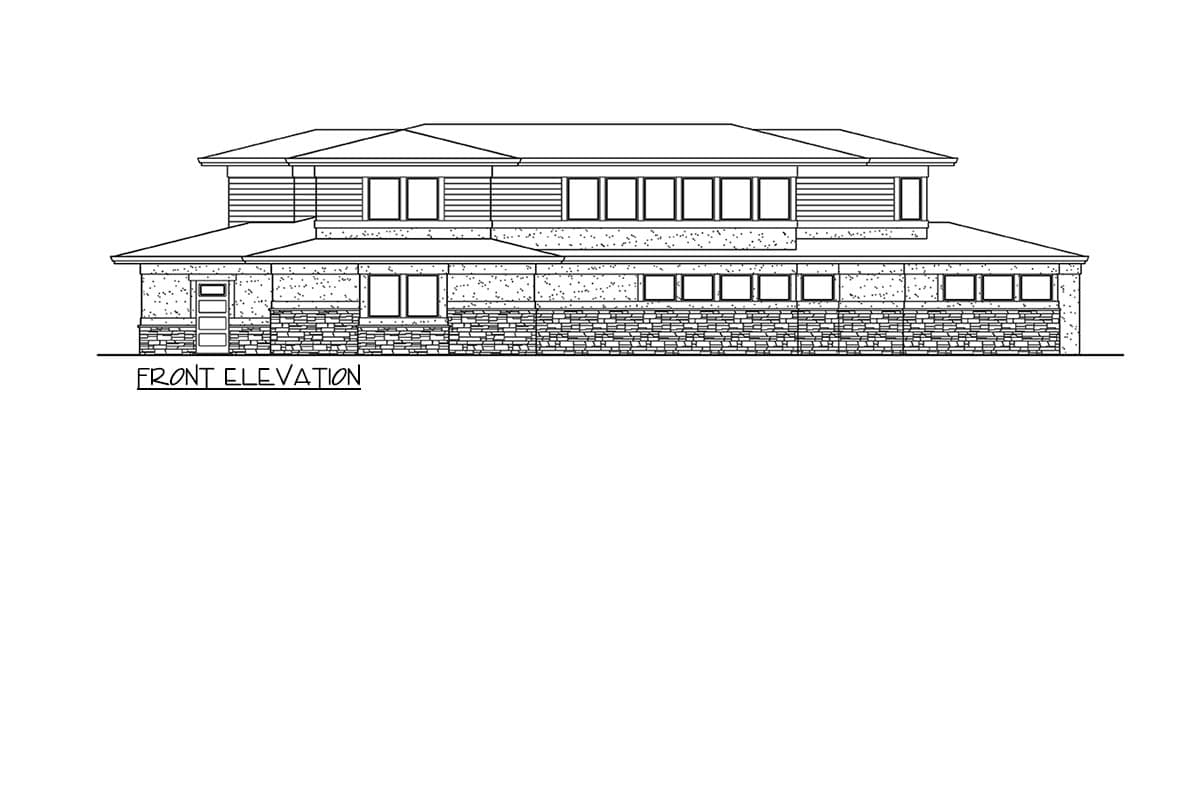

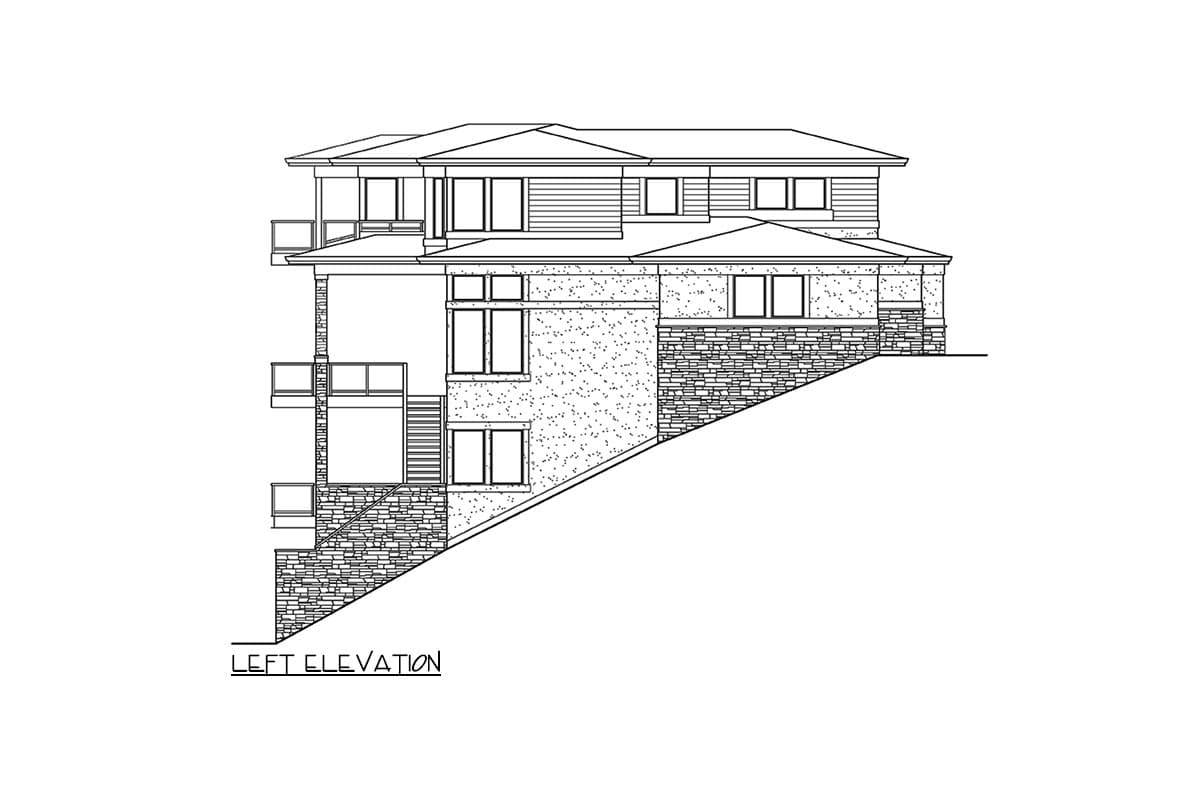

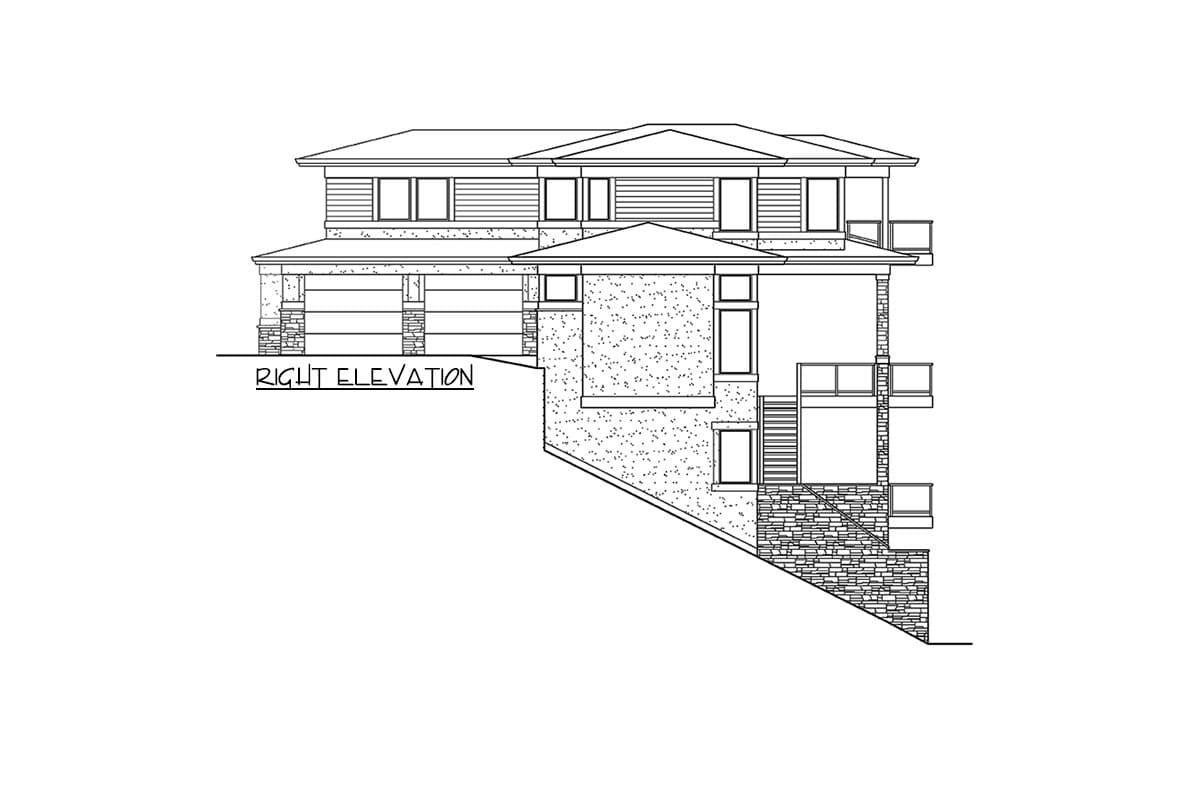

Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.

Building Section Sheet
Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.

These items are NOT included:

Electrical Plan - handled by your subcontractor to match your individual needs
Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Floor Plan

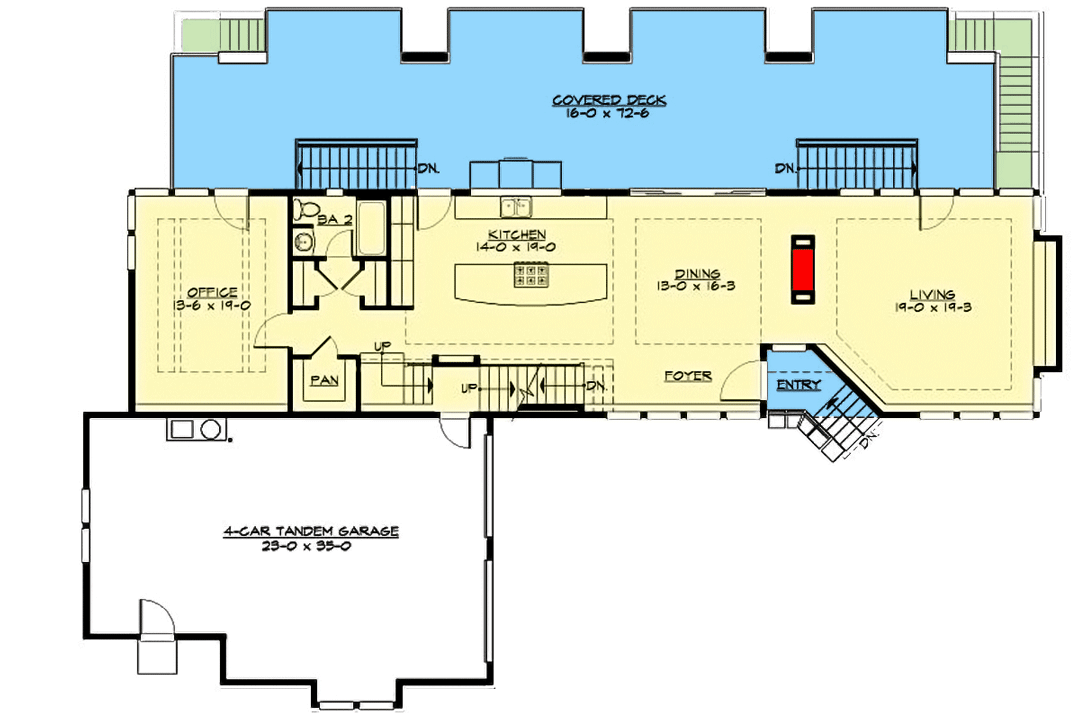

Main Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

Waterfront Northwest House Plan with Stacked Rear Decks - 23927JD floor plan - Main Level

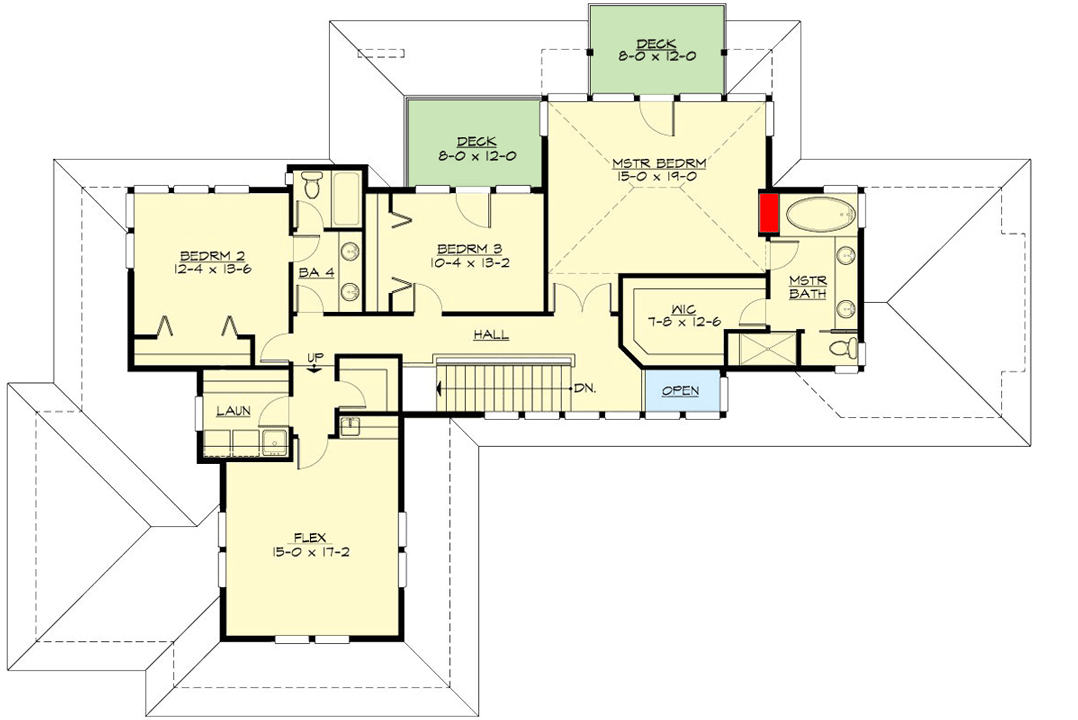

2nd Floor

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

Waterfront Northwest House Plan with Stacked Rear Decks - 23927JD floor plan - 2nd Floor

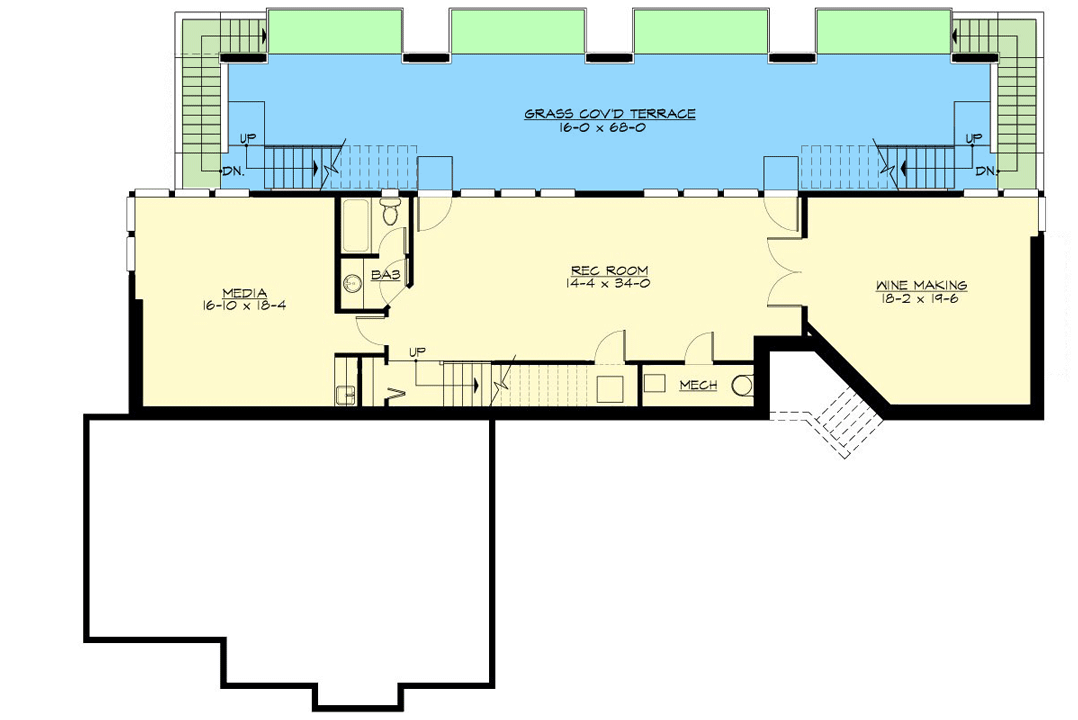

Basement

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

Waterfront Northwest House Plan with Stacked Rear Decks - 23927JD floor plan - Basement

Plan details

Square Footage Breakdown

Total Heated Area: 4,740 sq. ft.
Lower Level: 1,558 sq. ft.
1st Floor: 1,582 sq. ft.
2nd Floor: 1,600 sq. ft.

Beds/Baths

Bedrooms: 3

Full bathrooms: 4

Foundation Type

Standard Foundations: Walkout

Need A Different Foundation? Request A Modification Quote

Exterior Walls

Standard Type(s): 2x6

Dimensions

Width: 86' 0"
Depth: 61' 6"
Max ridge height: 24' 11"

Garage

Type: Attached
Area: 816 sq. ft.
Count: 4 Cars
Entry Location: Courtyard

Ceiling Heights

Floor / Height: Lower Level / 10' 0" First Floor / 12' 0" Second Floor / 9' 0"

Roof Details

Primary Pitch: 3 on 12

Framing Type: Truss

Architectural Style

Special features

Plan Collections
